Is the 13.60mm height measured from the PCB surface or including the pins?

From the PCB top surface to the top of the plastic body, so it is the number you use for lid clearance. The solder tails extend below the board. If you have a 15mm internal height and a 1.6mm board, you have 1.4mm of clearance above the jack, which is enough for a thin foam pad but not for a light pipe housing. Send us your enclosure drawing and we will check the stack.

Does the integrated magnetics support 100m Cat5e at 1000Base-T in a noisy environment?

Yes, that is the design case. The integrated transformer has 1CT:1CT turns ratio and the common mode rejection is good enough for 100m Cat5e in an industrial cabinet. Two things matter. Keep the cable pairs matched to 100 ohm and do not untwist more than 13mm at the plug. If you are next to a VFD or a servo drive, add a common mode choke on the cable side, the jack alone will not fix a badly routed cable.

What LED drive current do the green and yellow LEDs need?

Both LEDs are rated for 20mA nominal and will work from 5mA up. At 10mA you get good visibility through a 3mm light pipe and less heat. Use a 330 ohm series resistor from 3.3V for about 6mA, or 150 ohm for 12mA if your panel is thick. Do not exceed 30mA continuous, and note the green and yellow have slightly different forward voltages, so do not share one resistor between them.

Our chassis is anodised aluminium. How do we bond the EMI tabs reliably?

Anodising is an insulator, so the tabs must land on a masked area or on a separate ground pad. Mask a 4mm by 10mm window under each side of the shield and keep the anodise off it. Then check continuity from the shield to the chassis screw, target under 1 ohm. If you cannot mask, add a conductive foam gasket between the shield and the chassis, but that costs more than masking.

What is the difference between the BST circuit version and a plain transformer jack?

The BST circuit adds a small network across the centre taps that improves common mode balance and reduces emissions at 1G. It also helps with the return loss at the low end. For a 1000Base-T port near a switching regulator we recommend the BST version, it usually saves you a common mode choke. For a 10/100 port the plain version is enough.

Can this jack be used on a PoE port if we only pass 15W?

No. This is a non PoE part, the centre taps are not rated for the current and the magnetics are not designed for the DC bias. For 802.3af at 15W you need a PoE rated jack with a suitable transformer, usually a 1CT:1CT with a larger core and thicker wire. Passing PoE through this part will heat the winding and eventually open it, and it will not be covered by warranty.

Breadcrumb: Home; Products; Integrated RJ45 Connector; Single Port RJ45 Connector; 1000 Base-T RJ45 Connector; 95297

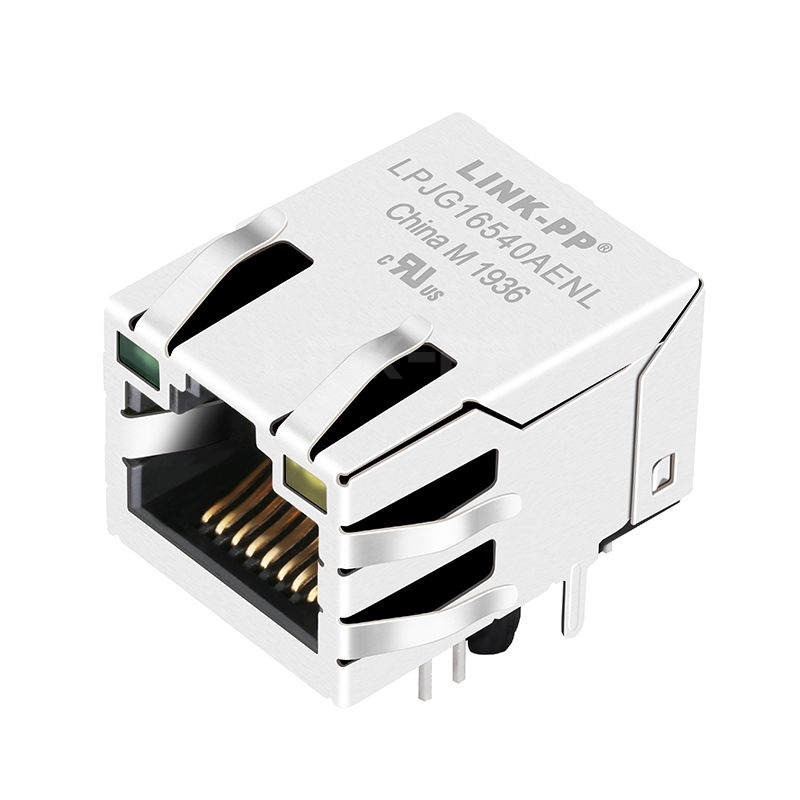

Tyco 1840711-8 Compatible LINK-PP LPJG16540AENL 100/1000 Base-T Tab Up Green/Yellow Led Single Port 10 Pin RJ 45 Female Jack

Name: Tyco 1840711-8 Compatible LINK-PP LPJG16540AENL 100/1000 Base-T Tab Up Green/Yellow Led Single Port 10 Pin RJ 45 Female Jack
Brand: LINK-PP
SKU: 95297
Price: 3.53 USD
Availability: InStock
Rating: 4.9 (15 reviews)

Product: Tyco 1840711-8 Compatible LINK-PP LPJG16540AENL 100/1000 Base-T Tab Up Green/Yellow Led Single Port 10 Pin RJ 45 Female Jack
SKU: 95297
P/N: LPJG16540AENL
Price: $ 3.53
Stock: 6100 in Stock
Sold: 2.9K
Product URL: https://www.l-p.com/products/434589.htm

15 Reviews

6 Questions

2.9KSold

Unit price $ 3.53

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

Manufacture: LINK-PPP/N: LPJG16540AENLSKU: 95297

Compatible with Tyco 1840711-8Datasheet 3D Model All downloads

Compatible:: LINK-PP; Tyco; UDE

Compatible P/N:: 1840711; 1840711-8

Volume pricing Online tiers · larger qty or custom price on request

$ 3.530

1–99 pcs

$ 2.892

100–599 pcs

$ 2.539

600–1,199 pcs

$ 1.940

1,200–5,999 pcs

$ 1.658

≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

6100 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 600.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

SPQ 50

Total Price:

$ 3.53

Packaging Details

SPQ:50 pcs
Qty/carton:1200 pcs
Package:Tray
Carton size:32×30×31 cm
N.W/pcs:0.008 kg
G.W/carton:9 kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

Tyco 1840711-8 Compatible LINK-PP LPJG16540AENL 100/1000 Base-T 10 Pin RJ 45 Female Jack for Industrial PC and Fieldbus System (Single Port, Tab Up, Green/Yellow Led)

The LPJG16540AENL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number:	LPJG16540AENL	Tyco Part Number	1840711-8
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet( NoN PoE )
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	UP	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Yellow Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.535/13.60	Package Length (Inches/mm)	0.846/21.50
Package Width (Inches/mm)	0.630/16.00	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

10 Pin RJ 45 Female Jack

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

LPJG16540AENL Drawing LPJG16540AENL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Q:
Is the 13.60mm height measured from the PCB surface or including the pins? by A***t

A:
From the PCB top surface to the top of the plastic body, so it is the number you use for lid clearance. The solder tails extend below the board. If you have a 15mm internal height and a 1.6mm board, you have 1.4mm of clearance above the jack, which is enough for a thin foam pad but not for a light pipe housing. Send us your enclosure drawing and we will check the stack. by LINK-PP Technical Support
Q:
Does the integrated magnetics support 100m Cat5e at 1000Base-T in a noisy environment? by K***n

A:
Yes, that is the design case. The integrated transformer has 1CT:1CT turns ratio and the common mode rejection is good enough for 100m Cat5e in an industrial cabinet. Two things matter. Keep the cable pairs matched to 100 ohm and do not untwist more than 13mm at the plug. If you are next to a VFD or a servo drive, add a common mode choke on the cable side, the jack alone will not fix a badly routed cable. by LINK-PP Technical Support
Q:
What LED drive current do the green and yellow LEDs need? by H***n

A:
Both LEDs are rated for 20mA nominal and will work from 5mA up. At 10mA you get good visibility through a 3mm light pipe and less heat. Use a 330 ohm series resistor from 3.3V for about 6mA, or 150 ohm for 12mA if your panel is thick. Do not exceed 30mA continuous, and note the green and yellow have slightly different forward voltages, so do not share one resistor between them. by LINK-PP Technical Support
Q:
Our chassis is anodised aluminium. How do we bond the EMI tabs reliably? by T***d

A:
Anodising is an insulator, so the tabs must land on a masked area or on a separate ground pad. Mask a 4mm by 10mm window under each side of the shield and keep the anodise off it. Then check continuity from the shield to the chassis screw, target under 1 ohm. If you cannot mask, add a conductive foam gasket between the shield and the chassis, but that costs more than masking. by LINK-PP Technical Support
Q:
What is the difference between the BST circuit version and a plain transformer jack? by D***n

A:
The BST circuit adds a small network across the centre taps that improves common mode balance and reduces emissions at 1G. It also helps with the return loss at the low end. For a 1000Base-T port near a switching regulator we recommend the BST version, it usually saves you a common mode choke. For a 10/100 port the plain version is enough. by LINK-PP Technical Support
Q:
Can this jack be used on a PoE port if we only pass 15W? by M***s

A:
No. This is a non PoE part, the centre taps are not rated for the current and the magnetics are not designed for the DC bias. For 802.3af at 15W you need a PoE rated jack with a suitable transformer, usually a 1CT:1CT with a larger core and thicker wire. Passing PoE through this part will heat the winding and eventually open it, and it will not be covered by warranty. by LINK-PP Technical Support

Customer Reviews

4.9

15 Reviews
5 Stars

93%

4 Stars

7%

3 Stars

0%

2 Stars

0%

1 Star

0%

All Reviews (15)

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only

No data

G***k

Switzerland

Verified Purchase

5.0

2026-11-01

The jack body is FR4 and the contacts are selective gold. After a year in a dusty workshop the contacts still look clean and no link errors.

35 Helpful Comments

Y***n

Belgium

Verified Purchase

5.0

2026-10-23

We put this on a PoE passthrough product by mistake and it worked for data only, which is exactly what the datasheet says. Our own fault, but the part behaved as specified.

74 Helpful Comments

M***d

Netherlands

Verified Purchase

5.0

2026-09-19

One thing, the LED pins are on a 2.54mm pitch so watch your trace routing if you drive them from a shift register. Not a problem, just plan it.

27 Helpful Comments

S***n

New Zealand

Verified Purchase

5.0

2026-09-17

Good part for a low cost 1G port. We compared with a discrete transformer design and this was cheaper once we counted the pick and place steps we saved.

16 Helpful Comments

J***d

Spain

Verified Purchase

5.0

2026-07-31

Ran 500 hours at 60℃ with continuous 1G traffic. No link drops, no LED flicker. The magnetics do not run hot, maybe 8℃ above ambient. We also did 200 cable insertions during the run, and the retention force at the end was 7.2N, only 0.8N below a new part. Good enough for a port that gets repatched monthly.
