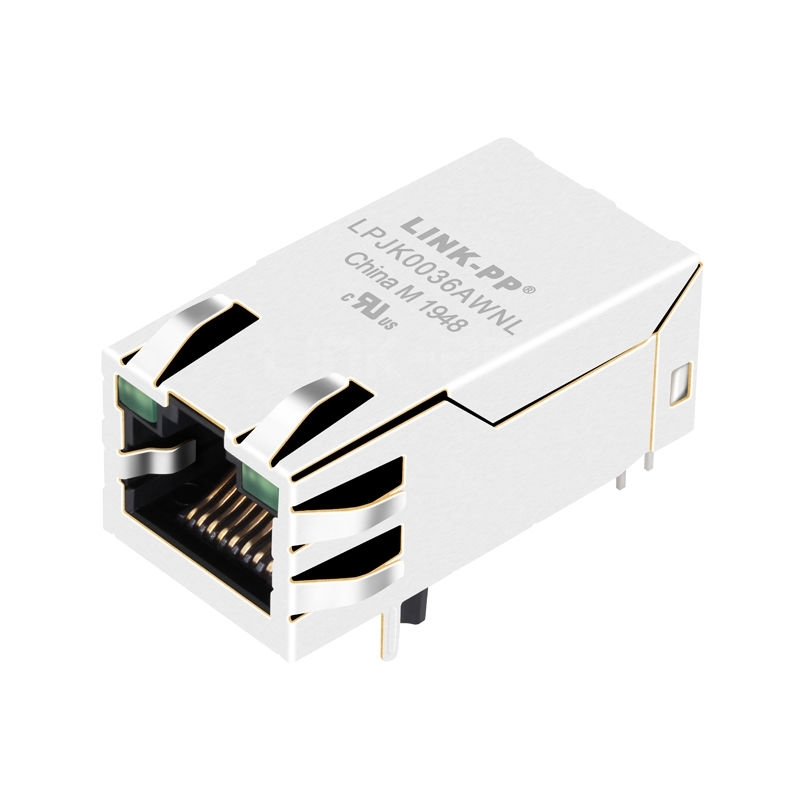

Tyco 1840728-7 Compatible LINK-PP LPJK0036AWNL 100/1000 Base-T Tab Up Green/Green Led 1x1 Port Industrial RJ45 Female Connector

Product: Tyco 1840728-7 Compatible LINK-PP LPJK0036AWNL 100/1000 Base-T Tab Up Green/Green Led 1x1 Port Industrial RJ45 Female Connector
SKU: 94564
P/N: LPJK0036AWNL
Price: $ 4.41
Stock: 1276 in Stock
Sold: 39.2K
Product URL: https://www.l-p.com/products/434235.htm

0 Reviews

0 Questions

39.2KSold

Unit price $ 4.41

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

Manufacture: LINK-PPP/N: LPJK0036AWNLSKU: 94564

Compatible with Tyco 1840728-7Datasheet 3D Model Test report All downloads

Compatible:: LINK-PP; Belfuse; Halo; Tyco

Compatible P/N:: 1840728-7

Volume pricing Online tiers · larger qty or custom price on request

$ 4.410

1–99 pcs

$ 3.615

100–599 pcs

$ 3.174

600–1,199 pcs

$ 2.425

1,200–5,999 pcs

$ 2.072

≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

1276 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 99.00 (transceivers & cages) / $ 600.00 (others)

Quantity:

SPQ 60

Total Price:

$ 4.41

Packaging Details

SPQ:60 pcs
Qty/carton:840 pcs
Package:Tray
Carton size:37×30×30 cm
N.W/pcs:0.011 kg
G.W/carton:9 kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

Tyco 1840728-7 Compatible LINK-PP LPJK0036AWNL 100/1000 Base-T Industrial RJ45 Female Connector for Media Player and Game Controller (1x1 Port, Tab Up, Green/Green Led)

The LPJK0036AWNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, , Ethernet Control and Game Controller.

LINK-PP Part Number:	LPJK0036AWNL	Tyco Part Number	1840728-7
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	12p8c (RJ45, Ethernet)	Application-Lan	Ethernet( NoN PoE )
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	UP	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Green Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.531/13.50	Package Length (Inches/mm)	1.28/32.50
Package Width (Inches)	0.654/16.60	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

RJ45 Female Connector

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

LPJK0036AWNL Drawing LPJK0036AWNL-Drawing.pdf
