belfuse 0826-1a1t-32-f compatible link-pp lpjk4036ahnl 100 1000 base-t tab up green yellow led 1x1 port 12 pin connector lan rj45 filter connector

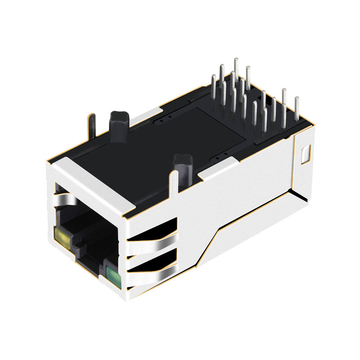

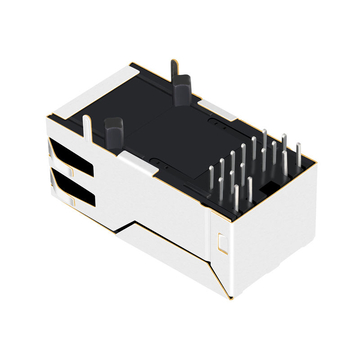

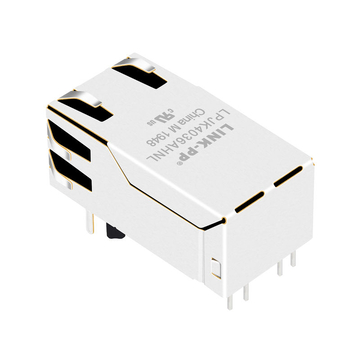

Belfuse 0826-1A1T-32-F Compatible LINK-PP LPJK4036AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port 12 Pin Connector Lan RJ45 Filter Connector

Product summary

Product
Belfuse 0826-1A1T-32-F Compatible LINK-PP LPJK4036AHNL 100/1000 Base-T Tab Up Green/Yellow Led 1x1 Port 12 Pin Connector Lan RJ45 Filter Connector
SKU
94474
P/N
LPJK4036AHNL
Price
$ 4.11
Stock
8800 in Stock
Sold
11.2K
Unit price $ 4.11
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK4036AHNLSKU: 94474

Compatible with Belfuse 0826-1A1T-32-FDatasheet3D ModelAll downloads

Compatible P/N:
0826-1A1T-32-F
Volume pricing Online tiers · larger qty or custom price on request
$ 4.110
1–99 pcs
$ 3.367
100–599 pcs
$ 2.956
600–1,199 pcs
$ 2.258
1,200–5,999 pcs
$ 1.930
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
8800 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 4.11
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

Belfuse 0826-1A1T-32-F Compatible LINK-PP LPJK4036AHNL 100/1000 Base-T 12 Pin Connector Lan RJ45 Filter Connector for Solar Inverter and Switches (1x1 Port, Tab Up, Green/Yellow Led)


The LPJK4036AHNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Home, , Solar Inverter and Game Controller.


LINK-PP Part Number:
LPJK4036AHNL Belfuse Part Number 0826-1A1T-32-F
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
12p8c (RJ45, Ethernet) Application-Lan
Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UPCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches)
0.654/16.60Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJK4036AHNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Green holds the link and yellow blinks with the probe traffic. The pair reads from the lid without opening the box. Our legend maps them that way on the label. No lamp at all tells the crew the cable is out. by LINK-PP Technical Support
  • A:
    Our longest run reaches a pump house 90 m away. The link trained at gigabit on the first try. The magnetics inside handle the loss, and both 100 and 1000 held through a season of testing. No retrain was logged. by LINK-PP Technical Support
  • A:
    The probe bus needs a signal pair beyond the link. This shell gives twelve contacts in a 16.60 mm width. A plain 8p8c body would have needed a second header on the board. 600 boxes went out with no fault. by LINK-PP Technical Support

Customer Reviews

  • 5

    35 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (35)
No data
B***r
Verified Purchase
5.0
2026-11-15
A cold cabinet dropped one port until we reflowed the tabs. Since then the shell has held at -40 ℃ without a crack. It sat within spec after the reflow. :)
A***n
Verified Purchase
5.0
2026-07-08
LPJK4036AHNL sat square in the cutout on the first try.
M***m
Czech Republic
Verified Purchase
5.0
2025-09-22
13.50 mm of height, 32.50 mm of depth, a good drop in.
M***n
Verified Purchase
5.0
2024-09-29
Latch up, the plate stayed whole. It matched the drawing on every dimension.
G***t
Verified Purchase
5.0
2024-01-19
Our first panel lost link on 2 of 8 ports after a cold night, and the cause was the boot pressing the latch. Once we trimmed the opening the ports held at 1G all winter. -40 ℃ is why we picked this one. The meter matched the drawing on insertion loss.
