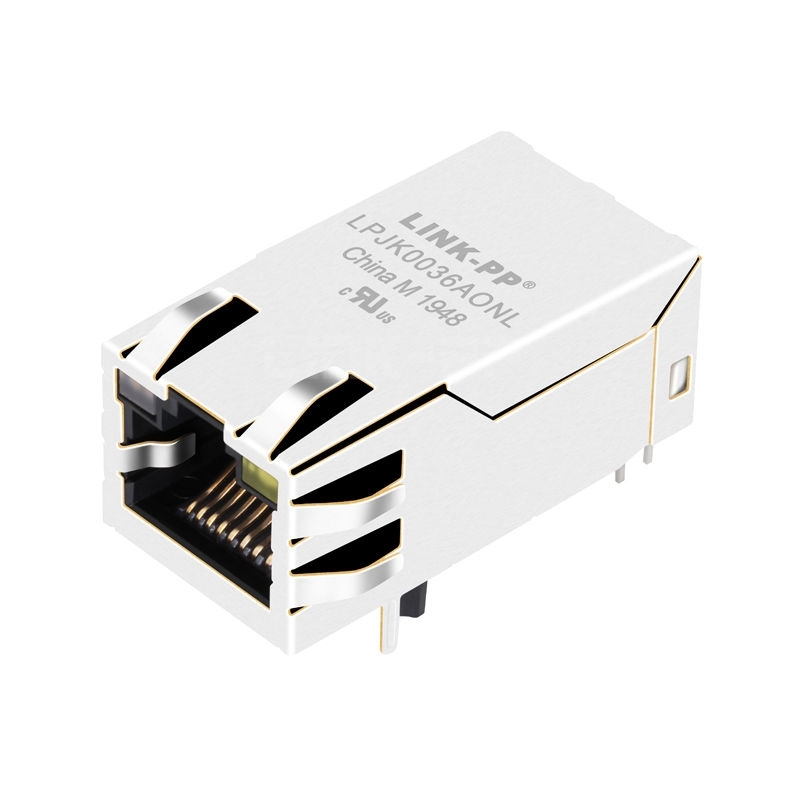

Belfuse 0826-1X1T-43-F Compatible LINK-PP LPJK0036AONL 100/1000 Base-T Tab Up Orange&Green/Yellow Led 1x1 Port RJ45 Network Connector

Product summary

Product
Belfuse 0826-1X1T-43-F Compatible LINK-PP LPJK0036AONL 100/1000 Base-T Tab Up Orange&Green/Yellow Led 1x1 Port RJ45 Network Connector
SKU
94194
P/N
LPJK0036AONL
Price
$ 4.41
Stock
5980 in Stock
Sold
14K
Unit price $ 4.41
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK0036AONLSKU: 94194

Compatible with Belfuse 0826-1X1T-43-FDatasheet3D ModelAll downloads

Compatible P/N:
L826-1X1T-43-F
0826-1X1T-43-F
Volume pricing Online tiers · larger qty or custom price on request
$ 4.410
1–99 pcs
$ 3.615
100–599 pcs
$ 3.174
600–1,199 pcs
$ 2.425
1,200–5,999 pcs
$ 2.072
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
5980 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 4.41
Packaging Details
60 pcs
960 pcs
Tray
37×30×30 cm
0.011 kg
10.1 kg

Belfuse 0826-1X1T-43-F Compatible LINK-PP LPJK0036AONL 100/1000 Base-T RJ45 Network Connector for Smart Home and The Handheld Device (POE+, 1x1 Port, Tab Up, Orange&Green/Yellow Led)


The LPJK0036AONL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as The Handheld Device, Smart Home, The Handheld Device and Game Controller.


LINK-PP Part Number:
LPJK0036AONL Belfuse Part Number 0826-1X1T-43-F
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
12p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UPCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Orange&Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.30/33.02

Package Width (Inches)
0.654/16.60Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJK0036AONL Drawing LPJK0036AONL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Pick the wider shell when the board needs one signal pair beyond the link. We used it for a door sensor and a tamper line. The jack then covered both without a second opening on the plate. by LINK-PP Technical Support
  • A:
    The body is 13.50 mm high and 16.60 mm wide on the board. Our door has 20 mm of clearance behind the plate. The cable bend fits without touching the frame. Two locker sizes share the same board. by LINK-PP Technical Support
  • A:
    The spare pair carries a door sensor line that our board already routed. Using the jack for it removed a small connector from the build. The sensor has run without a false trip since the cabinet went into service. by LINK-PP Technical Support
  • A:
    A door state message and a video still are all this link ever carries. Eight cores are plenty for that, and the magnetics sit inside the shell. Our cabinet answers a pickup request in under a second. by LINK-PP Technical Support
  • A:
    Orange and green sit on the two sides, with green for link and orange for activity. Our locker legend maps them that way on the door. The colours matched the old panel artwork from the first cabinet build. by LINK-PP Technical Support
  • A:
    The locker controller talks to a pickup screen and a door sensor board. Twelve contacts give the link plus a spare pair for the sensor. Our cabinet wires both through one jack and a single opening. by LINK-PP Technical Support

Customer Reviews

  • 5

    91 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (91)
No data
S***d
Verified Purchase
4.0
2026-05-22
The label on the box was creased and hard to read, but the bodies were right. This one carries no taps, which is what our design wanted. 1G linked on all 30 boards. No surprises once the box was open.
Y***d
Verified Purchase
5.0
2026-01-16
Orange, green and yellow. No fuss wiring the lamp legs.
E***k
Verified Purchase
5.0
2025-08-03
0 to 70 ℃ suits our cabinet. The header took it first time.
K***n
Verified Purchase
5.0
2025-03-22
Latch up, no interference. It matched the drawing on the tab side.
C***o
Finland
Verified Purchase
5.0
2024-11-07
The tabs tie the can to the board plane at the cutout, and a stitched pour carries the return between them. Our radiated scan came back inside the mask on the first run. We saw no crosstalk between the pairs at 1G, and the shield stayed bonded after a thermal cycle. That was good.
