Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
93869

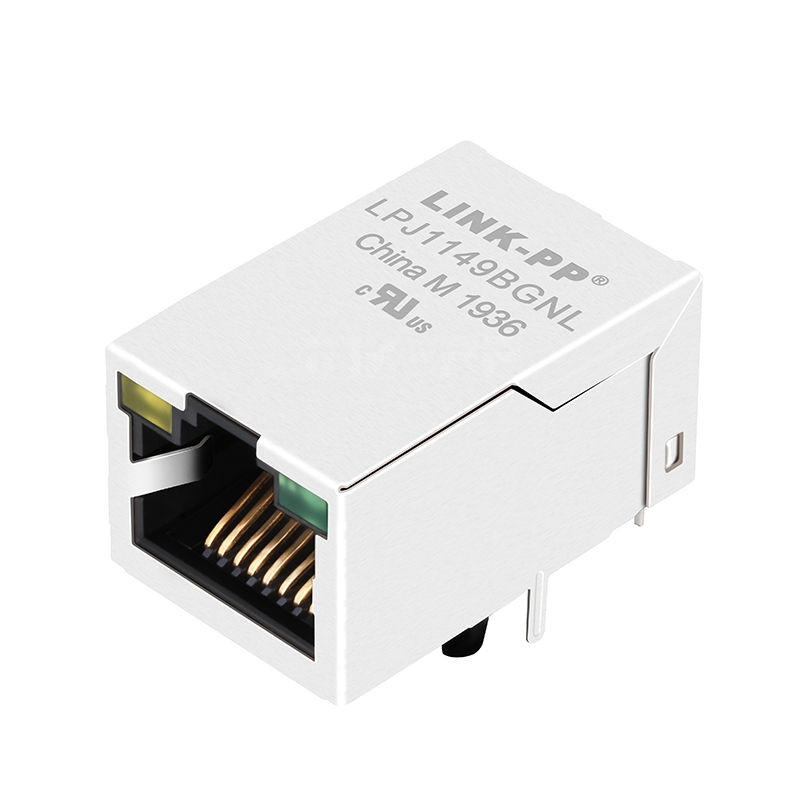

X Multiple XMH-RJH-1-D2E-1-180 Compatible LINK-PP LPJ1149BGNL 10/100 Base-T Single Port RJ45 Jack Magnetics Tab Up Yellow/Green Led

X Multiple XMH-RJH-1-D2E-1-180 Compatible LINK-PP LPJ1149BGNL 10/100 Base-T Single Port RJ45 Jack Magnetics Tab Up Yellow/Green Led

#93869
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

X Multiple XMH-RJH-1-D2E-1-180 Compatible LINK-PP LPJ1149BGNL 10/100 Base-T Single Port RJ45 Jack Magnetics Tab Up Yellow/Green Led

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
23 Reviews
0 Questions
Request Stock
13.6K Sold
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 5.291
100
$ 4.339
600
$ 3.81
1200
$ 2.911
6000
$ 2.487
Manufacture: LINK-PP
P/N: LPJ1149BGNL
Compatible:
X Multiple
Competitor P/N:
XMH-RJH-1-D2E-1-180
XMPH-01D-1-D25-110
XPJH-01D-1-D25-110
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
To Be Negotiated
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details
Stock:
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
undeliverable
Total Price:
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.total }}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}
Packaging Details:
0.007kg
Tray
50pcs
1200pcs
32*30*31cm
8.5kg
Add to wish

X Multiple XMH-RJH-1-D2E-1-180 Compatible LINK-PP LPJ1149BGNL 10/100 Base-T POE RJ45 Jack Magnetics for Digital Camera and Smart Meters (Rectifier Diode, Single Port, Tab Up, Yellow/Green Led)


The LPJ1149BGNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as The Handheld Device, Game Controller, Patient Care and Game Controller.


LINK-PP Part Number:
 LPJ1149BGNL X Multiple Part Number XMH-RJH-1-D2E-1-180
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Yellow/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.994/25.25

Package Width (Inches)
0.636/16.15Temperature

0℃ TO 70℃

Bst Circuit
NoAutomDX

YES

Diodes
Rectifier DiodeContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
  1. with-tvs-and-diode-rj45-connector
  2. RJ45 Jack Magnetics

Matching Products
Pictures ID# Description Price Stock Add to Cart

Download

LPJ1149BGNL Drawing

3D Model
