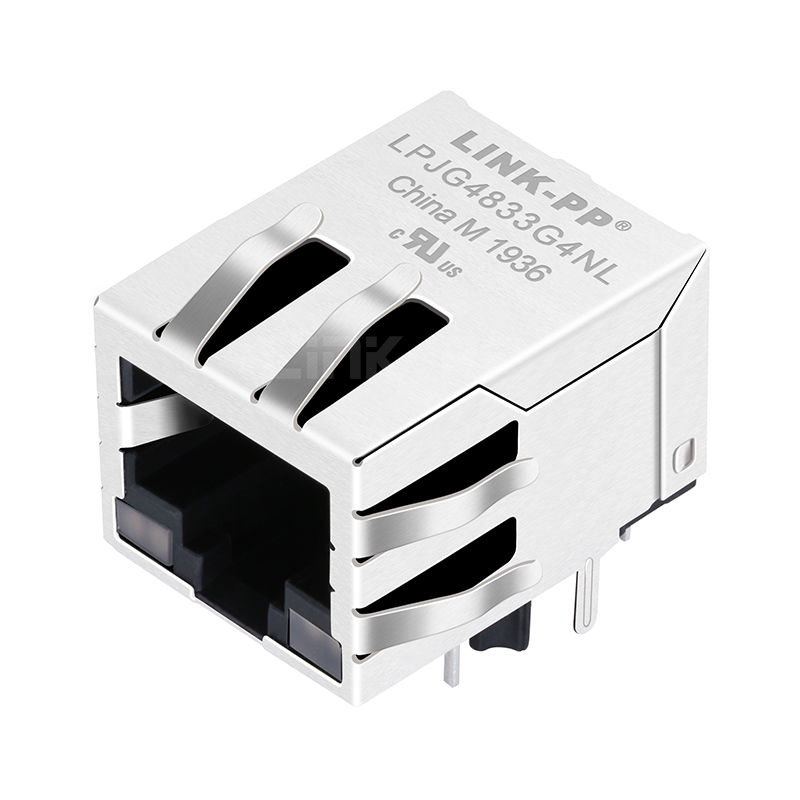

Tyco 1840408 Compatible LINK-PP LPJG4833G4NL 100/1000 Base-T Tab Down G&Y/G&Y Led Single Port Shielded RJ45 8 Pin Connector

Tyco 1840408 Compatible LINK-PP LPJG4833G4NL 100/1000 Base-T Tab Down G&Y/G&Y Led Single Port Shielded RJ45 8 Pin Connector

#87224
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100
0 Questions
Request Stock
7.1K Sold
฿  142.147
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
฿142.147
100
฿116.58
600
฿102.362
1200
฿78.182
6000
฿66.834
Manufacture: LINK-PP
P/N: LPJG4833G4NL
Compatible:
LINK-PP
Tyco
Competitor P/N:
2-1840408-6
1840408
Shipping:
฿ 950.113
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1292 in Stock .
Quantity:
Total Price:
฿ 142.147
Packaging Details:
0.008kg
Tray
50pcs
1200pcs
32*30*31cm
9kg

Tyco 1840408 Compatible LINK-PP LPJG4833G4NL 100/1000 Base-T Shielded RJ45 8 Pin Connector for Monitoring System and Smart Meters (Single Port, Tab Down, G&Y/G&Y Led)


The LPJG4833G4NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Industrial PC, Hub and Smart Meters.


LINK-PP Part Number:
LPJG4833G4NL Tyco Part Number 1840408
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
Down Cores per Port
12
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green&Yellow/Green&Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

Download

LPJG4833G4NL Drawing
