Juniper QSFP112-FR4-400G Compatible LINK-PP 400G QSFP112 Specifications QSFP112-FR4-400G is an advanced 400G QSFP112 transceiver designed to operate as a 4 x 100G PAM4 optical module across CWDM wavelengths (1271nm, 1291nm, 1311nm, and 1331nm), delivering up to 2km of data transmission over single-mode fiber (SMF) under standard commercial conditions (0 to +70°C) while ensuring full compliance with the 100G Lambda MSA 400G-FR4 specification and integrating real-time digital diagnostic monitoring. Juniper Part NumberQSFP112-FR4-400GVendor NameLINK-PP Form Factor

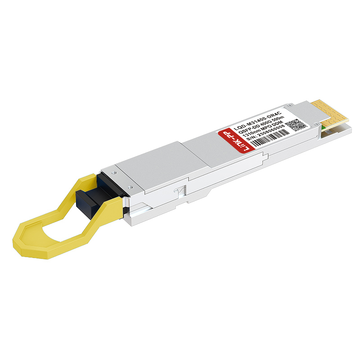

FS QSFP112-DR4-400G Compatible LINK-PP 400G QSFP112 4x100G PAM4 Transceiver Module (SMF, 1310nm, 500m, MPO-12/APC, DOM) The FS QSFP112-DR4-400G Compatible LINK-PP product is a 400Gb/s QSFP112 optical module designed for 0.5Km optical communication applications.The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals,each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. On the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 4

Generic QSFP112-LR4-400G Compatible LINK-PP 400G QSFP112 Transceiver Module(SMF, 1310nm, 10km, Duplex LC, DOM) The Generic QSFP112-LR4-400G Compatible LINK-PP module is a 400Gb/s QSFP112 optical module designed for 10km optical communication applications. The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission. on the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals and converts
