Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
184984

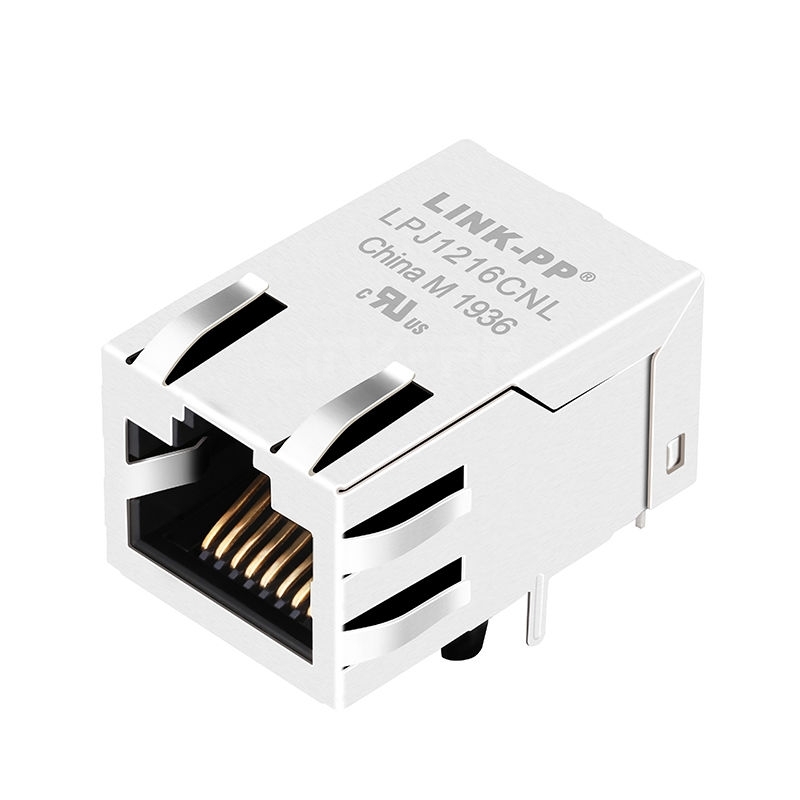

LPJ1216CNL 10/100 Base-T 1x1 Port RJ45 Magjack Connector Tab Up Without Led
  • LPJ1216CNL 10/100 Base-T 1x1 Port RJ45 Magjack Connector Tab Up Without Led thumb image 1
  • LPJ1216CNL 10/100 Base-T 1x1 Port RJ45 Magjack Connector Tab Up Without Led thumb image 2
  • LPJ1216CNL 10/100 Base-T 1x1 Port RJ45 Magjack Connector Tab Up Without Led thumb image 3
  • LPJ1216CNL 10/100 Base-T 1x1 Port RJ45 Magjack Connector Tab Up Without Led thumb image 4
  • LPJ1216CNL 10/100 Base-T 1x1 Port RJ45 Magjack Connector Tab Up Without Led thumb image 5

LPJ1216CNL 10/100 Base-T 1x1 Port RJ45 Magjack Connector Tab Up Without Led

#184984
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJ1216CNL 10/100 Base-T 1x1 Port RJ45 Magjack Connector Tab Up Without Led

  • C$  3.557

    2212 in Stock

 5 Reviews
0 Questions
Request Stock
11.5K Sold
C$  3.557
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
C$ 3.557
100
C$ 2.917
600
C$ 2.562
1200
C$ 1.957
6000
C$ 1.673
Manufacture: LINK-PP
P/N: LPJ1216CNL
Compatible:
LINK-PP
Halo
Competitor P/N:
LPJ1216CNL
Shipping:
C$ 40.374
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
2212 in Stock .
Quantity:
Total Price:
C$ 3.557
Packaging Details:
0.009kg
Tray
50pcs
1000pcs
32*30*31cm
9kg
Add to wish

LINK-PP LPJ1216CNL 10/100 Base-T Cat5e RJ45 Magjack Connector for Smart Camera and Game Controller (1 Port, Tab Up, Without Led)


The LPJ1216CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Smart Camera and Game Controller.


LINK-PP Part Number
 LPJ1216CNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.00/25.40

Package Width (Inches)
0.640/16.25Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. HFJT1-S101RL
  2. RJ45 Magjack
  3. RJ45 Connector

Download

LPJ1216CNL Drawing

3D Model
