Integrated RJ45 Connector
Low-Profile RJ45 Connector
1000 Base-T RJ45 Connector
177565

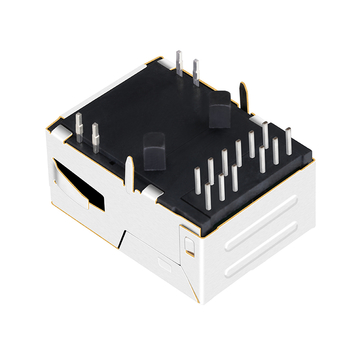

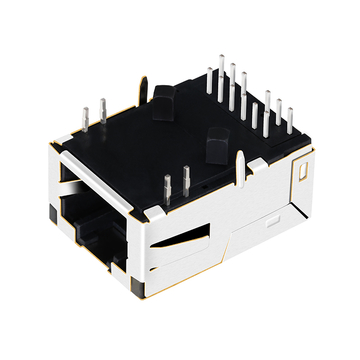

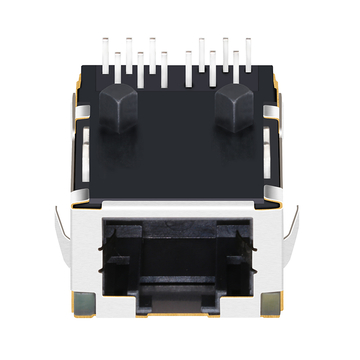

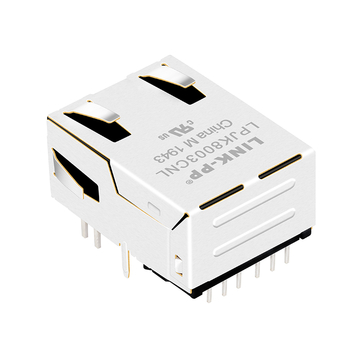

LPJK8003CNL Tab Down RJ45 MagJack Low Profile 1000 Base-T Without Led
  • LPJK8003CNL Tab Down RJ45 MagJack Low Profile 1000 Base-T Without Led thumb image 1
  • LPJK8003CNL Tab Down RJ45 MagJack Low Profile 1000 Base-T Without Led thumb image 2
  • LPJK8003CNL Tab Down RJ45 MagJack Low Profile 1000 Base-T Without Led thumb image 3
  • LPJK8003CNL Tab Down RJ45 MagJack Low Profile 1000 Base-T Without Led thumb image 4
  • LPJK8003CNL Tab Down RJ45 MagJack Low Profile 1000 Base-T Without Led thumb image 5

LPJK8003CNL Tab Down RJ45 MagJack Low Profile 1000 Base-T Without Led

#177565
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJK8003CNL Tab Down RJ45 MagJack Low Profile 1000 Base-T Without Led

  • £  3.005

    2600 in Stock

 16 Reviews
0 Questions
Request Stock
7.4K Sold
£  3.005
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
£3.005
100
£2.464
600
£2.164
1200
£1.653
6000
£1.413
Manufacture: LINK-PP
P/N: LPJK8003CNL
Compatible:
LINK-PP
Tyco
Competitor P/N:
LPJK8003CNL
Shipping:
£ 22.103
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
2600 in Stock .
Quantity:
Total Price:
£ 3.005
Packaging Details:
0.01kg
Tray
50pcs
1200pcs
40*32*33cm
11.5kg
Add to wish

LINK-PP LPJK8003CNL 1000 Base-T Low Profile RJ45 Magjack For Smart Camera ( Height 11.30mm,Without LED,Tab Down)


The LPJK8003CNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Game Controller, Router .


LINK-PP Part Number
 LPJK8003CNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 12p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
DownCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.445/11.30Package Length (Inches/mm)

0.950/24.13

Package Width (Inches/mm)
0.700/17.78
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Low Profile RJ45 MagJack
