Integrated RJ45 Connector
Low-Profile RJ45 Connector
1000 Base-T RJ45 Connector
177508

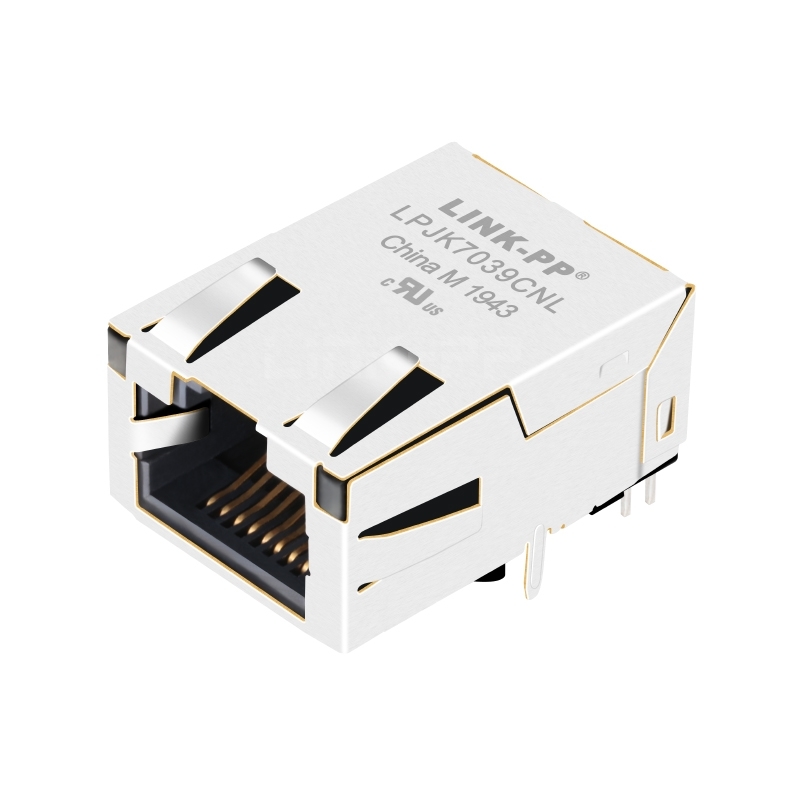

LPJK7039CNL 1000 Base-T Low Profile RJ45 Connector with integrated magnetics Tab Up Without Led
  • LPJK7039CNL 1000 Base-T Low Profile RJ45 Connector with integrated magnetics Tab Up Without Led thumb image 1
  • LPJK7039CNL 1000 Base-T Low Profile RJ45 Connector with integrated magnetics Tab Up Without Led thumb image 2
  • LPJK7039CNL 1000 Base-T Low Profile RJ45 Connector with integrated magnetics Tab Up Without Led thumb image 3
  • LPJK7039CNL 1000 Base-T Low Profile RJ45 Connector with integrated magnetics Tab Up Without Led thumb image 4
  • LPJK7039CNL 1000 Base-T Low Profile RJ45 Connector with integrated magnetics Tab Up Without Led thumb image 5

LPJK7039CNL 1000 Base-T Low Profile RJ45 Connector with integrated magnetics Tab Up Without Led

#177508
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJK7039CNL 1000 Base-T Low Profile RJ45 Connector with integrated magnetics Tab Up Without Led

  • ฿  143.867

    3500 in Stock

 28 Reviews
0 Questions
Request Stock
16.5K Sold
฿  143.867
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
฿ 143.867
100
฿ 117.974
600
฿ 103.608
1200
฿ 79.134
6000
฿ 67.642
Manufacture: LINK-PP
P/N: LPJK7039CNL
Compatible:
LINK-PP
Belfuse
Competitor P/N:
LPJK7039CNL
Shipping:
฿ 1,045.301
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
3500 in Stock .
Quantity:
Total Price:
฿ 143.867
Packaging Details:
0.01kg
Tray
50pcs
1200pcs
40*32*33cm
12.3kg
Add to wish

LINK-PP LPJK7039CNL Low Profile RJ45 Connector with 1000 Base-T integrated magnetics For Solar Inverter ( Height 11.30mm,Without LED,Tab Up)


The LPJK7039CNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Set-top Box, Fieldbus System .


LINK-PP Part Number
 LPJK7039CNL
 Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 12p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.445/11.30Package Length (Inches/mm)

0.953/24.20

Package Width (Inches/mm)
0.700/17.78
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Low Profile RJ45 Connector

Download

Product Drawing
