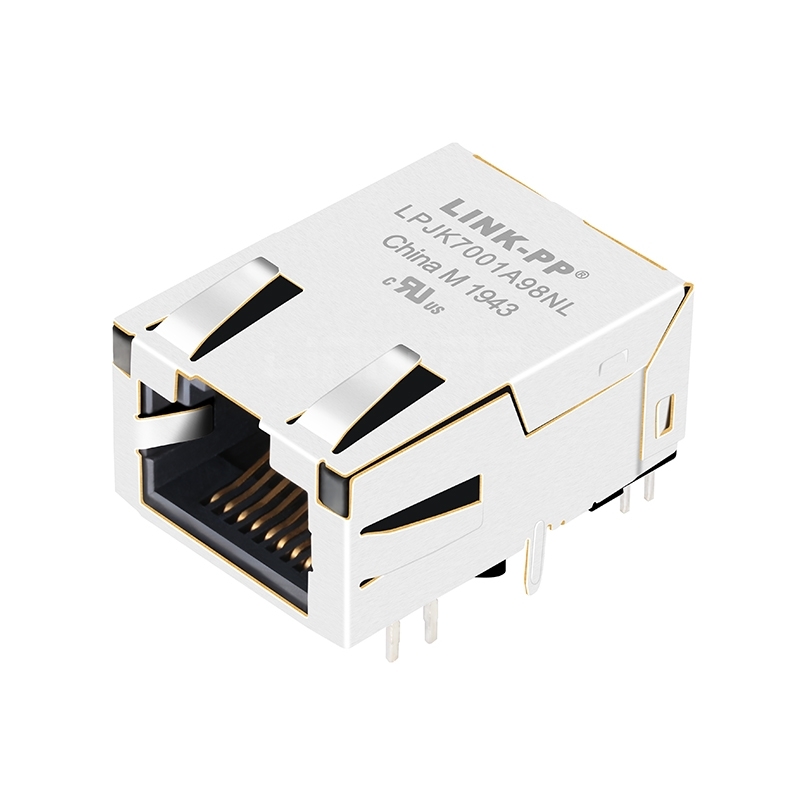

LPJK7001A98NL Low Profile RJ45 jack With 100 Base-T Integrated Magnetics Tab Up Orange&Green/Yellow Leds

Name: LPJK7001A98NL Low Profile RJ45 jack With 100 Base-T Integrated Magnetics Tab Up Orange&Green/Yellow Leds
Brand: link-pp
SKU: 172468
Price: 5.44 cad
Availability: InStock
Rating: 5 (54 reviews)

#172468

For Order Over $300 Get $15.00 Off, Code:

Linkpp15

For Order Over $2000 Get $50.00 Off, Code:

Linkpp50

For Order Over $3000 Get $100.00 Off, Code:

Linkpp100

: LPJK7001A98NL Low Profile RJ45 jack With 100 Base-T Integrated Magnetics Tab Up Orange&Green/Yellow Leds

54 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

54 Reviews

0 Questions

Request Stock

6.4K Sold

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

C$ 5.437

100

C$ 4.458

600

C$ 3.915

1200

C$ 2.991

6000

C$ 2.556

Manufacture: LINK-PP

P/N: LPJK7001A98NL

Compatible:: LINK-PP

Competitor P/N:: LPJK7001A98NL

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Packaging Details:

N.W/pcs: 0.01kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1200pcs
Carton size: 40*32*33cm
G.W/carton: 12.3kg

Add to wish

You May Also Like

LP11C000003 zSFP+ Receptacle Connector Solder Surface Mount 20 Position Right Angle

C$ 1.37 ~~C$ 0.00~~
900 Sold
TE 2007417-3 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit With Outer Light Pipe

C$ 37.675 ~~C$ 0.00~~
570 Sold
TE 2170088-1 Compatible LINK-PP LP11C000003 zSFP+ Receptacle Connector Solder Surface Mount 20 Position Right Angle

C$ 1.37 ~~C$ 0.00~~
1.3K Sold
TE 2007637-1 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit With Light Pipe

C$ 37.675 ~~C$ 0.00~~
1.4K Sold
LP21CC01003 SFP28 2x1 Cage&Connector With EMI Spring Finger

C$ 11.097 ~~C$ 0.00~~
255 Sold
Molex 1712241001 Compatible LP21CC01003 SFP28 2x1 Cage&Connector With EMI Spring Finger

C$ 11.097 ~~C$ 0.00~~
255 Sold
TE 2149102-1 SFP+ 2x1 Cage Assembly with Integrated Connector Press-Fit

C$ 16.714 ~~C$ 0.00~~
915 Sold
TE 2007637-3 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit With Outer Light Pipe

C$ 37.675 ~~C$ 0.00~~
810 Sold
TE 2007417-2 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit With Inner Light Pipe

C$ 37.675 ~~C$ 0.00~~
790 Sold
TE 2007417-1 SFP+ Receptacle with Cage 2x2 Press-Fit Board Guide EMI Shielded Light Pipe

C$ 37.812 ~~C$ 0.00~~
900 Sold
TE 2170088-2 Compatible LINK-PP LP11C000003 zSFP+ Receptacle Connector Solder Surface Mount 20 Position Right Angle

C$ 1.37 ~~C$ 0.00~~
1.1K Sold
TE 2007637-4 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit Without Light Pipe

C$ 36.99 ~~C$ 0.00~~
1K Sold
TE 2007417-4 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit Without Light Pipe

C$ 36.99 ~~C$ 0.00~~
1.2K Sold
TE 2007637-2 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit With Inner Light Pipe

C$ 37.675 ~~C$ 0.00~~
965 Sold
Molex 1700711001 Compatible LP21CC01003 SFP28 2x1 Cage&Connector With EMI Spring Finger

C$ 11.097 ~~C$ 0.00~~
255 Sold

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJK7001A98NL 10/100 Base-T Low-Profile RJ45 Magjack For New Energy ( Height 11.30mm,Orange&Green/Yellow LED,Tab Up)

The LPJK7001A98NL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Game Controller, Router .

LINK-PP Part Number:	LPJK7001A98NL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Up	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Orange&Green/Yellow
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.445/11.30	Package Length (Inches/mm)	0.957/24.30
Package Width (Inches/mm)	0.701/17.80	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Low Profile RJ45 jack
