172078

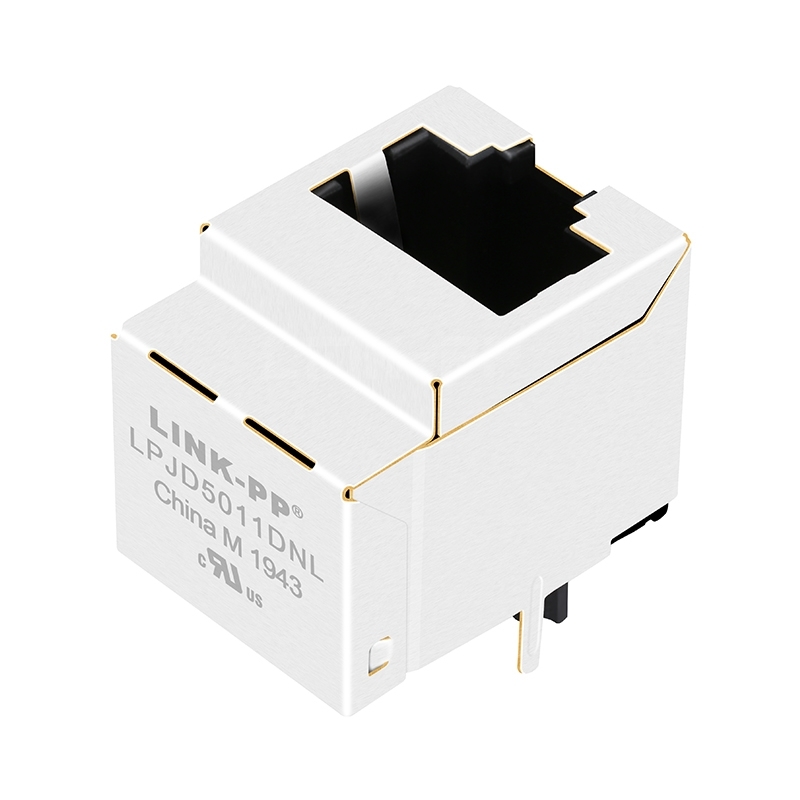

Halo HFJV1-E2450RL Compatible LINK-PP LPJD5011DNL 10/100Base-T Vertical RJ45 Jack With Magnetics Without Leds

Name: Halo HFJV1-E2450RL Compatible LINK-PP LPJD5011DNL 10/100Base-T Vertical RJ45 Jack With Magnetics Without Leds
Brand: link-pp
SKU: 172078
Price: 4.71 cad
Availability: InStock
Rating: 5 (29 reviews)

#172078

For Order Over $300 Get $15.00 Off, Code:

Linkpp15

For Order Over $2000 Get $50.00 Off, Code:

Linkpp50

For Order Over $3000 Get $100.00 Off, Code:

Linkpp100

: Halo HFJV1-E2450RL Compatible LINK-PP LPJD5011DNL 10/100Base-T Vertical RJ45 Jack With Magnetics Without Leds

29 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

29 Reviews

0 Questions

Request Stock

26.7K Sold

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

C$ 4.704

100

C$ 3.858

600

C$ 3.387

1200

C$ 2.588

6000

C$ 2.212

Manufacture: LINK-PP

P/N: LPJD5011DNL

Compatible:: LINK-PP; Halo

Competitor P/N:: HFJV1-E2450RL

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Packaging Details:

N.W/pcs: 0.008kg
Package: Tray
SPQ: 54pcs
Qty/carton: 1296pcs
Carton size: 36.5*33*32cm
G.W./carton: 10kg

Add to wish

You May Also Like

TE 2007637-2 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit With Inner Light Pipe

C$ 37.675 ~~C$ 0.00~~
965 Sold
TE 2007637-3 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit With Outer Light Pipe

C$ 37.675 ~~C$ 0.00~~
810 Sold
TE 2149102-1 SFP+ 2x1 Cage Assembly with Integrated Connector Press-Fit

C$ 16.714 ~~C$ 0.00~~
915 Sold
TE 2170088-1 Compatible LINK-PP LP11C000003 zSFP+ Receptacle Connector Solder Surface Mount 20 Position Right Angle

C$ 1.37 ~~C$ 0.00~~
1.3K Sold
Molex 1712241001 Compatible LP21CC01003 SFP28 2x1 Cage&Connector With EMI Spring Finger

C$ 11.097 ~~C$ 0.00~~
255 Sold
TE 2007637-1 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit With Light Pipe

C$ 37.675 ~~C$ 0.00~~
1.4K Sold
LP11C000003 zSFP+ Receptacle Connector Solder Surface Mount 20 Position Right Angle

C$ 1.37 ~~C$ 0.00~~
900 Sold
TE 2007417-3 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit With Outer Light Pipe

C$ 37.675 ~~C$ 0.00~~
570 Sold
TE 2007637-4 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit Without Light Pipe

C$ 36.99 ~~C$ 0.00~~
1K Sold
TE 2007417-4 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit Without Light Pipe

C$ 36.99 ~~C$ 0.00~~
1.2K Sold
Molex 1700711001 Compatible LP21CC01003 SFP28 2x1 Cage&Connector With EMI Spring Finger

C$ 11.097 ~~C$ 0.00~~
255 Sold
TE 2007417-1 SFP+ Receptacle with Cage 2x2 Press-Fit Board Guide EMI Shielded Light Pipe

C$ 37.812 ~~C$ 0.00~~
900 Sold
TE 2007417-2 SFP+ 2x2 Cage Assembly with Integrated Connector Press-Fit With Inner Light Pipe

C$ 37.675 ~~C$ 0.00~~
790 Sold
LP21CC01003 SFP28 2x1 Cage&Connector With EMI Spring Finger

C$ 11.097 ~~C$ 0.00~~
255 Sold
TE 2170088-2 Compatible LINK-PP LP11C000003 zSFP+ Receptacle Connector Solder Surface Mount 20 Position Right Angle

C$ 1.37 ~~C$ 0.00~~
1.1K Sold

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

Halo HFJV1-E2450RL Compatible LINK-PP LPJD5011DNL 10/100Base-T Vertical RJ45 Jack With Magnetics For Router (Top Entry,Without LED)

The LPJD5011BFNL speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as 1/0 Controller, Alarm, Router.

LINK-PP Part Number:	LPJD5011DNL	Halo Part Number	HFJV1-E2450RL
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Up	Cores per Port	4
Orientation	180° Angle (Right)	PCB Mount Angle	THT Solder
Shield EMI Tabs	Without	LED Option	Without
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.650/16.51	Package Length (Inches/mm)	0.849/21.56
Package Width (Inches/mm)	0.628/15.95	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Vertical RJ45 Connector

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Prodcut Drawing

PDF
LPJD5011DNL-Drawing.pdf
