Integrated RJ45 Connector
Vertical RJ45 Connector
10/100 Base-T RJ45 Connector
169512

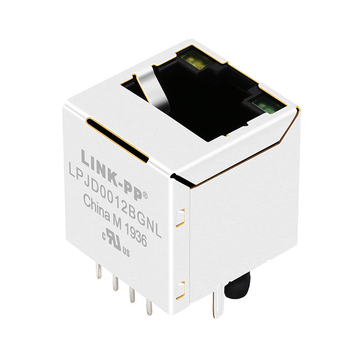

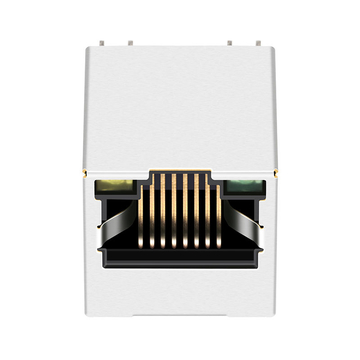

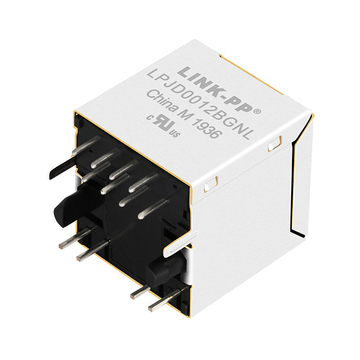

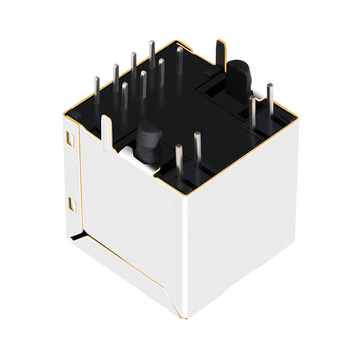

LPJD0012BGNL 10/100 Base-T Top Entry RJ45 Vertical Jack With Magnetics Yellow/Green LED
  • LPJD0012BGNL 10/100 Base-T Top Entry RJ45 Vertical Jack With Magnetics Yellow/Green LED thumb image 1
  • LPJD0012BGNL 10/100 Base-T Top Entry RJ45 Vertical Jack With Magnetics Yellow/Green LED thumb image 2
  • LPJD0012BGNL 10/100 Base-T Top Entry RJ45 Vertical Jack With Magnetics Yellow/Green LED thumb image 3
  • LPJD0012BGNL 10/100 Base-T Top Entry RJ45 Vertical Jack With Magnetics Yellow/Green LED thumb image 4
  • LPJD0012BGNL 10/100 Base-T Top Entry RJ45 Vertical Jack With Magnetics Yellow/Green LED thumb image 5

LPJD0012BGNL 10/100 Base-T Top Entry RJ45 Vertical Jack With Magnetics Yellow/Green LED

# 169512
For Order Over $300 Get $15.00 Off , Code:
Linkpp15
For Order Over $2000 Get $50.00 Off , Code:
Linkpp50
For Order Over $3000 Get $100.00 Off , Code:
Linkpp100

LPJD0012BGNL 10/100 Base-T Top Entry RJ45 Vertical Jack With Magnetics Yellow/Green LED

  • €  2.68

    6600 in Stock

 87 Reviews
1 Questions
Request Stock
27.7K Sold
€  2.68
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
€2.68
100
€2.199
600
€1.93
1200
€1.475
6000
€1.26
Manufacture: LINK-PP
P/N: LPJD0012BGNL
Compatible:
LINK-PP
X Multiple
Competitor P/N:
LPJD0012BGNL
Shipping:
€ 25.345
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
6600 in Stock .
Quantity:
Total Price:
€ 2.68
Packaging Details:
0.008kg
Tray
50pcs
1200pcs
32*30*31cm
9kg
Add to wish

LINK-PP LPJD0012BGNL 10/100 Base-T Vertical RJ45 Jack With Magnetics For Embedded Main Board (Top Entry Yellow/Green LED)

The LPJD0012BGNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Industrial PC, Smart Meters,Patient Care.


LINK-PP Part Number:
 LPJD0012BGNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
180° Angle (Right)PCB Mount Angle

THT Solder

Shield EMI Tabs
WithoutLED Option

Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.665/16.90Package Length (Inches/mm)

0.657/16.70

Package Width (Inches/mm)
0.630/16.00
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Vertical RJ45 Jack

Download

Questions & Answers

 Ask a Question

  • Q: How about the lead time ? By T***r on 2022-02-21

    A: We have a very professional team with high quality, usually we can ship within 30 days. But for details, please contact our salesman, thank you. By admin on 2022-02-22
