Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
137254

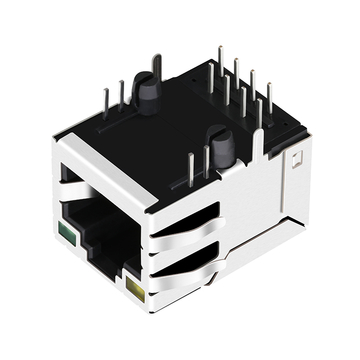

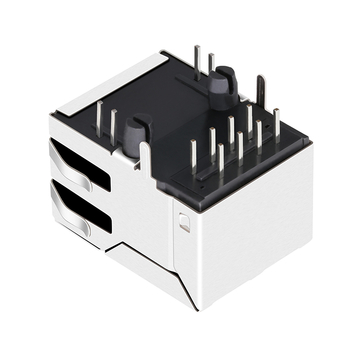

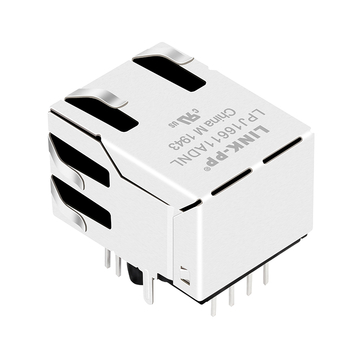

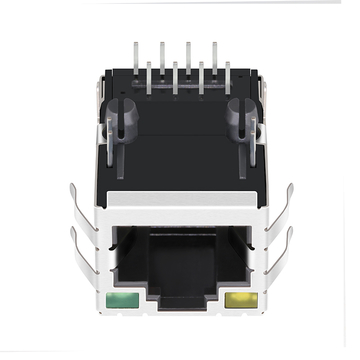

Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Tab Up Yellow/Green Led Single Port Female RJ45 Socket Connection
  • Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Tab Up Yellow/Green Led Single Port Female RJ45 Socket Connection thumb image 1
  • Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Tab Up Yellow/Green Led Single Port Female RJ45 Socket Connection thumb image 2
  • Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Tab Up Yellow/Green Led Single Port Female RJ45 Socket Connection thumb image 3
  • Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Tab Up Yellow/Green Led Single Port Female RJ45 Socket Connection thumb image 4
  • Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Tab Up Yellow/Green Led Single Port Female RJ45 Socket Connection thumb image 5

Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Tab Up Yellow/Green Led Single Port Female RJ45 Socket Connection

# 137254
For Order Over $300 Get $15.00 Off , Code:
Linkpp15
For Order Over $2000 Get $50.00 Off , Code:
Linkpp50
For Order Over $3000 Get $100.00 Off , Code:
Linkpp100

Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Tab Up Yellow/Green Led Single Port Female RJ45 Socket Connection

  • A$  3.803

    2400 in Stock

 68 Reviews
1 Questions
Request Stock
20.5K Sold
A$  3.803
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
A$3.803
100
A$3.119
600
A$2.739
1200
A$2.092
6000
A$1.788
Manufacture: LINK-PP
P/N: LPJ16611ADNL
Compatible:
LINK-PP
Halo
Pulse
Competitor P/N:
JXD1-0014NL
Shipping:
A$ 45.384
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
2400 in Stock .
Quantity:
Total Price:
A$ 3.803
Packaging Details:
0.007kg
Tray
50pcs
1200pcs
32*30*31cm
8.5kg
Add to wish

Pulse JXD1-0014NL Compatible LINK-PP LPJ16611ADNL 10/100 Base-T Female RJ45 Socket Connection for Industrial PC and Fieldbus System (Single Port, Tab Up, Yellow/Green Led)


The LPJ16611ADNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
 LPJ16611ADNL Pulse Part Number JXD1-0014NL
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.846/21.50

Package Width (Inches/mm)
0.620/15.75Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
-Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 Socket Connection
