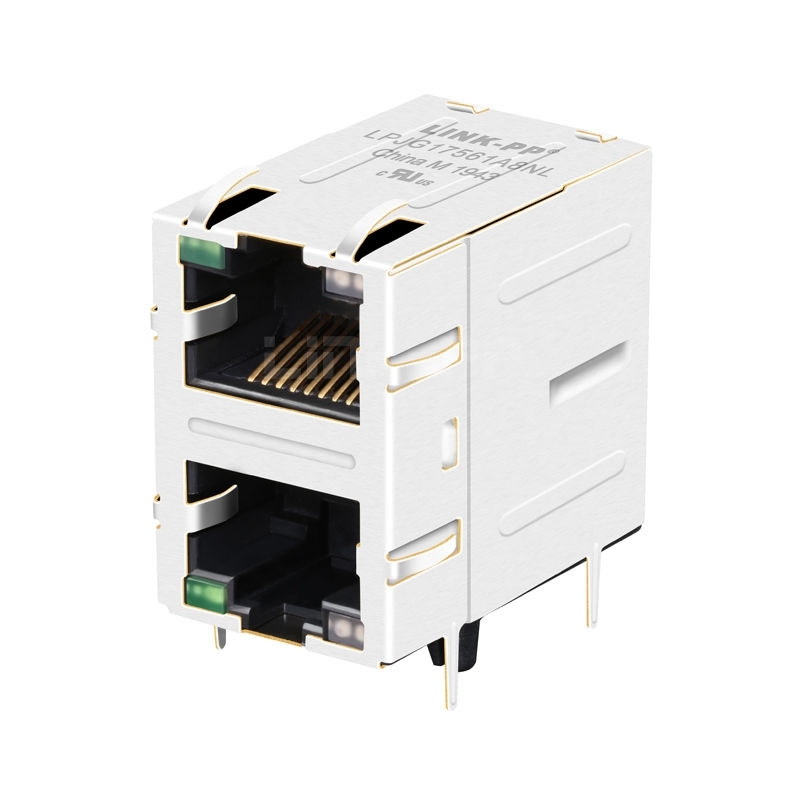

LPJG17561A8NL 100/1000 Base-T 2X1 Port Jack RJ45 Female Connector Tab Up Green/Yellow&Green LED

#104514
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100
For Order Over $300 Get $30.00 Off, Code:
Christmas
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

5 Reviews
1 Questions
Request Stock
6.6K Sold
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} {{ detail_data.displayed_price.rate_of_discount }}% OFF )
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 8.818
100
$ 7.231
600
$ 6.349
1200
$ 4.85
6000
$ 4.145
P/N: LPJG17561A8NL
Compatible:
LINK-PP
Competitor P/N:
LPJG17561A8NL
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
To Be Negotiated
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details
Stock:
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
undeliverable
Total Price:
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.total }}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}
Packaging Details:
0.002kg
Tray
30pcs
540pcs
37*30*30cm
11kg

100/1000 Base-T Jack RJ45 Female Connector for Intercom and Ethernet Control (2x1 Port,Tab Up,Green/Yellow&Green LED)


The LPJG17561A8NL supports speed 10/100/1000 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Intercom,Optical Terminal,Embedded Main Board and Ethernet Control.


LINK-PP Part Number:
LPJG17561A8NL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
2x1 PortSpeed
10/100/1000 Base-T
Latch
BothCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow&Green Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.996/25.29Package Length (Inches/mm)

1.122/28.40

Package Width (Inches/mm)
0.675/17.15
Temperature
-40℃ TO +85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
