LINK-PP LP-RJ45TGEL-3YAI 10M/100M/1G/2.5G/5G/10G SFP+ Transceiver Module(Copper, Industrial, 30m, RJ-45)Product Features:Supports 10G Ethernet transmission up to 30 meters via Cat6A and above twisted pair cablesComplies with SFF-8431 and SFF-8432 MSA standard protocolsAdheres to IEEE 802.3az and 802.3an protocolsComplies with 2.5G and 5G Ethernet IEEE 802.3bz standards+3.3V single power supplyCompact RJ45 connector for cost-effective twisted pair copper cablingSupports 100/1000M rate transmission over Cat5E cables Operating temperature range: -40°C to +85°C

LINK-PP LP-RJ45TGE-3YC 10M/100M/1G/2.5G/5G/10Gbps SFP+ Transceiver Module(Copper,30m,RJ-45)Product FeaturesSupports 10G Ethernet transmission up to 30 meters via Cat6A and above twisted pair cablesComplies with SFF-8431 and SFF-8432 MSA standard protocolsAdheres to IEEE 802.3az and 802.3an protocolsComplies with 2.5G and 5G Ethernet IEEE 802.3bz standardsHot-swappable SFP+ packageTX Disable and RX Los functionsFull metal shell packaging with low electromagnetic interference emissions+3.3V single power supplyLow power consumption (maximum power of 2.5W for 30m transmission)Compact RJ45

LINK-PP LP-RJ45TGE-3YBI 10M/100M/1G/2.5G/5G/10Gbps SFP+ Transceiver Module(Copper, Industrial, 30m, RJ-45)Product FeaturesSupports 10G Ethernet transmission up to 30 meters via Cat6A and above twisted pair cablesComplies with SFF-8431 and SFF-8432 MSA standard protocolsAdheres to IEEE 802.3az and 802.3an protocolsComplies with 2.5G and 5G Ethernet IEEE 802.3bz standardsHot-swappable SFP+ packageTX Disable and RX Los functionsFull metal shell packaging with low electromagnetic interference emissions+3.3V single power supplyLow power consumption (maximum power of 2.5W for 30m

LINK-PP LP-01-TI 100BASE-T SFP Transceiver Module(Copper, 100m, RJ-45,Industrial)Features:Support 100BASE two-way data transmission linkHot-pluggable SFP footprintTX Disable and RX Los/without Los functionFully metallic enclosure for low EMI+3.3V DC single power supplyLow power dissipation (0.5 W typical)Compact RJ-45 connector assemblyCompatible with IEEE 802. 3-2002 and IEEE802.3abAccess to physical layer IC via 2-wire serial bus100 BASE-T operation in host systems with SERDES interfaceOperating case temperature: -40°C~+85°C LINK-PP Part Number LP-

LINK-PP LP-01-TC 100BASE-T SFP Transceiver Module(Copper, 100m, RJ-45)The LP-01-TC Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 100BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 100Mbps data-rate up to 100 meters reach over unshielded twisted-pair category 5 cable（BER<10-12）. The module supports100 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. The module provides standard serial ID information compliant with SFP MSA, which can be

LINK-PP LP-RJ45TGE-3YAI 10M/100M/1G/2.5G/5G/10G SFP+ Transceiver Module(Copper, Industrial, 30m, RJ-45)The LP-RJ45TGE-3YAI small form-factor pluggable 10GBASE-T SFP+ electrical module is a high-performance,high-reliability, and cost-effective 10G connectivity solution. It is compatible with the 10G Ethernet and 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T standards specified by IEEE 802.3az-2015 and 802.3a,supporting 30 meters of data rate transmission at 10Gbps over shielded twisted pair Cat 6A cables. It supports 10Gbps full-duplex data links with 16-level pulse amplitude modulation (PAM)

LINK-PP LP-RJ45TG-3YI SFP+ 10GBASE-T Copper 30m RJ-45 Transceiver Module (Copper, Industrial, 30m, RJ-45)LP-RJ45TG-3YI Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which supporting 10Gbps data- rate up to 30 meters reach over unshielded twisted-pair category 6a/7 cables. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol.

LINK-PP LP-RJ45TG-3YC 10GBase-T SFP+ Transceiver Module(Copper, 30m, RJ-45)LP-RJ45TG-3YC Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which supporting 10Gbps data- rate up to 30 meters reach over unshielded twisted-pair category 6a/7 cables. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol. LINK-PP Part Number LP-RJ4

LINK-PP LP-RJ452G-TI SFP 2.5GBASE-T Transceiver Module (Copper, 100m, RJ-45, Industrial )The LP-RJ452G-TI 2.5GBASE-T Copper Small Form Pluggable transceivers are based on the SFP Multi Source Agreement (MSA).They are compatible with the 2.5Gbase-T and 1000BASE-T standards as specified in IEEE Std 802.3. They are RoHS compliant and per Directive 2011/65/EU. LINK-PP Part Number LP-RJ452G-TI Vendor Name LINK-PP Form Factor SFP Max Data Rate 2.5Gbps

LINK-PP LP-RJ452G-TC SFP 2.5GBASE-T Transceiver Module (Copper, 100m, RJ-45)The LP-RJ452G-TC 2.5GBASE-T Copper Small Form Pluggable transceivers are based on the SFP Multi Source Agreement (MSA).They are compatible with the 2.5Gbase-T and 1000BASE-T standards as specified in IEEE Std 802.3. They are RoHS compliant and per Directive 2011/65/EU. LINK-PP Part Number LP-RJ452G-TC Vendor Name LINK-PP Form Factor SFP Max Data Rate 2.5Gbps

LINK-PP LP-SFP-MSRI SFP 1000BASE-T Transceiver Module (Copper, 100m, RJ-45, Industrial)The LP-SFP-MSRI Copper SFP Transceiver 10/100/1000Base-T or 1000Base-T only SFP Copper Transceiver is high performance, cost effective module, compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supports 1000Mb/s data-rate up to 100 meters reach over twisted-pair category 5 cable. LINK-PP Part Number LP-SFP-MSRI Vendor Name LINK-PP Part Status

LINK-PP LP-SFP-TMRI SFP SGMII 10/100/1000BASE-T Transceiver Module(Copper, 100m, RJ-45)The Copper SFP Transceiver 10/100/1000Base-T or 1000Base-T only SFP Copper Transceiver is high performance, cost effective module, compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supports 1000Mb/s data-rate up to 100 meters reach over twisted-pair category 5 cable. LINK-PP Part Number LP-SFP-TMRI Vendor Name LINK-PP Part Status Active

LINK-PP LP-SFP-MSRC 1000BASE-T SFP Transceiver Module(Copper, 100m, RJ-45)The Copper SFP Transceiver 10/100/1000Base-T or 1000Base-T only SFP Copper Transceiver is high performance, cost effective module, compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supports 1000Mb/s data-rate up to 100 meters reach over twisted-pair category 5 cable. LINK-PP Part Number LP-SFP-MSRC Vendor Name LINK-PP Part Status Active

LINK-PP LP-RJ45TG-8YC 10GBASE-T SFP+ Transceiver Module(Copper, 80m, RJ45)LP-RJ45TG-8YC Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which supporting 10Gbps data- rate up to 80 meters reach over unshielded twisted-pair category 6a/7 cables. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol. LINK-PP Part Number LP-RJ45

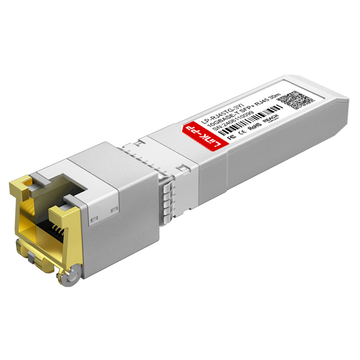

Alcatel-Lucent iSFP-10G-T-I Compatible LINK-PP LP-RJ45TG-3YI SFP+ 10GBASE-T Copper 30m RJ-45 Transceiver Module (Copper, Industrial, 30m, RJ-45)The Alcatel-Lucent iSFP-10G-T-I Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which supporting 10Gbps data- rate up to 30 meters reach over unshielded twisted-pair category 6a/7 cables. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the

Alcatel-Lucent iSFP-GIG-T Compatible LINK-PP LP-SFP-TMRI SFP SGMII 10/100/1000BASE-T Transceiver Module(Copper, 100m, RJ-45)The Copper SFP Transceiver 10/100/1000Base-T or 1000Base-T only SFP Copper Transceiver is high performance, cost effective module, compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supports 1000Mb/s data-rate up to 100 meters reach over twisted-pair category 5 cable. LINK-PP Part Number LP-SFP-TMRI Alcatel-Lucent Compatible iSFP-GIG-T
