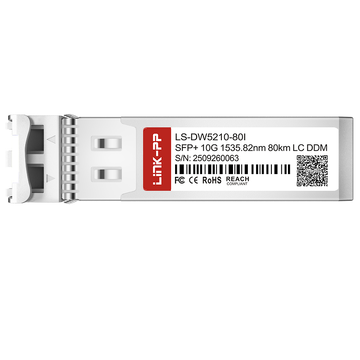

SFP-10G-DZ-35.82-I transceiver module integrates a cooled EML laser and APD photodiode to deliver dependable 10GBASE-DWDM connectivity up to 80km over single-mode fiber. Operating on channel C52 at a 1535.82nm wavelength with data rates up to 10.7Gbps, it also features real-time digital diagnostic monitoring and supports an industrial operating temperature range of -40 to +85°C.
Arista Part Number
SFP-10G-DZ-35.82-I
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1535.82nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
-40 to +85°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472
Key Features of Arista SFP-10G-DZ-35.82-I Compatible LINK-PP 10G SFP+
Arista SFP-10G-DZ-35.82-I Compatible LINK-PP module is an industrial 10GBASE-DWDM SFP+ transceiver designed for long-reach optical connections up to 80km. It combines channel C52 (1535.82nm) precision, a duplex LC interface, and real-time digital diagnostic monitoring to deliver reliable long-distance data transmission.
The hardware architecture of this optical transceiver follows standard MSA guidelines to guarantee seamless interoperability with major networking equipment. Built into a compact, hot-pluggable SFP+ form factor, it provides a dependable optical solution for straightforward deployment in modern network racks.
SFP-10G-DZ-35.82-I: 10 Gbps Connectivity for Remote Infrastructure Backhauls
Data transmission speeds reach up to 10.7Gbps, providing the necessary bandwidth to support demanding enterprise communication needs. This reliable 10G performance ensures smooth data flow and efficient backhaul connectivity across remote institutional sites.
SFP-10G-DZ-35.82-I Module with DWDM Technology for Fiber Efficiency
Dense Wavelength Division Multiplexing (DWDM) enables multiple distinct optical channels to share a single strand of fiber simultaneously. This technology drastically optimizes existing infrastructure capacity, allowing network operators to scale their bandwidth without deploying expensive new fiber cables.
SFP-10G-DZ-35.82-I Module with 1535.82nm Wavelength
Channel C52 alignment utilizes a precise 1535.82nm optical frequency to maintain accurate and stable signal routing within multi-channel systems. This exact wavelength specification prevents signal overlap and ensures clean, error-free communication across dense optical grids.
Extended reach capabilities allow the transceiver to bridge distances of up to 80km over single-mode fiber without signal degradation. Equipped with a cooled EML laser and APD photodiode, it delivers the optical budget required for long-haul metropolitan and regional networking.
SFP-10G-DZ-35.82-I Module with Duplex LC Interface
Standardized duplex LC connectivity provides a secure physical interface for simultaneous, bidirectional data transmission. This universally recognized connector type ensures hassle-free integration with standard fiber patch cords and existing network cabling plants.
SFP-10G-DZ-35.82-I Module with DDM for Real-Time Monitoring
Digital Diagnostic Monitoring (DDM) capabilities offer network administrators live visibility into vital operational metrics such as optical power, laser bias current, and temperature. This continuous tracking helps maintenance teams proactively detect fluctuations and prevent potential link downtime.
Arista SFP-10G-DZ-35.82-I Compatible LINK-PP DWDM SFP+ transceiver is manufactured under rigorous quality control standards and fully complies with international certifications including ISO 9001, CE, RoHS, and FCC to ensure safety and long-term reliability.
Our comprehensive testing process subjects every 10G DWDM module to strict optical signal checks, temperature tests, and performance validation before shipping to guarantee flaw-free operation.
SFP-10G-DZ-35.82-I Quality Certifications
These international industry standards confirm that the optical transceiver meets strict environmental, safety, and manufacturing requirements for worldwide deployment.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
SFP-10G-DZ-35.82-I Certified for Reliable Host-Device Compatibility
Extensive interoperability testing ensures that the transceiver module works smoothly and communicates error-free with a wide variety of OEM switches, routers, and network hosts
Every Arista SFP-10G-DZ-35.82-I Compatible LINK-PP SFP+ DWDM transceiver undergoes strict quality evaluations to guarantee flawless optical communication over long distances. To learn more about our testing details, please visit the LINK-PP Test Support Center.
Optical Spectrum Test
Verify precise channel wavelength alignment for clean signal routing.
Eye Pattern Test
Assess high-speed optical signal clarity and overall transmitter quality
Bit Error Rate Test
Confirm error-free data packet transmission during continuous network operation.
Temperature Test
Validate operational reliability across extreme working temperature ranges.
Product Shipping for Arista SFP-10G-DZ-35.82-I Compatible LINK-PP 10G SFP+
Arista SFP-10G-DZ-35.82-I Compatible LINK-PP DWDM 10G SFP+ transceivers are carefully packaged and handled to ensure safe delivery to your location. We partner with leading global carriers to provide fast and secure shipping worldwide.
Anti-Static Protective Packaging
Protect delicate electronic components against electrostatic discharge damage.
Shock-Resistant Transport Protection
Shield sensitive optical modules against unexpected impacts during transit.
Fast Order Processing and Dispatch
Ensure rapid order handling and prompt shipment from the warehouse.
Global Logistics and International Delivery
Deliver transceivers worldwide using trusted international express carriers.
Simply slide the SFP-10G-DZ-35.82-I SFP+ module into a host slot and patch it to the matching 1535.82nm DWDM Mux/Demux channel using LC fiber. This plug-and-play installation delivers dependable 10G DWDM performance, linking remote infrastructure nodes across long-haul optical networks efficiently.
SFP-10G-DZ-35.82-I Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal SFP-10G-DZ-35.82-I module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
Look for the port labeled 195.2THz, which corresponds to C52 at approximately 1535.82nm. Confirm that the MUX/DEMUX is compatible with the module’s 100GHz channel spacing. by LINK-PP Technical Support
Normally, no. Make sure your MUX/DEMUX has an unused C52 port and sufficient channel isolation. Connect the module to the matching port, and check for extra optical loss if you add or change any equipment in the fiber path. by LINK-PP Technical Support
Yes. G.652.D fiber is suitable for C-band DWDM transmission. Reaching 80 km still depends on the total link loss and chromatic dispersion, so check both against the module’s specifications before deployment. by LINK-PP Technical Support
We needed a C52 DWDM SFP+ for a dedicated corporate WAN connection. The wavelength matches our 100GHz channel plan, and the module fits our standard SFP+ equipment layout.
