What is the maximum transmission distance of the LS-SM3110-10C module?

This module is designed to support high-speed 10Gbps data transmission up to a maximum distance of 10 kilometers over Single-Mode Fiber (SMF).

Is the LS-SM3110-10C compatible with standard network switches like Cisco or Juniper?

Yes, the transceiver is fully MSA compliant, ensuring reliable, plug-and-play compatibility with major networking brands including Cisco, Juniper, Arista, and Ubiquiti.

Does this 10km SFP+ module support Digital Optical Monitoring (DOM)?

Yes, it features integrated DOM capabilities, allowing network administrators to monitor real-time parameters such as temperature, optical output power, and receiver sensitivity.

What wavelength does this transceiver operate on?

The LS-SM3110-10C operates at a standard 1310nm wavelength, which is optimized for minimizing dispersion over 10km single-mode fiber links.

Home

Optics Transceivers | SFP Modules

10/25/40G/100G Transceiver Modules

10G SFP+

181140

LINK-PP LS-SM3110-10C 10G SFP+ 1310nm 10km Duplex LC DOM SMF Optical Transceiver Module

Name: LS-SM3110-10C
Brand: LINK-PP
SKU: 181140
Price: 24.5 USD
Availability: InStock
Rating: 5 (16 reviews)

# 181140

For Order Over $1000 Get $15.00 Off , Code:

Linkpp15

For Order Over $3000 Get $50.00 Off , Code:

Linkpp50

For Order Over $5000 Get $100.00 Off , Code:

Linkpp100

: LINK-PP LS-SM3110-10C 10G SFP+ 1310nm 10km Duplex LC DOM SMF Optical Transceiver Module

16 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

16 Reviews

0 Questions

Request Stock

1.1K Sold

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 24.5

100

$ 23.275

1000

$ 22.54

3000

$ 21.805

6000

$ 21.07

Manufacture: LINK-PP

P/N: LS-SM3110-10C

Compatible:: Cisco; LINK-PP; Alcatel-Lucent; Arista; Aruba; Avago; Avaya; BladeSyste; Brocade; Ciena; D-Link; DELL; Extreme; F5 Networks; Fortinet; H3C; HW; Intel; Juniper; Lenovo; Mellanox; Netgear; ProCurve; Ubiquiti

Compatible P/N:: LS-SM3110-02C | 2km; LS-SM3110-02I | 2km; LS-SM3110-10C | 10km; LS-SM3110-10I | 10km; LS-SM3110-20C | 20km; LS-SM3110-20I | 20km; LS-SM3110-40C | 40km; LS-SM3110-40I | 40km; LS-SM5510-40C | 40km; LS-SM5510-40I | 40km; LS-SM5510-60C | 60km; LS-SM5510-80C | 80km; LS-SM5510-80I | 80km; LS-SM5510-A0C | 100km; LS-SM5510-A0I | 100km; LS-SM5510-A2C | 120km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

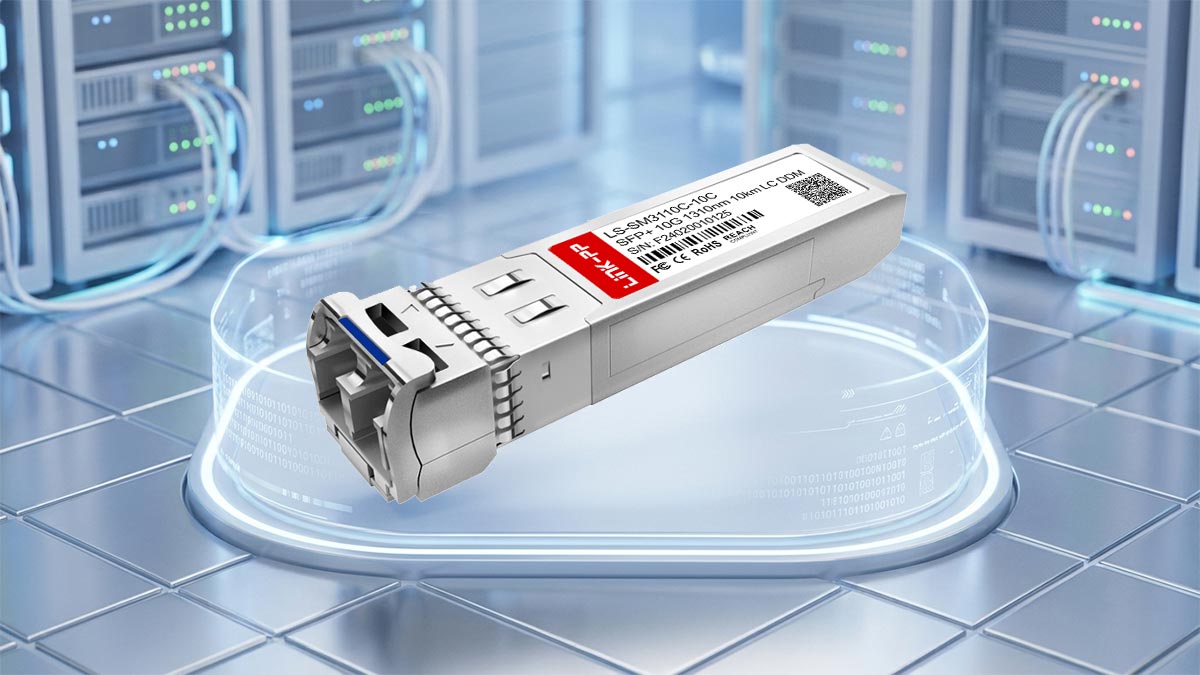

LINK-PP LS-SM3110-10C 10G SFP+ Specifications

The LINK-PP LS-SM3110-10C is a high-performance 10Gbps SFP+ optical transceiver engineered for long-reach data transmission up to 10 kilometers over Single-Mode Fiber (SMF). It operates at a 1310nm wavelength using a Duplex LC connector and features Digital Optical Monitoring (DOM) to provide real-time diagnostic data for optimal network management.

LINK-PP Part Number	LS-SM3110-10C	Vendor Name	LINK-PP
Part Status	Active	Form Factor	SFP+
Max Data Rate	10.7Gbps	Wavelength	1310nm
Max Cable Distance	10km	Connector	Duplex LC
Transmitter Type	DFB	Receiver Type	PIN
Media	SMF	Receiver Sensitivity	<-14.4dBm
TX Power	-6.5 to -0.5dBm	RX Power	-20 to -1dBm
Commercial Temperature Range	0 to 70°C	Protocols	IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-SM3110-10C.pdf
