Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
178693

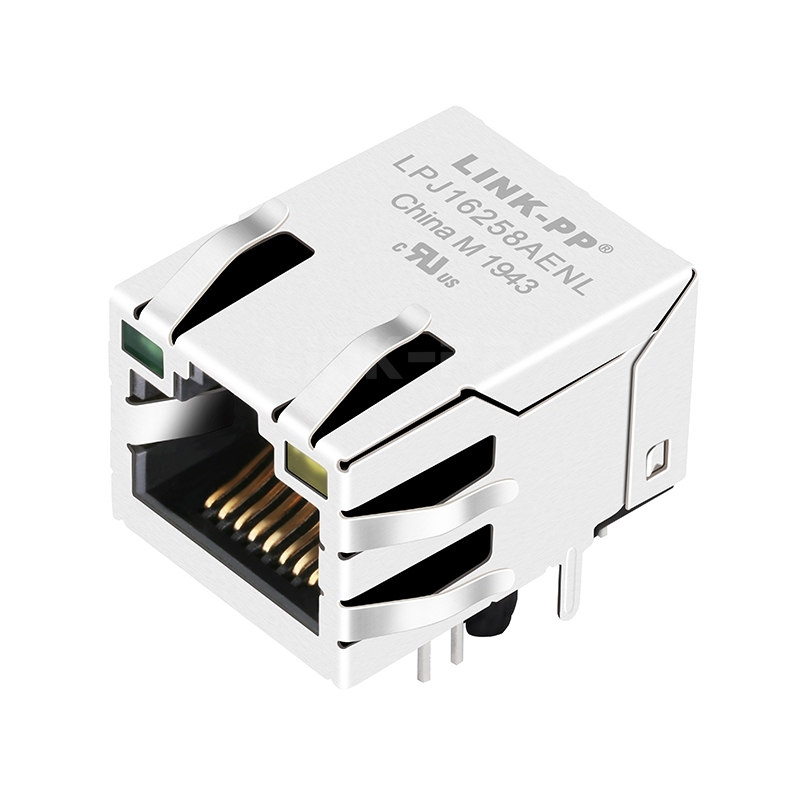

LPJ16258AENL RJ45 PoE Connector with 10/100 Base-T Integrated Magnetics Single Port Tab Up Green/Yellow Led
  • LPJ16258AENL RJ45 PoE Connector with 10/100 Base-T Integrated Magnetics Single Port Tab Up Green/Yellow Led thumb image 1
  • LPJ16258AENL RJ45 PoE Connector with 10/100 Base-T Integrated Magnetics Single Port Tab Up Green/Yellow Led thumb image 2
  • LPJ16258AENL RJ45 PoE Connector with 10/100 Base-T Integrated Magnetics Single Port Tab Up Green/Yellow Led thumb image 3
  • LPJ16258AENL RJ45 PoE Connector with 10/100 Base-T Integrated Magnetics Single Port Tab Up Green/Yellow Led thumb image 4
  • LPJ16258AENL RJ45 PoE Connector with 10/100 Base-T Integrated Magnetics Single Port Tab Up Green/Yellow Led thumb image 5

LPJ16258AENL RJ45 PoE Connector with 10/100 Base-T Integrated Magnetics Single Port Tab Up Green/Yellow Led

#178693
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJ16258AENL RJ45 PoE Connector with 10/100 Base-T Integrated Magnetics Single Port Tab Up Green/Yellow Led

  • ￥  661.986

    1760 in Stock

 17 Reviews
0 Questions
Request Stock
19.3K Sold
￥  661.986
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
￥ 661.986
100
￥ 542.948
600
￥ 476.75
1200
￥ 364.167
6000
￥ 311.178
Manufacture: LINK-PP
P/N: LPJ16258AENL
Compatible:
LINK-PP
Competitor P/N:
LPJ16258AENL
Shipping:
￥ 3,506.57
to France Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1760 in Stock .
Quantity:
Total Price:
￥ 661.986
Packaging Details:
0.007kg
Tray
50pcs
1200pcs
32*30*31cm
8.5kg
Add to wish

LINK-PP LPJ16258AENL RJ45 Connector with 10/100 Base-T Integrated Magnetics for Industrial PC and Fieldbus System (POE, Rectifier Diode,Single Port, Tab Up, Green/Yellow Led)


The LPJ16258AENL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number
 LPJ16258AENL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.837/21.25

Package Width (Inches)
0.628/15.95Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
Rectifier DiodeContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 PoE Connector
  2. LINK-PP
  3. RJ45 Connector
  4. RJ45 Magnetics
  5. Magnetics Jack
  6. rj45 circuit board connector

Download

Product Drawing
