Home
Modular Jack
RJ45 Jack without Magnetics
8P8C RJ45 Jack
177684

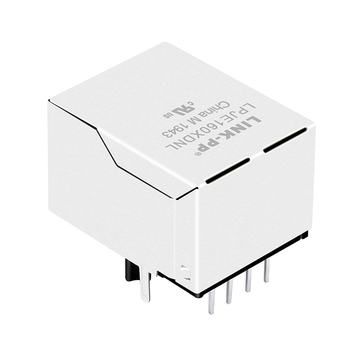

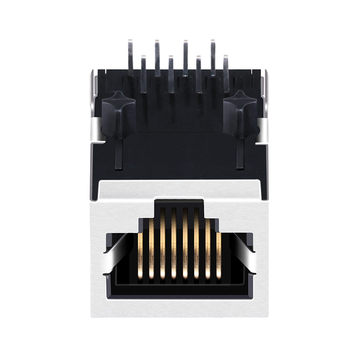

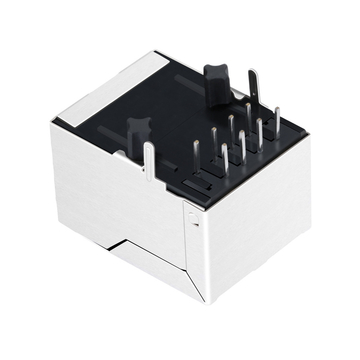

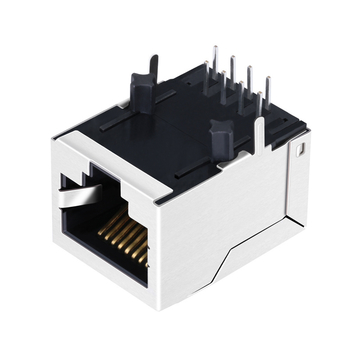

RT-TGJAS-R1-XT0808 Compatible LPJE160XDNL Shielded RJ45 PCB Jack Side Entry without Magnetics transformer Tab Down Without Led
  • RT-TGJAS-R1-XT0808 Compatible LPJE160XDNL Shielded RJ45 PCB Jack Side Entry without Magnetics transformer Tab Down Without Led thumb image 1
  • RT-TGJAS-R1-XT0808 Compatible LPJE160XDNL Shielded RJ45 PCB Jack Side Entry without Magnetics transformer Tab Down Without Led thumb image 2
  • RT-TGJAS-R1-XT0808 Compatible LPJE160XDNL Shielded RJ45 PCB Jack Side Entry without Magnetics transformer Tab Down Without Led thumb image 3
  • RT-TGJAS-R1-XT0808 Compatible LPJE160XDNL Shielded RJ45 PCB Jack Side Entry without Magnetics transformer Tab Down Without Led thumb image 4
  • RT-TGJAS-R1-XT0808 Compatible LPJE160XDNL Shielded RJ45 PCB Jack Side Entry without Magnetics transformer Tab Down Without Led thumb image 5

RT-TGJAS-R1-XT0808 Compatible LPJE160XDNL Shielded RJ45 PCB Jack Side Entry without Magnetics transformer Tab Down Without Led

# 177684
For Order Over $300 Get $15.00 Off , Code:
Linkpp15
For Order Over $2000 Get $50.00 Off , Code:
Linkpp50
For Order Over $3000 Get $100.00 Off , Code:
Linkpp100

RT-TGJAS-R1-XT0808 Compatible LPJE160XDNL Shielded RJ45 PCB Jack Side Entry without Magnetics transformer Tab Down Without Led

  • A$  0.694

    3600 in Stock

 20 Reviews
0 Questions
Request Stock
17.4K Sold
A$  0.694
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
100
A$0.694
1000
A$0.624
5000
A$0.604
10000
A$0.59
15000
A$0.569
P/N: LPJE160XDNL
Compatible:
LINK-PP
UDE
Compatible P/N:
RT-TGJAS-R1-XT0808
Shipping:
A$ 45.384
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
3600 in Stock .
Quantity:
Total Price:
A$ 0.694
Add to wish

UDE RT-TGJAS-R1-XT0808 Compatible LINK-PP LPJE160XDNL Shielded RJ45 PCB Jack Side Entry without Magnetics transformer for router and Switch(1X1 Port, Tab Down ,Without LED)


The LPJE160XDNL supports speed 10/100 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Intercom,Industrial PC, router and Switch.


LINK-PP Part Number
LPJE160XDNL
 UDE Part Number
 RT-TGJAS-R1-XT0808
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 -
Number of Ports
1x1 PortSpeed
-
Latch
UpCores per Port
-
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.537/13.65Package Length (Inches/mm)

0.837/21.27

Package Width (Inches/mm)
0.625/15.88
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 Jack without Magnetics

Download

Product Drawing
