Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
174334

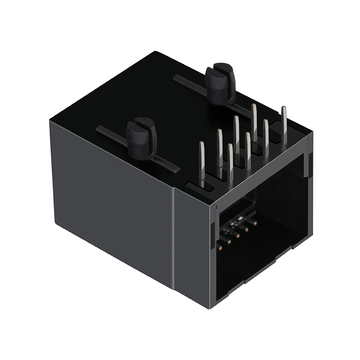

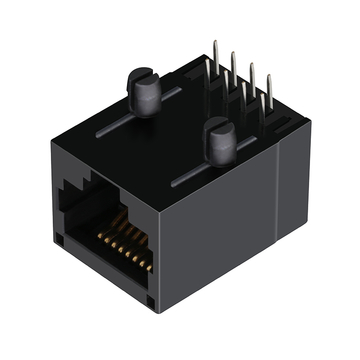

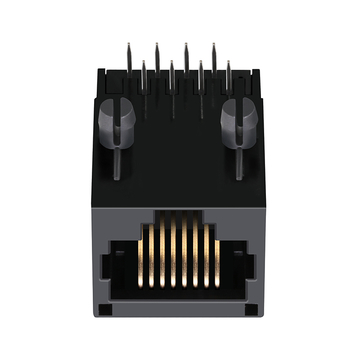

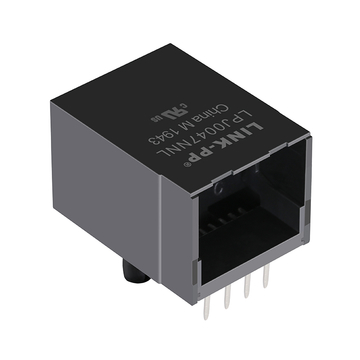

Pulse J00-0047NL Compatible LPJ0047NNL 100 Base-T UnShield RJ45 Jack with Magnetics Tab Down Without Led
  • Pulse J00-0047NL Compatible LPJ0047NNL 100 Base-T UnShield RJ45 Jack with Magnetics Tab Down Without Led thumb image 1
  • Pulse J00-0047NL Compatible LPJ0047NNL 100 Base-T UnShield RJ45 Jack with Magnetics Tab Down Without Led thumb image 2
  • Pulse J00-0047NL Compatible LPJ0047NNL 100 Base-T UnShield RJ45 Jack with Magnetics Tab Down Without Led thumb image 3
  • Pulse J00-0047NL Compatible LPJ0047NNL 100 Base-T UnShield RJ45 Jack with Magnetics Tab Down Without Led thumb image 4
  • Pulse J00-0047NL Compatible LPJ0047NNL 100 Base-T UnShield RJ45 Jack with Magnetics Tab Down Without Led thumb image 5

Pulse J00-0047NL Compatible LPJ0047NNL 100 Base-T UnShield RJ45 Jack with Magnetics Tab Down Without Led

# 174334
For Order Over $300 Get $15.00 Off , Code:
Linkpp15
For Order Over $2000 Get $50.00 Off , Code:
Linkpp50
For Order Over $3000 Get $100.00 Off , Code:
Linkpp100

Pulse J00-0047NL Compatible LPJ0047NNL 100 Base-T UnShield RJ45 Jack with Magnetics Tab Down Without Led

  • руб  0.00

    2012 in Stock

 43 Reviews
0 Questions
Request Stock
19.7K Sold
руб  0.00
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
руб0.00
100
руб0.00
600
руб0.00
1200
руб0.00
6000
руб0.00
Manufacture: LINK-PP
P/N: LPJ0047NNL
Compatible:
LINK-PP
Pulse
Compatible P/N:
J00-0047NL
Shipping:
Free Shipping
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
2012 in Stock .
Quantity:
Total Price:
руб 0.00
Packaging Details:
0.007kg
Tray
50pcs
1200pcs
32*30*31cm
8.5kg
Add to wish

Pulse J00-0047NL Compatible LINK-PP LPJ0047NNL Single Port UnShield RJ45 Jack with 10/100 Base-T Integrated Magnetics, Without LED, Tab Down, RoHS

LINK-PP Part Number:
 LPJ0047NNL Pulse Part Number
J00-0047NL
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.504/12.80Package Length (Inches/mm)

0.811/20.60

Package Width (Inches/mm)
0.602/15.30Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. UnShield RJ45 Jack
