Integrated RJ45 Connector
Single Port RJ45 Connector
1000 Base-T RJ45 Connector
171594

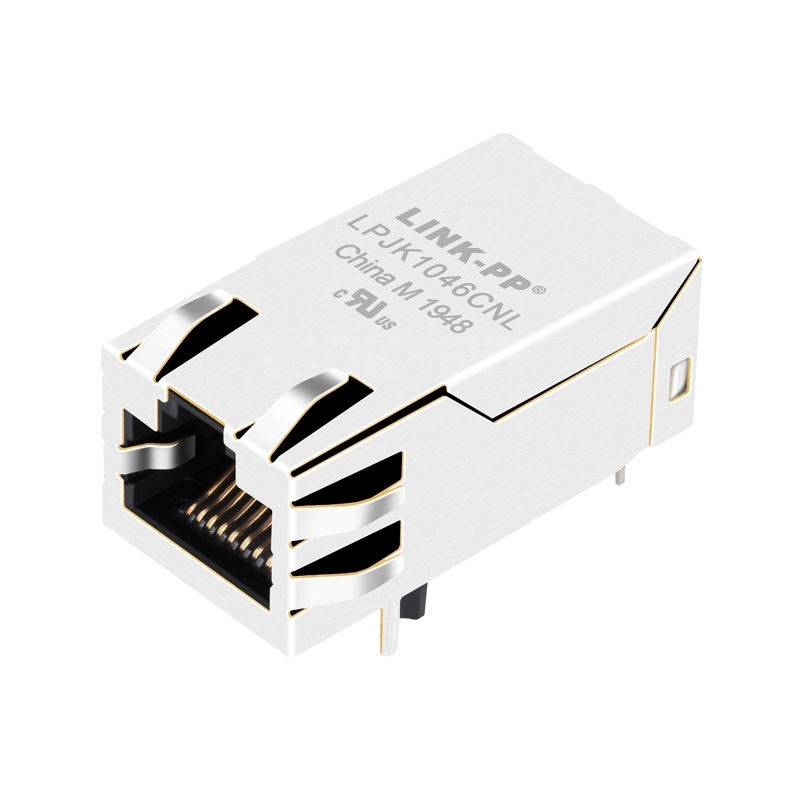

BelFuse 1840797-1 Compatible LINK-PP LPJK1046CNL 1x1 Port RJ45 Gigabit Magnetics Jack With PoE Tab Up Without Led
  • BelFuse 1840797-1 Compatible LINK-PP LPJK1046CNL 1x1 Port RJ45 Gigabit Magnetics Jack With PoE Tab Up Without Led thumb image 1
  • BelFuse 1840797-1 Compatible LINK-PP LPJK1046CNL 1x1 Port RJ45 Gigabit Magnetics Jack With PoE Tab Up Without Led thumb image 2
  • BelFuse 1840797-1 Compatible LINK-PP LPJK1046CNL 1x1 Port RJ45 Gigabit Magnetics Jack With PoE Tab Up Without Led thumb image 3
  • BelFuse 1840797-1 Compatible LINK-PP LPJK1046CNL 1x1 Port RJ45 Gigabit Magnetics Jack With PoE Tab Up Without Led thumb image 4
  • BelFuse 1840797-1 Compatible LINK-PP LPJK1046CNL 1x1 Port RJ45 Gigabit Magnetics Jack With PoE Tab Up Without Led thumb image 5

BelFuse 1840797-1 Compatible LINK-PP LPJK1046CNL 1x1 Port RJ45 Gigabit Magnetics Jack With PoE Tab Up Without Led

#171594
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

BelFuse 1840797-1 Compatible LINK-PP LPJK1046CNL 1x1 Port RJ45 Gigabit Magnetics Jack With PoE Tab Up Without Led

  • C$  5.557

    1247 in Stock

 0 Questions
Request Stock
8.3K Sold
C$  5.557
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
C$ 5.557
100
C$ 4.557
600
C$ 4.002
1200
C$ 3.057
6000
C$ 2.613
Manufacture: LINK-PP
P/N: LPJK1046CNL
Compatible:
LINK-PP
BelFuse
Competitor P/N:
0816-1X1T-80
1840797-1
Shipping:
C$ 32.004
to Spain Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1247 in Stock .
Quantity:
Total Price:
C$ 5.557
Packaging Details:
0.011kg
Tray
60pcs
840pcs
37*30*30cm
9kg
Add to wish

BelFuse 1840797-1 Compatible LINK-PP LPJK1046CNL 100/1000 Base-T RJ45 Gigabit Magnetics Jack for Smart Meters and Satellite (POE, 1x1 Port, Tab Up, Without Led)


The LPJK1046CNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Solar Inverter, Automation and Video Recorder.


LINK-PP Part Number:
 LPJK1046CNL
 BelFuse Part Number 1840797-1
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 12p8c (RJ45, Ethernet) Application-Lan
 Ethernet( PoE )
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UPCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches)
0.654/16.60Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 Gigabit Magnetics Jack

Download

LPJK1046CNL Drawing

3D Model
