Integrated RJ45 Connector
Single Port RJ45 Connector
1000 Base-T RJ45 Connector
105652

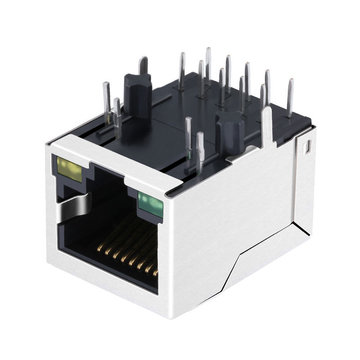

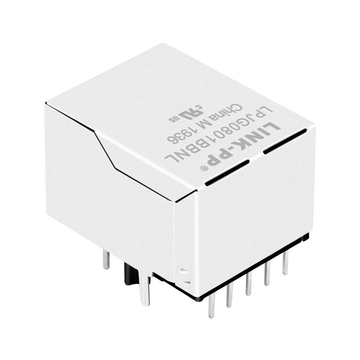

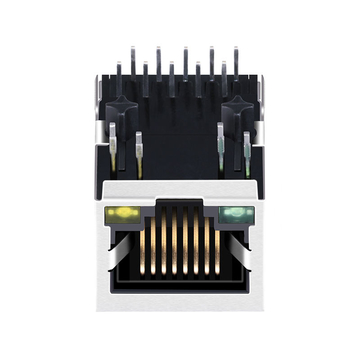

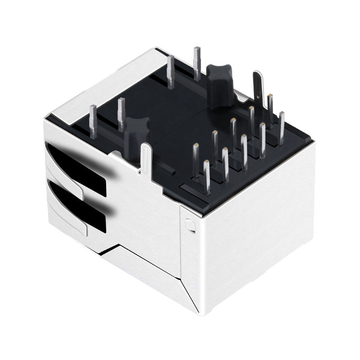

LPJG0801BBNL 10/100/1000 Base-T Gigabit RJ45 connector With magnetics Green/Yellow LED Tab Down
  • LPJG0801BBNL 10/100/1000 Base-T Gigabit RJ45 connector With magnetics Green/Yellow LED Tab Down thumb image 1
  • LPJG0801BBNL 10/100/1000 Base-T Gigabit RJ45 connector With magnetics Green/Yellow LED Tab Down thumb image 2
  • LPJG0801BBNL 10/100/1000 Base-T Gigabit RJ45 connector With magnetics Green/Yellow LED Tab Down thumb image 3
  • LPJG0801BBNL 10/100/1000 Base-T Gigabit RJ45 connector With magnetics Green/Yellow LED Tab Down thumb image 4
  • LPJG0801BBNL 10/100/1000 Base-T Gigabit RJ45 connector With magnetics Green/Yellow LED Tab Down thumb image 5

LPJG0801BBNL 10/100/1000 Base-T Gigabit RJ45 connector With magnetics Green/Yellow LED Tab Down

# 105652
For Order Over $300 Get $15.00 Off , Code:
Linkpp15
For Order Over $2000 Get $50.00 Off , Code:
Linkpp50
For Order Over $3000 Get $100.00 Off , Code:
Linkpp100

LPJG0801BBNL 10/100/1000 Base-T Gigabit RJ45 connector With magnetics Green/Yellow LED Tab Down

  • R$  18.129

    195 in Stock

 59 Reviews
1 Questions
Request Stock
25.5K Sold
R$  18.129
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
R$18.129
100
R$14.867
600
R$13.055
1200
R$9.977
6000
R$8.521
P/N: LPJG0801BBNL
Connector Type:
LINK-PP
Competitor P/N:
LPJG0801BBNL
Shipping:
R$ 159.433
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
195 in Stock .
Quantity:
Total Price:
R$ 18.129
Packaging Details:
0.008kg
Tray
50pcs
1200pcs
32*30*31cm
9kg
Add to wish

LINK-PP LPJG0801BBNL 100/1000 Base-T Gigabit RJ45 connector With magnetics for Monitoring System and Embedded Main Board (1x1 Port, Tab Down, Green/Yellow Led)

The LPJG0801BBNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Embedded Main Board, Video Recorder and Smart Meters.


LINK-PP Part Number:
LPJG0801BBNLConnector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
Down Cores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Gigabit RJ45 connector
