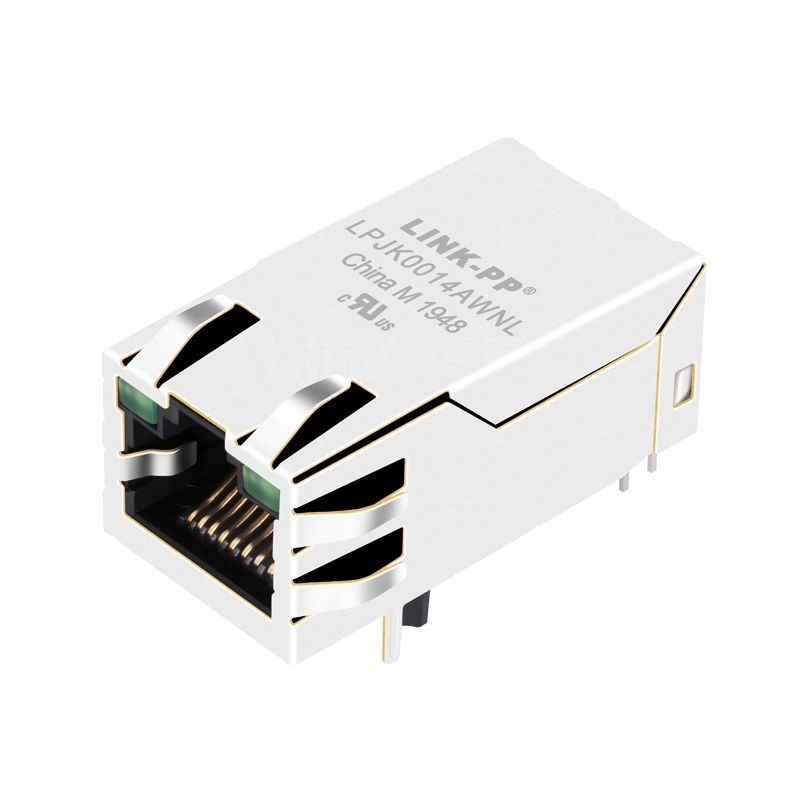

Pulse JK0-0114NL Compatible LINK-PP LPJK0014AWNL 100/1000 Base-T Tab Up Green/Green Led Single Port Jack RJ45 Module

Pulse JK0-0114NL Compatible LINK-PP LPJK0014AWNL 100/1000 Base-T Tab Up Green/Green Led Single Port Jack RJ45 Module

#94484
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100
7 Reviews
0 Questions
Request Stock
19.8K Sold
A$  6.881
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
A$6.881
100
A$5.643
600
A$4.955
1200
A$3.786
6000
A$3.235
Manufacture: LINK-PP
P/N: LPJK0014AWNL
Compatible:
Pulse
Competitor P/N:
JK0-0014NL
JK0-0114NL
Shipping:
A$ 45.09
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1200 in Stock .
Quantity:
Total Price:
A$ 6.881
Packaging Details:
0.011kg
Tray
60pcs
960pcs
37*30*30cm
10.1kg

Pulse JK0-0114NL Compatible LINK-PP LPJK0014AWNL 100/1000 Base-T Jack RJ45 Module for Industrial PC and Fieldbus System (Single Port, Tab Up, Green/Green Led)


The LPJK0014AWNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
LPJK0014AWNL Pulse Part Number JK0-0114NL
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
12p8c (RJ45, Ethernet) Application-Lan
Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UPCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.30/33.02

Package Width (Inches)
0.654/16.60Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

Download

LPJK0014AWNL Drawing
