Integrated RJ45 Connector
Single Port RJ45 Connector
1000 Base-T RJ45 Connector
93613

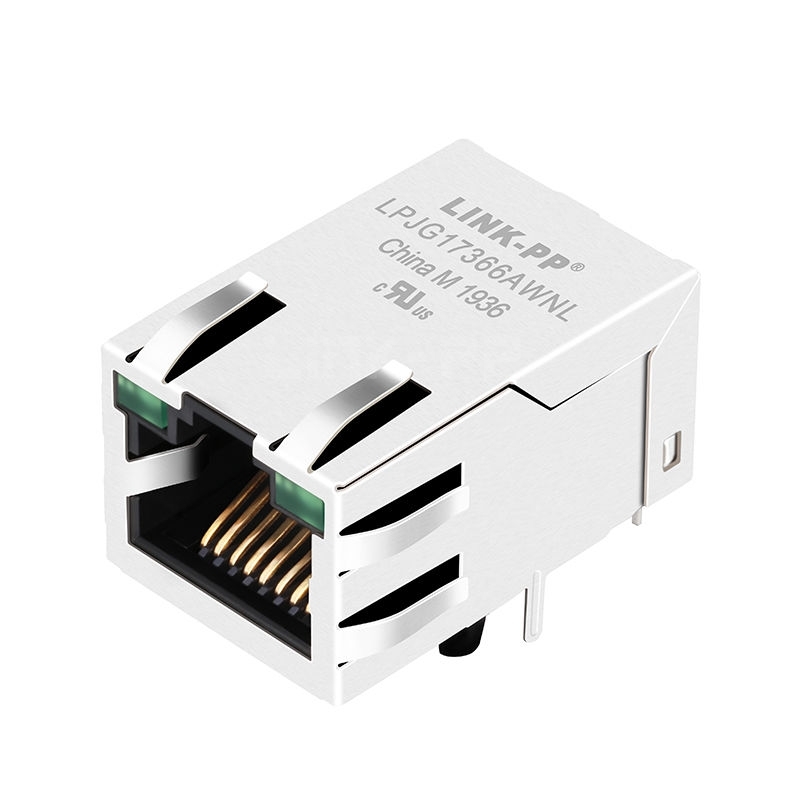

Tyco 1840750-7 Compatible LINK-PP LPJG17366AWNL 100/1000 Base-T Single Port Ethernet RJ45 Connector Tab Up Green/Green Led
  • Tyco 1840750-7 Compatible LINK-PP LPJG17366AWNL 100/1000 Base-T Single Port Ethernet RJ45 Connector Tab Up Green/Green Led thumb image 1
  • Tyco 1840750-7 Compatible LINK-PP LPJG17366AWNL 100/1000 Base-T Single Port Ethernet RJ45 Connector Tab Up Green/Green Led thumb image 2
  • Tyco 1840750-7 Compatible LINK-PP LPJG17366AWNL 100/1000 Base-T Single Port Ethernet RJ45 Connector Tab Up Green/Green Led thumb image 3
  • Tyco 1840750-7 Compatible LINK-PP LPJG17366AWNL 100/1000 Base-T Single Port Ethernet RJ45 Connector Tab Up Green/Green Led thumb image 4
  • Tyco 1840750-7 Compatible LINK-PP LPJG17366AWNL 100/1000 Base-T Single Port Ethernet RJ45 Connector Tab Up Green/Green Led thumb image 5

Tyco 1840750-7 Compatible LINK-PP LPJG17366AWNL 100/1000 Base-T Single Port Ethernet RJ45 Connector Tab Up Green/Green Led

#93613
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

Tyco 1840750-7 Compatible LINK-PP LPJG17366AWNL 100/1000 Base-T Single Port Ethernet RJ45 Connector Tab Up Green/Green Led

  • ￥  529.438

    9048 in Stock

 61 Reviews
0 Questions
Request Stock
61K Sold
￥  529.438
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
￥ 529.438
100
￥ 434.269
600
￥ 381.28
1200
￥ 291.214
6000
￥ 248.883
Manufacture: LINK-PP
P/N: LPJG17366AWNL
Compatible:
Tyco
Competitor P/N:
1840750-7
Shipping:
￥ 4,423.742
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
9048 in Stock .
Quantity:
Total Price:
￥ 529.438
Packaging Details:
0.009kg
Tray
50pcs
1000pcs
32*30*31cm
9kg
Add to wish

Tyco 1840750-7 Compatible LINK-PP LPJG17366AWNL 100/1000 Base-T Ethernet RJ45 Connector for Smart Camera and Game Controller (Single Port, Tab Up, Green/Green Led)


The LPJG17366AWNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Smart Camera and Game Controller.


LINK-PP Part Number:
 LPJG17366AWNL Tyco Part Number 1840750-7
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UPCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.994/25.25

Package Width (Inches)
0.636/16.15Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Ethernet RJ45 Connector

Download

LPJG17366AWNL Drawing

3D Model
