Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
93468

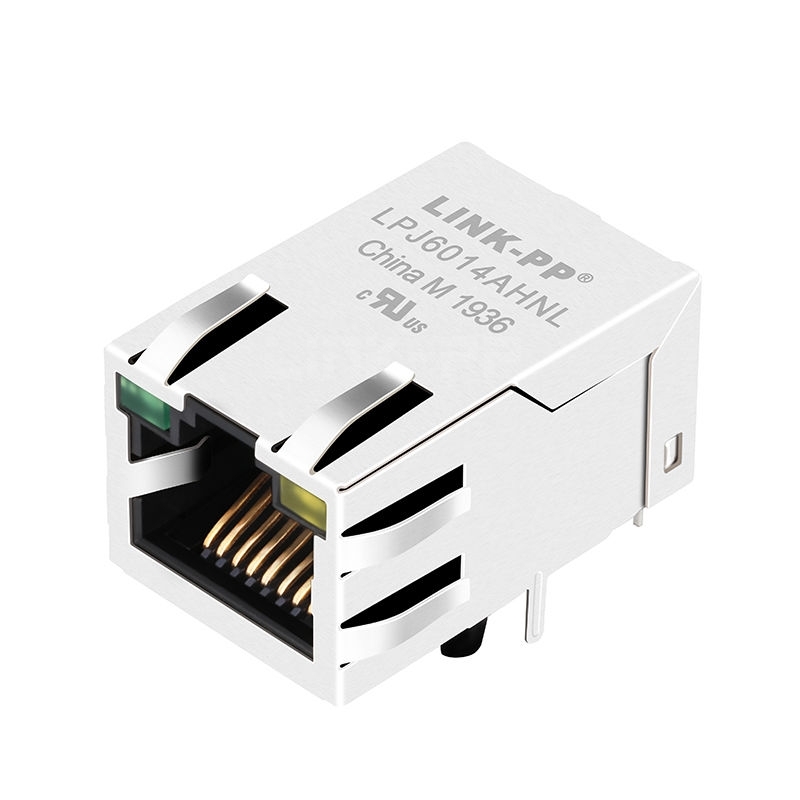

Pulse JP009SX88X2XXXXX-024-G Compatible LINK-PP LPJ6014AHNL 10/100 Base-T Tab Up Green/Yellow Led Single Port RJ45 Connection
  • Pulse JP009SX88X2XXXXX-024-G Compatible LINK-PP LPJ6014AHNL 10/100 Base-T Tab Up Green/Yellow Led Single Port RJ45 Connection thumb image 1
  • Pulse JP009SX88X2XXXXX-024-G Compatible LINK-PP LPJ6014AHNL 10/100 Base-T Tab Up Green/Yellow Led Single Port RJ45 Connection thumb image 2
  • Pulse JP009SX88X2XXXXX-024-G Compatible LINK-PP LPJ6014AHNL 10/100 Base-T Tab Up Green/Yellow Led Single Port RJ45 Connection thumb image 3
  • Pulse JP009SX88X2XXXXX-024-G Compatible LINK-PP LPJ6014AHNL 10/100 Base-T Tab Up Green/Yellow Led Single Port RJ45 Connection thumb image 4
  • Pulse JP009SX88X2XXXXX-024-G Compatible LINK-PP LPJ6014AHNL 10/100 Base-T Tab Up Green/Yellow Led Single Port RJ45 Connection thumb image 5

Pulse JP009SX88X2XXXXX-024-G Compatible LINK-PP LPJ6014AHNL 10/100 Base-T Tab Up Green/Yellow Led Single Port RJ45 Connection

#93468
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

Pulse JP009SX88X2XXXXX-024-G Compatible LINK-PP LPJ6014AHNL 10/100 Base-T Tab Up Green/Yellow Led Single Port RJ45 Connection

  • C$  2.888

    1799 in Stock

 0 Questions
Request Stock
52.8K Sold
C$  2.888
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
C$2.888
100
C$2.369
600
C$2.08
1200
C$1.59
6000
C$1.358
Manufacture: LINK-PP
P/N: LPJ6014AHNL
Compatible:
LINK-PP
Belfuse
Molex
Pulse
WE
Competitor P/N:
JP009SX88X2XXXXX-024-G
Shipping:
C$ 40.374
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1799 in Stock .
Quantity:
Total Price:
C$ 2.888
Packaging Details:
0.009kg
Tray
50pcs
1000pcs
32*30*31cm
8.75kg
Add to wish

Pulse JP009SX88X2XXXXX-024-G Compatible LINK-PP LPJ6014AHNL 10/100 Base-T RJ45 Connection for Smart Camera and Game Controller (Single Port, Tab Up, Green/Yellow Led)

LINK-PP Part Number:
 LPJ6014AHNL Pulse Part Number JP009SX88X2XXXXX-024-G
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.994/25.25

Package Width (Inches)
0.636/16.15Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 Connection

Download

LPJ6014AHNL Drawing

3D Model
