Integrated RJ45 Connector
Single Port RJ45 Connector
10 Base-T RJ45 Connector
117812

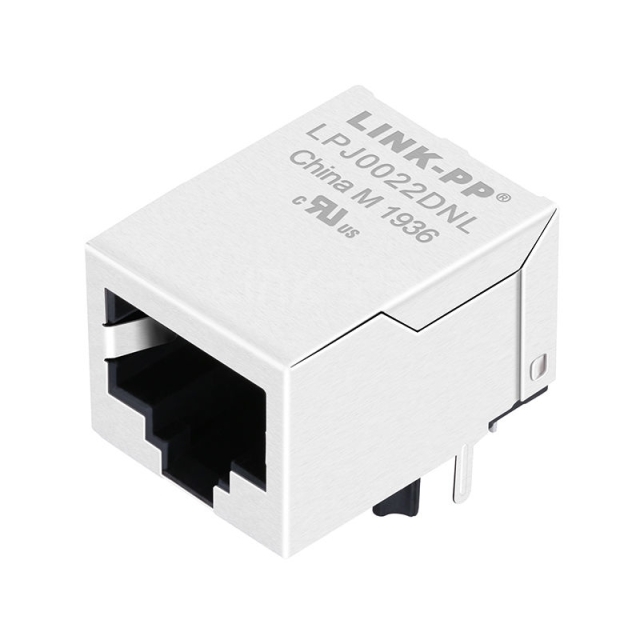

Bothhand LF1S022 LF Compatible LINK-PP LPJ0022DNL 10 Base-T Tab Down Without Led 1 Port Magnetic RJ-45 Jack Connectors
  • Bothhand LF1S022 LF Compatible LINK-PP LPJ0022DNL 10 Base-T Tab Down Without Led 1 Port Magnetic RJ-45 Jack Connectors thumb image 1
  • Bothhand LF1S022 LF Compatible LINK-PP LPJ0022DNL 10 Base-T Tab Down Without Led 1 Port Magnetic RJ-45 Jack Connectors thumb image 2
  • Bothhand LF1S022 LF Compatible LINK-PP LPJ0022DNL 10 Base-T Tab Down Without Led 1 Port Magnetic RJ-45 Jack Connectors thumb image 3
  • Bothhand LF1S022 LF Compatible LINK-PP LPJ0022DNL 10 Base-T Tab Down Without Led 1 Port Magnetic RJ-45 Jack Connectors thumb image 4
  • Bothhand LF1S022 LF Compatible LINK-PP LPJ0022DNL 10 Base-T Tab Down Without Led 1 Port Magnetic RJ-45 Jack Connectors thumb image 5

Bothhand LF1S022 LF Compatible LINK-PP LPJ0022DNL 10 Base-T Tab Down Without Led 1 Port Magnetic RJ-45 Jack Connectors

#117812
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

Bothhand LF1S022 LF Compatible LINK-PP LPJ0022DNL 10 Base-T Tab Down Without Led 1 Port Magnetic RJ-45 Jack Connectors

  • $  2.734

    1014 in Stock

 10 Reviews
1 Questions
Request Stock
6.7K Sold
$  2.734
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 2.734
100
$ 2.242
600
$ 1.969
1200
$ 1.504
6000
$ 1.285
Manufacture: LINK-PP
P/N: LPJ0022DNL
Compatible:
Bothhand
Hanrun
Competitor P/N:
LF1S022
LF1S022 LF
Shipping:
$ 29.47
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1014 in Stock .
Quantity:
Total Price:
$ 2.734
Packaging Details:
0.007kg
Tray
50pcs
1200pcs
32*30*31cm
8.5kg
Add to wish

Bothhand LF1S022 LF Compatible LINK-PP LPJ0022DNL 10 Base-T Magnetic RJ-45 Jack Connectors for Digital Camera and Game Controller (1 Port, Tab Down, Without Led)


The LPJ0022DNL supports speed 10 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Digital Camera and Game Controller.


LINK-PP Part Number:
 LPJ0022DNL Bothhand Part Number LF1S022 LF
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 Female Connector

Download

3D Model

Product Drawing

Questions & Answers

 Ask a Question

  • Q: Can you do OEM project? By K***g on 2020-08-12

    A: Yes, no problem. Custom logo and custom packing will be no problem for us. For example, custom artworks and patterns printing on phone cases, and OEM brand rj45 connector, lan transformer etc. with your own logos.By adminon 2020-08-13
