Cisco Single Mode SFP 10G Explained & Best Alternatives

With the rapid adoption of 10Gigabit Ethernet, Cisco Single Mode SFP 10G modules have become a core component in enterprise and data center networks that require stable, long-distance optical transmission. These modules are specifically designed for single-mode fiber links, enabling reliable 10G connectivity across buildings, campuses, and metro networks — laying the foundation for understanding what Cisco Single Mode SFP 10G is and where it is used.

As network performance demands grow, IT teams must evaluate not only distance and speed, but also wavelength, form factor, power efficiency, and monitoring capabilities. Cisco Single Mode SFP 10G transceivers are engineered to meet strict technical standards, making their specifications and variations critical when designing or upgrading 10G optical links — highlighting the importance of technical specifications and common module types.

Despite their technical strengths, genuine Cisco 10G Single Mode SFP modules often come at a premium cost, prompting organizations to seek reliable third-party alternatives. High-quality compatible modules can match Cisco standards in speed, interoperability, and digital diagnostics while offering significant cost savings. In this article, you’ll explore the best alternatives to Cisco Single Mode SFP 10G, and learn key tips for installation and troubleshooting.

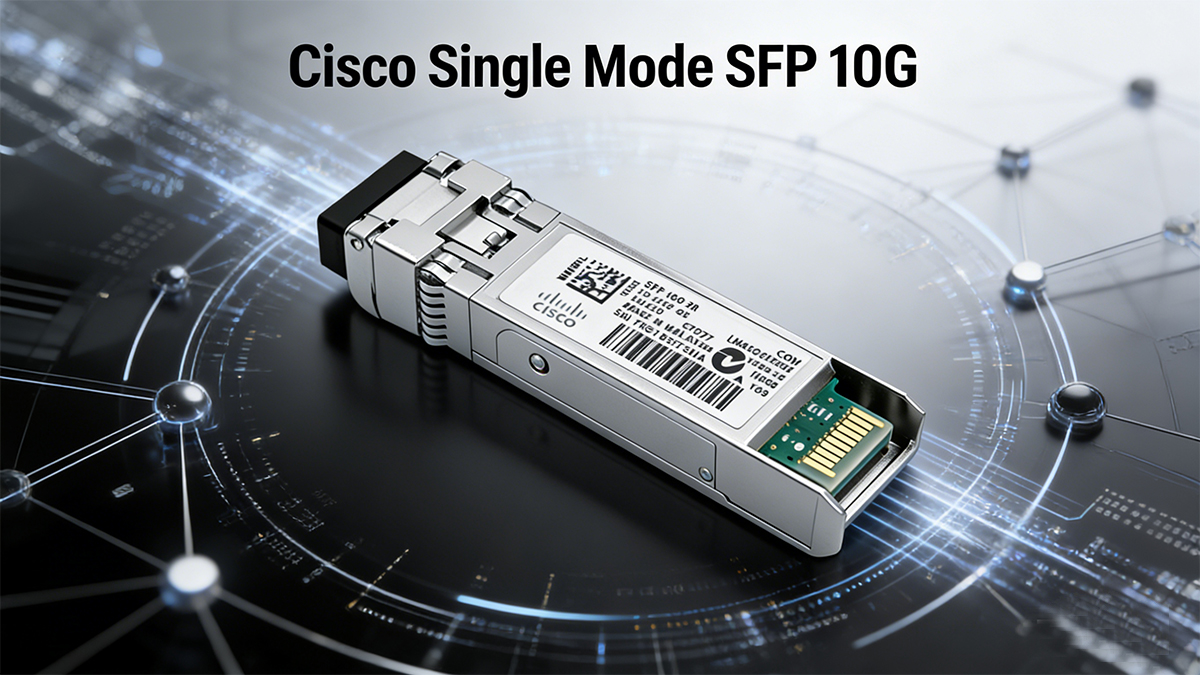

🎈 What Is Cisco Single Mode SFP 10G

Cisco Single Mode SFP 10G is a small form factor pluggable transceiver for single mode fiber, enabling reliable high-speed data transmission across long distances in modern enterprise, data center, and service provider networks.

Definition of Cisco Single Mode SFP 10G

A Cisco Single Mode SFP 10G is a compact, hot-swappable optical transceiver that supports 10G Ethernet over single mode fiber (SMF). It operates at standard wavelengths of 1310nm or 1550nm and uses duplex LC connectors to ensure precise optical alignment and low insertion loss. The module converts electrical signals to optical signals and vice versa, enabling seamless communication between network devices over long distances.

These transceivers adhere to SFP+ form factor specifications and support digital diagnostic monitoring (DDM), allowing real-time tracking of optical power, temperature, and voltage. They are widely recognized for their stability, low latency, and broad compatibility with Cisco switches and routers, making them a fundamental component of modern 10G optical infrastructures.

Why Single Mode Matters for 10G Networks

Single mode fiber (SMF) is critical for 10G networks because it supports significantly longer transmission distances compared to multimode fiber (MMF). Using a smaller core diameter, SMF minimizes modal dispersion, maintaining signal quality over tens of kilometers. This makes it indispensable for backbone links, campus interconnections, and metro access networks that require consistent high-speed performance across extended spans.

Cisco Single Mode SFP 10G modules leverage the advantages of SMF to deliver superior reach and reliability with minimal signal degradation. They ensure efficient data transfer and scalability for organizations expanding their 10G infrastructure, offering an optimal solution where network stability, bandwidth efficiency, and long-haul capabilities are priorities.

Typical Use Cases of Cisco Single Mode SFP 10G

Cisco Single Mode SFP 10G is commonly deployed in environments where long-distance, high-bandwidth connectivity is required. It plays a key role in building robust and future-proof network infrastructures.

• Data Center Interconnection (DCI): Used to link switches between data centers or within large data center campuses over long distances.
• Enterprise Core and Distribution Networks: Supports high-speed backbone links between core and aggregation layers in large enterprise networks.
• Service Provider Networks: Enables reliable 10G optical links for metro, access, or aggregation networks.
• Campus and Building Connectivity: Ideal for connecting buildings across campuses where fiber runs exceed the limits of multimode solutions.

🎈 Cisco Single Mode SFP 10G Technical Specifications

Cisco Single Mode SFP 10G modules are designed to meet demanding network requirements for speed, reach, and reliability. Their technical specifications define how efficiently they deliver 10G performance across diverse optical environments.

Transmission Distance & Data Rate

Cisco Single Mode SFP 10G transceivers support a fixed data rate of 10Gbps, conforming to IEEE 802.3ae 10GBASE Ethernet standards. Depending on the model, transmission distance typically ranges from 10km to 40km or even 80km when using advanced optics. These distances enable flexible deployment across metropolitan, enterprise, and data center networks without the need for repeaters.

Operating Wavelength & Connector Type

Each module operates at specific optical wavelengths optimized for single-mode transmission — generally 1310nm for LR models and 1550nm for ER or ZR variants. These wavelengths minimize dispersion and attenuation across standard G.652 optical fibers. Cisco SFP Single Mode 10G modules use duplex LC connectors, an industry-standard small form factor interface that ensures precise alignment and high return loss performance.

Form Factor and Compatibility

Cisco Single Mode SFP 10G modules feature the SFP+ form factor, allowing for high port density and efficient use of network hardware space. They are hot-pluggable, enabling easy installation and replacement without interrupting network operations. Designed for seamless integration, these modules are compatible with a wide range of Cisco switches, routers, and other network devices.

Digital Diagnostic Monitoring (DDM)

Cisco SFP Single Mode 10G modules feature Digital Diagnostic Monitoring (DDM) capabilities. This function provides real-time information such as transmit (TX) and receive (RX) optical power, laser bias current, module temperature, and supply voltage. Network administrators use these diagnostics to monitor link health, detect abnormal conditions, and perform proactive maintenance — ultimately enhancing network reliability and uptime.

Power Consumption and Operating Temperature

Cisco 10GB SFP Single Mode transceivers are designed for energy efficiency, typically consuming approximately 1.5W depending on model and transmission distance. They support a standard operating temperature range of 0 °C to 70 °C for commercial-grade modules and –40 °C to 85 °C for industrial-grade modules. These parameters ensure consistent performance in diverse operating conditions, from climate-controlled data centers to outdoor network cabinets.

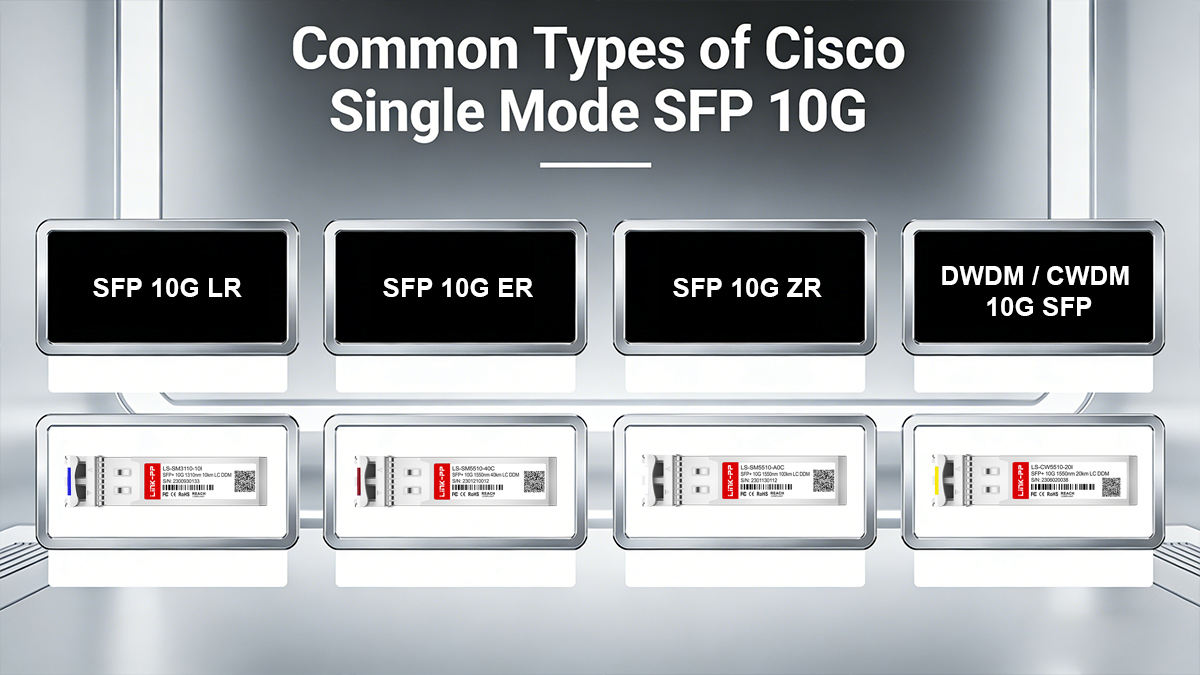

🎈 Common Types of Cisco Single Mode SFP 10G

Cisco Single Mode SFP 10G modules come in several variants designed for different transmission distances and network architectures. Each module serves a specific role—from short metropolitan links to ultra-long-haul backbones—ensuring flexibility for diverse optical networking needs.

Cisco SFP 10G LR

Cisco SFP 10G LR is designed for standard single mode fiber links with a typical transmission distance of up to 10km. Operating at a wavelength of 1310nm, it supports 10G Ethernet according to the IEEE 802.3ae 10GBASE-LR standard. This SFP module is widely used in enterprise and data center environments for building-to-building connections, campus networks, and aggregation layers.

Cisco SFP 10G ER

Cisco SFP 10G ER supports longer transmission distances of up to 40km over single mode fiber. Operating at a 1550nm wavelength, ER modules are ideal for metropolitan area networks (MANs), service provider backbones, and long-distance enterprise links. Due to their higher optical power and sensitivity, ER modules often require careful link budgeting and, in some cases, optical attenuation for shorter links.

Cisco SFP 10G ZR

Cisco SFP 10G ZR pushes the optical reach even further, supporting distances up to 80km on single mode fiber. It operates at the same 1550nm wavelength but uses more powerful optics with enhanced dispersion compensation techniques. This makes it a go-to option for carrier-grade and long-haul backbone networks that demand stable, high-speed transmission over large geographic spans.

Cisco DWDM / CWDM 10G SFP

Cisco 10G DWDM CWDM SFP modules enable wavelength-division multiplexing, allowing multiple 10G signals to be transmitted over a single pair of fibers.

• CWDM 10G SFP modules use wider wavelength spacing (typically 1270–1610nm) and are suitable for distances up to 40–80km, offering a cost-effective solution for fiber-constrained networks.
• DWDM 10G SFP modules use tightly spaced wavelengths (typically 1528–1568nm) and support high-capacity, long-distance transmission, often exceeding 80km with amplification. These modules are widely used in large-scale data centers, telecom networks, and high-density backbone architectures where fiber efficiency is critical.

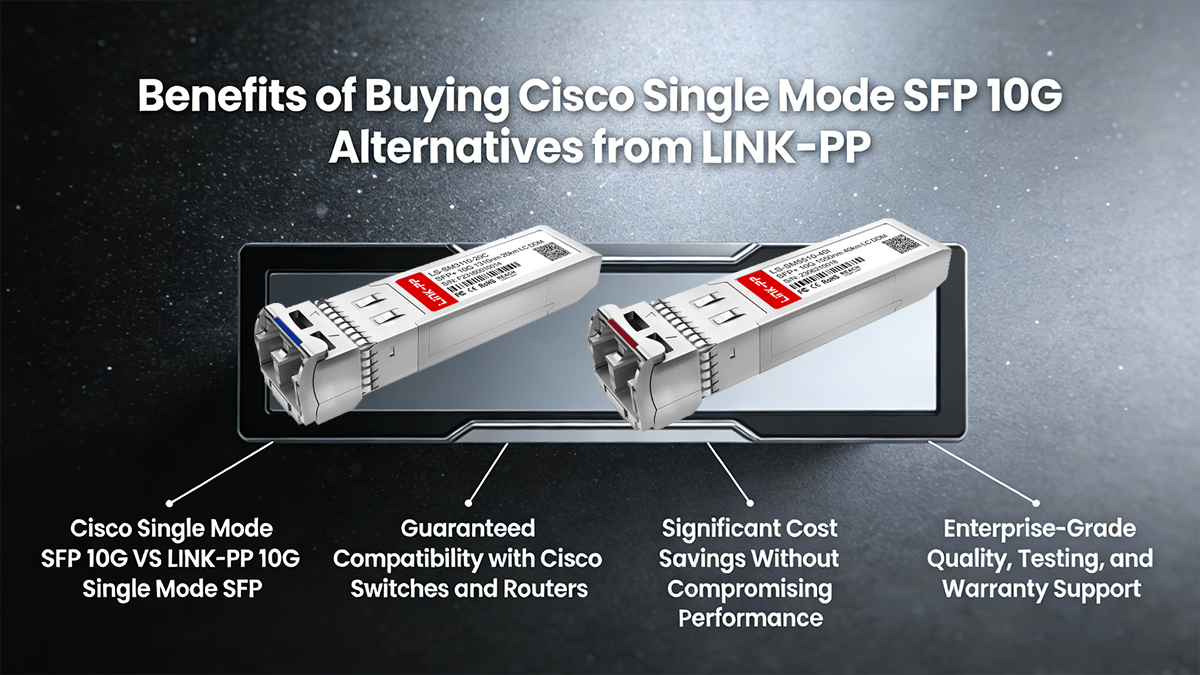

🎈 Benefits of Buying Cisco Single Mode SFP 10G Alternatives from LINK-PP

Choosing LINK-PP for Cisco Single Mode SFP 10G alternatives allows enterprises to achieve the same high-speed performance as original Cisco modules while significantly reducing network deployment and maintenance costs. These third-party compatible modules are engineered to meet or exceed Cisco’s specifications, making them a practical choice to optimize your network.

Cisco Single Mode SFP 10G VS LINK-PP 10G Single Mode SFP

LINK-PP Single Mode SFP 10G modules are engineered to match the key technical specifications and functional performance of Cisco’s original optics, while offering greater flexibility and cost efficiency. The table below highlights the main differences and similarities between Cisco-branded modules and LINK-PP alternatives:

This comparison shows that LINK-PP 10G Single Mode SFP alternatives are designed to deliver comparable performance and functionality to Cisco-branded modules, while avoiding the premium pricing typically associated with OEM optics—making them a practical choice for cost-sensitive deployments.

Guaranteed Compatibility with Cisco Switches and Routers

LINK-PP Cisco compatible single mode SFP 10G modules are pre-programmed and thoroughly tested to ensure seamless compatibility with a wide range of Cisco switches and routers. Each module is validated for proper recognition, stable link establishment, and accurate DDM/DOM reporting, reducing the risk of compatibility issues during deployment. This guarantees a true plug-and-play experience in Cisco network environments.

Significant Cost Savings Without Compromising Performance

One of the strongest advantages of LINK-PP Cisco compatible 10G single mode SFP is the substantial cost reduction compared to the original Cisco optics. Organizations can save a significant portion of their optical transceiver budget while maintaining the same transmission distance, signal stability, and network reliability. These savings are especially valuable for large-scale data center builds, metro networks, and backbone upgrades.

Enterprise-Grade Quality, Testing, and Warranty Support

LINK-PP follows strict quality control standards, including optical spectrum test, eye pattern test, bit error rate test, and temperature test. Each Cisco compatible single mode SFP 10G is built using high-quality components to ensure long-term stability and low failure rates. In addition, LINK-PP provides 3-year warranty coverage and responsive technical support, offering peace of mind comparable to, or better than, many OEM solutions.

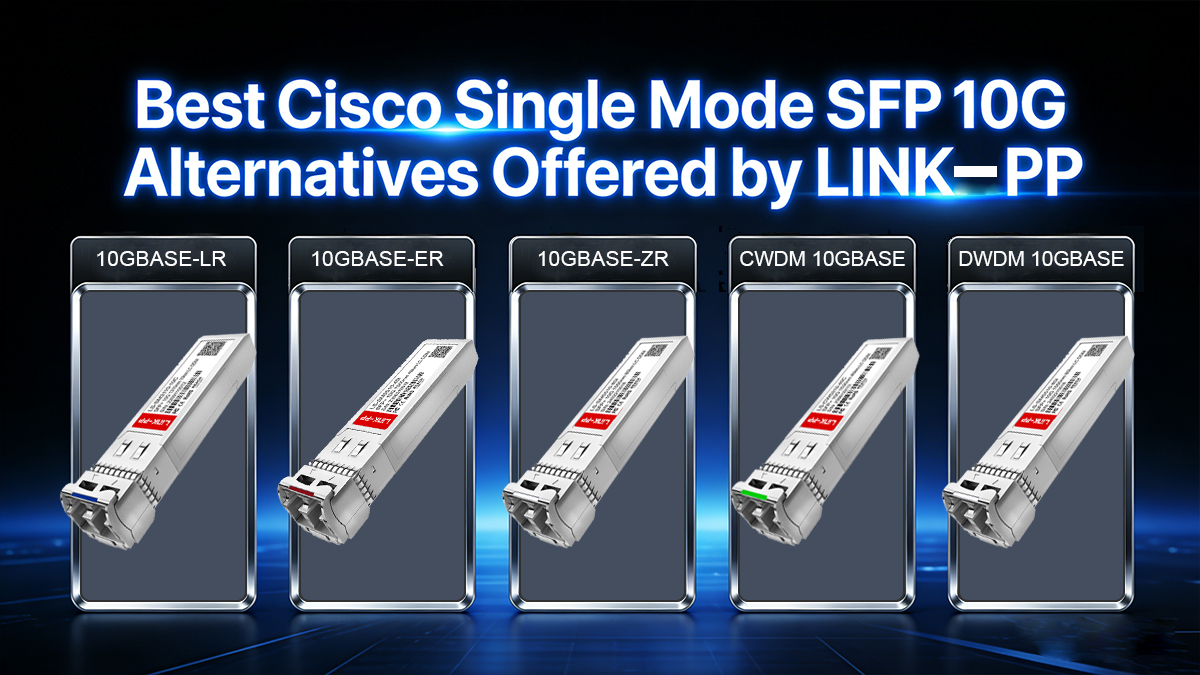

🎈 Best Cisco Single Mode SFP 10G Alternatives Offered by LINK-PP

Below are highly compatible and cost-effective LINK-PP single mode 10G SFP+ alternatives to Cisco originals. Each module is designed for specific transmission distances and optical requirements, delivering reliable 10G connectivity with full support for Cisco switches and routers.

LINK-PP 10GBASE-LR SFP+ Module

Designed for stable 10G Ethernet connections, the LS-SM3110-10I 10GBASE LR SFP module is suitable for long-distance fiber links up to 10km. It delivers outstanding optical performance in temperature-sensitive environments, ensuring consistent network reliability.

Technical Specifications:

• Max Data Rate: 10.7Gbps
• Wavelength: 1310nm
• Max Cable Distance: Up to 10km over SMF
• Optical Interface: Duplex LC connector
• Transmitter Type: DFB
• Receiver Type: PIN
• Receiver Sensitivity: <-14.4dBm
• Power Consumption: 1.5W
• Operating Temperature: -40 to +85°C
• Protocols: IEEE 802.3ae, SFF-8431, SFF-8472, SFP+ MSA, SFF-8432, CPRI, eCPRI

LINK-PP 10GBASE-ER SFP+ Module

The LS-SM5510-40C 10GBASE ER SFP module is designed for extended-reach 10G Ethernet applications and supports link distances up to 40km over single mode fiber. It features stable optical output and superior EMI performance, suitable for enterprise core and metro networks.

Technical Specifications:

• Max Data Rate: 10.7Gbps
• Wavelength: 1550nm
• Max Cable Distance: Up to 40km over SMF
• Optical Interface: Duplex LC connector
• Optical Components: EML 1550nm
• Receiver Sensitivity: -15.5dBm
• Power Consumption: 1.5W
• Operating Temperature: 0 to 70°C
• Protocols: SFP+ MSA Compliant, CPRI, eCPRI

LINK-PP 10GBASE-ZR SFP+ Module

The LS-SM5510-80I 10GBASE ZR is an industrial-grade optical transceiver providing long-haul 10G transmission up to 80km. It is designed for carrier networks and metropolitan backbone systems that require extended optical link budgets and high environmental resilience.

Technical Specifications:

• Max Data Rate: 10.7Gbps
• Wavelength: 1550nm
• Max Cable Distance: Up to 80km over SMF
• Optical Interface: Duplex LC connector
• Transmitter Type: EML
• Receiver Type: PIN
• Receiver Sensitivity: -23dBm
• Power Consumption: 1.5W
• Operating Temperature: -40 to +85°C
• Protocols: IEEE 802.3, SFF-8402, SFF-8432, SFF-8472, SFF-8431, SFF-8024

LINK-PP CWDM 10GBASE SFP+ Module

The LS-CW5510-40C CWDM 10GBASE SFP employs Coarse Wavelength Division Multiplexing (CWDM) technology to support multiple channels over a single fiber. This module is suitable for networks that require increased capacity without laying additional fiber, such as metropolitan area networks and high-density data centers.

Technical Specifications:

• Max Data Rate: 10Gbps
• Wavelength: 1550nm
• Max Cable Distance: Up to 40km over SMF
• Optical Interface: Duplex LC connector
• Optical Components: DFB CWDM
• Receiver Sensitivity: -16dBm
• Power Consumption: 1.8W
• Operating Temperature: 0 to 70°C
• Protocols: SFP+ MSA Compliant, SFF 8472,SFF 8431,802.3ae, ITU-T

LINK-PP DWDM 10GBASE SFP+ Module

The LS-DW3110-40I 10GBASE DWDM SFP features Dense Wavelength Division Multiplexing (DWDM) for high-capacity optical transport networks. It provides exceptional performance for large-scale network backbones and long-span deployments.

Technical Specifications:

• Max Data Rate: 10Gbps
• Wavelength: 1552.52nm
• Max Cable Distance: Up to 40km over SMF
• Optical Interface: Duplex LC connector
• Optical Components: EML DWDM
• Receiver Sensitivity: -15.5dBm
• Power Consumption: 1.8W
• Operating Temperature: -40 to 85°C
• Protocols: SFP+ MSA Compliant, CPRI, eCPRI

🎈 Installation Tips for Cisco Single Mode SFP 10G Alternatives

Before installing Cisco single mode SFP 10G third-party alternatives, it is important to ensure compatibility, prepare clean fiber connections, and follow proper handling and testing procedures. These steps help maintain stable optical performance and extend the module’s service life.

Check Device Compatibility and Firmware Updates

Before installation, confirm that both the device and single mode fiber SFP module are compatible with each other.

• Verify that the SFP module matches your Cisco switch or router model.
• Check the device’s supported transceiver type list in Cisco documentation or the command-line interface (CLI).
• Ensure the network device firmware is updated to the latest version to fully recognize and support the SFP module.
• Record the module’s serial number and specifications for future reference or maintenance.

Inspect and Clean Fiber Connectors Before Installation

Clean optical connectors are essential for stable signal transmission and preventing data loss.

• Inspect fiber connectors under a microscope or inspection scope before connecting.
• Use lint-free wipes and isopropyl alcohol for cleaning if dust or residue is visible.
• Never touch the fiber end face directly—oil and dirt can severely degrade performance.
• Cover all connectors with dust caps until the moment of installation.

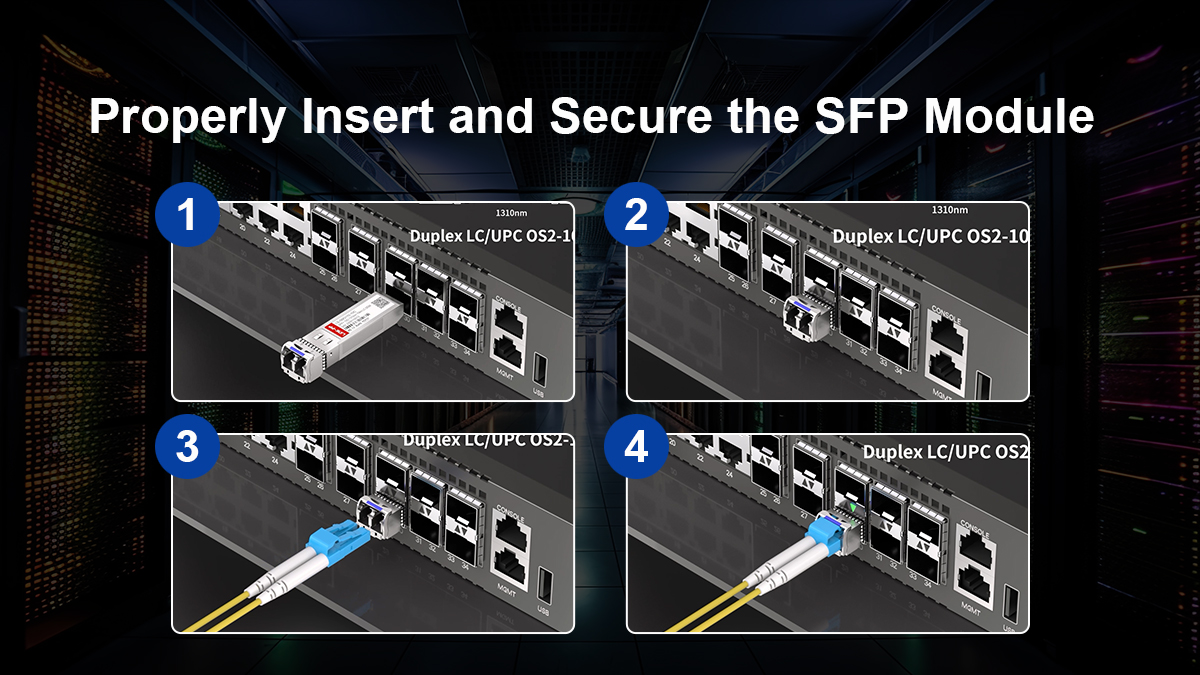

Properly Insert and Secure the SFP Module

Handle the module carefully to avoid physical or electrostatic damage.

• Hold the SFP module by its sides, not by the optical interface.
• Insert it gently into the SFP port until it clicks into place.
• Ensure the latch or bail clasp is correctly locked to secure the module.
• Avoid excessive force when inserting or removing the module to protect both the port and transceiver.

Test Connectivity and Monitor Link Performance

After installation, verify network connectivity and monitor the optical link’s performance.

• Use the device CLI to confirm link status (for example, the “show interface” command).
• Check optical transmit and receive power levels to ensure they are within acceptable ranges.
• Conduct data transmission tests to validate throughput and stability.
• Continue monitoring link performance over time to detect early signs of degradation or alignment issues.

🎈 Troubleshooting Issues with Cisco Single Mode SFP 10G Alternatives

When troubleshooting Cisco single mode SFP 10G alternatives, focus on physical connections, firmware compatibility, and transceiver health. Identifying the root cause quickly helps restore stable, high-speed network performance.

SFP Not Recognized by Cisco Device

If the Cisco switch or router fails to recognize the inserted SFP module, start by checking the module’s compatibility and Cisco IOS version. Some Cisco devices block third-party optics by default, so enable the command service unsupported-transceiver if allowed by your policy. Inspect the transceiver port for dust, debris, or bent pins, and reseat the module securely. Also, verify that the device supports the specific SFP form factor (10GBASE-LR, for example) and that the firmware is up to date.

Link Flapping or Signal Loss

Link flapping, characterized by the interface rapidly going up and down, or complete signal loss, points to physical layer problems. Begin by inspecting the fiber patch cables for bends, cracks, or contamination on the connectors; clean them with appropriate optical tools. Verify that the SFP's wavelength (e.g., 1310nm) and fiber type (single-mode) match the network infrastructure. Crucially, check the link distance. If the actual fiber span exceeds its rated reach, the SFP module will fail.

DDM Reading Errors or Temperature Warnings

Digital Diagnostic Monitoring (DDM) might display abnormal readings, such as incorrect optical power or high temperature alerts. Ensure that the device properly supports DDM for third-party transceivers, as unsupported firmware can sometimes misinterpret the data. Confirm that the ambient temperature falls within the operating range (typically 0℃ to 70℃ for commercial-grade optics). Persistent temperature warnings could indicate insufficient airflow or a defective module that requires replacement.

Poor Performance or Intermittent Connectivity

Slow throughput or intermittent packet loss usually results from link misconfigurations or marginal optical performance. Verify that both ends of the link have matching speed and duplex configurations, and confirm that no mismatched transceiver types (such as LR vs. SR) are paired. Excessive bend radius in the fiber cable can also degrade signal quality, so route fibers carefully. Conduct loopback testing and monitor interface counters to confirm whether errors stem from physical or Layer 2/Layer 3 issues.

🎈 FAQs about Cisco Single Mode SFP 10G

This section answers some of the most common questions about using Cisco and third-party 10G single mode SFP modules. These quick explanations help users understand compatibility, reliability, and performance before deploying them in real network environments.

Are third-party Cisco single mode SFP 10G modules safe to use with Cisco switches?

Yes, third-party SFP modules are generally safe to use if they comply with industry standards such as the Multi-Source Agreement (MSA) and are supplied by reputable vendors with proven compatibility testing.

How can I confirm compatibility with my Cisco network devices?

Check the vendor's compatibility list for your specific Cisco switch model. You may also need to enable the service unsupported-transceiver command on the device to view detected module details after insertion. The SFP should match the intended speed, wavelength, and connector type used in your setup.

Does third-party Cisco single mode SFP 10G support the DDM/DOM feature?

Most third-party quality SFP modules support DDM (Digital Diagnostic Monitoring) or DOM (Digital Optical Monitoring). This allows the switch to read values like temperature, voltage, and optical power. Still, some devices might show partial or incorrect readings if the transceiver is not fully recognized by Cisco firmware.

Can I mix Cisco single mode SFP 10G and third-party alternatives in the same network?

Yes, you can use both types in the same network, as long as they comply with the same optical standards and link parameters. Just ensure both ends of a fiber link use compatible types—for example, 10GBASE-LR to 10GBASE-LR. Always test new links for stability after mixing modules.

Are LINK-PP single mode SFP 10G modules as reliable as Cisco originals?

LINK-PP Single Mode SFP 10G modules are designed to follow standard specifications and often deliver performance close to Cisco originals. They are widely tested for compatibility and signal quality, but long-term reliability still depends on environmental conditions and proper handling during installation.

How long does a Cisco single mode SFP 10G alternative typically last?

A good-quality single mode 10G SFP module can last 5 to 10 years under normal working conditions. Heat, dust, and frequent plug/unplug cycles can shorten its lifespan. Regular cleaning and stable operating temperatures help extend the module’s service life.

🎈 Key Takeaways for Cisco Single Mode SFP 10G

While Cisco Single Mode SFP 10G modules remain a benchmark for performance and reliability in long-distance 10G optical networks, high-quality third-party alternatives have become a strategically viable and cost-effective option for many organizations. As explored, compatible SFP modules from trusted suppliers like LINK-PP can deliver equivalent technical specifications—including guaranteed compatibility, full DDM support, and matching transmission reach—while offering substantial savings, extended warranties, and enterprise-grade quality. Successfully deploying these alternatives hinges on careful selection, proper installation practices, and systematic troubleshooting to ensure seamless integration and optimal network performance.

If you’re considering cost-effective and high-quality 10G optical solutions, explore the full range of compatible Cisco Single Mode SFP 10G alternatives available at the LINK-PP Official Store. Discover how LINK-PP modules can help you upgrade, expand, or optimize your 10G infrastructure—delivering the same stability and reliability you expect, with smarter investment value.
