Integrated RJ45 Connector
SMT RJ45 Connector
10/100 Base-T RJ45 Connector
169485

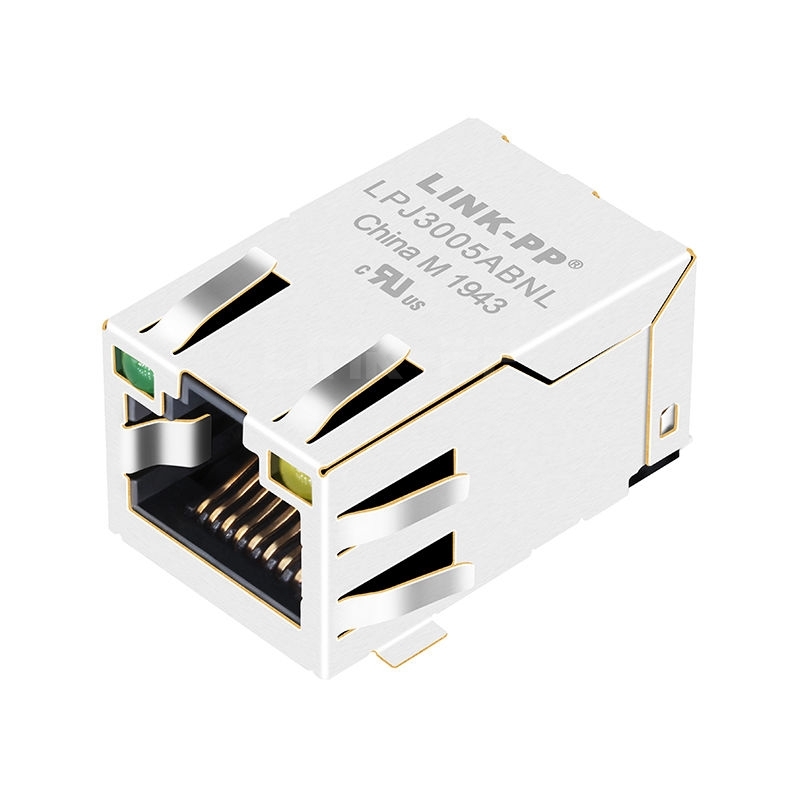

LPJ3005ABNL 10/100 Base-T Tab Up Green/Yellow Led SMT RJ45 Jack Surface Mount
  • LPJ3005ABNL 10/100 Base-T Tab Up Green/Yellow Led SMT RJ45 Jack Surface Mount thumb image 1
  • LPJ3005ABNL 10/100 Base-T Tab Up Green/Yellow Led SMT RJ45 Jack Surface Mount thumb image 2
  • LPJ3005ABNL 10/100 Base-T Tab Up Green/Yellow Led SMT RJ45 Jack Surface Mount thumb image 3
  • LPJ3005ABNL 10/100 Base-T Tab Up Green/Yellow Led SMT RJ45 Jack Surface Mount thumb image 4
  • LPJ3005ABNL 10/100 Base-T Tab Up Green/Yellow Led SMT RJ45 Jack Surface Mount thumb image 5

LPJ3005ABNL 10/100 Base-T Tab Up Green/Yellow Led SMT RJ45 Jack Surface Mount

#169485
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJ3005ABNL 10/100 Base-T Tab Up Green/Yellow Led SMT RJ45 Jack Surface Mount

  • ￥  661.835

    1600 in Stock

 49 Reviews
1 Questions
Request Stock
8.7K Sold
￥  661.835
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
￥ 661.835
100
￥ 542.798
600
￥ 476.6
1200
￥ 364.017
6000
￥ 311.178
Manufacture: LINK-PP
P/N: LPJ3005ABNL
Compatible:
LINK-PP
Pulse
Competitor P/N:
LPJ3005ABNL
Shipping:
￥ 2,710.987
to Japan Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1600 in Stock .
Quantity:
Total Price:
￥ 661.835
Packaging Details:
0.11kg
Tray
110pcs
660pcs
35*35*35cm
7.5kg
Add to wish

LINK-PP LPJ3005ABNL 10/100 Base-T SMT RJ45 Jack Surface Mount for Machine and Smart Meters (Tab Up, Green/Yellow Led)


The LPJ3005ABNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Embedded Main Board, Network Firewall and Smart Meters.


LINK-PP Part Number:
 LPJ3005ABNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Surface Mount
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

Surface Mount

Shield EMI Tabs
WithLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.536/13.61Package Length (Inches/mm)

1.00/25.40

Package Width (Inches/mm)
0.634/16.10
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 Female Connector

Download

LPJ3005ABNL Drawing

3D Model
