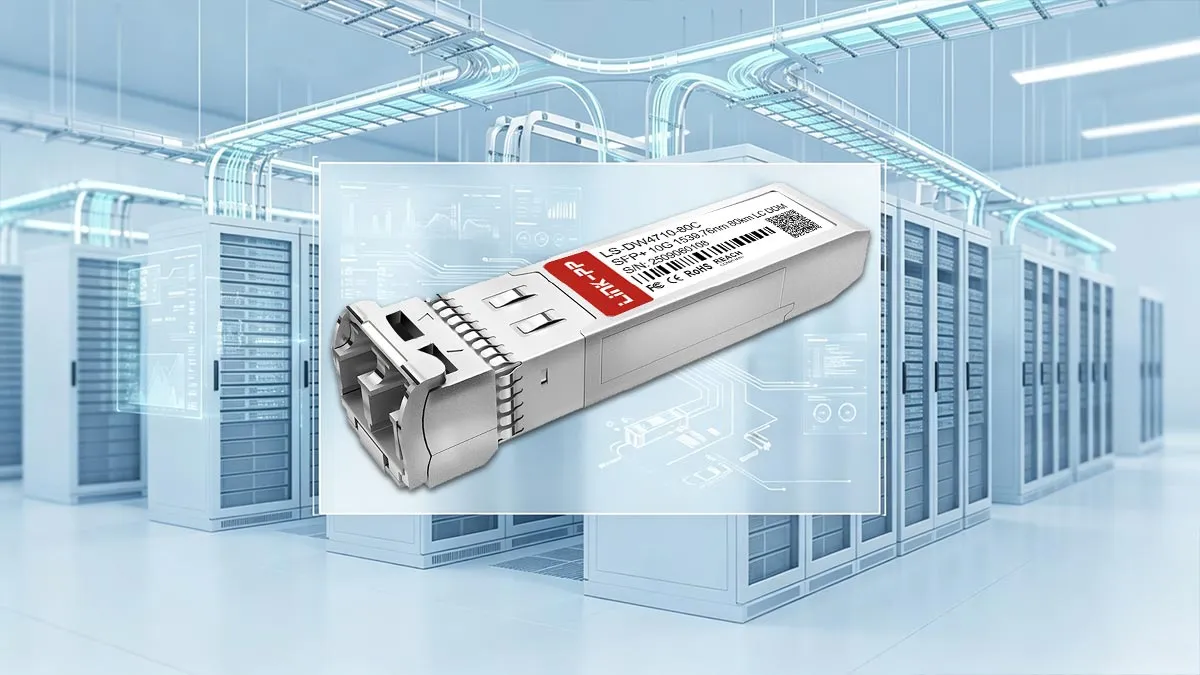

LS-DW4710-80C DWDM module integrates a cooled EML transmitter and a high-sensitivity APD receiver into a hot-pluggable 10G SFP+ form factor tuned to 1539.76nm (C47) on the 100GHz ITU grid. It supports long-haul single-mode fiber (SMF) transmission up to 80km alongside real-time digital diagnostic monitoring for live telemetry of optical power, temperature, bias current, and voltage.
LINK-PP Part Number
LS-DW4710-80C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1539.76nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472
Key Features of LINK-PP LS-DW4710-80C 10G SFP+
LINK-PP LS-DW4710-80C combines dense wavelength division multiplexing with long-reach optical components to deliver reliable 10G transport over single-mode fiber. It integrates industry-standard mechanics, precision optics, and built-in DDM to support demanding optical aggregation networks.

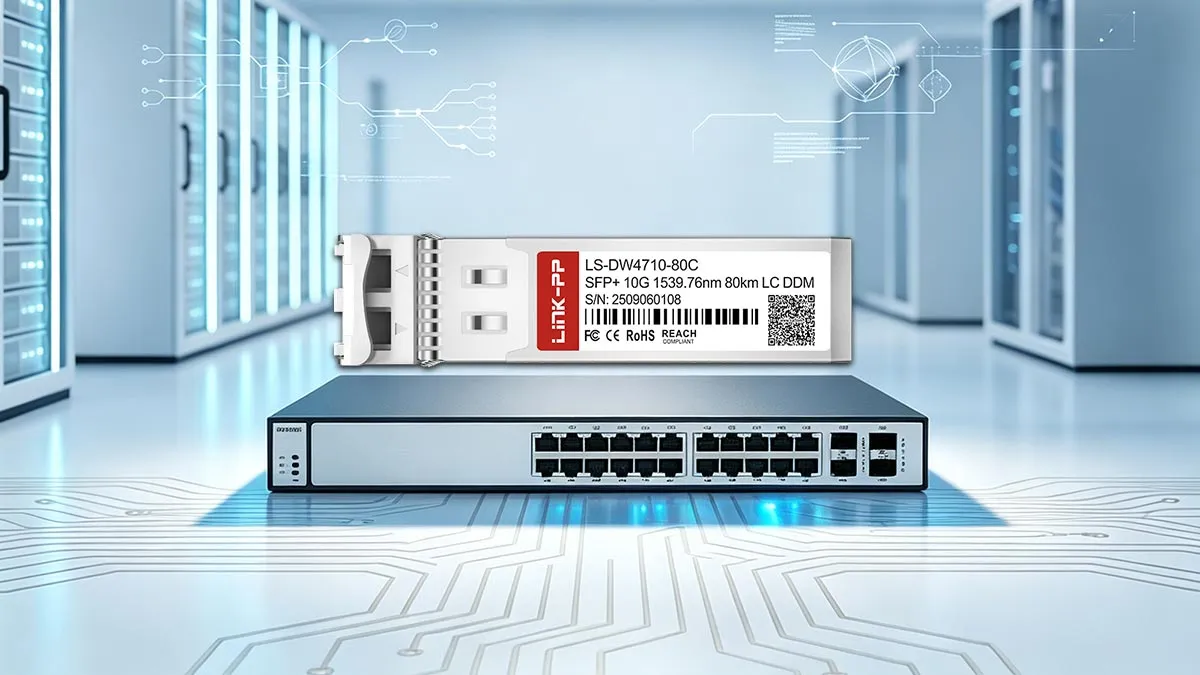

LINK-PP LS-DW4710-80C 10G SFP+ Optical Module
The transceiver features a hot-pluggable SFP+ footprint that allows seamless installation without powering down host systems. It fully complies with the SFP+ MSA standard to ensure broad physical and electrical compatibility across networking equipment.

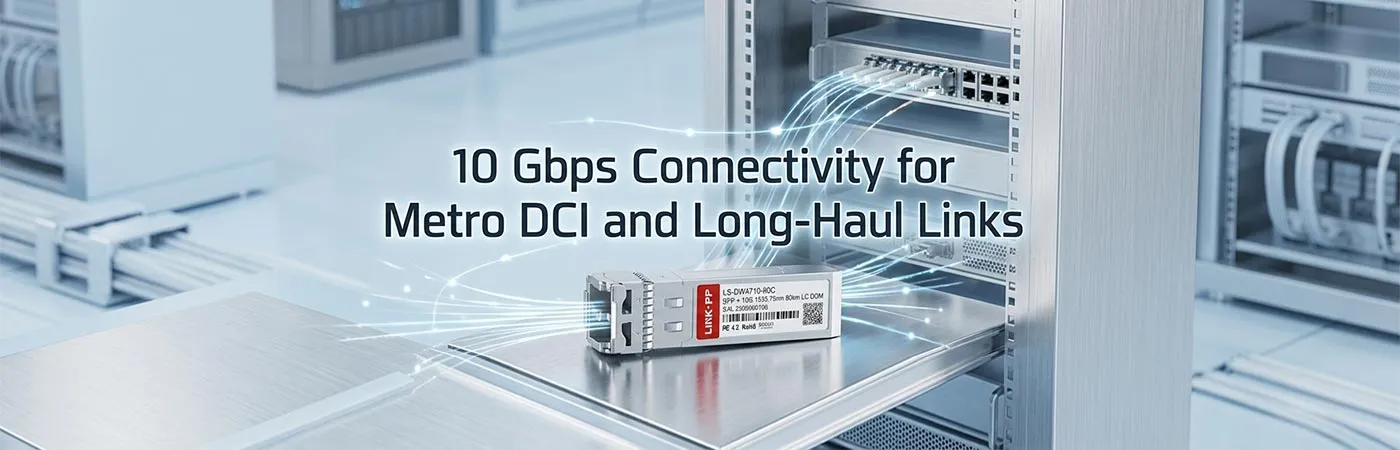

LS-DW4710-80C: 10 Gbps Connectivity for Metro DCI and Long-Haul Links
This optical module delivers dedicated 10Gbps data rates to handle bandwidth-intensive traffic across extended distances. It provides an efficient transport layer for metro data center interconnects (DCI) and regional core aggregation links.

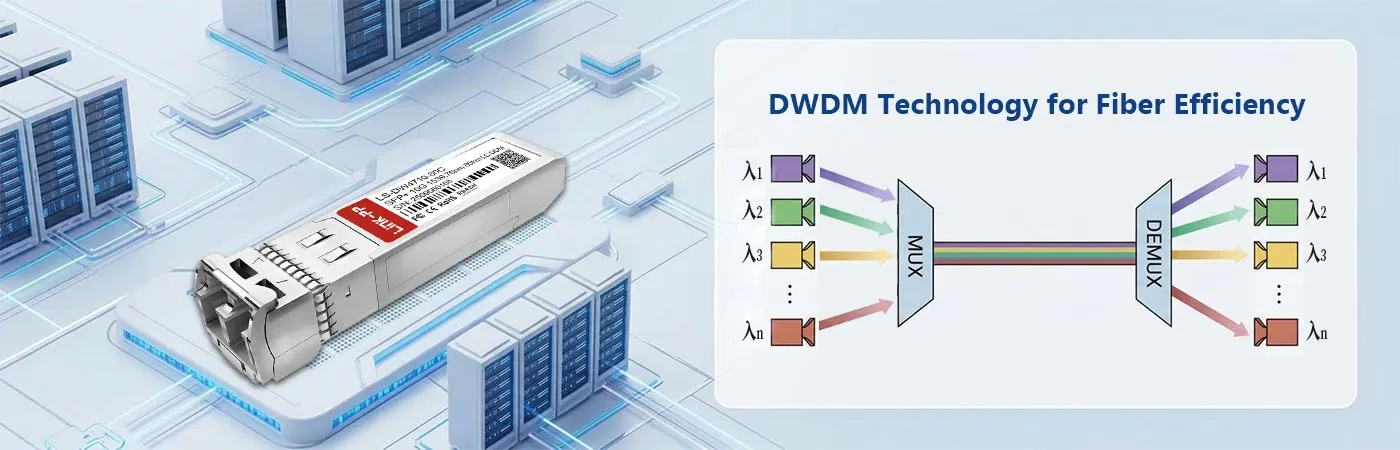

LS-DW4710-80C Module with DWDM Technology for Fiber Efficiency
Dense wavelength division multiplexing enables multiple optical channels to run concurrently over a single physical fiber pair. This capability dramatically expands aggregate bandwidth and lowers leasing expenses by maximizing existing dark fiber assets.

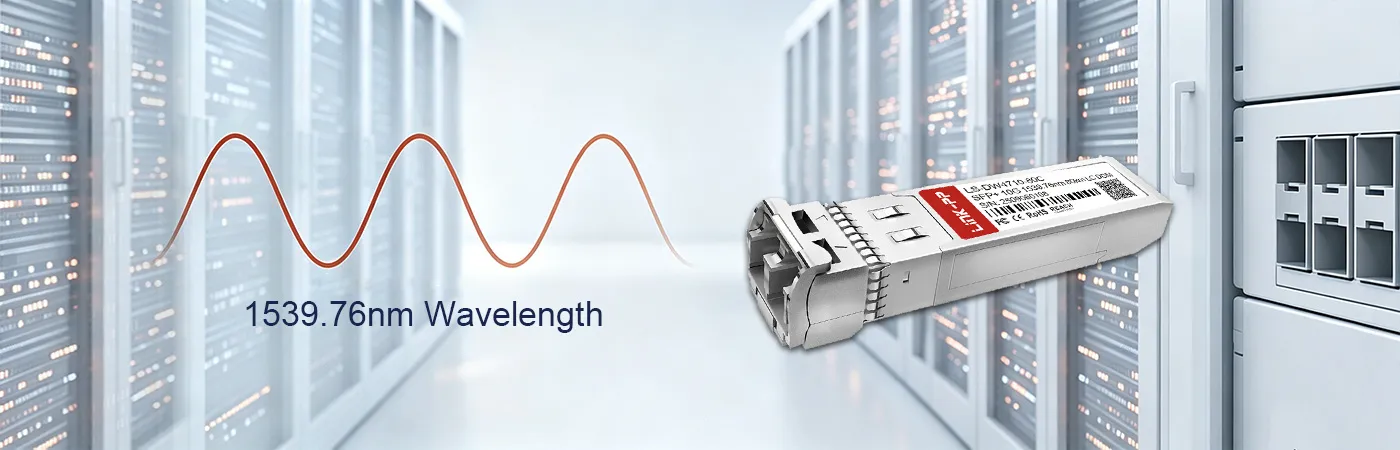

LS-DW4710-80C Module with 1539.76nm Wavelength
Operating at the exact 1539.76nm C-band wavelength, this module aligns with Channel 47 (C47) on the standard 100GHz ITU grid. Its stable optical output ensures precise channel spacing and minimizes signal crosstalk in dense multiplexing setups.
LS-DW4710-80C Module Supporting 80km Transmission
An integrated cooled EML laser paired with an APD receiver enables long-reach signal transmission up to 80km on single-mode fiber. This extended reach eliminates the need for intermediate optical amplifiers in point-to-point regional links.

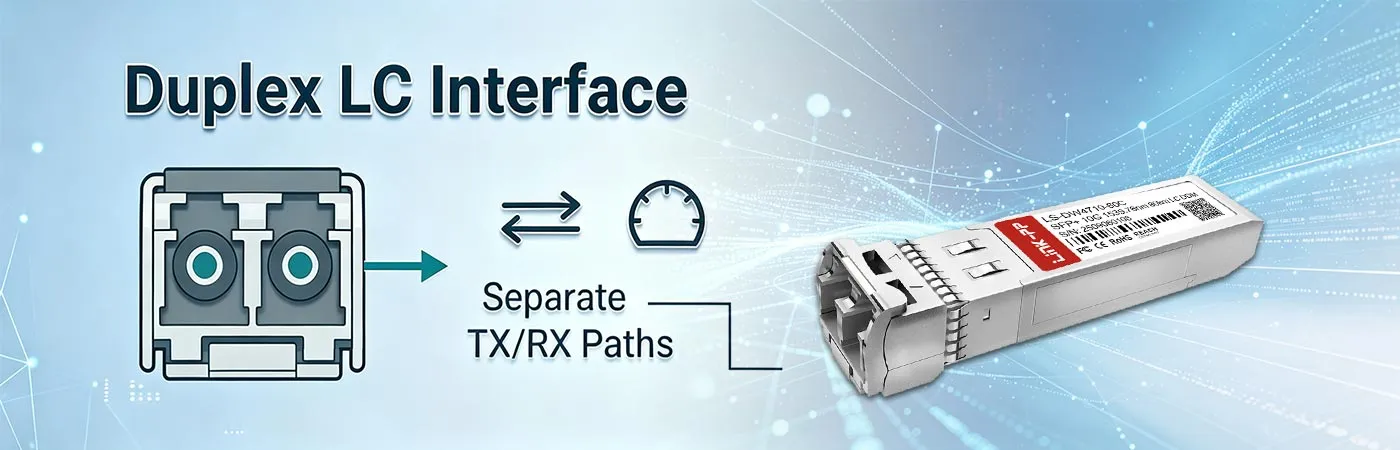

LS-DW4710-80C Module with Duplex LC Interface
The industry-standard duplex LC optical connector provides a secure and compact interface for standard patch cables. Its push-pull latching mechanism ensures stable optical coupling and minimizes insertion loss in dense patch panels.

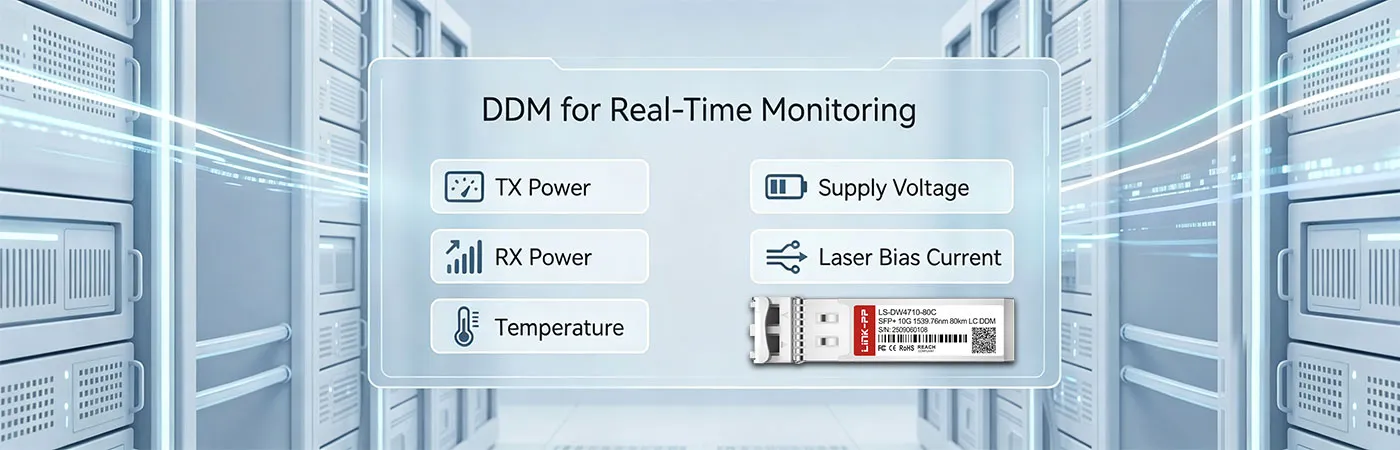

LS-DW4710-80C Module with DDM for Real-Time Monitoring
Integrated digital diagnostic monitoring gives administrators continuous visibility into key operational parameters like temperature, voltage, bias current, and optical power. Fully compatible with SFF-8472 digital diagnostics functions, the module facilitates proactive fault detection and remote troubleshooting.
LINK-PP LS-DW4710-80C 10G SFP+ Certification
LINK-PP LS-DW4710-80C 10G DWDM SFP+ module holds key international credentials, including ISO 9001, CE, RoHS, and FCC compliance. These certifications ensure reliable operational safety, low electromagnetic interference, and dependable build quality for enterprise networks.
Every DWDM SFP+ optical transceiver undergoes rigorous hardware verification, including optical eye-pattern tests and bit-error-rate validation before shipment. This comprehensive inspection process guarantees consistent signal integrity and stable long-term operation under continuous workloads.
LS-DW4710-80C Quality Certifications
The module meets global manufacturing benchmarks to guarantee full compliance with safety and environmental standards. These industry-standard approvals confirm that each unit is built with safe components and delivers consistent reliability in mission-critical deployments.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-DW4710-80C Certified for Reliable Host-Device Compatibility
Extensive testing on major brand switches and routers ensures seamless plug-and-play operation without system errors or port lockouts. The programmed EEPROM ensures accurate device identification and stable communication across diverse networking platforms.
Every LS-DW4710-80C DWDM SFP+ transceiver undergoes comprehensive performance testing to guarantee stable optical characteristics and error-free signal transmission. For in-depth validation reports, consult the LINK-PP Test Support Center.
Optical Spectrum Test
Measure central wavelength and spectral width for stable channel spacing.
Eye Pattern Test
Analyze optical signal quality to prevent waveform jitter and distortion.
Bit Error Rate Test
Evaluate data transmission integrity to confirm reliable packet delivery over fiber.
Temperature Test
Verify optical performance across diverse thermal ranges for continuous operation.
Product Shipping for LINK-PP LS-DW4710-80C 10G SFP+
LINK-PP provides secure packaging and dependable freight options to ensure every optical transceiver arrives in pristine condition. Each order is handled with strict logistical standards to support timely delivery for global networking projects.
Anti-Static Protective Packaging
Protect sensitive internal components against harmful electrostatic discharge.
Shock-Resistant Transport Protection
Shield optical hardware from physical impact and vibration during transportation.
Fast Order Processing and Dispatch
Process orders rapidly to facilitate immediate dispatch from warehouse facilities.
Global Logistics and International Delivery
Provide dependable worldwide freight services for timely and traceable shipments.

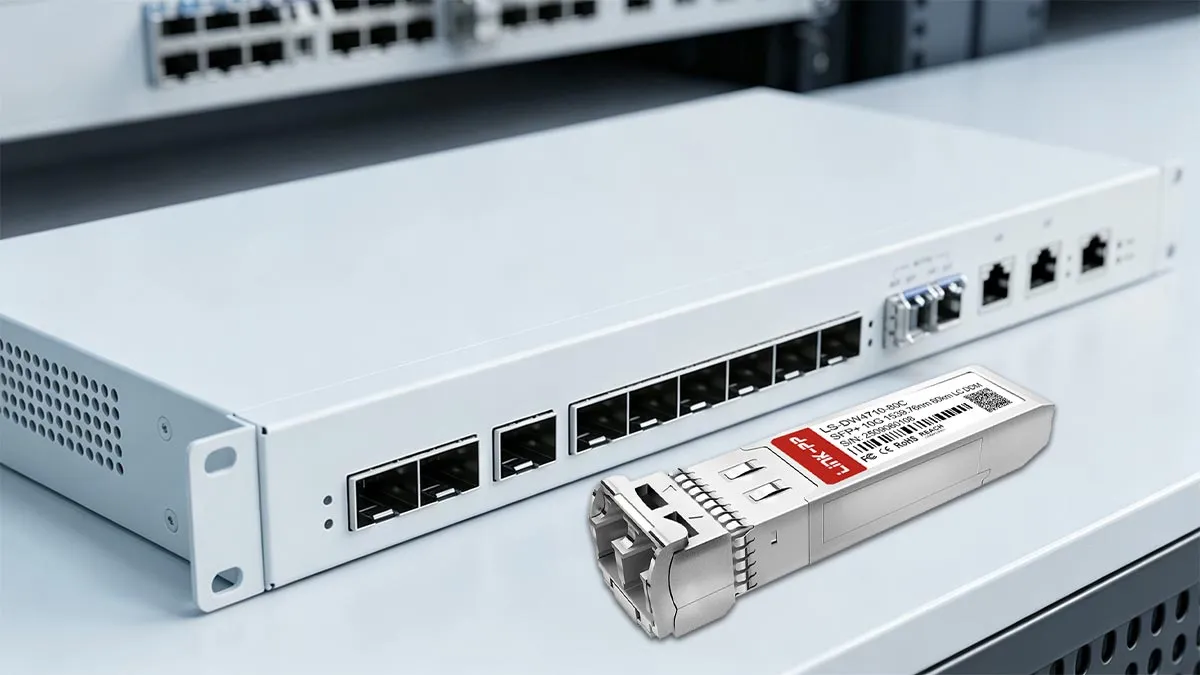

LINK-PP LS-DW4710-80C optical module easily plugs into host SFP+ ports and connects via duplex LC single-mode patch cords to DWDM multiplexers. This straightforward deployment delivers stable 10Gbps point-to-point aggregation, making it ideal for metro DCI expansions and long-haul telecom transport links.
LS-DW4710-80C Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-DW4710-80C module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
