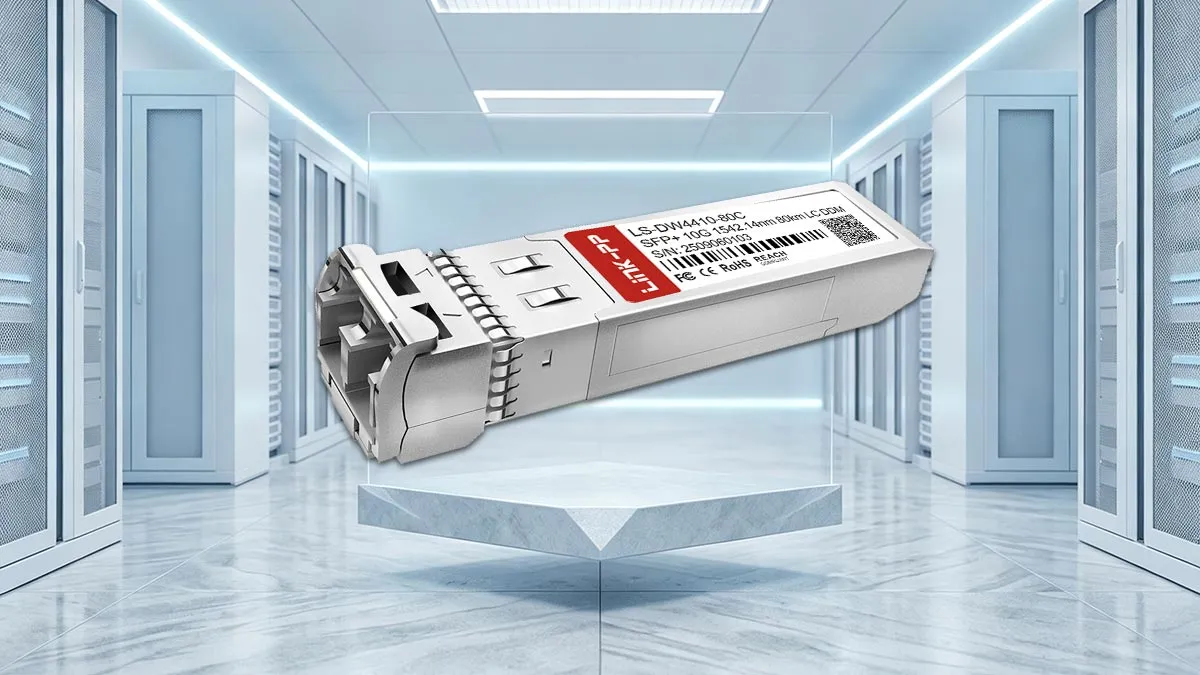

LS-DW4410-80C is a DWDM 10G SFP+ optical module designed for ITU 100GHz C-Band applications at a fixed 1542.14nm (Channel 44) wavelength. Equipped with a cooled EML laser and a high-sensitivity APD receiver, it delivers reliable single-mode fiber (SMF) links up to 80km while supporting real-time digital optical monitoring.
LINK-PP Part Number
LS-DW4410-80C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1542.14nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472
Key Features of LINK-PP LS-DW4410-80C 10G SFP+
LINK-PP LS-DW4410-80C brings together key optical networking capabilities, including 10 Gbps transmission speed, hot-pluggable SFP+ architecture, and dense C-Band fiber expansion. It supports links up to 80km over single-mode fiber with a duplex LC interface and standard-compliant DOM diagnostics for easy link tracking.

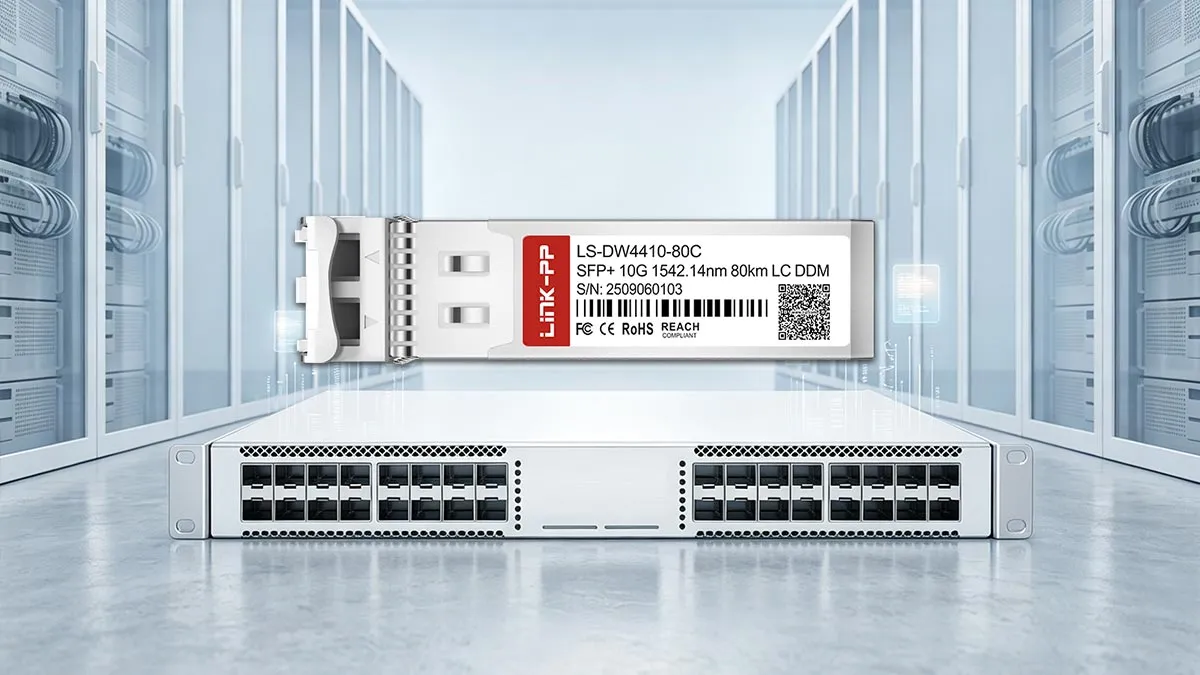

LINK-PP LS-DW4410-80C 10G SFP+ Optical Module
This transceiver features a hot-pluggable SFP+ footprint that enables direct maintenance and replacement without powering down host systems. Its mechanical and electrical design is fully compliant with the SFP+ MSA, guaranteeing broad interoperability across standard host switch cages.

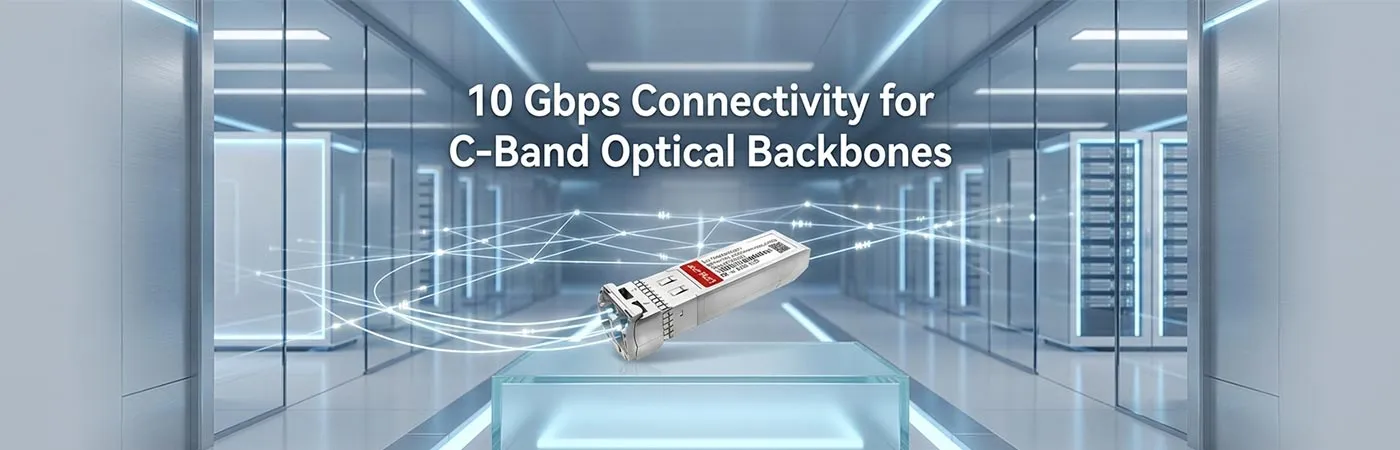

LS-DW4410-80C: 10 Gbps Connectivity for C-Band Optical Backbones
High-speed 10Gbps capability allows network operators to maximize bandwidth utilization across existing C-Band optical fiber lines. It serves as an essential physical-layer component for connecting backbone routers, optical multiplexers, and campus aggregation switches.

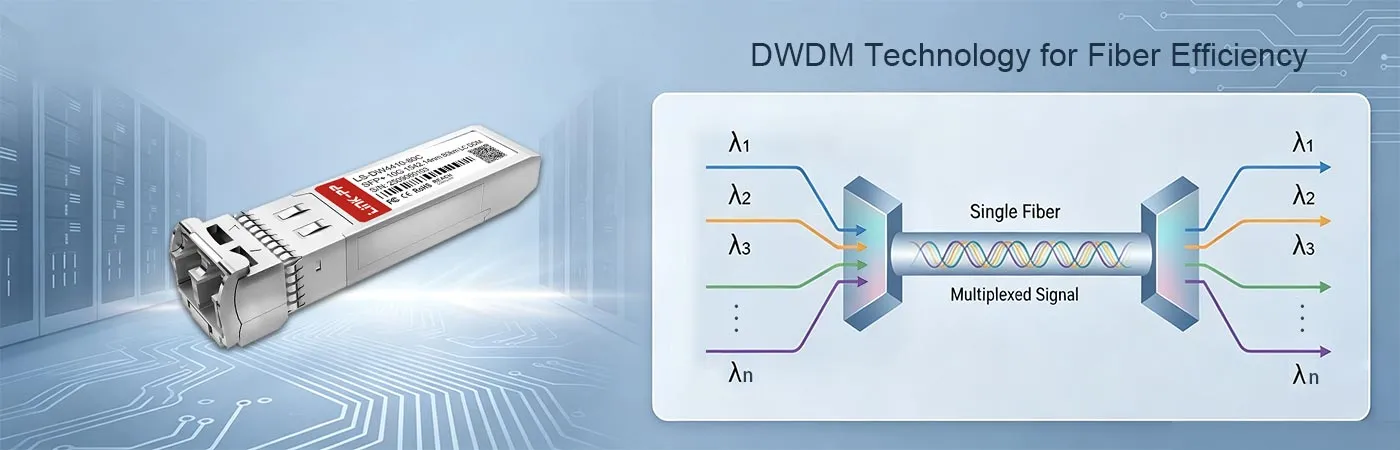

LS-DW4410-80C Module with DWDM Technology for Fiber Efficiency
Dense Wavelength Division Multiplexing (DWDM) technology allows multiple optical signals to transmit simultaneously over a single fiber pair on the ITU 100GHz grid. This approach maximizes existing strand capacity without the expense of laying new physical fiber cables.
LS-DW4410-80C Module with 1542.14nm Wavelength
Channel 44 operates at a fixed nominal wavelength of 1542.14nm within the optical C-band spectrum. It pairs with a cooled transmitter to maintain strict center-frequency stability across standard commercial operating temperatures.
LS-DW4410-80C Module Supporting 80km Transmission
An integrated cooled EML laser and high-sensitivity APD receiver support extended link budgets across single-mode fiber up to 80km. This extended reach accommodates long-span connections without requiring intermediate inline optical amplification.

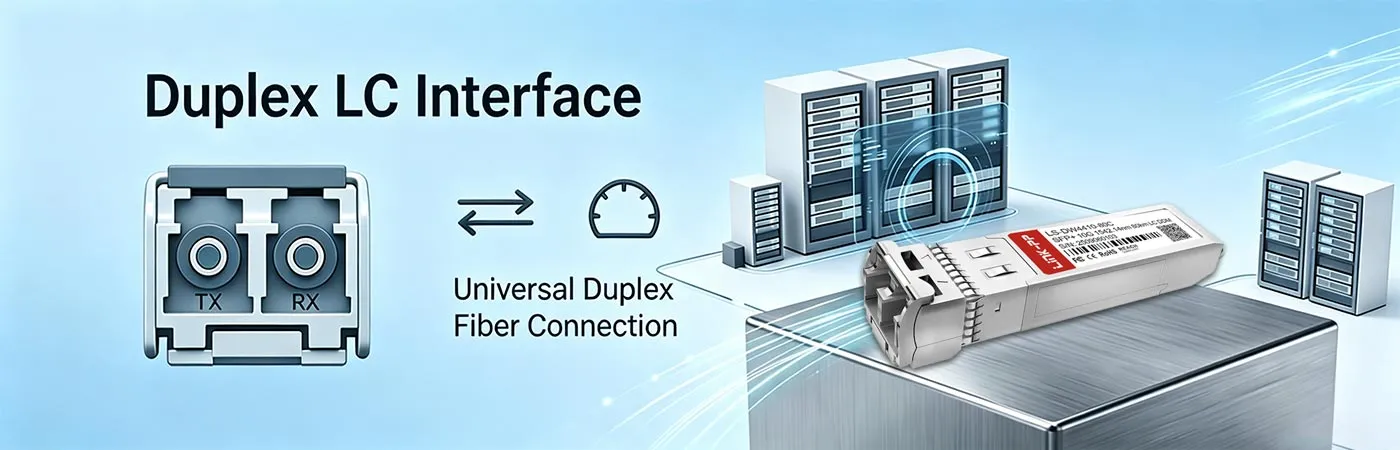

LS-DW4410-80C Module with Duplex LC Interface
The industry-standard duplex LC optical connector provides a secure, low-loss latching interface for single-mode patch cords. Its compact form factor maintains high port density on line cards and patch panels while ensuring minimal insertion loss.

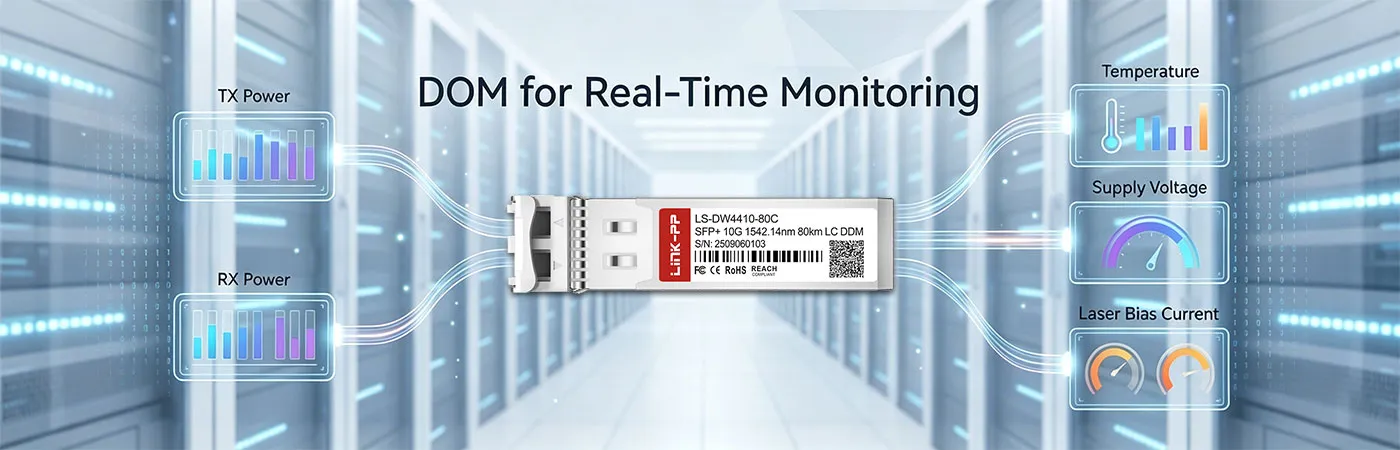

LS-DW4410-80C Module with DOM for Real-Time Monitoring
Digital Optical Monitoring (DOM) functions are fully compatible with SFF-8472 diagnostic standards, providing live internal telemetry data to network managers. Network administrators can continuously poll optical TX/RX power, bias current, operating voltage, and internal module temperature.
LINK-PP LS-DW4410-80C 10G SFP+ Certification
LINK-PP LS-DW4410-80C 10G DWDM SFP+ module is manufactured under strict quality controls and holds major industry certifications, including ISO 9001, CE, RoHS, and FCC. These credentials ensure full compliance with international safety, environmental, and manufacturing standards.
Every 10G DWDM optical module undergoes rigorous factory inspection, including optical eye-diagram analysis, bit error rate (BER) checks, and temperature tests. This strict process ensures stable laser performance and signal integrity before deployment.
LS-DW4410-80C Quality Certifications
Formal compliance approvals verify that the module adheres to international standards for electromagnetic interference, electrical safety, and hazardous substance restrictions. These accreditations guarantee dependable and environmentally compliant operation in commercial network environments.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-DW4410-80C Certified for Reliable Host-Device Compatibility
Comprehensive interoperability testing confirms smooth operation with a wide variety of commercial switches, routers, and transport platforms. Its standard MSA-compliant EEPROM coding guarantees immediate recognition and link stability across multi-vendor network hardware.
Each LS-DW4410-80C DWDM 10G SFP+ module undergoes strict physical-layer validation to ensure long-term stability and full optical standard compliance. For more details on our verification procedures, visit the LINK-PP Test Support Center.
Optical Spectrum Test
Verify channel center wavelength accuracy and laser optical spectral width.
Eye Pattern Test
Evaluate optical signal integrity and extinction ratio for clear transmission.
Bit Error Rate Test
Measure physical-layer data integrity to ensure error-free optical link transmission.
Temperature Test
Confirm stable optical operating parameters across commercial thermal test ranges.
Product Shipping for LINK-PP LS-DW4410-80C 10G SFP+
LINK-PP LS-DW4410-80C DWDM SFP+ modules are packaged and handled under strict logistics standards to guarantee safe worldwide transit. Every shipment follows optimized fulfillment workflows to ensure prompt dispatch and dependable delivery to your facility.
Anti-Static Protective Packaging
Shield internal optical components against electrostatic discharge damage during handling.
Shock-Resistant Transport Protection
Absorb mechanical impacts and physical vibrations to safeguard optical alignment.
Fast Order Processing and Dispatch
Accelerate order verification and warehouse fulfillment for rapid shipment departures.
Global Logistics and International Delivery
Coordinate dependable international freight carriers for secure global customs clearance.

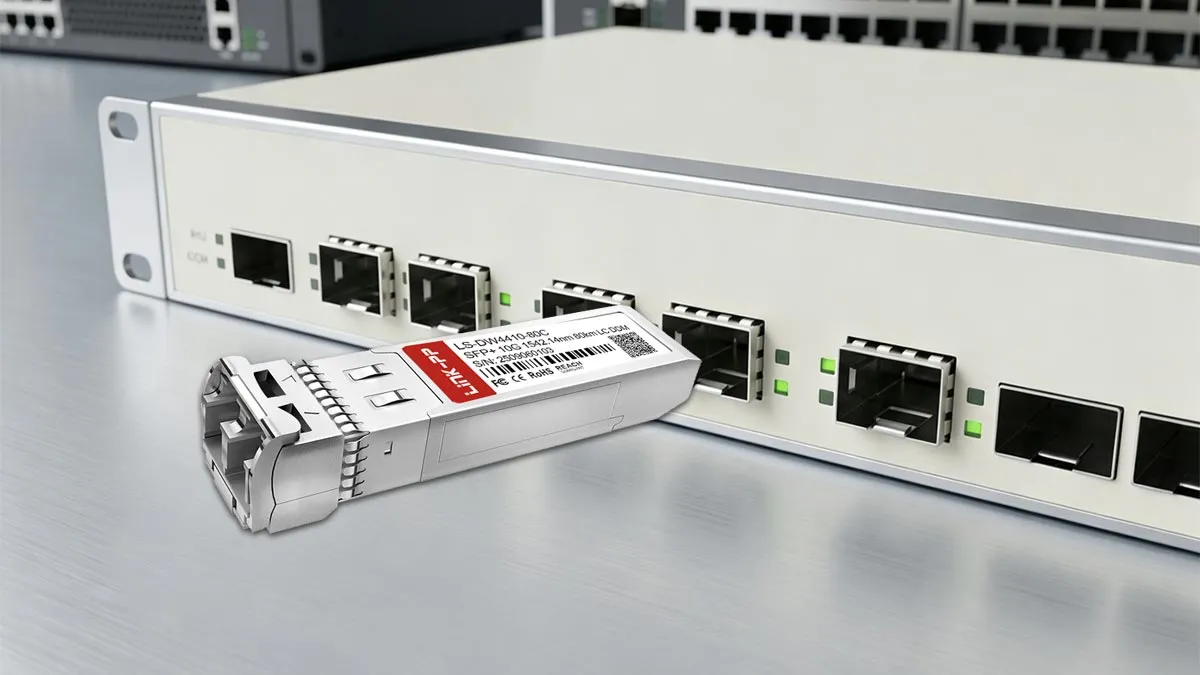

Insert the LS-DW4410-80C 10G DWDM module into an SFP+ port, connect clean duplex LC single-mode patch cords, and link directly to DWDM multiplexers. The module provides stable 10G optical transmission for high-capacity C-Band optical backbones, enterprise core networks, and metro transport infrastructure.
LS-DW4410-80C Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-DW4410-80C module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
