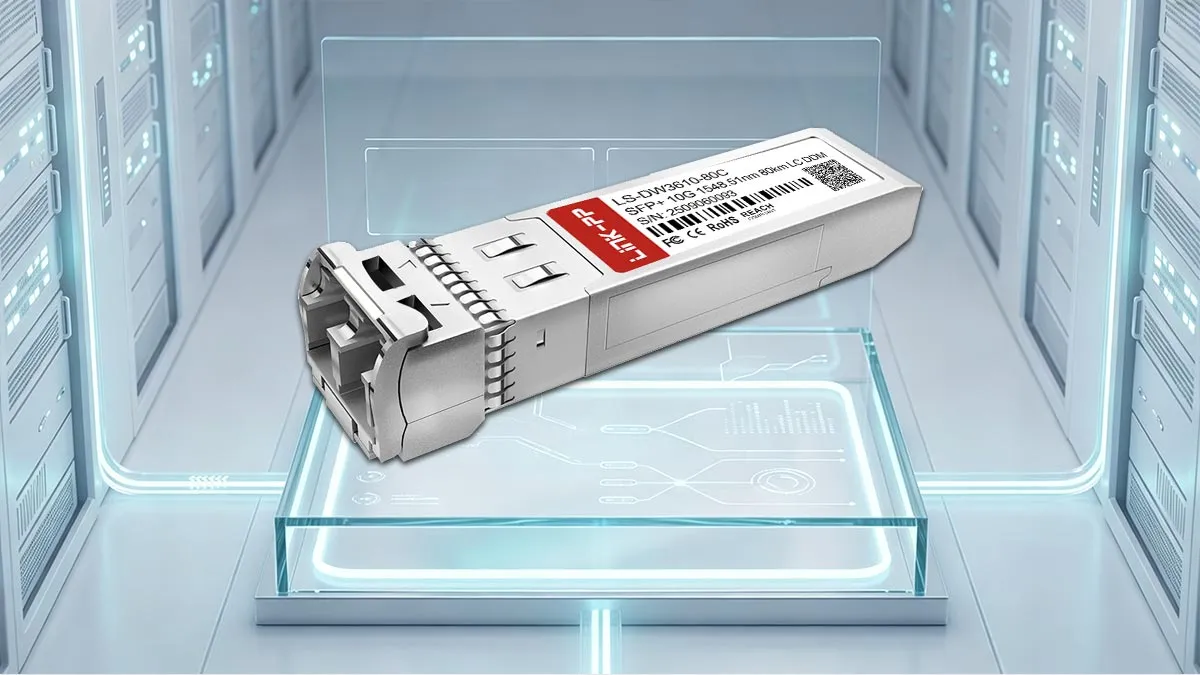

LS-DW3610-80C serves as a 10G DWDM SFP+ optical module designed for 100GHz ITU C-Band applications at a nominal wavelength of 1548.51nm (C36). Equipped with a cooled EML transmitter, an APD receiver, and real-time digital optical monitoring (DOM), it ensures reliable data transport up to 80km across standard SMF infrastructure.
LINK-PP Part Number
LS-DW3610-80C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1548.51nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472
Key Features of LINK-PP LS-DW3610-80C 10G SFP+
LINK-PP LS-DW3610-80C is a commercial-grade 10G DWDM module designed for long-reach data transmission over single-mode fiber. It integrates a 1548.51nm wavelength, an 80km reach capability, standard duplex LC connectivity, and real-time digital optical monitoring within a standardized SFP+ footprint.

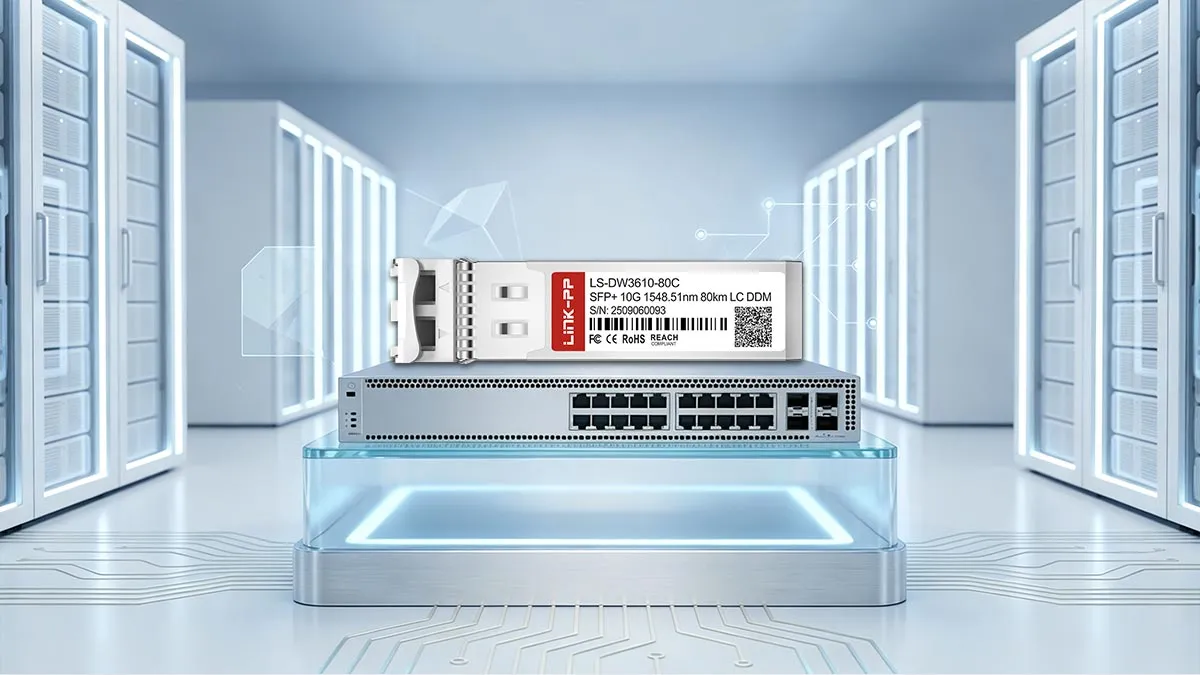

LINK-PP LS-DW3610-80C 10G SFP+ Optical Module
This transceiver module features a hot-pluggable SFP+ footprint that allows seamless installation without powering down host networking equipment. It strictly complies with the SFP+ Multi-Source Agreement (MSA) to ensure broad hardware compatibility across standard host ports.

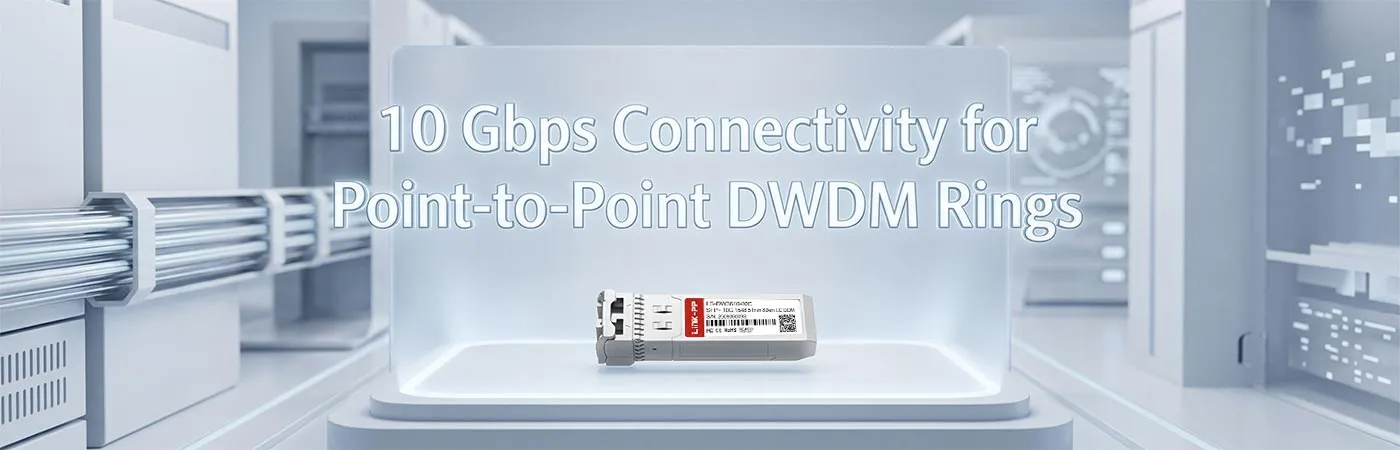

LS-DW3610-80C: 10 Gbps Connectivity for Point-to-Point DWDM Rings
Supporting line rates up to 10Gbps, this module handles intensive data loads across point-to-point DWDM spans. It is well-suited for establishing interconnected ring topologies across campus backbones and regional transport nodes.

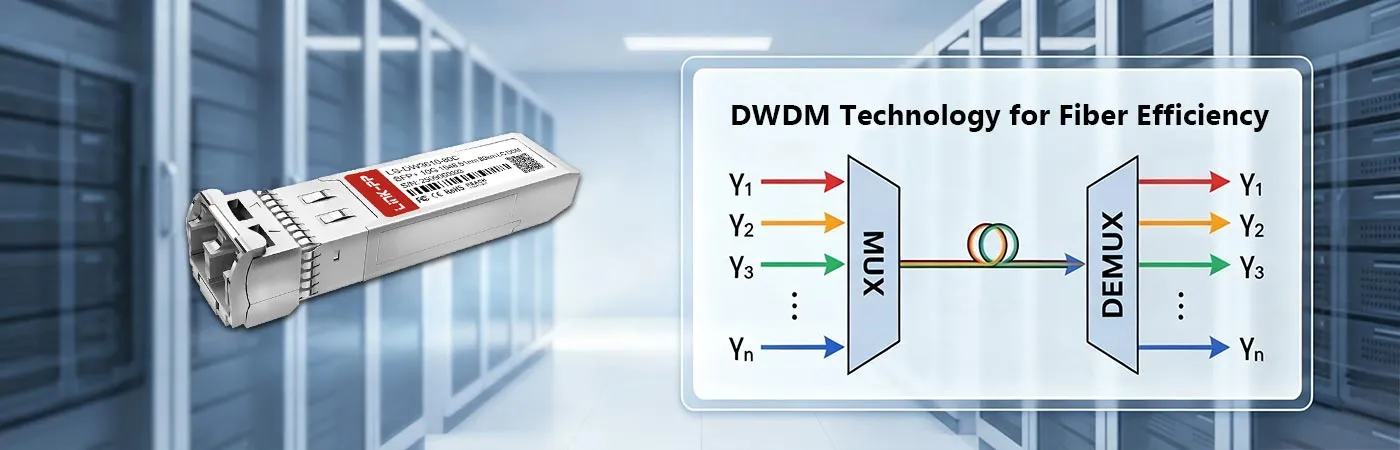

LS-DW3610-80C Module with DWDM Technology for Fiber Efficiency
Dense Wavelength Division Multiplexing (DWDM) enables multiple data channels over a single fiber pair to optimize existing cabling assets. By maximizing infrastructure utilization, network operators can scale total transmission capacity without laying new fiber lines.

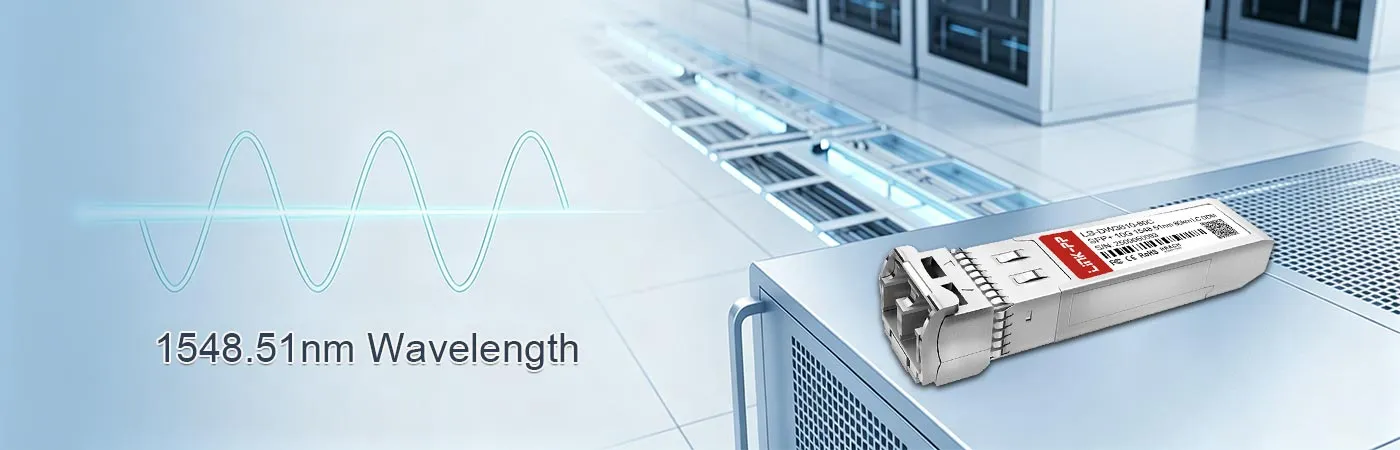

LS-DW3610-80C Module with 1548.51nm Wavelength
The optical transmitter operates at a nominal center wavelength of 1548.51nm, matching the ITU 100GHz C-Band channel C36 grid. This specific wavelength channel prevents spectral overlap and ensures accurate channel routing through standard DWDM multiplexers.
LS-DW3610-80C Module Supporting 80km Transmission
A cooled EML laser and high-sensitivity APD receiver allow the module to span distances up to 80km over standard single-mode fiber (SMF). This extended optical reach provides sufficient power budget for long-distance regional and inter-building links.

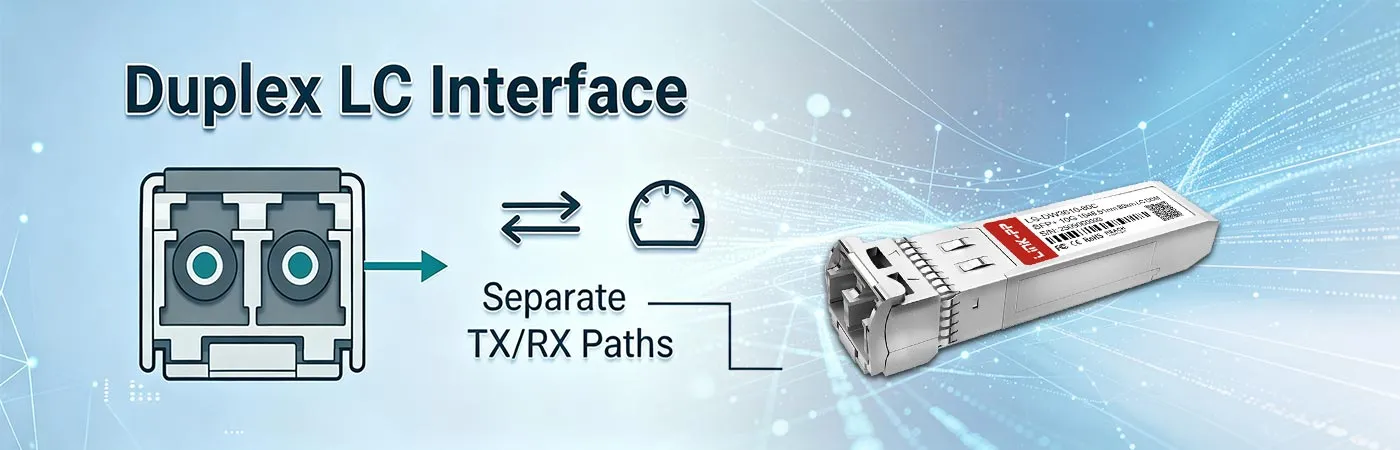

LS-DW3610-80C Module with Duplex LC Interface
Industry-standard duplex LC optical connectors provide a secure, low-loss physical connection with patch cables. The compact latching mechanism ensures mechanical stability and simple fiber patching in high-density rack setups.

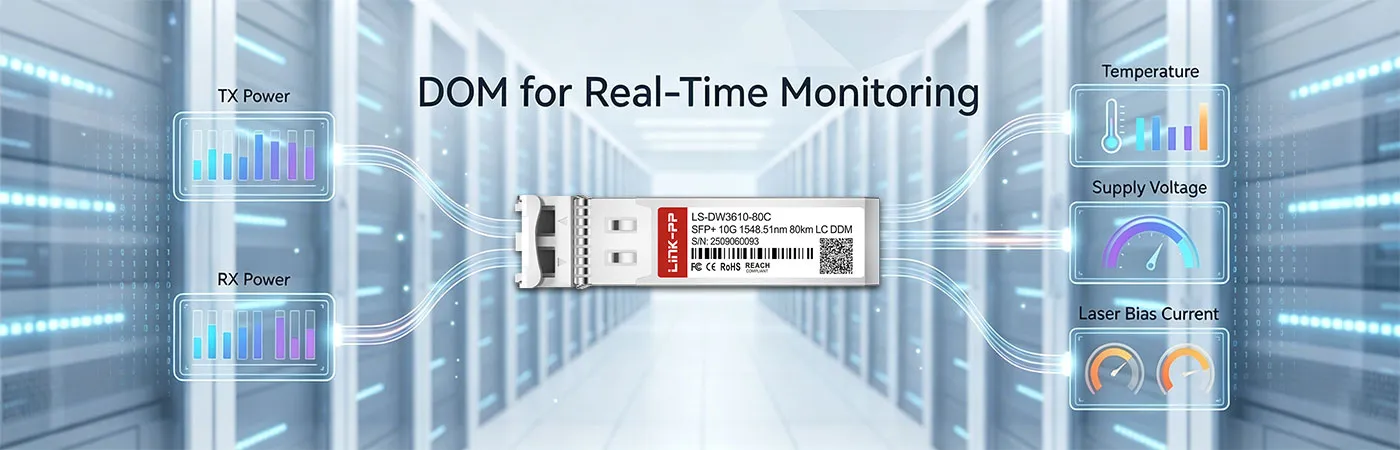

LS-DW3610-80C Module with DOM for Real-Time Monitoring
Built-in digital optical monitoring (DOM) delivers continuous telemetry data including optical power, operating temperature, laser bias current, and supply voltage. Fully compatible with SFF-8472 digital diagnostics functions, it simplifies remote fault isolation and link health tracking.
LINK-PP LS-DW3610-80C 10G SFP+ Certification
LINK-PP LS-DW3610-80C DWDM SFP+ module complies with strict international manufacturing and safety standards, holding ISO 9001, CE, RoHS, and FCC certifications.
All 10G DWDM transceiver modules undergo strict optical and electrical validation tests before delivery to maintain consistent operational reliability.
LS-DW3610-80C Quality Certifications
These formal compliance approvals confirm that the module adheres to global environmental protection and operational safety regulations.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-DW3610-80C Certified for Reliable Host-Device Compatibility
Comprehensive interoperability verification ensures seamless plug-and-play operation across leading switch, router, and server platforms.
Every LS-DW3610-80C DWDM SFP+ optical transceiver undergoes rigorous multi-stage validation to guarantee flawless physical layer stability and continuous data transmission. For detailed testing workflows, explore the LINK-PP Test Support Center.
Optical Spectrum Test
Verify center wavelength accuracy and spectral width across DWDM channels.
Eye Pattern Test
Measure optical signal integrity and waveform quality to eliminate jitter.
Bit Error Rate Test
Evaluate data transmission accuracy to guarantee zero packet loss performance.
Temperature Test
Assess module thermal stability and power across operating temperature ranges.
Product Shipping for LINK-PP LS-DW3610-80C 10G SFP+
Standardized packaging and dependable logistics ensure your 10G DWDM SFP+ transceivers arrive safely and promptly. Every order undergoes careful handling and preparation to maintain product integrity throughout transit.
Anti-Static Protective Packaging
Shield internal optical components against electrostatic discharge during transit.
Shock-Resistant Transport Protection
Safeguard transceiver module against mechanical vibration and external impacts.
Fast Order Processing and Dispatch
Accelerate order handling to ensure timely warehouse product fulfillment.
Global Logistics and International Delivery
Coordinate with leading international carriers to ensure reliable worldwide transport.

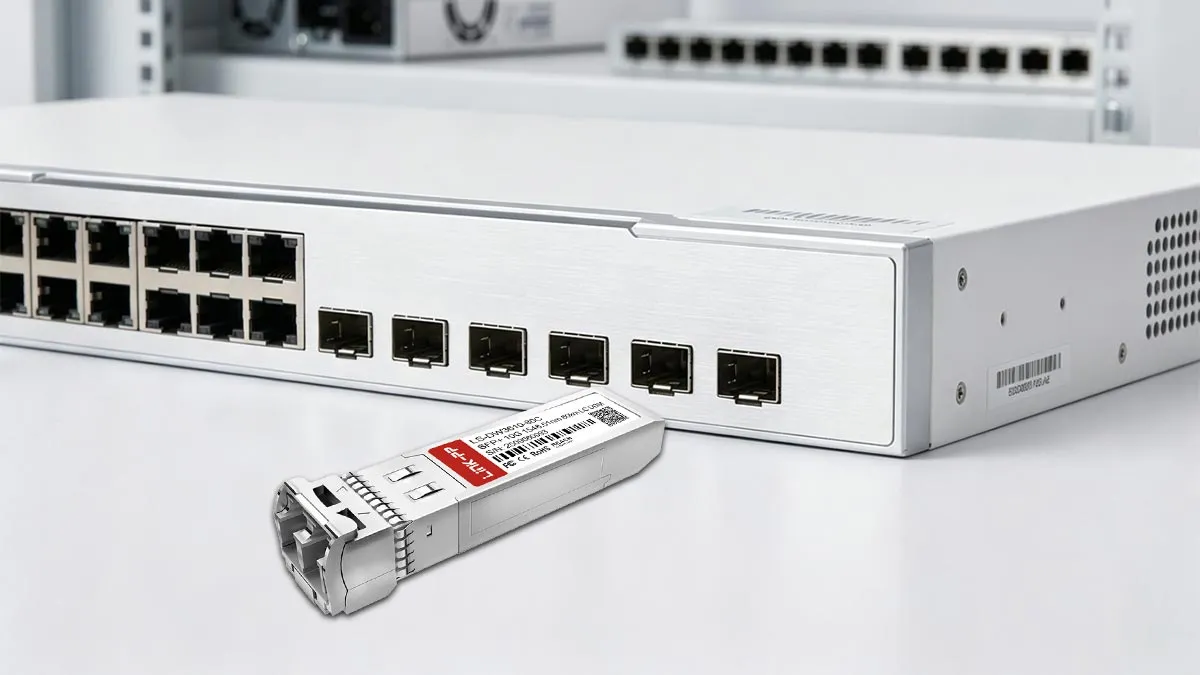

To deploy the LS-DW3610-80C DWDM SFP, insert the module into a compatible SFP+ port and connect duplex LC single-mode fiber patch cords. This module integrates seamlessly into multiplexer channels, establishing stable 10G links across metropolitan point-to-point DWDM rings and enterprise backbone systems.
LS-DW3610-80C Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-DW3610-80C module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
On the standard ITU-T 100GHz grid, Channel 36 corresponds to a nominal optical frequency of 193.60 THz, which translates directly to the 1548.51nm center wavelength. If your mux ports are labeled in THz, you can route this LS-DW3610-80C transceiver into the 193.60 THz channel filter. By
admin on
2026-06-09
A:
Yes. Supporting up to 10.7Gbps over long single-mode reaches makes this optic a standard fit for LTE backhaul links and telecom aggregation rings where 10G optical systems are deployed. By
admin on
2026-03-05
A:
Yes, this transceiver module complies with SFF-8472 and supports real-time Digital Diagnostic Monitoring (DDM). You can track internal operating parameters such as TX power, RX power, temperature, and bias current through your host switch interface or SNMP. By
admin on
2025-12-24
A:
The module combines an EML transmitter with an APD receiver for an 80km rating, which provides a relatively strong optical link budget. However, measuring the total insertion loss and chromatic dispersion across your line with an OTDR is advised to confirm it sits comfortably within the receiver's limits. By
admin on
2025-04-12
Please write comments with more than three
character.
496417
467006
E***s
South Africa
Verified
Purchase
5 .0
2026-06-29
Installed these DWDM SFP transceivers on our core router for a 68km point-to-point SMF connection. The APD receiver picked up -18.2dBm easily. Stable thermal readings around 44°C in our data center rack, and DOM monitoring makes daily fiber maintenance effortless :-)
Please write comments with more than three
character.
496417
467003
J***n
Austria
Verified
Purchase
4 .0
2026-04-01
The optical module itself works well and linked at 10G immediately. Only minor issue: the outer shipping box arrived with a small dent, although the individual module packaging was still protected.
Please write comments with more than three
character.
496417
467008
F***n
Singapore
Verified
Purchase
5 .0
2026-01-23
We rolled out these 80km DWDM SFP transceivers for long-haul storage replication between two high-density enterprise data centers. Operating temperatures have stayed well within the 0 to 70°C window under sustained load. CRC checks show clean signal integrity across 70km of OS2 cable.
Please write comments with more than three
character.
496417
467001
J***s
France
Verified
Purchase
5 .0
2025-11-03
Using these for a direct 10G NAS sync to an off-site co-location rack. Optical link budget remained well within spec without needing an EDFA amplifier :)
Please write comments with more than three
character.
496417
467005
E***y
Ukraine
Verified
Purchase
5 .0
2025-09-08
Built out an inter-facility dark fiber ring covering 62km. Optical return loss and launch power stayed within the rated -1 to +5dBm threshold. Having calibrated C36 wavelength accuracy prevents adjacent channel bleed into our dense DWDM grid, making fiber expansion much simpler :D
Please write comments with more than three
character.
496417
467016
T***n
Hungary
Verified
Purchase
5 .0
2025-08-31
Upgraded our inter-building campus link with these C36 DWDM 10G SFP+ modules. SFF-8472 digital diagnostics read cleanly on our distribution switches without licensing warnings.
Please write comments with more than three
character.
496417
467007
E***a
Republic of Korea
Verified
Purchase
5 .0
2025-05-12
Replaced costly vendor optics across 12 ports for our suburban cell tower backhaul ring. Both STM64 and 10.7Gbps framing run completely error-free. Solid EML output power and reliable SFF-8431 compliance make these a reliable choice for telecom maintenance teams ;)
Please write comments with more than three
character.
496417
467011
D***s
Libyan Arab Jamahiriya
Verified
Purchase
5 .0
2025-01-03
Excellent choice for dense optical networking. We hooked this LS-DW3610-80C DWDM module to an existing passive OADM node, and receiver sensitivity stayed reliably around -23dBm. Seamless hardware recognition and accurate optical telemetry right out of the box :)
