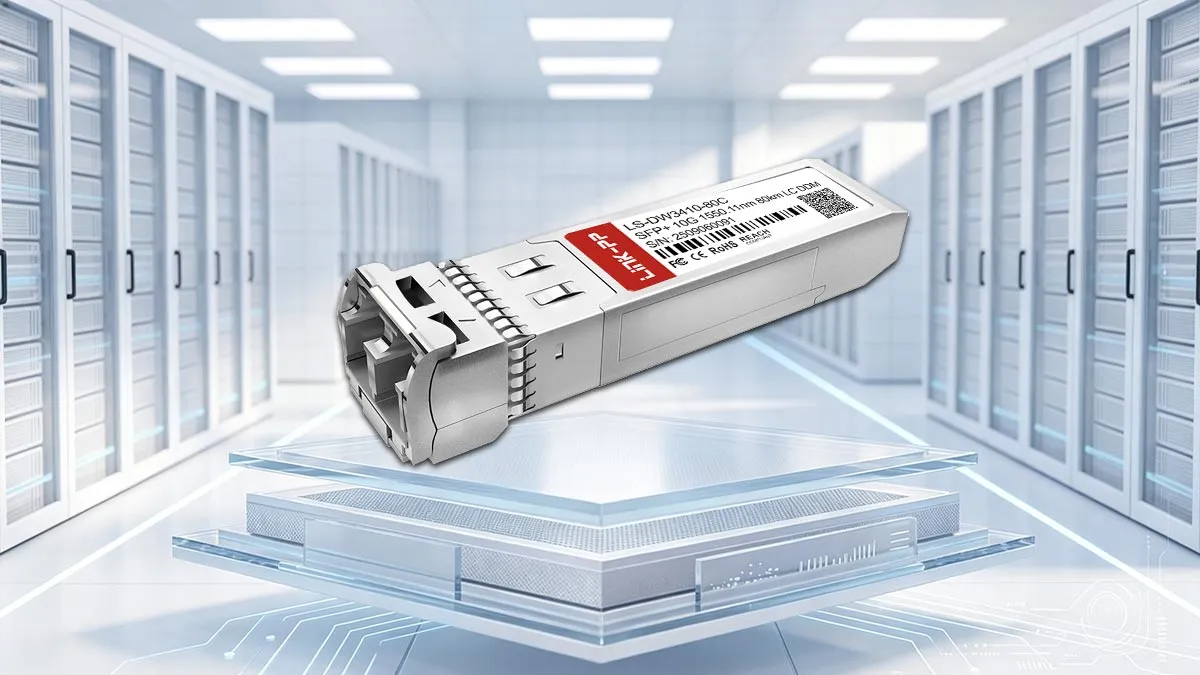

LS-DW3410-80C functions as a 10G DWDM SFP+ module tuned to the standard 100GHz ITU C34 channel (1550.11nm) for dense wavelength division multiplexing architectures. Pairing an electro-absorption modulated laser (EML) with an avalanche photodetector (APD), it supports point-to-point SMF transmission spans of up to 80km while enabling internal diagnostics via real-time DOM.
LINK-PP Part Number
LS-DW3410-80C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1550.11nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472
Key Features of LINK-PP LS-DW3410-80C 10G SFP+
LINK-PP LS-DW3410-80C is a commercial-grade 10G SFP+ DWDM optical transceiver engineered for extended single-mode fiber links up to 80km. Operating at 1550.11nm with a duplex LC interface, it combines dense wavelength multiplexing support with real-time digital optical monitoring for reliable network transport.

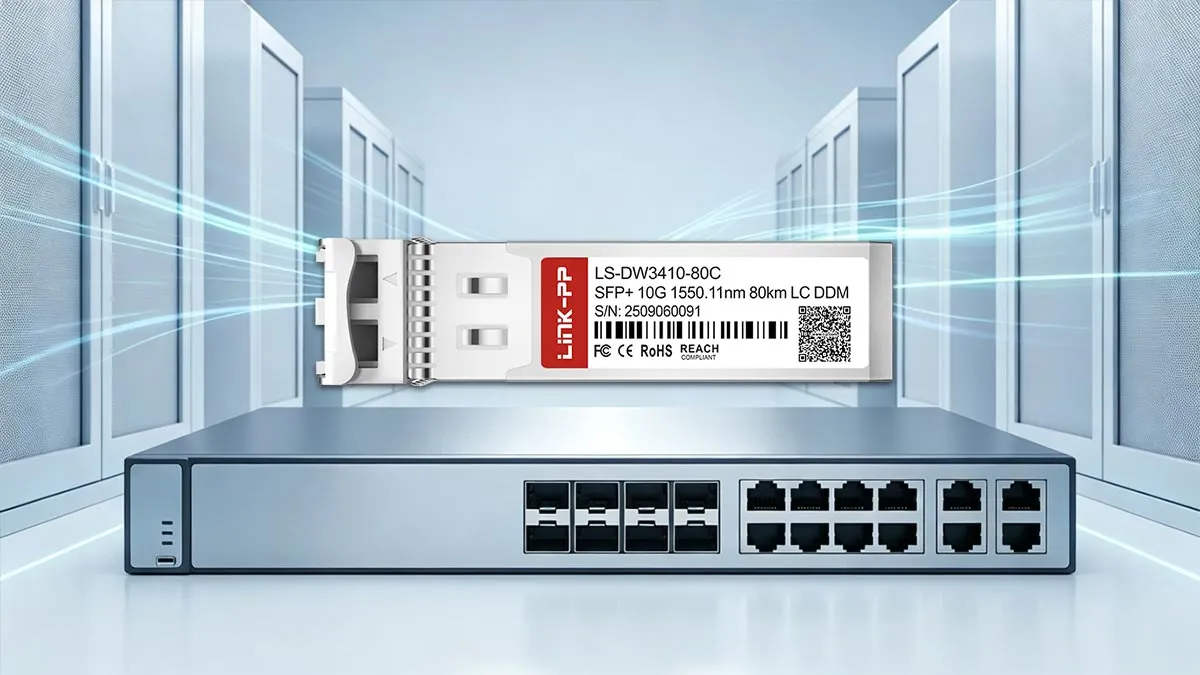

LINK-PP LS-DW3410-80C 10G SFP+ Optical Module
The transceiver features a hot-pluggable SFP+ footprint that allows easy installation and replacement without powering down the host system. Full compliance with the SFP+ Multi-Source Agreement (MSA) ensures seamless physical and electrical fit across standard 10G switch and router ports.

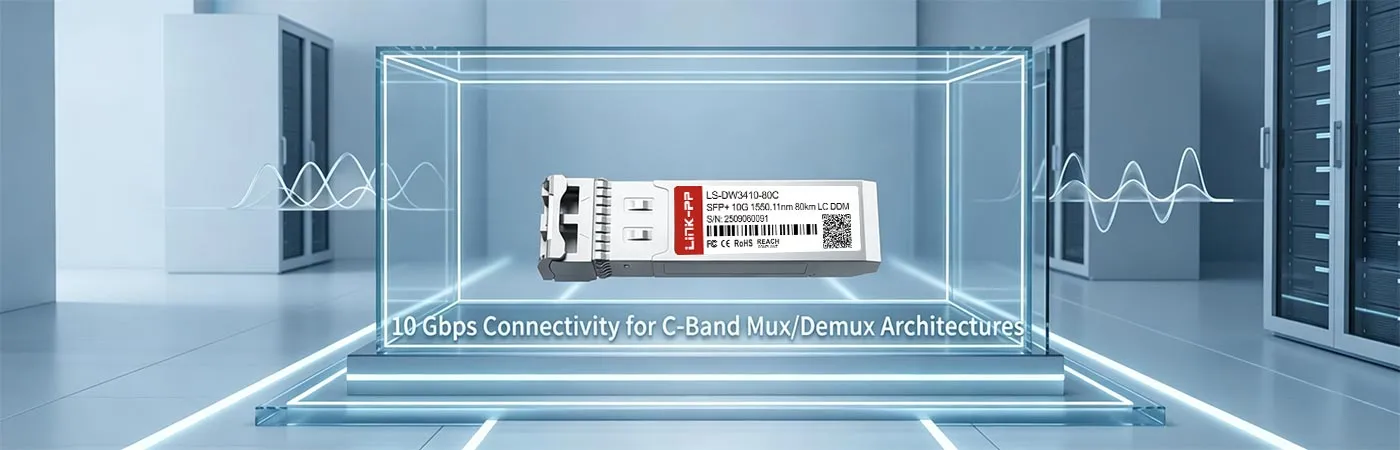

LS-DW3410-80C: 10 Gbps Connectivity for C-Band Mux/Demux Architectures
This optical module delivers dedicated 10Gbps data throughput for bandwidth-intensive aggregation and transport links. It integrates directly into passive C-band Mux/Demux systems to interconnect enterprise data centers, campus backbones, and metro access rings.

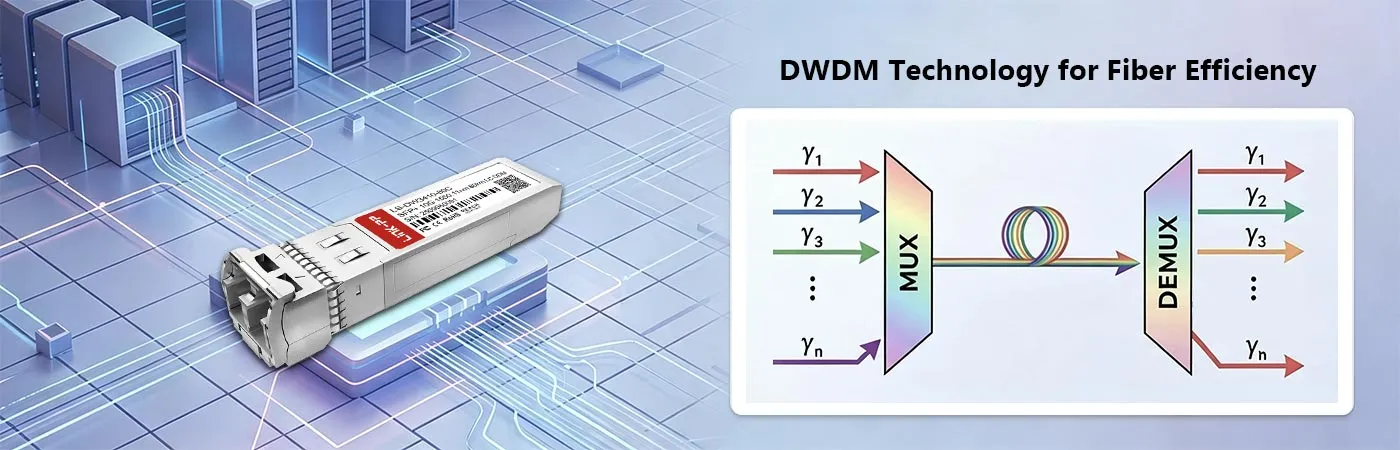

LS-DW3410-80C Module with DWDM Technology for Fiber Efficiency
Dense wavelength division multiplexing (DWDM) technology enables multiple discrete optical channels to travel simultaneously over a single optical fiber pair. By maximizing existing single-mode fiber capacity, the module eliminates the need to deploy expensive new optical cabling.

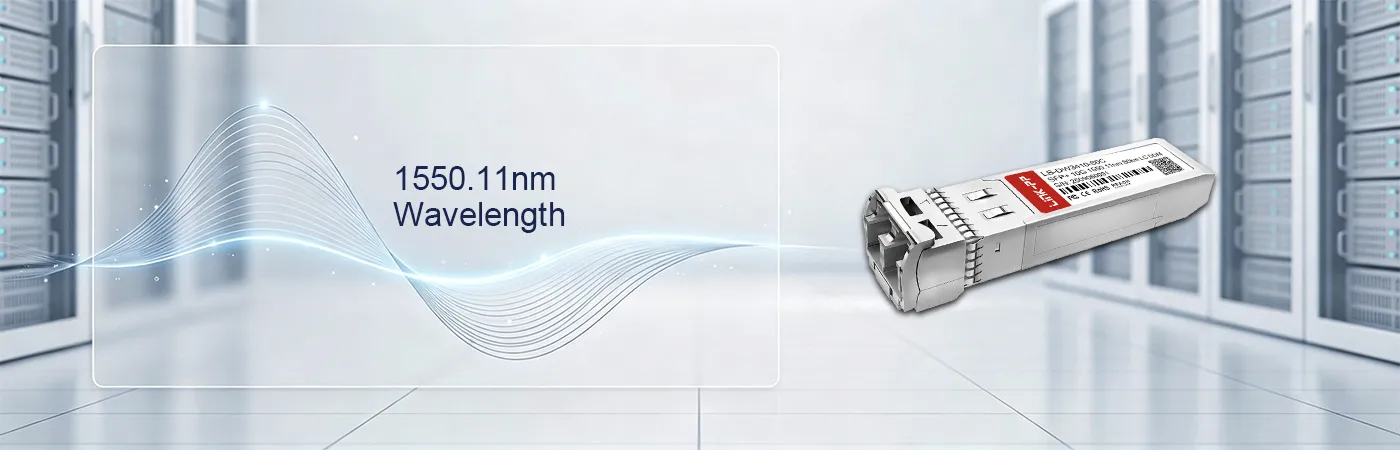

LS-DW3410-80C Module with 1550.11nm Wavelength
A precise 1550.11nm operating wavelength aligns with the standard 100GHz ITU-T C-band grid (Channel C34) for clean spectral separation. The integrated cooled EML transmitter maintains strict wavelength stability to prevent inter-channel crosstalk in dense optical configurations.
LS-DW3410-80C Module Supporting 80km Transmission
Long-haul single-mode fiber (SMF) reach up to 80km is achieved through an optimized optical power budget and a high-sensitivity APD receiver. This extended link capability makes the unit ideal for connecting remote network nodes across metro distances without mid-span amplification.

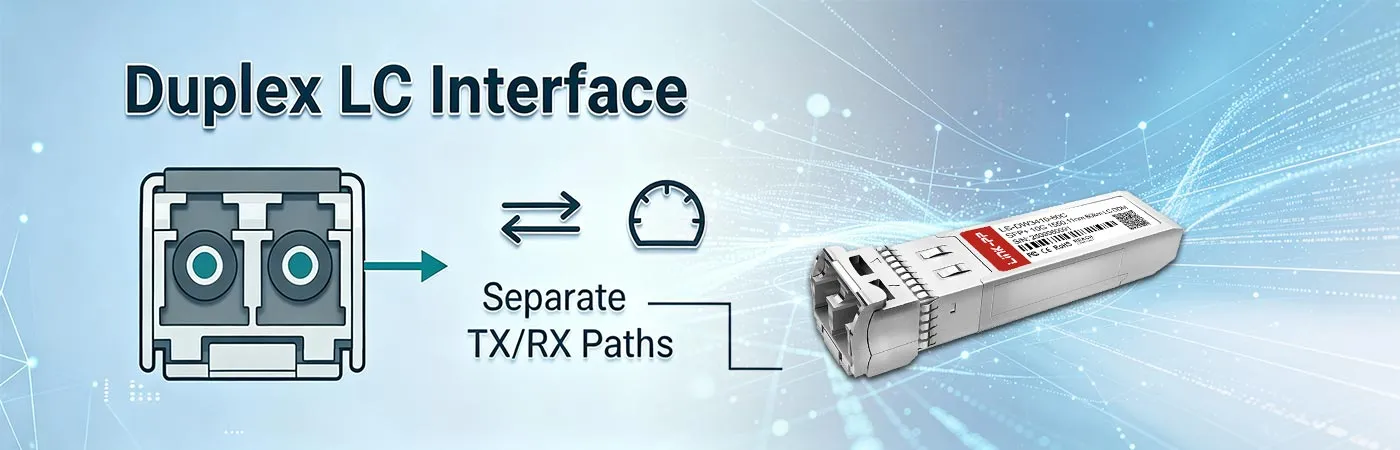

LS-DW3410-80C Module with Duplex LC Interface
An industry-standard duplex LC optical receptacle provides a secure, low-loss connection for single-mode fiber patch cables. The compact latching design ensures mechanical stability and consistent optical alignment in high-density rack environments.

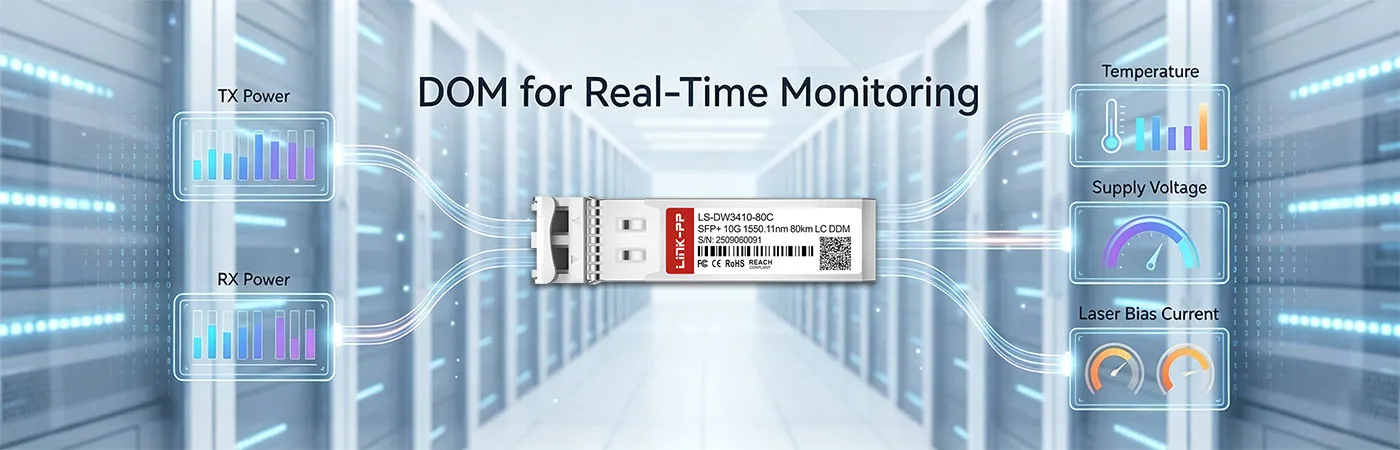

LS-DW3410-80C Module with DOM for Real-Time Monitoring
Built-in Digital Optical Monitoring (DOM) compliant with the SFF-8472 standard allows network administrators to track vital operating parameters in real time. System operators can continuously observe transceiver temperature, supply voltage, laser bias current, and transmit/receive optical power via standard management interfaces.
LINK-PP LS-DW3410-80C 10G SFP+ Certification
LINK-PP LS-DW3410-80C SFP+ transceiver complies with strict international standards, including ISO 9001, CE, RoHS, and FCC certifications for safe and reliable operation.
Every 10G DWDM module undergoes thorough optical and electrical testing to verify consistent data transmission and signal integrity before shipment.
LS-DW3410-80C Quality Certifications
These recognized industry certifications confirm that the transceiver module adheres to rigorous quality control, electromagnetic safety, and environmental protection standards.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-DW3410-80C Certified for Reliable Host-Device Compatibility
Multi-platform interoperability validation verifies full EEPROM mapping and SFF-8472 diagnostic compatibility, ensuring transparent port recognition and error-free operation across major networking gear.
Every LS-DW3410-80C DWDM SFP+ module undergoes comprehensive testing and validation to guarantee stable data transmission and long-term hardware reliability. To review our full evaluation standards, explore the LINK-PP Test Support Center.
Optical Spectrum Test
Verify precise central wavelength stability and side-mode suppression ratio metrics.
Eye Pattern Test
Analyze optical signal integrity, transmitter jitter, and extinction ratio levels.
Bit Error Rate Test
Evaluate end-to-end data transmission accuracy and packet delivery performance limits.
Temperature Test
Confirm thermal dissipation stability and operational endurance across temperature ranges.
Product Shipping for LINK-PP LS-DW3410-80C 10G SFP+
Each LS-DW3410-80C 10G DWDM SFP+ module is packaged with specialized protective materials to ensure safe transit and optical integrity. Our streamlined fulfillment process coordinates with reliable global freight carriers for rapid and secure international delivery.
Anti-Static Protective Packaging
Protect sensitive optical components against electrostatic discharge damage during handling.
Shock-Resistant Transport Protection
Absorb transit vibration and mechanical impacts to preserve optical alignment.
Fast Order Processing and Dispatch
Accelerate warehouse fulfillment workflows for rapid inventory dispatch within hours.
Global Logistics and International Delivery
Coordinate international freight carriers to ensure timely global customer delivery.

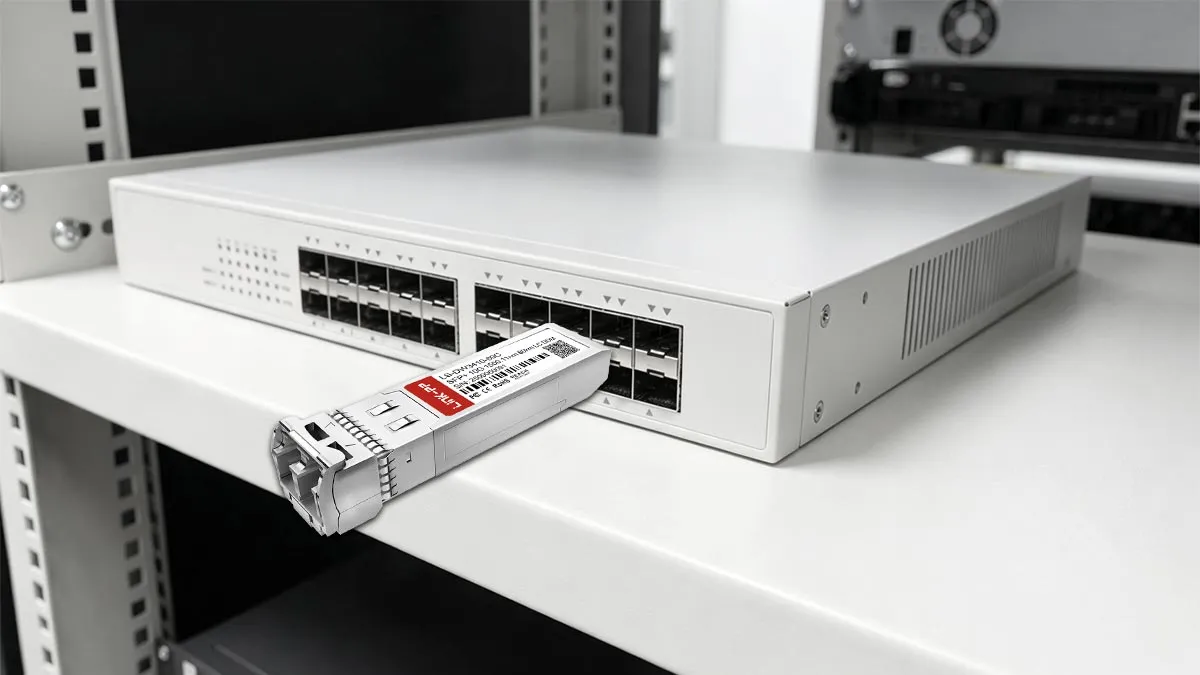

Insert the LS-DW3410-80C into an SFP+ slot and patch via single-mode duplex LC to the matching C34 port on a passive C-Band Mux/Demux unit. This establishes stable 10G optical multiplexing for enterprise metro DCI links and multi-channel aggregation architectures.
LS-DW3410-80C Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-DW3410-80C module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Yes, the LS-DW3410-80C DWDM SFP+ module matches channel 34 directly. The transceiver uses a cooled EML laser set to the exact 100GHz ITU grid frequency for C34 at 1550.11nm, ensuring standard passband alignment with your Mux. By
