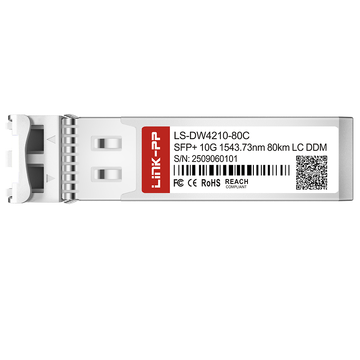

LS-DW4210-80C DWDM module integrates a cooled EML laser and a high-sensitivity APD photodiode into a hot-pluggable 10G SFP+ form factor operating at the fixed 1543.73nm (C42) 100GHz grid. It delivers point-to-point SMF links up to 80km while enabling real-time digital diagnostic monitoring for critical operating parameters such as optical power, temperature, and supply voltage.

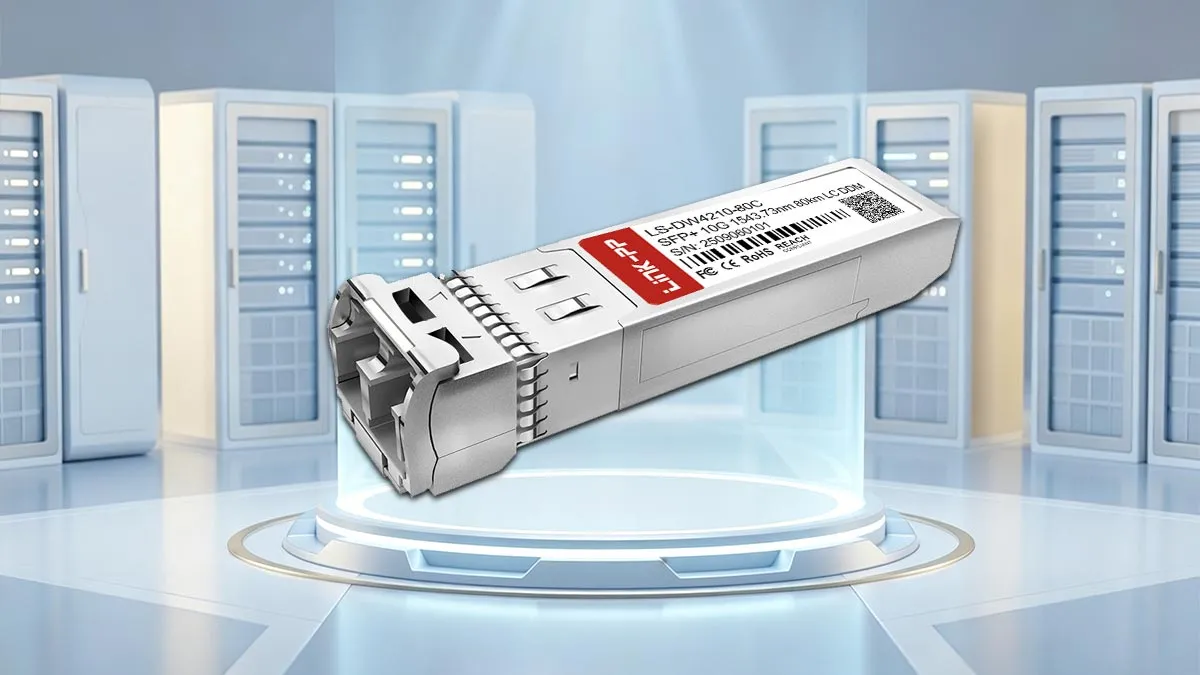

LINK-PP Part Number
LS-DW4210-80C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1543.73nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472
Key Features of LINK-PP LS-DW4210-80C 10G SFP+
LINK-PP LS-DW4210-80C is a commercial-grade 10G DWDM optical module engineered for long-reach data transmission over single-mode fiber. It integrates dense wavelength multiplexing, an 80km optical power budget, duplex LC interfaces, and real-time digital diagnostic monitoring to maximize existing fiber capacity.

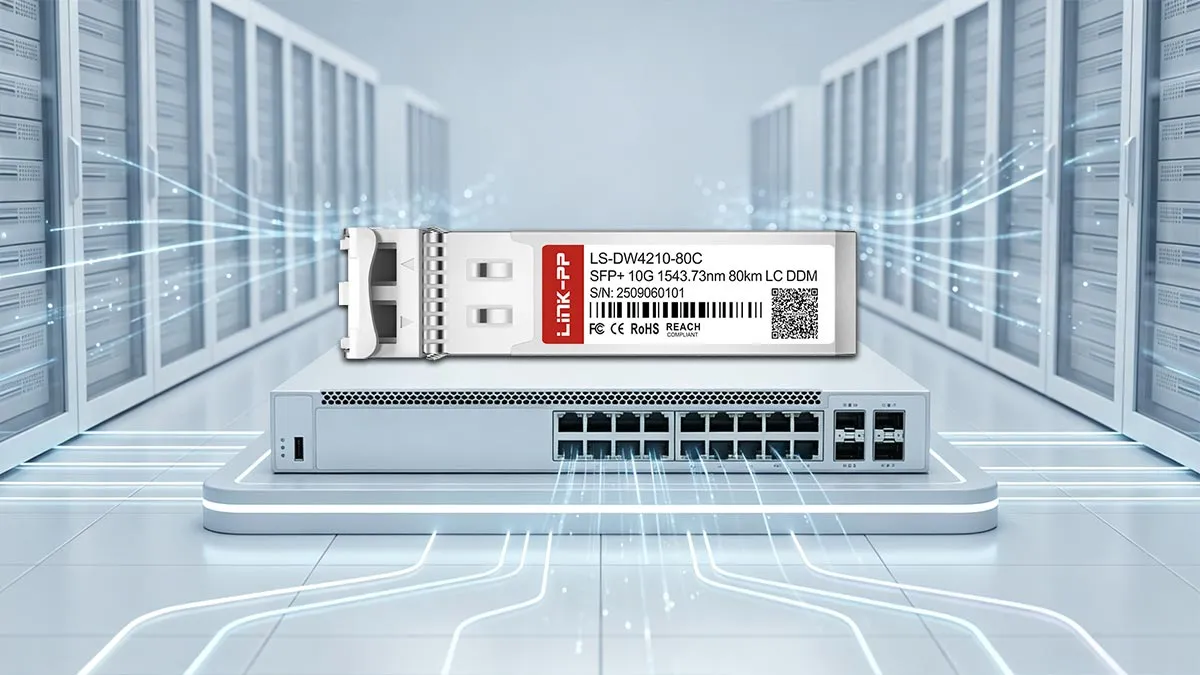

LINK-PP LS-DW4210-80C 10G SFP+ Optical Module
This transceiver features a hot-pluggable SFP+ footprint that allows easy installation and replacement without powering down host systems. It strictly complies with the SFP+ Multi-Source Agreement (MSA) to ensure wide mechanical and electrical compatibility across standard switch ports.
LS-DW4210-80C: 10 Gbps Connectivity for Telecom Core & Edge Routing
A dedicated 10Gbps data line rate enables consistent throughput across high-capacity telecommunication switching layers. This makes the module suitable for interconnecting carrier core routers, distribution nodes, and edge aggregation platforms.

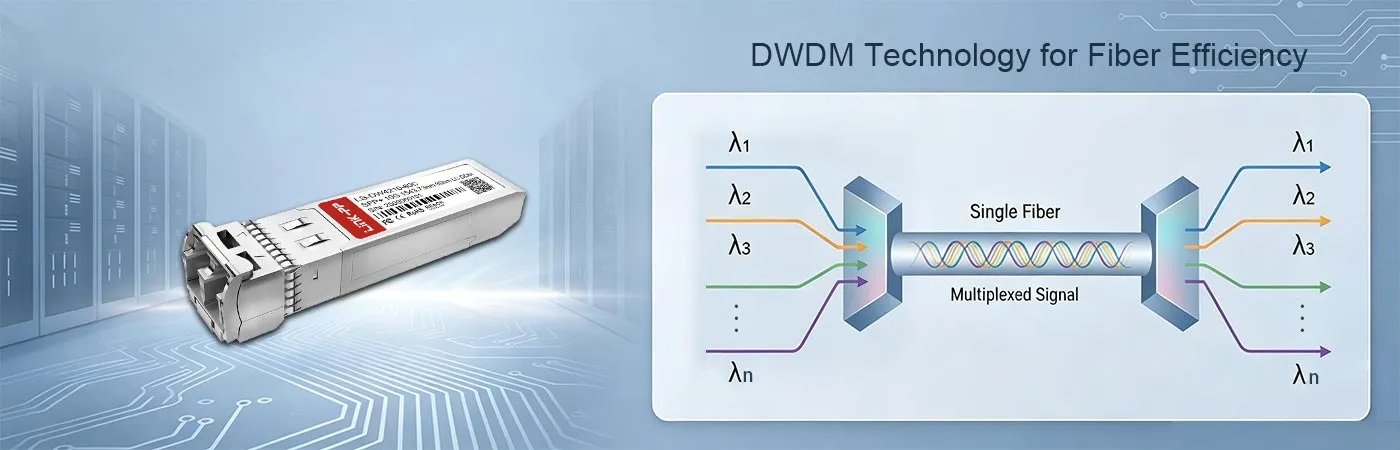

LS-DW4210-80C Module with DWDM Technology for Fiber Efficiency
Dense Wavelength Division Multiplexing (DWDM) technology allows multiple optical data channels to transmit simultaneously over a single fiber pair. This capability maximizes existing optical infrastructure capacity and reduces the need for deploying new dark fiber lines.
LS-DW4210-80C Module with 1543.73nm Wavelength
The transmitter operates at a fixed C-band wavelength of 1543.73nm aligned with the standard 100GHz ITU channel grid (C42). This precise optical frequency ensures minimal channel interference and smooth multiplexing through passive DWDM Mux/Demux filters.
LS-DW4210-80C Module Supporting 80km Transmission
An integrated cooled EML laser and sensitive APD receiver support long-reach point-to-point spans up to 80km over single-mode fiber (SMF). This extended optical reach minimizes the need for intermediate optical amplifiers in regional backbones.

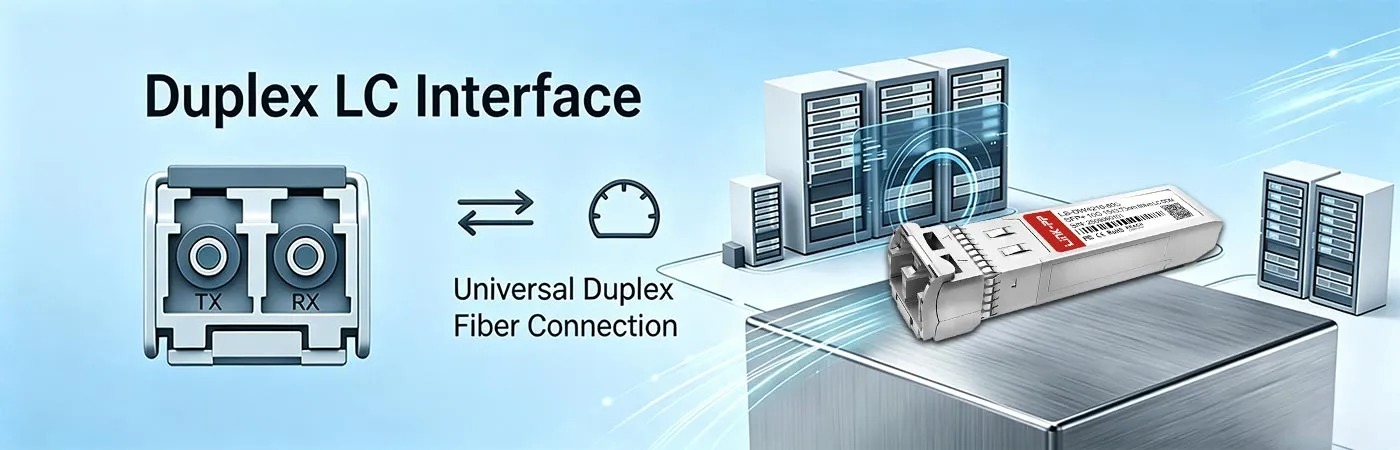

LS-DW4210-80C Module with Duplex LC Interface
An industry-standard duplex LC optical receptacle provides stable, low-loss physical mating for single-mode patch cables. The compact latching connector design helps maintain signal integrity in high-density fiber patch panels.

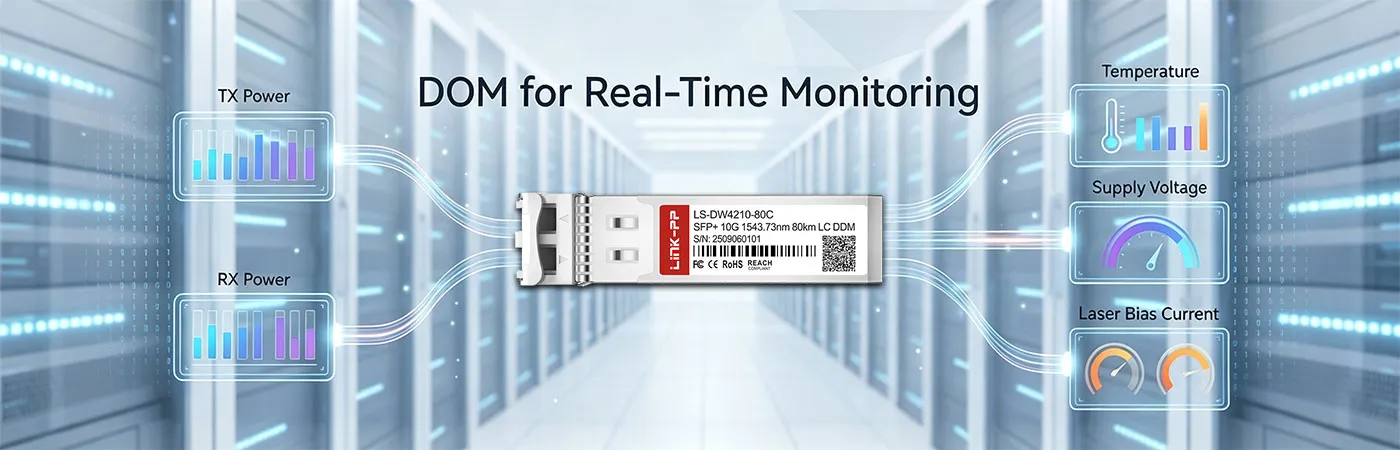

LS-DW4210-80C Module with DOM for Real-Time Monitoring
Built-in Digital Optical Monitoring (DOM) gives network administrators immediate visibility into critical parameters such as optical power levels, operating temperature, and supply voltage. Fully compatible with SFF-8472 digital diagnostics functions, it simplifies remote troubleshooting and active link health management via the I²C 2-wire interface.
LINK-PP LS-DW4210-80C 10G SFP+ Certification
LINK-PP LS-DW4210-80C DWDM 10G SFP+ module complies with strict international quality and environmental standards, including ISO 9001, CE, RoHS, and FCC certifications. These accreditations verify that each transceiver meets rigorous safety, electromagnetic compatibility, and manufacturing criteria.
Every DWDM SFP+ module undergoes a comprehensive testing process that inspects optical power, wavelength stability, and bit error rates across its 80km link budget. This structured validation ensures consistent physical layer reliability and signal integrity before factory release.
LS-DW4210-80C Quality Certifications
Official certifications validate the module's adherence to global environmental safety rules and electromagnetic interference limits. They give network operators confidence in deploying the transceiver within high-density carrier and enterprise equipment.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-DW4210-80C Certified for Reliable Host-Device Compatibility
Interoperability testing confirms seamless operation with major brands of switches, routers, and transport platforms without throwing port errors. The transceiver's standardized EEPROM ensures immediate recognition and accurate telemetry reporting upon insertion.
LINK-PP LS-DW4210-80C 10G SFP+ modules undergo strict optical and electrical inspections to ensure long-term stability across extended fiber links. Discover our detailed verification procedures and equipment standards at the LINK-PP Test Support Center.
Optical Spectrum Test
Analyze laser wavelength accuracy against the ITU C42 grid.
Eye Pattern Test
Inspect transmitter waveform clarity to prevent optical signal distortion.
Bit Error Rate Test
Measure packet loss thresholds across simulated 80km fiber runs.
Temperature Test
Assess operational stability under sustained commercial-grade heat and cold.
Product Shipping for LINK-PP LS-DW4210-80C 10G SFP+
LINK-PP LS-DW4210-80C DWDM optical transceivers are packed with dedicated protective measures to ensure total hardware safety during transit. Our streamlined shipping network coordinates rapid dispatch and reliable worldwide delivery directly to your facility.
Anti-Static Protective Packaging
Shield internal optical circuitry against harmful electrostatic discharge events.
Shock-Resistant Transport Protection
Absorb external mechanical impacts during long-distance international transit.
Fast Order Processing and Dispatch
Prepare and dispatch verified module batches quickly from warehouse stock.
Global Logistics and International Delivery
Ship through dependable worldwide freight carriers to ensure timely arrival.

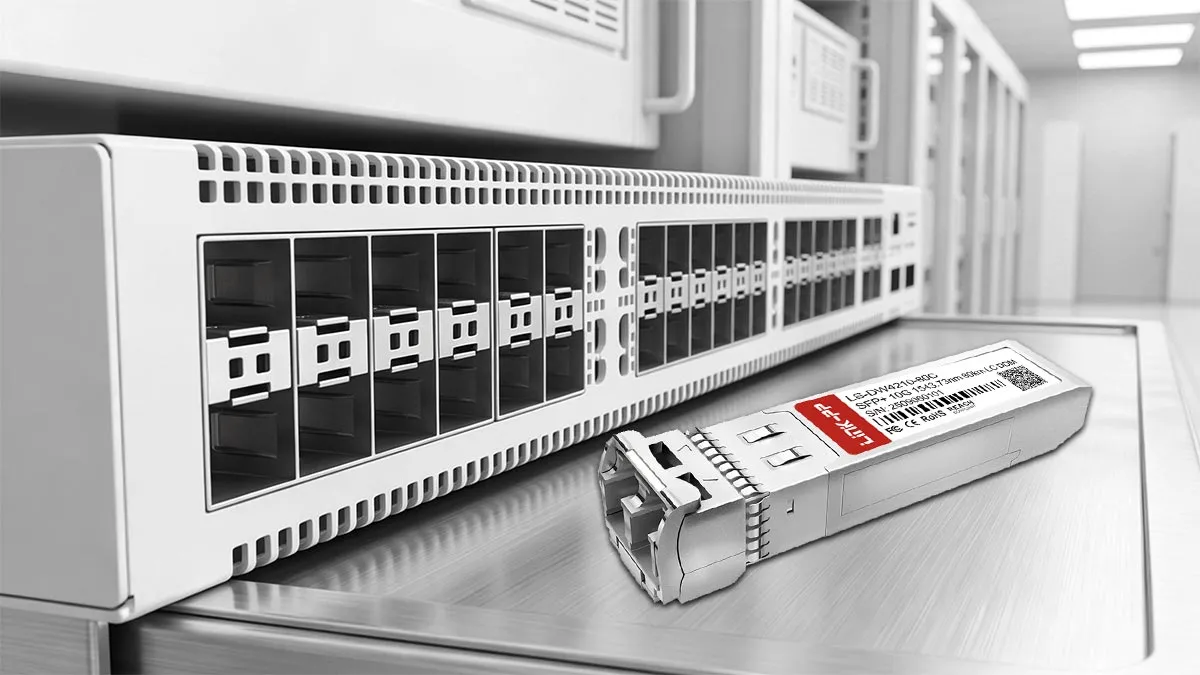

Hot-swap the LS-DW4210-80C module into an active SFP+ slot and patch it through duplex LC fiber into your passive DWDM infrastructure. The transceiver establishes stable 10Gbps links instantly, making it ideal for connecting telecom core transport backbones with distributed edge routing platforms.
LS-DW4210-80C Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-DW4210-80C module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
