LS-DW4110-80C SFP+ module delivers 10G DWDM connectivity across single-mode fiber up to 80km, transmitting on the 100GHz ITU C-Band grid at 1544.52nm (Channel C41). Equipped with a cooled EML laser and an APD receiver, it provides comprehensive real-time digital diagnostic monitoring for continuous link telemetry and network management.
LINK-PP Part Number
LS-DW4110-80C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1544.52nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472
Key Features of LINK-PP LS-DW4110-80C 10G SFP+
LINK-PP LS-DW4110-80C is a commercial-grade DWDM SFP+ module engineered for long-reach data transmission over single-mode fiber. It operates on the 1544.52nm C-Band channel with an 80km link budget, featuring an optical duplex LC receptacle and integrated real-time digital diagnostics monitoring.

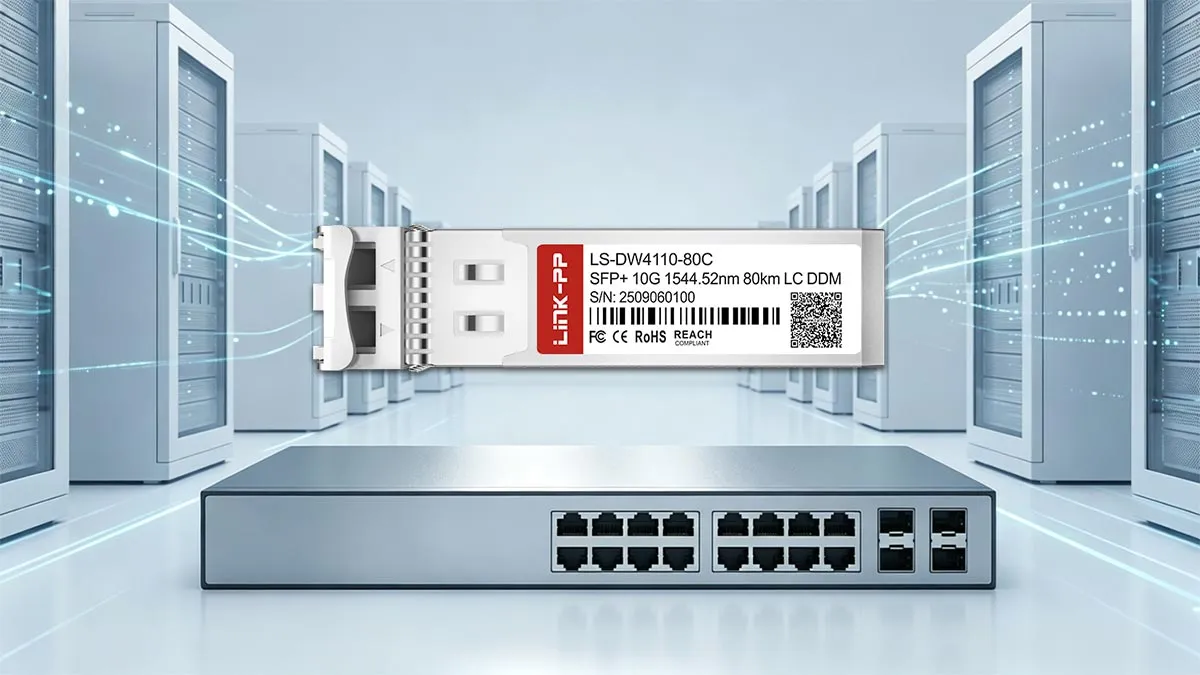

LINK-PP LS-DW4110-80C 10G SFP+ Optical Module
The module features a hot-pluggable SFP+ footprint that allows easy installation and replacement without powering down host systems. It strictly complies with the SFP+ Multi-Source Agreement (MSA) to ensure wide compatibility with industry-standard network switches and routers.

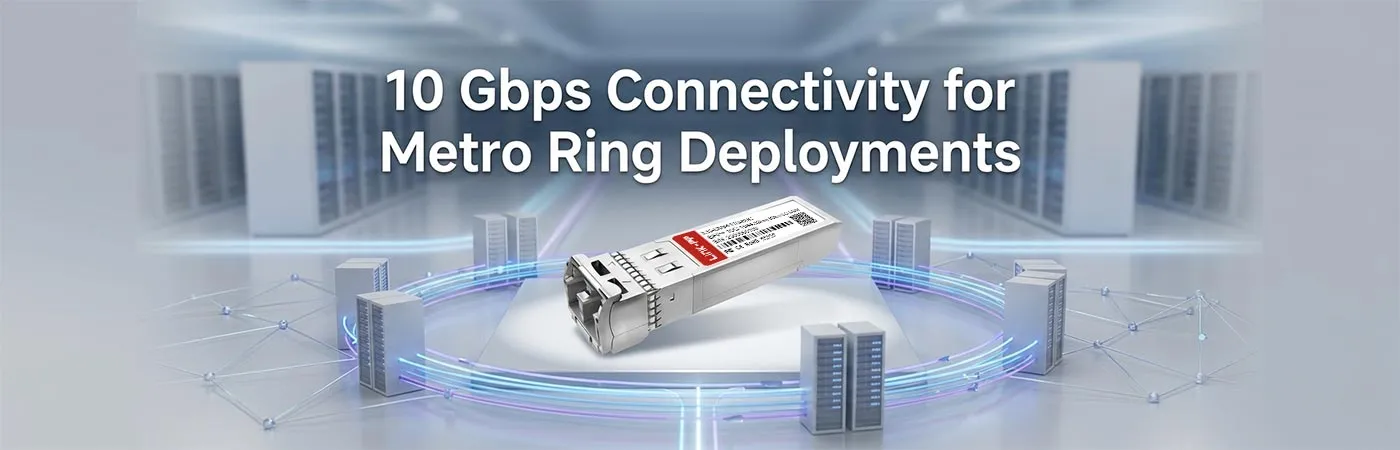

LS-DW4110-80C: 10 Gbps Connectivity for Metro Ring Deployments
This transceiver delivers consistent 10 Gbps data rates to handle bandwidth-intensive traffic across regional optical backbones. Its dedicated throughput makes it ideal for metro ring topologies, enterprise backhaul networks, and carrier transport systems.

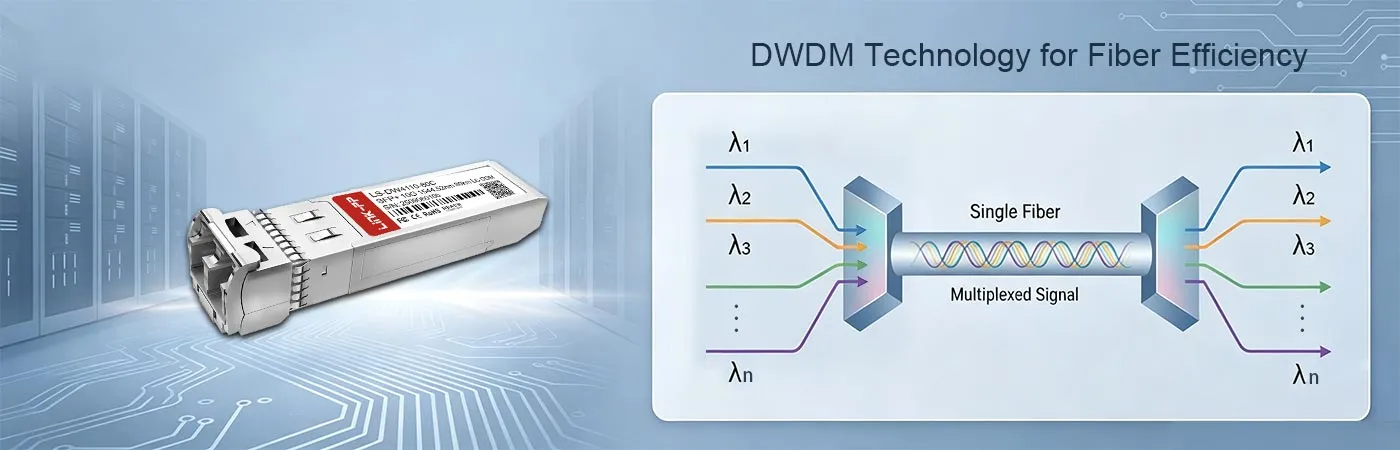

LS-DW4110-80C Module with DWDM Technology for Fiber Efficiency
Dense Wavelength Division Multiplexing (DWDM) technology enables multiple optical signals to transmit simultaneously across a single optical strand. This multiplexing capability helps network operators scale overall bandwidth capacity without deploying new physical fiber lines.

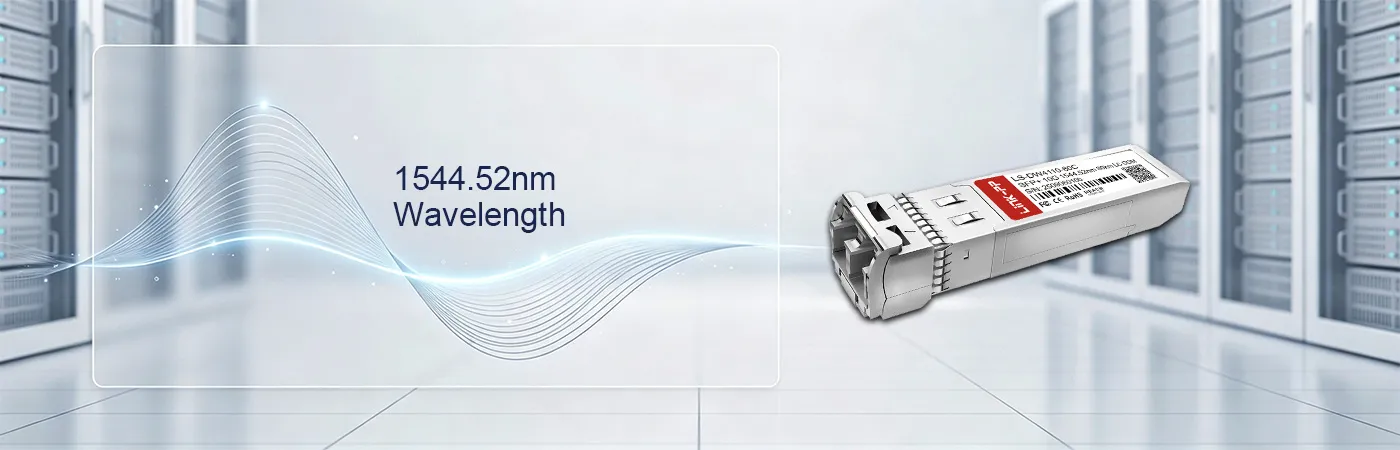

LS-DW4110-80C Module with 1544.52nm Wavelength
Transmitting at a fixed wavelength of 1544.52nm, this unit operates precisely on Channel 41 of the 100GHz ITU C-Band grid. The narrow spectral width ensures low signal distortion and seamless integration with standard DWDM multiplexers and demultiplexers.
LS-DW4110-80C Module Supporting 80km Transmission
An integrated cooled EML laser and high-sensitivity APD receiver allow the module to span optical links up to 80km over single-mode fiber. This extended optical power budget eliminates the immediate need for mid-span signal amplification over long distances.

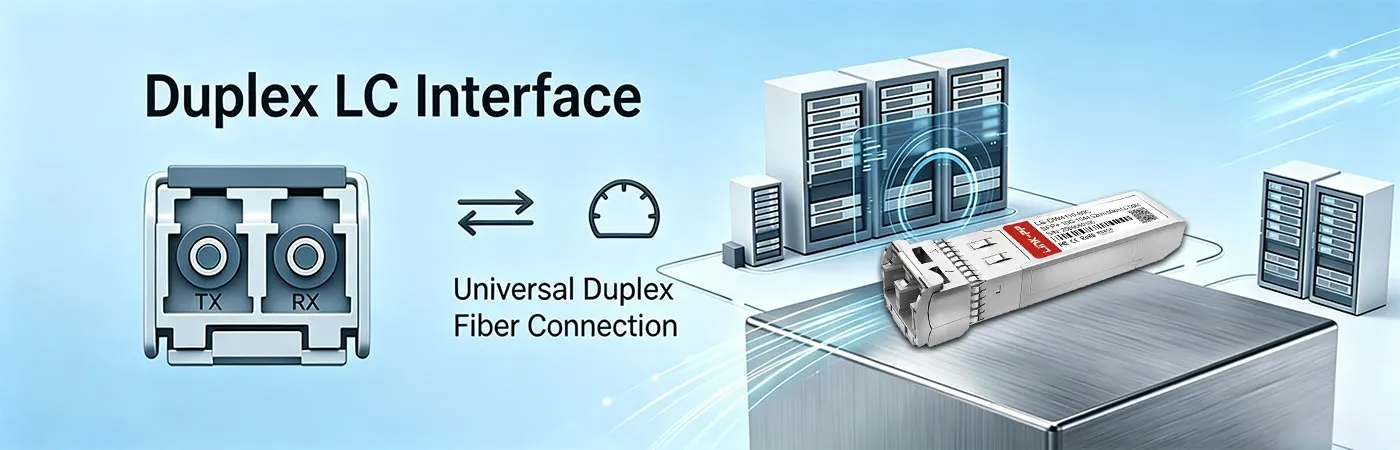

LS-DW4110-80C Module with Duplex LC Interface
A standard duplex LC optical receptacle provides a secure, compact mechanical connection for network patch cables. The polished connector design ensures low insertion loss and high optical return loss for clean signal transmission.
LS-DW4110-80C Module with DDM for Real-Time Monitoring
Built-in Digital Diagnostic Monitoring (DDM) allows network administrators to continuously track operating parameters such as optical power, temperature, bias current, and supply voltage. Compatible with SFF-8472 digital diagnostics functions, it simplifies remote troubleshooting and preventive optical maintenance.
LINK-PP LS-DW4110-80C 10G SFP+ Certification
LINK-PP LS-DW4110-80C DWDM 10G SFP+ module complies with key international standards including ISO 9001, CE, RoHS, and FCC to ensure high manufacturing quality and environmental safety. These formal certifications demonstrate adherence to strict global safety, quality, and electromagnetic compatibility requirements.
Every 10G DWDM transceiver module undergoes comprehensive testing, including optical power calibration, bit error rate (BER) analysis, and thermal stress cycles. This multi-step screening process verifies that each module operates reliably under commercial temperature conditions.
LS-DW4110-80C Quality Certifications
Compliance certifications confirm that this transceiver satisfies all mandated safety regulations and environmental hazardous-substance limits. Meeting these global standards ensures reliable hardware build quality, continuous operational safety, and consistent manufacturing controls.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-DW4110-80C Certified for Reliable Host-Device Compatibility
Comprehensive compatibility validation ensures the module integrates smoothly with major switches, routers, and transport platforms. Each unit is programmed and verified across standard host hardware to deliver plug-and-play network stability without link flapping.
Each LS-DW4110-80C DWDM SFP+ optical module undergoes comprehensive multi-stage testing to ensure precise optical parameters and stable link transmission. For more details on our verification procedures, visit the LINK-PP Test Support Center.
Optical Spectrum Test
Verify wavelength accuracy and side-mode suppression ratio for transmission stability.
Eye Pattern Test
Evaluate optical signal integrity, transmitter jitter, and waveform compliance margins.
Bit Error Rate Test
Check transmission accuracy to ensure zero frame loss during operation.
Temperature Test
Assess optical component stability across commercial operating temperature ranges.
Product Shipping for LINK-PP LS-DW4110-80C 10G SFP+
Every LS-DW4110-80C DWDM module is packed using specialized protective materials to ensure physical and electrical integrity during international transit. Our global logistics system guarantees rapid order fulfillment and secure shipment delivery to destinations worldwide.
Anti-Static Protective Packaging
Prevent electrostatic discharge damage to protect sensitive internal optical components.
Shock-Resistant Transport Protection
Safeguard transceiver optics and physical interfaces against continuous transit vibrations.
Fast Order Processing and Dispatch
Prepare and ship confirmed product orders quickly through efficient warehousing.
Global Logistics and International Delivery
Provide reliable door-to-door worldwide shipping with real-time package tracking services.

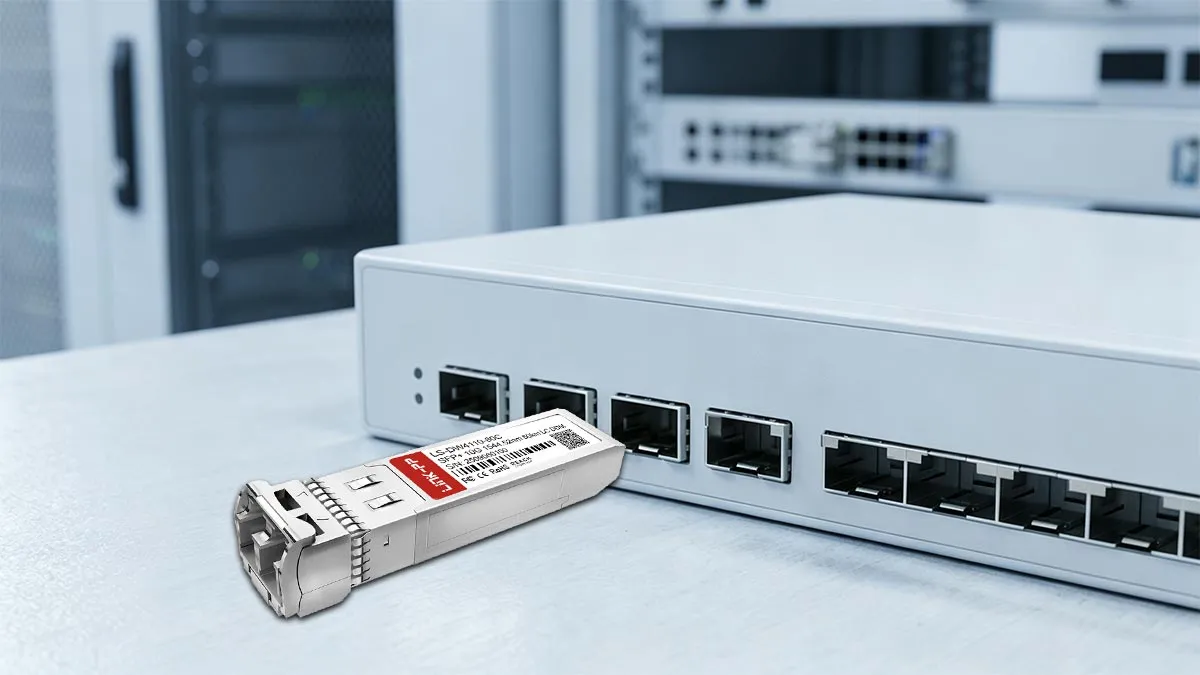

Deploying the LINK-PP LS-DW4110-80C involves hot-plugging the transceiver into an SFP+ switch slot and connecting duplex LC patch cables to a C-Band DWDM Mux/Demux port. This streamlined setup enables reliable 10G optical links across metro ring deployments and regional multi-node networks.
LS-DW4110-80C Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-DW4110-80C module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
