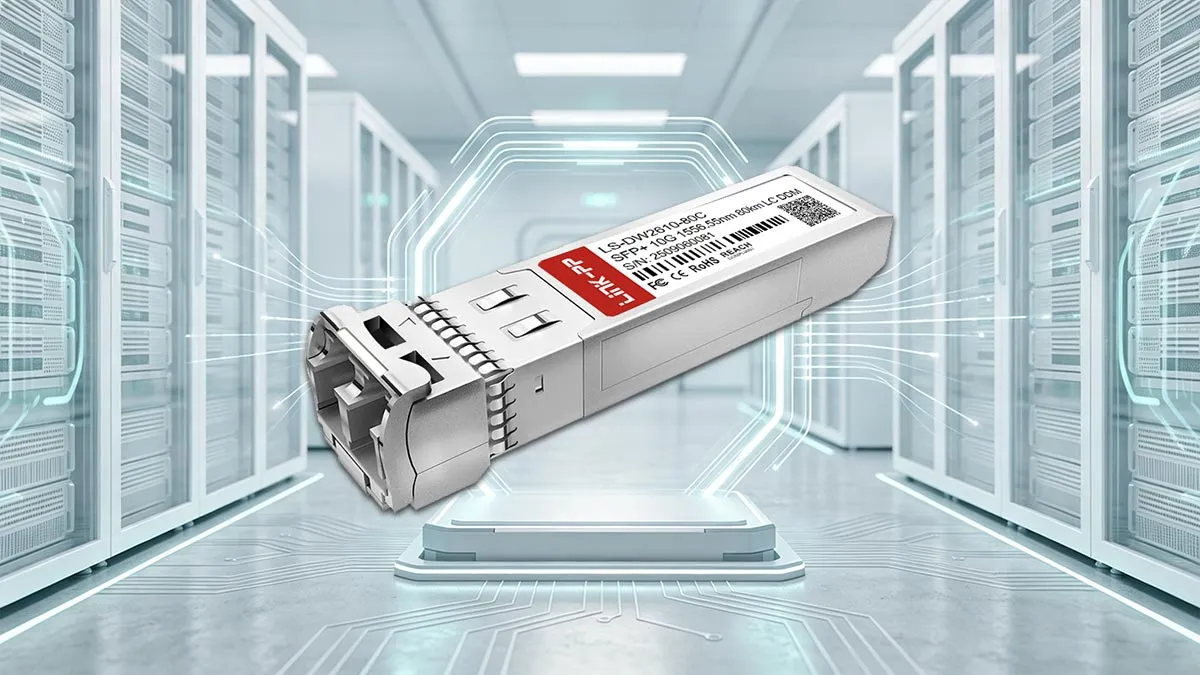

The LS-DW2610-80C is a 10G SFP+ DWDM optical transceiver engineered for long-reach transmission over single-mode fiber up to 80km. Operating at an ITU 100GHz C-Band wavelength of 1556.55nm (Channel 26), it integrates a cooled EML transmitter, an APD photodiode receiver, and built-in digital optical monitoring capabilities for continuous link diagnostics.
LINK-PP Part Number
LS-DW2610-80C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1556.55nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
SFP+ MSA Compliant, CPRI, eCPRI
Key Features of LINK-PP LS-DW2610-80C 10G SFP+
LINK-PP LS-DW2610-80C is a commercial-grade 10G SFP+ DWDM optical transceiver module designed for long-distance single-mode fiber links. It combines standard MSA compliance, an 80km reach at 1556.55nm, a duplex LC interface, and digital diagnostics to deliver efficient optical transport.

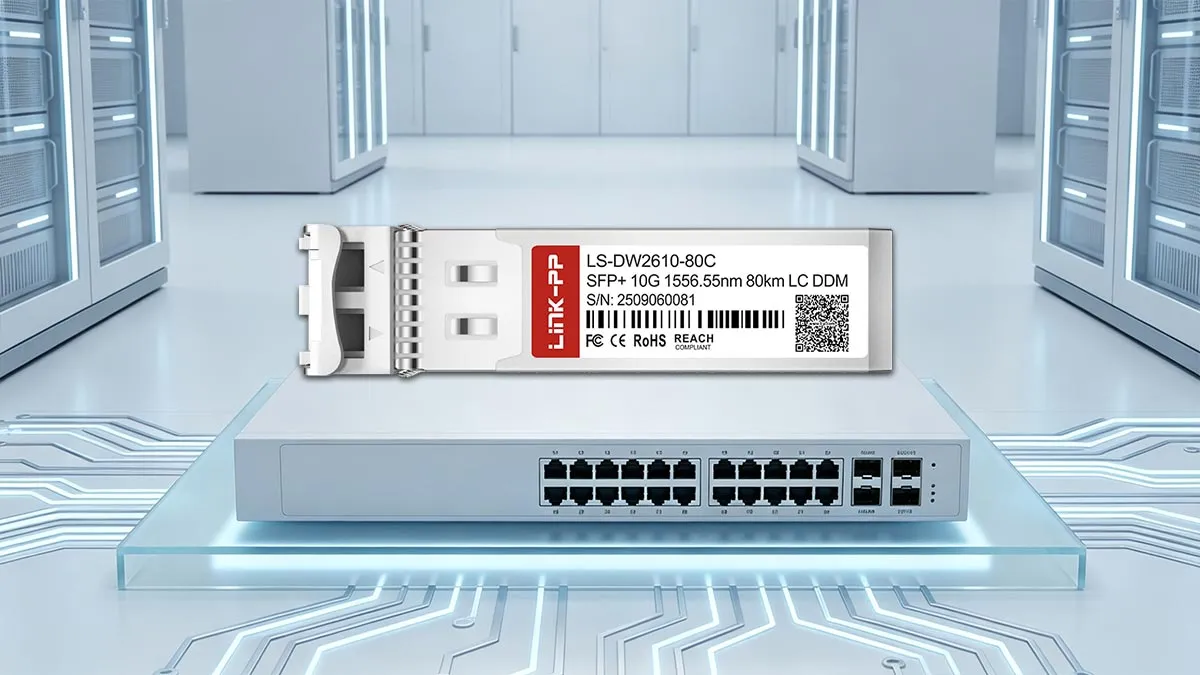

LINK-PP LS-DW2610-80C 10G SFP+ Optical Module
This transceiver module features a hot-pluggable SFP+ footprint that allows fast installation and replacement without powering down host systems. Full compliance with the SFP+ MSA ensures seamless mechanical and electrical compatibility across various networking equipment.
LS-DW2610-80C: 10 Gbps Connectivity for Telecom Core & Edge Routing
The 10Gbps transmission rate supports high-throughput data traffic across telecom core networks and regional aggregation routing systems. It helps network operators reliably transport large volumes of IP data between central offices and edge distribution nodes.

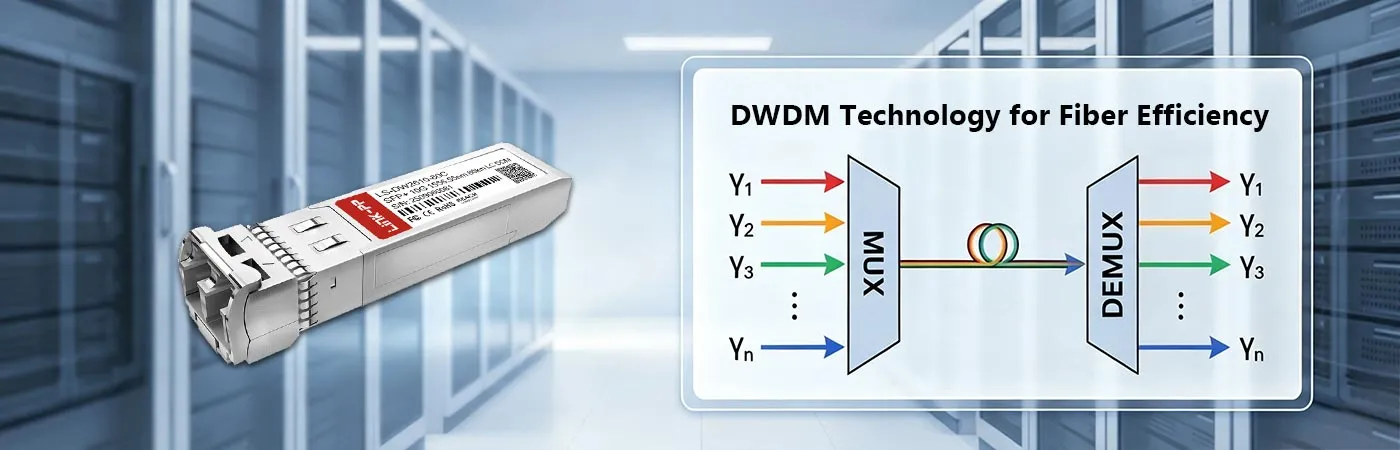

LS-DW2610-80C Module with DWDM Technology for Fiber Efficiency
Dense Wavelength Division Multiplexing (DWDM) technology enables multiple optical channels to transmit simultaneously over a single fiber pair. This capability significantly increases existing fiber capacity and lowers the cost of deploying additional cables.
LS-DW2610-80C Module with 1556.55nm Wavelength
A precise 1556.55nm operating wavelength corresponds to Channel 26 on the standard 100GHz ITU-T C-Band grid. The built-in cooled EML transmitter maintains strict wavelength stability and low spectral distortion during continuous operation.
LS-DW2610-80C Module Supporting 80km Transmission
Extended optical reach up to 80km over single-mode fiber makes the device ideal for long-distance point-to-point spans. An internal APD receiver provides high optical sensitivity to overcome signal attenuation across large fiber spans.

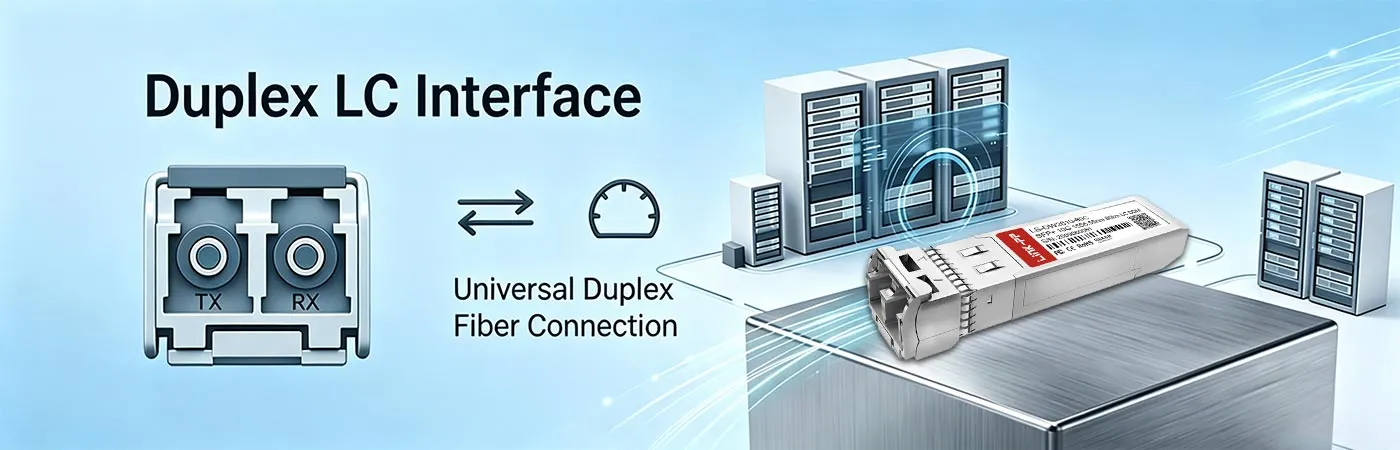

LS-DW2610-80C Module with Duplex LC Interface
The industry-standard duplex LC optical receptacle provides a secure and stable physical connection for single-mode patch cords. Its compact connector design ensures low optical insertion loss and simple fiber routing in dense patch panels.

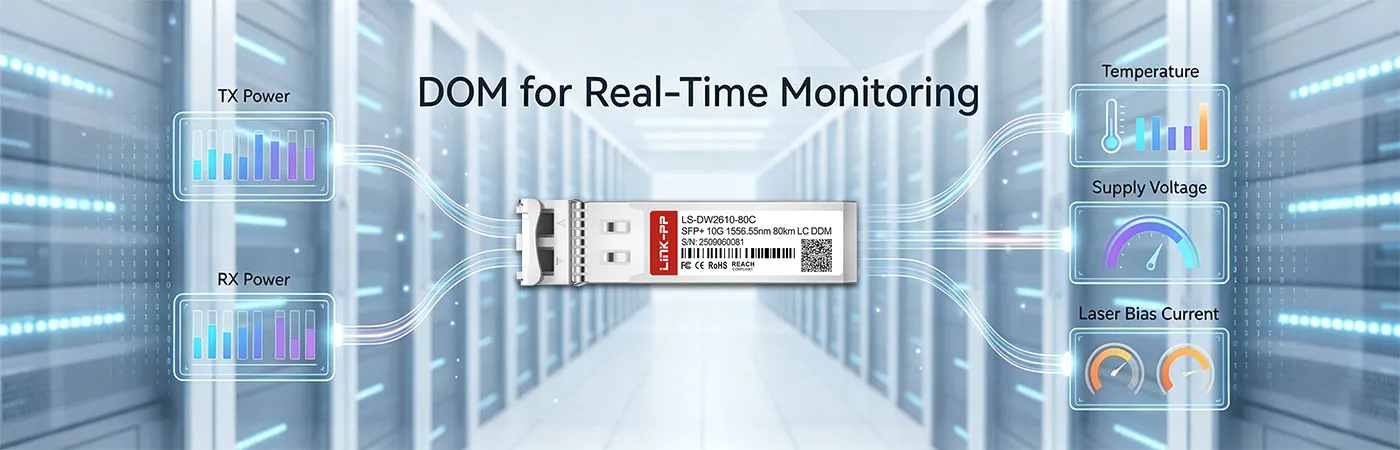

LS-DW2610-80C Module with DOM for Real-Time Monitoring
Integrated Digital Optical Monitoring (DOM) is fully compatible with SFF-8472 digital diagnostics functions. Network administrators can continuously monitor operating temperature, supply voltage, laser bias current, and optical transmit/receive power for proactive link maintenance.
LINK-PP LS-DW2610-80C 10G SFP+ Certification
LINK-PP LS-DW2610-80C 10G DWDM module complies with strict international manufacturing and environmental standards, holding certifications including ISO 9001, CE, RoHS, and FCC. These credentials ensure that every optical transceiver meets high safety, quality, and regulatory requirements for global network deployment.
Each DWDM module undergoes rigorous factory testing, including optical parameter verification, bit error rate (BER) checks, and thermal cycling. This comprehensive process ensures stable signal integrity and reliable operation before shipment.
LS-DW2610-80C Quality Certifications
Standardized compliance audits verify that the transceiver adheres to international safety, electromagnetic compatibility, and hazardous substance restrictions. These certified quality controls provide long-term operational stability and environmental safety in commercial data centers.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-DW2610-80C Certified for Reliable Host-Device Compatibility
Interoperability testing confirms seamless operation across major brand switches, routers, and transport platforms. The pre-programmed EEPROM ensures immediate recognition and smooth integration with host network devices without configuration issues.
Every LS-DW2610-80C DWDM 10G SFP+ optical transceiver undergoes stringent multi-stage hardware validation to maintain stable signal integrity across 80km fiber spans. For detailed testing methodologies, explore the LINK-PP Test Support Center.
Optical Spectrum Test
Verify central wavelength precision and side-mode suppression ratio across DWDM channels.
Eye Pattern Test
Evaluate transmitter optical waveform quality to ensure low jitter during transmission.
Bit Error Rate Test
Measure data transmission accuracy to prevent packet loss over single-mode fiber.
Temperature Test
Assess thermal stability to ensure dependable operation under standard conditions.
Product Shipping for LINK-PP LS-DW2610-80C 10G SFP+
Standardized packaging protocols ensure secure handling and transit protection for every transceiver module from the warehouse to your facility. Fast order fulfillment and dependable carrier partnerships guarantee timely delivery to enterprise networks worldwide.
Anti-Static Protective Packaging
Shield delicate optical components from electrical discharge damage.
Shock-Resistant Transport Protection
Apply structural cushioning to absorb transit vibration impacts.
Fast Order Processing and Dispatch
Accelerate warehouse dispatch for rapid freight carrier handover.
Global Logistics and International Delivery
Provide reliable worldwide shipping through trusted international carriers.

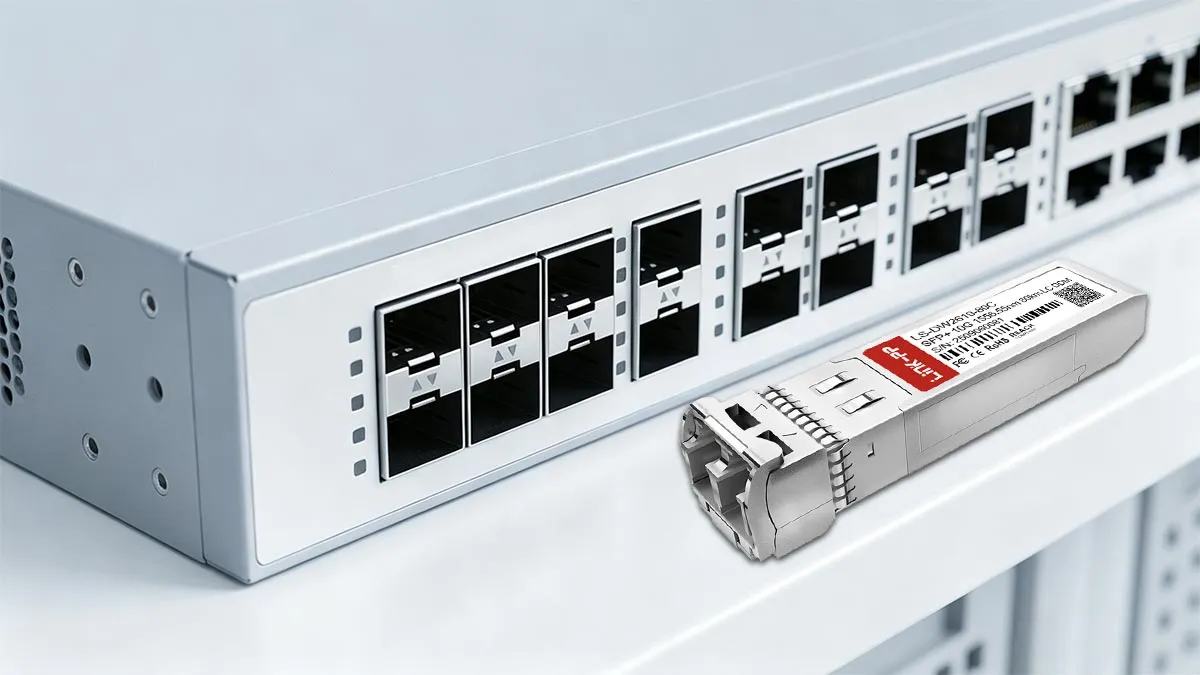

Simply slide the LS-DW2610-80C DWDM 10G SFP+ transceiver into a compatible host switch or router cage, then secure the duplex LC optical cable. The module integrates smoothly with DWDM Mux/Demux gear to route 10 Gbps data efficiently across regional telecom edge networks and core transport links.
LS-DW2610-80C Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-DW2610-80C module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
No, this module is strictly engineered for single-mode fiber. Firing a 1556.55nm narrow-band laser into multi-mode fiber causes severe modal dispersion and optical reflection issues, so standard SMF patch leads should always be used. By
admin on
2026-04-28
A:
Generally, yes. It uses an integrated cooled EML laser designed specifically for the 100GHz ITU grid at 1556.55nm. As long as your switch cage stays within the standard 0 to 70C operating range, the internal controller typically keeps the center wavelength steady without bleeding into adjacent channels like C25 or C27. By
admin on
2026-02-12
A:
In most standard scenarios with quality single-mode fiber, it should manage that span quite well. With an EML transmitter, APD receiver, and an optical design rated for up to 80km, a 68km link usually leaves adequate margin. However, it largely depends on actual link losses — such as dirty patches, patch panels, or high-loss splices — so checking your OTDR or power meter readings before turning up the link is always a good practice. By
admin on
2025-11-16
A:
Yes, it is fully hot-pluggable according to the SFP+ MSA. You can slide it in or pull the bail latch to release it while the switch chassis is powered on. We simply recommend unseating the fiber cables first to avoid accidental bending or eye safety concerns. By
admin on
2025-09-22
A:
Yes, it is well suited for wireless backhaul and fronthaul uplinks over single-mode fiber. The transceiver natively supports multirate transmission up to 10.7Gbps, making it capable of handling 10G Ethernet backhaul traffic as well as CPRI and eCPRI framing protocols, alongside standard 10GBASE-ZR line rates. By
admin on
2025-07-07
Built an offsite backup mirror connecting our main office SAN to a remote facility 68km away. Standard duplex LC patch cables plugged right in. Optical DOM parameters matched our inline optical power meter within 0.3dB tolerance. Outstanding link stability for mission-critical enterprise storage replication. :D
Please write comments with more than three
character.
496219
464349
E***s
Turkey
Verified
Purchase
5 .0
2026-05-07
Running these inside our distribution rack at 0 to 70°C commercial temperature range. They handle peak day traffic smoothly. Stable TX power around +2dBm and the link margin is generous enough for our 70km spans. :-)
Please write comments with more than three
character.
496219
464359
R***s
Brazil
Verified
Purchase
5 .0
2026-04-24
Deployed this DWDM SFP+ module for a 10G campus fiber interconnect. The optical budget is very healthy with the APD receiver sitting at -14dBm. Diagnostics read clean via DOM on our core switch. Simple deployment and reliable throughput. ;)
Please write comments with more than three
character.
496219
464354
B***g
Taiwan, Province of China
Verified
Purchase
4 .0
2026-04-14
Customs clearance held up delivery by two extra days, which pushed our installation window slightly. That said, the 1556.55nm DWDM 10G SFP+ optical transceiver works brilliantly across our 60km dark fiber link.
Please write comments with more than three
character.
496219
464368
A***l
Bulgaria
Verified
Purchase
5 .0
2026-03-20
Fast link training on our 10G SFP+ ports. MSA compliance makes hardware interoperability totally hassle-free. Good packaging and anti-static protection on delivery. =D
Please write comments with more than three
character.
496219
464361
L***s
Canada
Verified
Purchase
5 .0
2026-02-18
Great option for cell site base station backhaul over leased dark fiber. It synced up fine with our eCPRI interface at 10.7Gbps. Clean duplex LC latching and low latency across the 72km run.
Please write comments with more than three
character.
496219
464356
M***n
New Zealand
Verified
Purchase
5 .0
2026-01-31
Excellent choice for high-speed eCPRI mobile backhaul transport. The 10.7Gbps data rate support gave us enough overhead for framing. The EML laser showed minimal chromatic dispersion over our 74km spool. APD detector handled the attenuation easily without requiring inline EDFA amplification. Solid engineering and very dependable optics.
Please write comments with more than three
character.
496219
464353
D***n
South Africa
Verified
Purchase
5 .0
2025-11-12
Outstanding optical budget on our 80km dark fiber path. The transmitter output hit +2.8dBm, giving us plenty of margin across legacy patch panels and splice points. Zero frame jitter during overnight bulk data replication. Truly industrial-grade performance at a sensible budget. :-)
Please write comments with more than three
character.
496219
464367
S***e
Poland
Verified
Purchase
5 .0
2025-10-21
Needed a specific C-band channel to expand our multiplexer capacity without pulling new glass. This C26 1556.55nm SFP+ module slotted into channel 26 perfectly. Upgraded bandwidth seamlessly without disturbing neighboring lambdas.
Please write comments with more than three
character.
496219
464350
J***n
Russian Federation
Verified
Purchase
5 .0
2025-08-09
Ordered a pair for inter-building 10G links over our existing DWDM Mux. Duplex LC connection clicked in tight, and DOM optical monitoring is completely accurate. Good industrial build quality for standard server room racks.
Please write comments with more than three
character.
496219
464358
M***r
Philippines
Verified
Purchase
5 .0
2025-07-11
Replaced an aging OEM optic with this LS-DW2610-80C module in our telecom aggregation ring. It was immediately recognized by the switch operating system. We verified channel 26 1556.55nm center wavelength on our optical spectrum analyzer and it was spot on. Latency is ultra-low and transmission remains fully stable. ;)
Please write comments with more than three
character.
496219
464364
C***z
Argentina
Verified
Purchase
5 .0
2025-06-15
We used these 1556.55nm SFP+ optical transceivers across an active DWDM filter system. The EML laser is rock solid and stays on frequency. SFP+ cage temperature stays cool around 40°C under continuous load. =)
Please write comments with more than three
character.
496219
464355
C***g
United Kingdom
Verified
Purchase
5 .0
2025-05-19
Deployed several of these for a smart city fiber infrastructure expansion. They sit in our indoor distribution frames running 10G Ethernet day and night. Thermal dissipation inside dense switch banks is very controlled, never exceeding 45°C. MSA compatibility made multi-vendor hardware integration completely smooth.
Please write comments with more than three
character.
496219
464352
K***l
France
Verified
Purchase
5 .0
2025-03-12
Picked this up for a long-distance 10G NAS replication between two local facilities. We padded the line with a 5dB attenuator during bench tests to protect the APD. Ran iperf for 48 hours without dropping a single packet. :-D
Please write comments with more than three
character.
496219
464357
E***g
Hungary
Verified
Purchase
5 .0
2025-02-12
We tested this 80km transceiver over an 18dB fiber run connecting two suburban data centers. TX power showed +2.1dBm and RX level stayed well above the -23dBm sensitivity limit. Real-time DOM telemetry tracked voltage and temp accurately inside our CLI. It has been running for a month straight with zero CRC drops. :)
