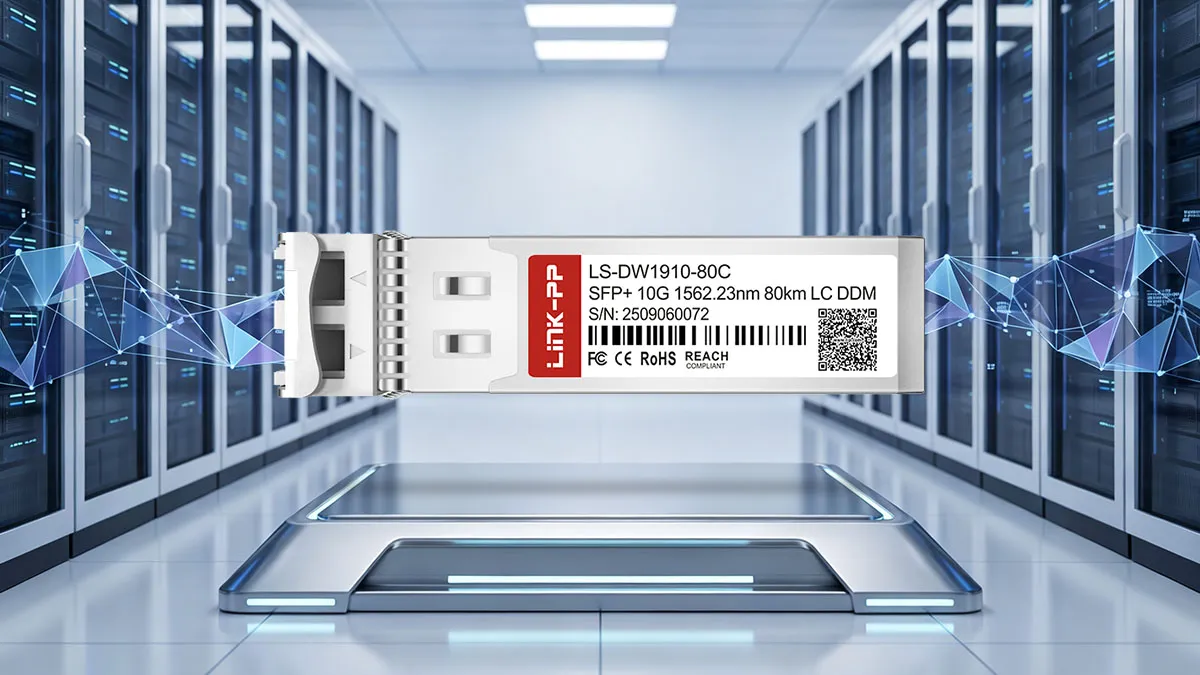

The LINK-PP LS-DW1910-80C is a high-performance 10G DWDM SFP+ optical transceiver engineered for long-reach telecommunications. Operating at 10.3Gbps over single-mode fiber, it integrates a cooled EML laser and APD receiver to deliver exceptional signal integrity up to 80km. Compliant with SFP+ MSA standards, it features a single +3.3V power supply and low power consumption.
LINK-PP Part Number
LS-DW1910-80C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1562.23nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
SFP+ MSA Compliant, CPRI, eCPRI
Key Features of LINK-PP LS-DW1910-80C 10G DWDM SFP+
Designed for high-density network environments, this 10G DWDM SFP+ module supports data rates up to 10.7Gbps. Key features include a hot-pluggable footprint, 100GHz ITU grid alignment, 1562.23nm C-band wavelength, duplex LC connector, and digital diagnostic monitoring (DOM/DDM) capability for real-time operational tracking.

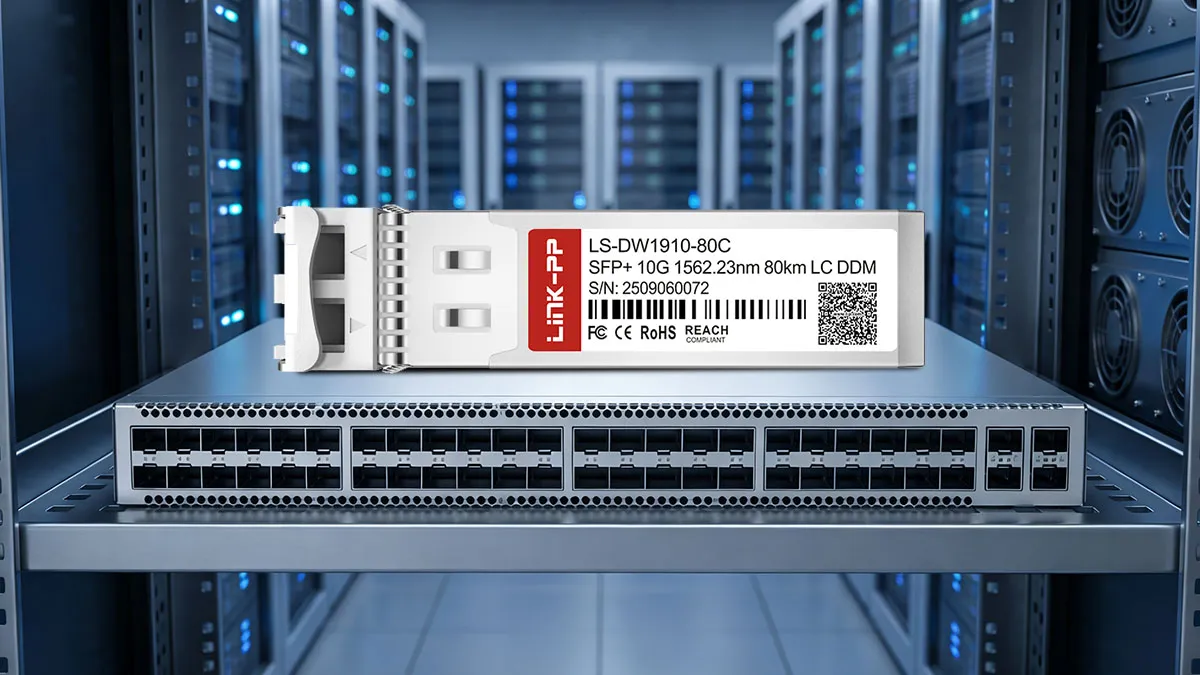

LINK-PP LS-DW1910-80C 10G SFP+ Optical Module
As a robust 10G SFP+ optical transceiver, the LS-DW1910-80C module ensures seamless interoperability across metro Ethernet and enterprise networks. It delivers stable data transmission with low latency, ideal for upgrading existing optical infrastructure without replacing installed fiber.
LS-DW1910-80C: 10G Connectivity for 5G Backhaul
Empowering modern wireless infrastructure, the LS-DW1910-80C transceiver provides high-capacity 10G optical connectivity for 5G backhaul and LTE systems. Its high link budget and ultra-low noise design guarantee dependable packet transport across demanding telecom backhaul links.

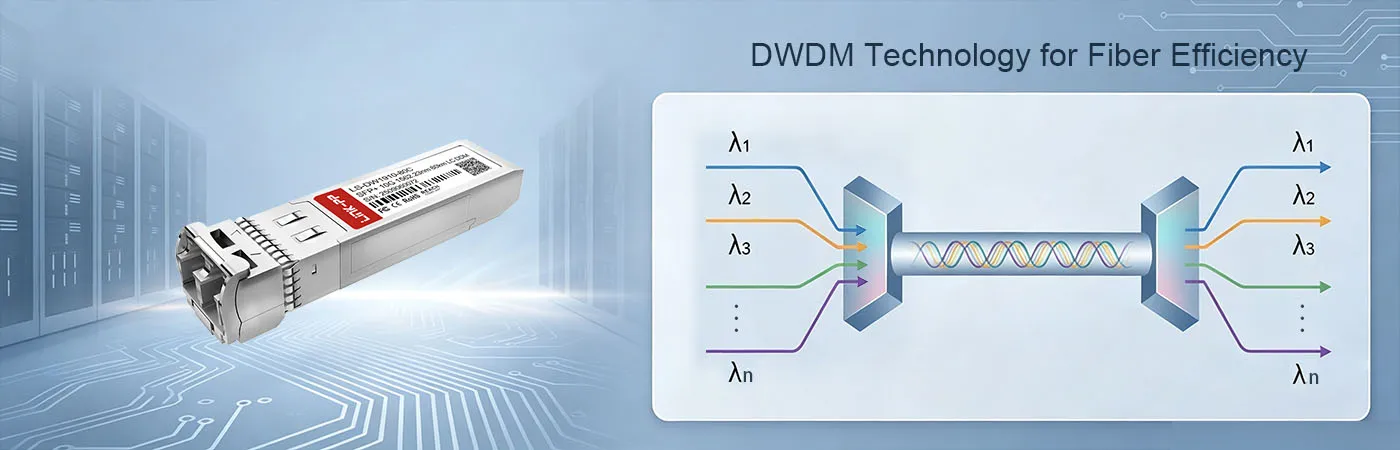

LS-DW1910-80C Module with DWDM Technology for Fiber Efficiency
Utilizing dense wavelength division multiplexing (DWDM) technology on the 100GHz ITU channel grid, this SFP+ transceiver maximizes fiber resource efficiency. It enables multiple high-speed data channels over a single strand, dramatically lowering fiber deployment costs.

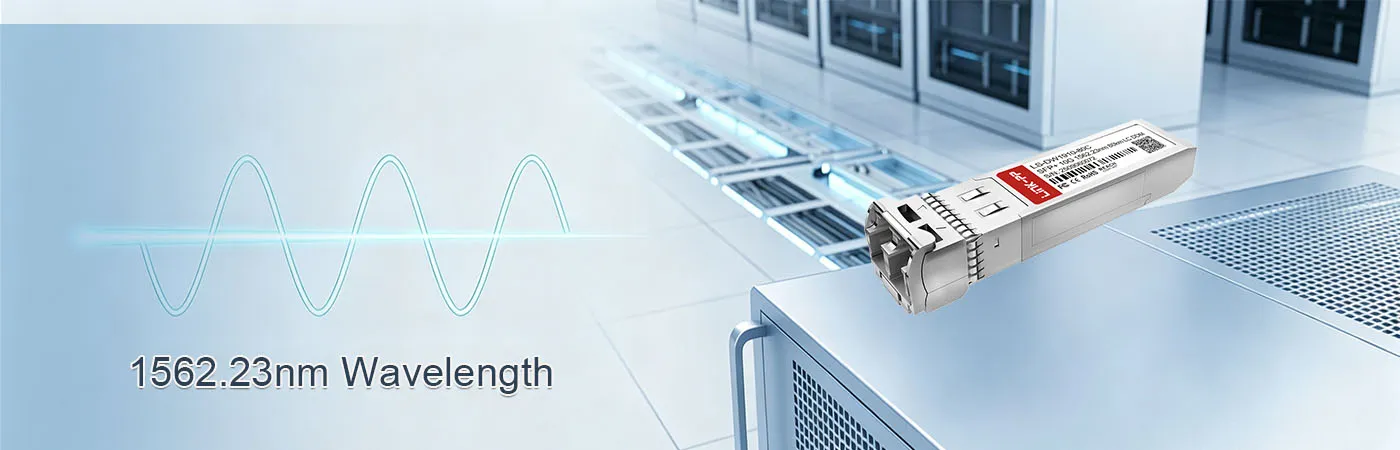

LS-DW1910-80C Module with 1562.23nm Wavelength
Operating at C-band Channel 19 with a precise 1562.23nm wavelength and 191.9THz frequency, this optical module ensures minimal attenuation. The integrated cooled EML laser maintains tight wavelength stability required for complex multi-channel WDM system architectures.
LS-DW1910-80C Module Supporting 80km Transmission
Equipped with a sensitive APD photodiode receiver, this 10G SFP+ transceiver achieves long-haul transmission up to 80km over single-mode optical fiber (SMF). It offers reliable 10GBASE-ZR and 10GBASE-ZW performance for extended reach network topologies.

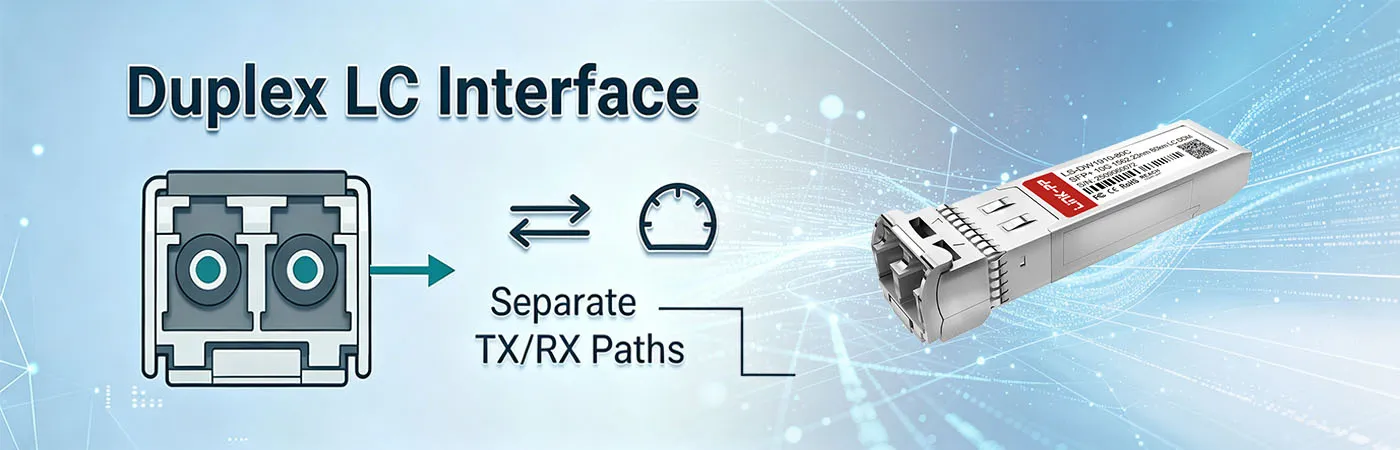

LS-DW1910-80C Module with Duplex LC Interface
Featuring an industry-standard duplex LC optical receptacle, the LS-DW1910-80C transceiver allows quick and secure connection to standard fiber patch cables. The compact latching design simplifies installation and maintenance in high-density rack systems and switches.

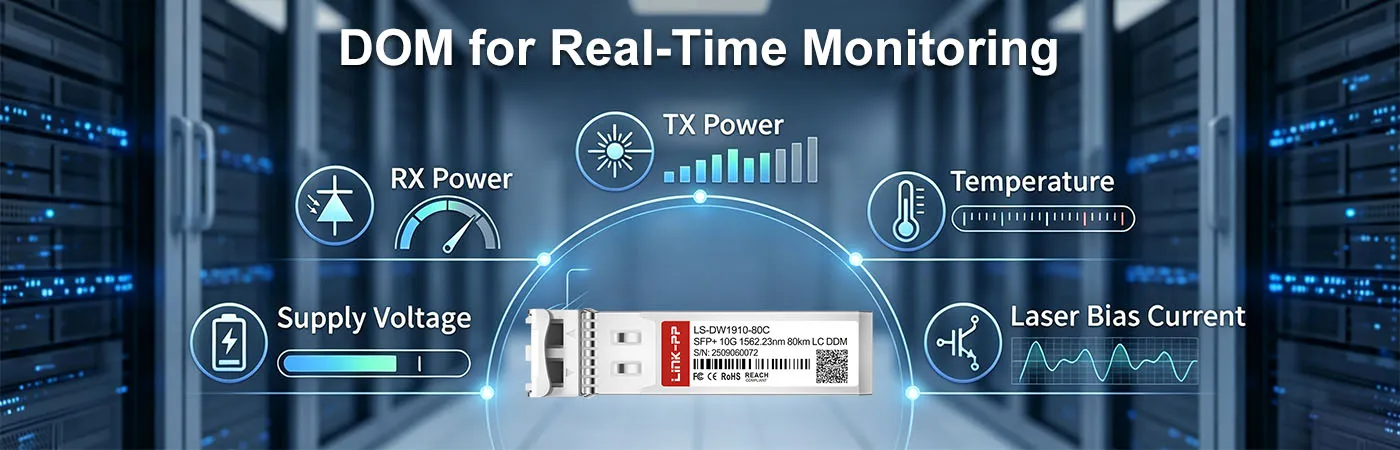

LS-DW1910-80C Module with DOM for Real-Time Monitoring
Integrated Digital Optical Monitoring (DOM) via SFF-8472 2-wire serial interface gives administrators real-time visibility into optical output power, receiver input power, laser bias current, module supply voltage, and internal operating temperature.
LINK-PP LS-DW1910-80C 10G SFP+ Certification
The LINK-PP LS-DW1910-80C transceiver complies with international regulatory standards including CE, FCC, UKCA, UL, and RoHS. Class 1 laser safety compliance guarantees safe operation across optical networking environments.
LINK-PP enforces a rigorous quality assurance program for the LS-DW1910-80C module. Every SFP+ transceiver undergoes comprehensive parametric and functional testing to ensure defect-free performance before shipment.
LS-DW1910-80C Quality Certifications
Holding ISO9001, REACH, and RoHS environmental certifications, LINK-PP guarantees that every LS-DW1910-80C DWDM SFP+ optical module meets stringent ecological, safety, and manufacturing quality standards globally.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-DW1910-80C Certified for Reliable Host-Device Compatibility
Fully compliant with SFP+ Multi-Source Agreement (MSA) standards, the LS-DW1910-80C transceiver is certified for seamless compatibility with major switch, router, and optical network host devices.
Through multi-stage factory testing, LINK-PP validates every 10G DWDM SFP+ transceiver to guarantee reliable long-distance signal transmission and system stability.
Optical Spectrum Test
Optical spectrum testing verifies precise 1562.23nm wavelength stability and suppression of side modes.
Eye Pattern Test
Eye pattern analysis confirms clear optical signals, low jitter, and high extinction ratios.
Bit Error Rate Test
BER testing guarantees zero packet loss with bit error rates below 1×10⁻¹² threshold.
Temperature Test
Thermal cycling tests ensure consistent operation across 0°C to +70°C commercial temperature ranges.
Product Shipping for LINK-PP LS-DW1910-80C 10G SFP+
LINK-PP implements secure packaging and streamlined fulfillment processes to ensure your 10G SFP+ optical transceivers arrive safely and on schedule.
Anti-Static Protective Packaging
Each module is sealed in ESD-safe anti-static packaging for ESD protection.
Shock-Resistant Transport Protection
Custom cushioned materials protect sensitive optical components against transit impact.
Fast Order Processing and Dispatch
Efficient warehouse workflows guarantee prompt order processing and rapid dispatch.
Global Logistics and International Delivery
Reliable express partners deliver products worldwide with end-to-end shipment tracking.

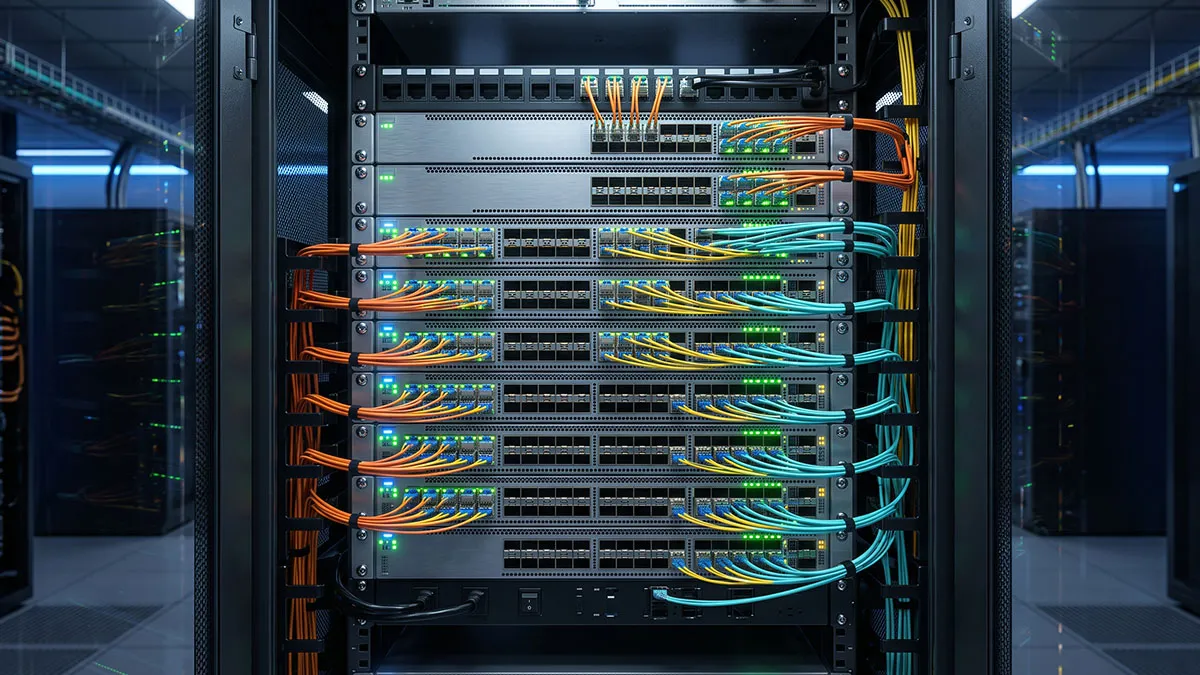

In real-world network setups, simply plug the LS-DW1910-80C transceiver into any MSA-compliant SFP+ port. Connect duplex LC fiber patch cables to establish immediate 10Gbps link communication while accessing real-time DOM telemetry through host device management software.
LS-DW1910-80C Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable LS-DW1910-80C modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
