Can this module be connected directly to regular single-mode fiber that is already installed in our network?

Yes. The LS-CW491G-80C 1G CWDM SFP is designed for single-mode fiber (SMF) and uses duplex LC connectors. It can be connected to standard single-mode fiber infrastructure, provided the fiber condition, connector quality, splice loss, and total link loss are within the optical power budget.

We are building an 80km CWDM ring. Do both ends of the link need to use 1490nm modules?

Yes. For a standard point-to-point duplex CWDM link, both ends should use the same 1490nm CWDM wavelength and compatible 1G SFP modules. If the link is carried through CWDM MUX/DEMUX equipment, make sure both modules are connected to the corresponding 1490nm channel ports.

Can this LS-CW491G-80C module be used with a CWDM MUX/DEMUX system, or is it only for direct fiber links?

It can be used in both scenarios. For a direct point-to-point link, connect two compatible 1490nm modules over duplex single-mode fiber. For a CWDM multiplexed network, connect the module to the 1490nm port of a compatible CWDM MUX/DEMUX to combine multiple wavelengths onto the same fiber pair.

ブレッドクラム: ホーム; 製品; 光トランシーバー | SFPモジュール; 1/2/4G トランシーバーモジュール; 1G CWDM/DWDM SFP; 203282

クリックして展開ビューを開きます

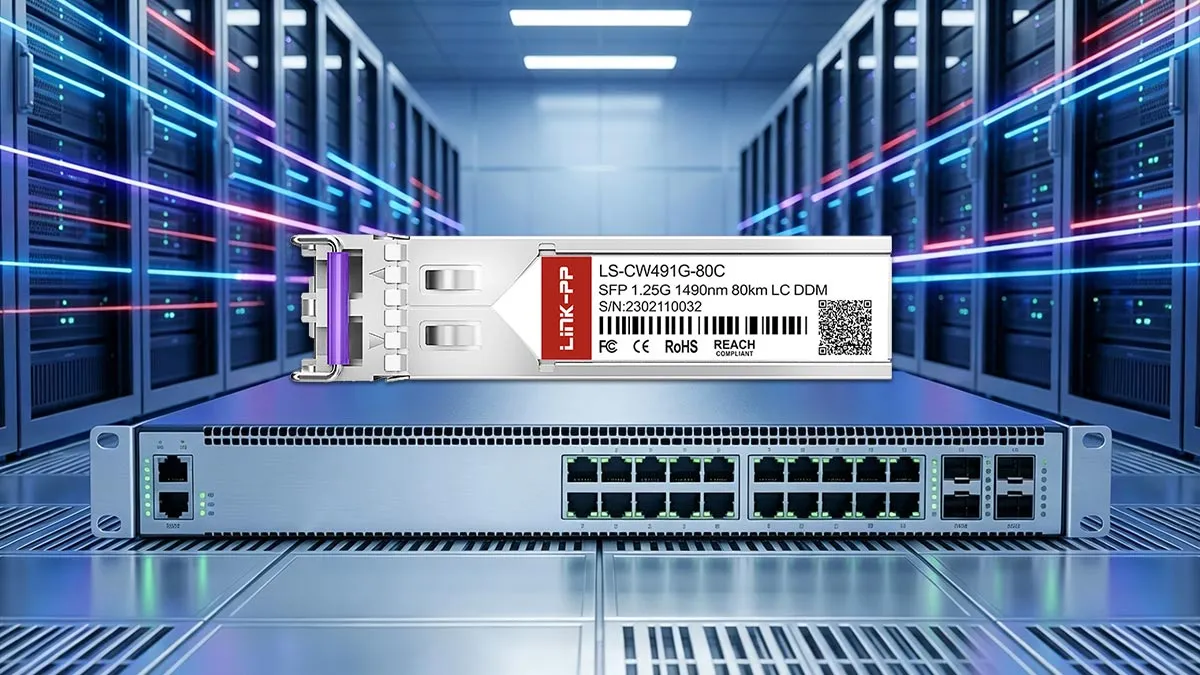

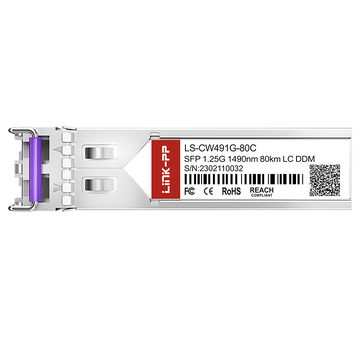

LINK-PP LS-CW491G-80C 1G SFP CWDM 1490nm 80km デュプレックス LC DOM SMF 光トランシーバーモジュール

Name: LINK-PP LS-CW491G-80C 1G SFP CWDM 1490nm 80km デュプレックス LC DOM SMF 光トランシーバーモジュール
Brand: LINK-PP
SKU: 203282
Price: 43 USD
Availability: InStock
Rating: 4.9 (25 reviews)

＃203282

製品: LINK-PP LS-CW491G-80C 1G SFP CWDM 1490nm 80km デュプレックス LC DOM SMF 光トランシーバーモジュール
SKU: 203282
P / N: LS-CW491G-80C
価格: $ 50
ステージ０: 98在庫あり
SOLD: 812
商品のURL: https://www.l-p.com/products/492748.htm

1000ドル以上のご注文で15.00ドル割引、コード: Linkpp15

3000ドル以上のご注文で50.00ドル割引、コード: Linkpp50

5000ドル以上のご注文で100.00ドル割引、コード: Linkpp100

新規ユーザー様：ご注文時に使える10ドルクーポン、コード: linkpp2610

: LINK-PP LS-CW491G-80C 1G SFP CWDM 1490nm 80km デュプレックス LC DOM SMF 光トランシーバーモジュール

 25 レビューお困りですか？

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
Quantity

25件のレビュー

3 件の質問

在庫のリクエスト

812 SOLD

$ 50

600ドル以上送料無料。より有利な価格が必要な場合は、直接お問い合わせください。

数量 (個) :

単価：

$ 50

100

$ 47.5

1000

$ 46

3000

$ 44.5

6000

$ 43

製造： LINK-PP

P / N： LS-CW491G-80C

互換性：: Cisco; LINK-PP; Allied Telesis; Arista; Brocade; Ciena; Dell; Extreme; Juniper; Netgear

波長：: 1270nm; 1290nm; 1310nm; 1330nm; 1350nm; 1370nm; 1390nm; 1410nm; 1430nm; 1450nm; 1470nm; 1490nm; 1510nm; 1530nm; 1550nm; 1570nm; 1590nm; 1610nm

運送：

交渉中

送料無料

配達できません

〜へ米国、 {{now_chooseship?now_chooseship.name:''}}

推定配達時間： {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} 日。詳細をご覧ください。

5年保証 30日の返品 30日間交換

在庫：

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} 。

数量：

（最低注文量 {{detail_data.prodInfo.minimum_ordered_quantity}} )

配達不能

合計金額：

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

願い事に追加

技術仕様

製品仕様
動画
マッチング製品
ダウンロード
質問と回答
ユーザーレビュー

LINK-PP LS-CW491G-80C 1G SFPの仕様

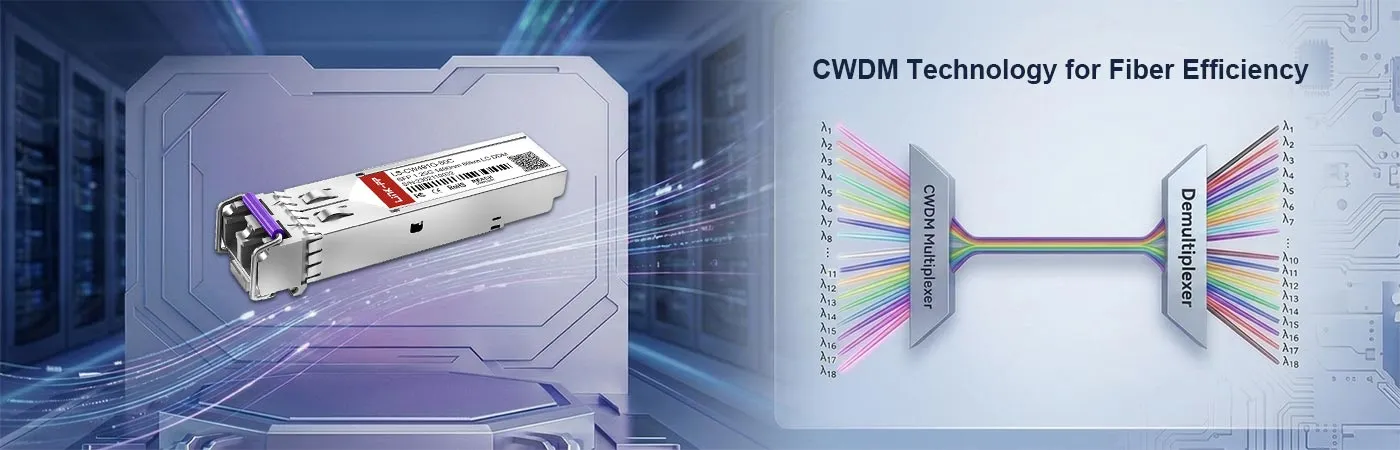

CWDMインフラストラクチャ向けに特別に設計されたLS-CW491G-80C 1G SFPは、1490nmの光波長を利用して、長距離伝送における光ファイバーの利用効率を最大化します。内蔵のDFBレーザーとPINレシーバーの組み合わせにより、最大80kmのシングルモードファイバー伝送において安定した信号品質を実現します。統合されたデジタル光モニタリング（DOM）機能により、光出力、動作温度、バイアス電流、電圧などの指標をリアルタイムで監視できます。

LINK-PP 部品番号	LS-CW491G-80C	業者名	LINK-PP
フォームファクター	SFP	最大データレート	1.25Gbps
波長	1490nm	最大ケーブル距離	80km
ボンジョイント	デュプレックスLC	メディアの方	SMF
トランスミッタの種類	DFB	レシーバータイプ	PIN
TXパワー	-1〜 + 4dBm	RXパワー	-26〜-1dBm
レシーバ感度	-26dBm	レシーバの過負荷	-1dBm
EMC（電磁両立性）	サポート	DOM	サポート
動作温度範囲	0から70°C	プロトコル	SFP MSA、SFF-8472

動画

マッチング製品

ピクチャー

ID番号

詳細説明

価格

ステージ０

商品をカートに追加

ダウンロード

製品図面

PDF
LS-CWxx1G-80x.pdf

Q&A
質問する

データなし

Q: Can this module be connected directly to regular single-mode fiber that is already installed in our network? I***tによる on 2026-02-03

A: Yes. The LS-CW491G-80C 1G CWDM SFP is designed for single-mode fiber (SMF) and uses duplex LC connectors. It can be connected to standard single-mode fiber infrastructure, provided the fiber condition, connector quality, splice loss, and total link loss are within the optical power budget. 管理者による on 2026-02-04
Q: We are building an 80km CWDM ring. Do both ends of the link need to use 1490nm modules? H***nによる on 2025-11-17

A: Yes. For a standard point-to-point duplex CWDM link, both ends should use the same 1490nm CWDM wavelength and compatible 1G SFP modules. If the link is carried through CWDM MUX/DEMUX equipment, make sure both modules are connected to the corresponding 1490nm channel ports. 管理者による on 2025-11-18
Q: Can this LS-CW491G-80C module be used with a CWDM MUX/DEMUX system, or is it only for direct fiber links? J***lによる on 2025-04-21

A: It can be used in both scenarios. For a direct point-to-point link, connect two compatible 1490nm modules over duplex single-mode fiber. For a CWDM multiplexed network, connect the module to the 1490nm port of a compatible CWDM MUX/DEMUX to combine multiple wavelengths onto the same fiber pair. 管理者による on 2025-04-22

その他

ユーザーレビュー
レビューを書く

{{stardata.star}}

{{comment.count}} レビューをみる。
5スター

{{comment.star5}}%

4スター

{{comment.star4}}%

3スター

{{comment.star3}}%

2スター

{{comment.star2}}%

1スター

{{comment.star1}}%

すべてのレビュー ({{comment.star_num?comment.star_num:comment.count}})

すべてのレビュー

5つ星のみ

4つ星のみ

3つ星のみ

2つ星のみ

1つ星のみ
写真付きのレビュー ( {{comment.pic_comment}} )
すべてのレビューを見ます

データなし

私は*** e

イギリス

確認済みの購入

5.0

2026-06-14

Installed several LS-CW491G-80C modules in our CWDM ring — solid performance.

55 役立つ投票コメント

F *** z

南アフリカ共和国

確認済みの購入

5.0

2026-06-02

We installed these CWDM modules as part of a phased data-center edge refresh. The sites do not need 10G on every route, but they do require resilient, monitored 1G connectivity across long single-mode fiber runs. The 1490nm CWDM channel allowed us to retain existing MUX/DEMUX hardware while adding capacity without trenching new fiber. From an operations standpoint, DOM is the biggest benefit. We set monitoring thresholds around receive optical power and watched the results through our normal device-management workflow. During burn-in and traffic testing, the optics remained stable and there were no link flaps. The compact SFP form factor also made replacement simple in populated switch racks. Great balance of reach, diagnostics, and cost.

95 役立つ投票コメント

N *** n

India

確認済みの購入

5.0

2026-05-11

We ordered these for a CWDM MUX/DEMUX upgrade where 1490nm was the open channel. The LS-CW491G-80C CWDM modules came online quickly and held a stable 1.25Gbps link. Nice option for enterprise fiber networks that still run 1G aggregation.

88 役立つ投票コメント

W *** s

ロシア連邦

確認済みの購入

5.0

2026-04-05

We deployed LS-CW491G-80C 1G 1490nm CWDM SFP transceivers across a multi-building industrial campus. The longest installed route was just under 67km after accounting for the patch-panel path, splices, and CWDM MUX/DEMUX insertion loss. The 80km optical budget gave us the operational headroom we wanted rather than designing right at the limit. During commissioning, we checked the DDM/DOM readings from each endpoint and compared the reported TX/RX values against our optical test results. The modules reported consistent information, and the links stayed free of packet loss and CRC alarms under production traffic. For indoor equipment rooms with 0 – 70°C conditions, this is a dependable 1490nm CWDM SFP for 1G backbone expansion.

137 役立つ投票コメント

Q *** s

Netherlands

確認済みの購入

5.0

2026-03-21

The DOM information was available in our monitoring platform, including TX/RX optical power and temperature. That is important for us because the fiber route is long and troubleshooting time is expensive. Happy with the module so far.

101 役立つ投票コメント

T *** l

Italy

確認済みの購入

5.0

2026-02-16

We tested the module with multiple switch platforms in our lab before rolling it out. It was detected correctly, the link remained stable, and diagnostics were readable through the host interface. Good 1490nm CWDM optical module for the price.

100 役立つ投票コメント

G *** g

日本

確認済みの購入

5.0

2026-02-03

DOM readings are clean and stable; exactly what our NOC needed.

74 役立つ投票コメント

K *** t

Canada

確認済みの購入

5.0

2026-01-27

Great value for an 80km CWDM SFP with digital optical monitoring.

77 役立つ投票コメント

V *** t

シンガポール

確認済みの購入

5.0

2025-12-18

Good alternative when you need a long-distance 1G CWDM SFP transceiver but do not want to redesign the entire optical network. We used it with Duplex LC single-mode fiber and a CWDM passive system. Traffic has been clean since installation.

115 役立つ投票コメント

M *** n

Brazil

確認済みの購入

5.0

2025-12-04

Used this 1490nm CWDM SFP module to extend a 1GbE connection between two municipal facilities. The Duplex LC SMF connection was straightforward, and the 80km rating gave us enough margin for the route. DOM values matched our field meter closely.

92 役立つ投票コメント

F *** h

米国

確認済みの購入

5.0

2025-11-18

Reliable 1490nm 1G CWDM SFP for our 80km fiber path — linked right up.

61 役立つ投票コメント

私は*** e

ニュージーランド

確認済みの購入

5.0

2025-11-02

The LS-CW491G-80C SFP modules worked perfectly on our 1490nm CWDM 1G links, and DOM readings were available as expected. One outer shipping carton arrived slightly compressed, although every SFP was individually protected and passed our incoming test. Product performance is five-star; shipping presentation could be a bit better.

29 役立つ投票コメント

Z *** n

Thailand

確認済みの購入

5.0

2025-10-23

Our application was a 1GbE backhaul link between a central server room and several remote telecom cabinets connected through a CWDM transport layer. The LS-CW491G-80C was selected because we specifically needed a commercial-grade 1490nm CWDM SFP with an 80km reach, Duplex LC connector, and DOM support — not a generic 1310nm optic. The installation team used standard LC single-mode jumpers and kept end-face cleaning procedures in place. The links came up immediately after wavelength verification. Over several weeks, receive levels remained comfortably above the -26dBm receiver sensitivity threshold, and the reported optical readings did not drift. This is a strong choice for enterprise CWDM fiber infrastructure where 1.25Gbps capacity is still appropriate.

156 役立つ投票コメント

P *** r

Republic of Korea

確認済みの購入

5.0

2025-10-08

We needed a 1G 1490nm CWDM 80km SFP optical transceiver for an indoor data-room-to-cabinet link. It worked over existing single-mode fiber with LC patch cords and showed usable receive margin. Good procurement experience overall.

83 役立つ投票コメント

S *** t

スペイン

確認済みの購入

5.0

2025-09-02

This is a practical commercial-temperature 1G CWDM SFP for indoor telecom rooms. Optical levels stayed stable during normal load, and the PIN receiver sensitivity was sufficient for our long single-mode span. Would order again.

138 役立つ投票コメント

G *** s

Malaysia

確認済みの購入

5.0

2025-08-31

We bought this 1G 1490nm CWDM 80km SFP optical transceiver for a distributed video-surveillance and building-management network. Several remote locations share the same CWDM fiber infrastructure, so the exact wavelength and optical reach were non-negotiable. The LS-CW491G-80C matched the required 1490nm channel and provided enough transmitter power for our engineered path. Our field engineers verified the LC duplex polarity, cleaned every connector, and recorded baseline DOM data at turn-up. The RX levels were within the expected design range, and the modules maintained stable connectivity through regular traffic peaks. It is a commercial-temperature module, so we used it in conditioned indoor cabinets rather than exposed roadside enclosures. For that deployment profile, it has been reliable and easy to manage.

106 役立つ投票コメント

J *** e

France

確認済みの購入

5.0

2025-08-09

This 1.25G 1490nm CWDM SFP was recognized immediately and passed traffic overnight.

79 役立つ投票コメント

国連

Norway

確認済みの購入

5.0

2025-07-25

Bought a mixed wavelength batch for a regional fiber ring, including this 1490nm 80km SFP. All modules were clearly separated by wavelength, which avoided installation mistakes. The DFB CWDM transmitter delivered consistent levels at commissioning.

82 役立つ投票コメント

O *** s

Mexico

確認済みの購入

5.0

2025-06-30

Purchased for a small batch of remote-site uplinks. The modules were properly labeled, seated well in standard SFP slots, and the DDM monitoring made acceptance testing much faster. No CRC errors after a week of traffic.

121 役立つ投票コメント

H *** n

Indonesia

確認済みの購入

5.0

2025-06-12

We evaluated this module for a mixed-vendor enterprise network where interoperability, documentation, and repeatability were more important than simply finding the lowest-cost optic. The LS-CW491G-80C CWDM SFP passed our lab checks for 1.25Gbps Ethernet transport, module recognition, and SFF-8472 digital diagnostics. We then rolled out a controlled batch to production locations. The 80km specification is valuable for long campus, metro-edge, and remote-site fiber routes, especially when CWDM channels are already allocated. The reported TX power range of -1 to +4dBm and receiver sensitivity down to -26dBm were aligned with our loss-budget calculations. After deployment, the modules have provided clean links and predictable DOM telemetry. That is exactly what we need for repeatable network maintenance.

119 役立つ投票コメント

R *** l

Sweden

確認済みの購入

5.0

2025-05-19

Our network team used these for a campus CWDM backbone migration instead of pulling additional fiber. The 1490nm channel fit our wavelength plan, and the 1.25G SFP interface kept the project compatible with existing aggregation hardware. Easy win.

92 役立つ投票コメント

H *** s

Germany

確認済みの購入

5.0

2025-04-22

Good fit for a Duplex LC single-mode fiber deployment, no drama.

52 役立つ投票コメント

J *** n

ベルギー

確認済みの購入

5.0

2025-04-07

Technically, these 80km CWDM SFP modules are solid — stable link, correct wavelength, and no errors during our acceptance test. Delivery took a little longer than expected because our project schedule changed close to dispatch, but the packing and labeling were good. We would still purchase again for the next CWDM expansion.

33 役立つ投票コメント

X***y

Philippines

確認済みの購入

5.0

2025-02-28

This 1490nm 80km CWDM SFP was purchased for a regional access network where spare fiber was limited. We used a CWDM wavelength plan to carry several 1G services over one single-mode fiber pair, and this module occupied the 1490nm channel without interfering with the adjacent channels. The DFB transmitter and PIN receiver combination performed as expected over the measured loss budget. We also ran compatibility and monitoring checks before field deployment. The host recognized the module properly, and the SFF-8472 diagnostics gave the operations team useful TX power, RX power, voltage, temperature, and laser-bias visibility. For NOC teams, that visibility matters because it lets you spot degraded connectors or fiber loss before users report an outage.

128 役立つ投票コメント

L *** y

Australia

確認済みの購入

5.0

2025-01-15

Stable optical power and error-free operation on our long-haul campus link.

53 役立つ投票コメント
