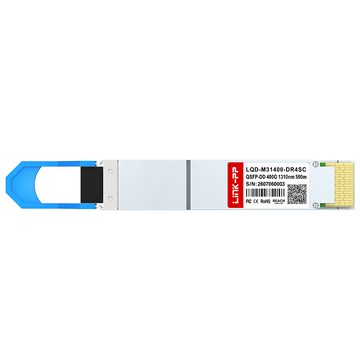

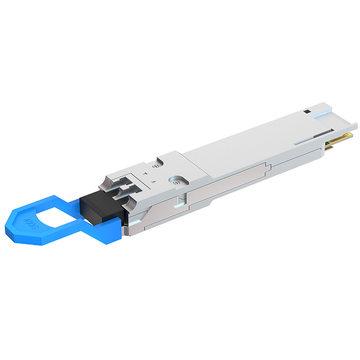

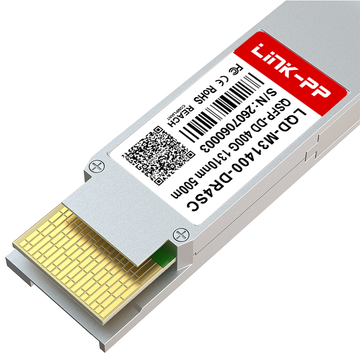

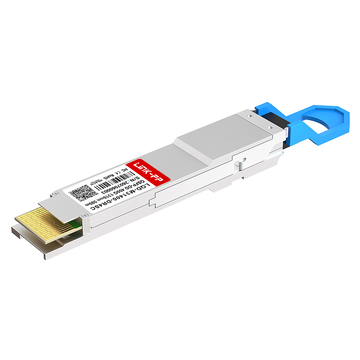

FS QDD-DR4-400G-Si kompatibel LINK-PP 400GBASE-DR4 QSFP-DD 8 x 50G PAM4 1310nm 500m MPO-12/APC Siliziumphotonik SMF Optisches Transceiver-Modul

Produkt: FS QDD-DR4-400G-Si kompatibel LINK-PP 400GBASE-DR4 QSFP-DD 8 x 50G PAM4 1310nm 500m MPO-12/APC Siliziumphotonik SMF Optisches Transceiver-Modul
SKU: 214865
P / N: LQD-M31400-DR4SC
Preis: 559,41 €
Lagerfahrzeug: 98 auf Lager
Verkauft: 440
Produkt-URL: https://www.l-p.com/products/495447.htm

Bei Bestellungen über 1000 $ erhalten Sie 15.00 $ Rabatt. , Code: Linkpp15

Bei Bestellungen über 3000 $ erhalten Sie 50.00 $ Rabatt. , Code: Linkpp50

Bei Bestellungen über 5000 $ erhalten Sie 100.00 $ Rabatt. , Code: Linkpp100

Neukunden: 10-Dollar-Gutschein für Bestellungen , Code: linkpp2610

0 Bewertungen

0 Fragen

440 Verkauft

559,41 €

Kostenloser Versand. Für Großhandelspreise kontaktieren Sie uns bitte direkt.

Menge (Stück):

Einzelpreis :

559,41 €

542,628 €

525,846 €

509,064 €

492,281 €

Herstellung: LINK-PP P / N: LQD-M31400-DR4SC Artikelnummer: 214865

Kompatibel:: Cisco; LINK-PP; Arista; Dell; FS; Generic; H3C; Intel; Juniper; NVIDIA/Mellanox

Kompatible Teilenummer:: OSFP-VSR4-400G | 50m; QDD-SR4-400G | 50m; QDD-SR4.2-400G | 100m; QDD-SR8-400G | 100m; OSFP-DR4-400G-FL | 500m; QDD-DR4-400G | 500m; QDD-DR4-400G-Si | 500m; QSFP112-DR4-400G | 500m; QDD-4X100G-FR-Si | 2km; QDD-XDR4-400G | 2km; QDD-PLR4-400G | 10km

Versand

Kostenloser Versand

zu Deutschland FedEx

Voraussichtliche Lieferzeit : 3 - 10 Tage.

5 Jahre Produktgarantie 15-Day-Rückgabe 15-Tage-Umtausch

Lager:

98 Stück auf Lager.

Menge:

Gesamtpreis:

559,41 €

Spezifikationen
Vergleich
Normen
Passende Produkte
Herunterladen
F&A
Kundenbewertungen

FS QDD-DR4-400G-Si kompatibel LINK-PP 400GBASE-DR4 QSFP-DD 8 x 50G PAM4 Siliziumphotonik Optisches Transceiver-Modul (SMF, 1310 nm, 500 m, MPO-12, DOM)

Der FS QDD-DR4-400G-Si-kompatible LINK-PP Siliziumphotonikmodul für 400GBASE-DR4 mit MPO-12-Anschluss für Reichweiten bis zu 500 m über parallele Singlemode-Faser. Es ist kompatibel mit den Standards QSFP-DD MSA, IEEE 802.3bs und 400GAUI-8.

FS-Teilenummer	QDD-DR4-400G-Si	Herstellername	LINK-PP
Formfaktor	QSFP-DD	Max. Datenrate	425Gbps
Wellenlänge	1310nm	Maximaler Kabelabstand	500m
Anschluss	MPO-12/APC	Medien	SMF
Sendertyp	DFB	Empfängertyp	PIN
Modulation (elektrisch)	8x50G-PAM4	Modulation (optisch)	4x100G-PAM4
DSP	TX und RX	Host-FEC	Unterstützt
DDM/DOM	Unterstützt	Betriebstemperaturbereich	0 ° C bis + 70 ° C
Protokolle	QSFP-DD MSA, IEEE 802.3bs, CMIS 4.1	Garantie	5 Jahre

Modellvergleichstabelle

	Aktuelles Modell QDD-DR4-400G-Si	QDD-PLR4-400G	QDD-SR4-400G	QDD-DR4-400G

Kompatibel	FS	FS	FS	FS
Datenrate (Max.)	425Gbps	425 Gbit/s (4x 106.25 Gbit/s)	425Gbps	425Gbps
Wellenlänge	1310nm	1310nm	850nm	1310nm
Anschluss	MPO-12/APC	MPO-12/APC	MPO-12/APC	MPO-12/APC
Kabellänge (max.)	500m	10 km	30m	500m
Kabeltyp	SMF	SMF	MMF	SMF
Umgebungstemperaturbereich	0 ° C bis + 70 ° C	0 ° C bis + 70 ° C	0 ° C bis + 70 ° C	0 ° C bis + 70 ° C
Herstellername	LINK-PP	LINK-PP	LINK-PP	LINK-PP
Formfaktor	QSFP-DD	QSFP-DD	QSFP-DD	QSFP-DD
Sendertyp	DFB	EML	VCSEL
Empfängertyp	PIN	PIN	PIN	PIN
Modulation (elektrisch)	8x50G-PAM4		8x50G-PAM4	8x50G-PAM4
Modulation (optisch)	4x100G-PAM4		4x100G-PAM4	4x100G-PAM4
DSP	TX und RX
Host-FEC	Unterstützt
DDM/DOM	Unterstützt	Unterstützt	Unterstützt	Unterstützt
Protokolle	QSFP-DD MSA, IEEE 802.3bs, CMIS 4.1	QSFP-DD MSA HW Rev 5.1, QSFP-DD, CMIS Rev 5.0, IEEE 802.3cu, IEEE 802.3bs	QSFP-DD MSA, CMIS Rev5.0, IEEE 802.3df-2024	QSFP-DD MSA HW Rev 5.1, QSFP-DD CMIS Rev 5.0, IEEE 802.3bs
Garantie	5 Jahre	5 Jahre	5 Jahre	5 Jahre

Action

Passende Produkte

Fotos

ICH WÜRDE#

Beschreibung

Preis

Lagerfahrzeug

In den Warenkorb

Herunterladen

Produktzeichnung LQD-M31400-DR4SC.pdf Herunterladen
