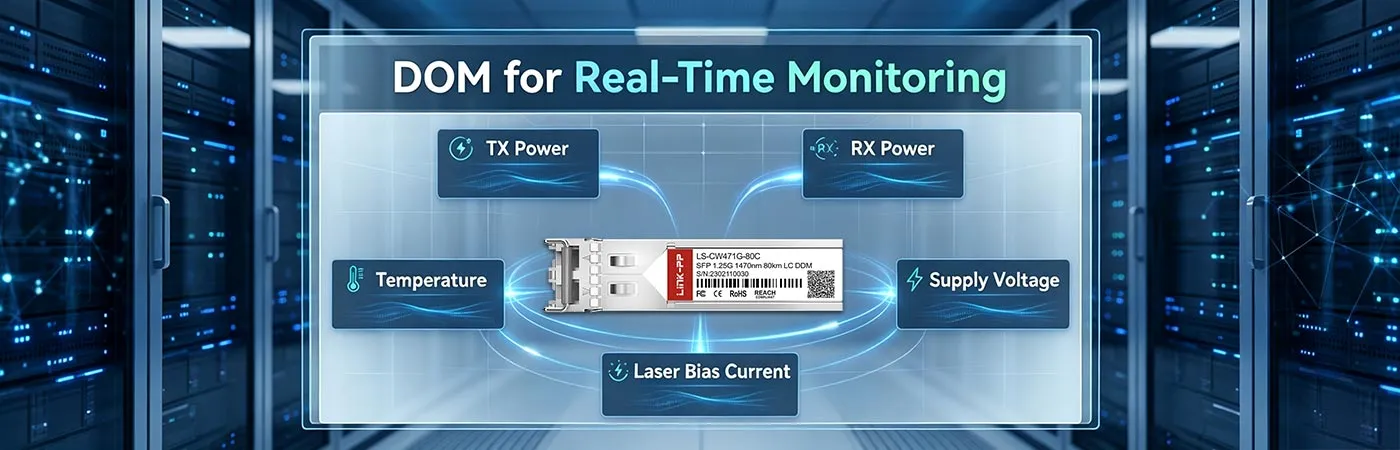

Our operations team wants to monitor a long 1470nm CWDM link before it becomes unstable. What diagnostic information can this LS-CW471G-80C module provide?

Its DOM function can report real-time module temperature, supply voltage, laser bias current, transmit optical power, and receive optical power. These values help identify fiber degradation, dirty connectors, weak received signal, and abnormal module temperature.

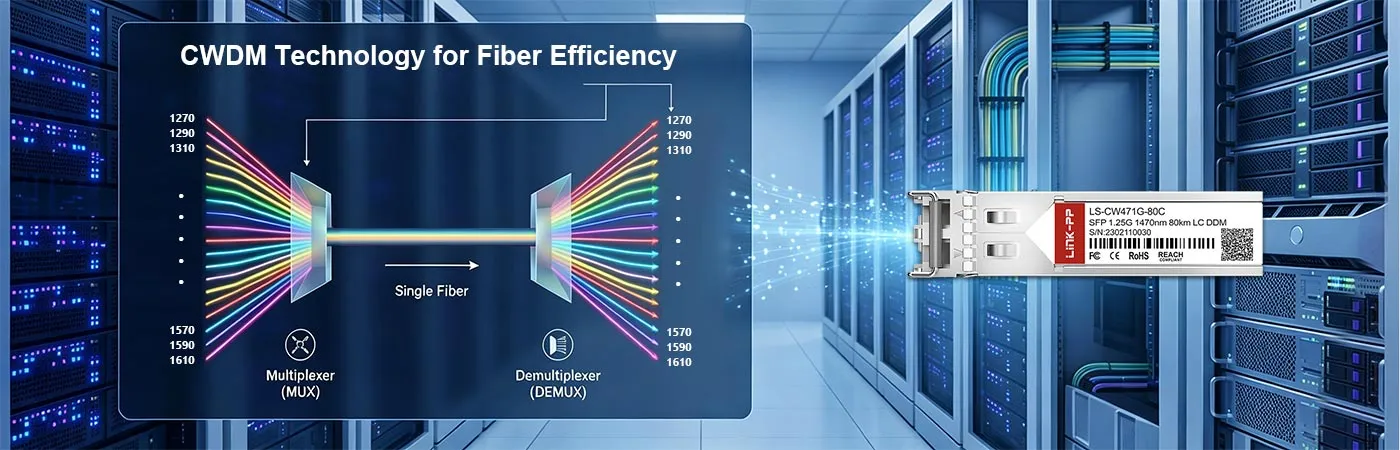

We currently use duplex fiber for point-to-point links. Can this 1470nm CWDM SFP help us expand capacity over the same fiber route later?

Yes. This module uses the 1470nm CWDM channel and can be deployed with other CWDM wavelengths through compatible CWDM multiplexers and demultiplexers. Each wavelength must be correctly paired at both ends and matched to the MUX/DEMUX channel plan.

For a large CWDM project, can we order a small sample batch before placing the full order?

Yes. A small sample order is a practical way to confirm compatibility before bulk deployment. It is especially useful when testing the modules with a new switch, a new CWDM MUX/DEMUX, or a long fiber link. You can verify 1470nm channel matching, DOM readings, and overall link performance before confirming the full order.

Our backbone is standard OS2 single-mode fiber with LC patch panels. Is this CWDM SFP module a direct fit, and what connector type should we use?

Yes. The LS-CW471G-80C is intended for single-mode fiber transmission and uses a duplex LC optical interface. Standard duplex LC-to-LC single-mode patch cords are normally used between the module and the fiber distribution panel.

Our CWDM plan includes 1470nm, 1490nm, 1510nm, and 1530nm channels on the same fiber pair. Can this module operate alongside the other wavelengths without interference?

Yes. The LS-CW471G-80C 1470nm SFP module is designed to operate as one CWDM channel in a multi-wavelength system. When the MUX/DEMUX channel plan is correct, each wavelength is isolated and can carry an independent optical link over the same single-mode fiber pair.

التفصيلي: الصفحة الرئيسية; المنتجات; أجهزة الإرسال والاستقبال البصريات | وحدات SFP; وحدات الإرسال والاستقبال 1/2/4G; 1G CWDM / DWDM SFP; 203258

انقر لفتح عرض موسع

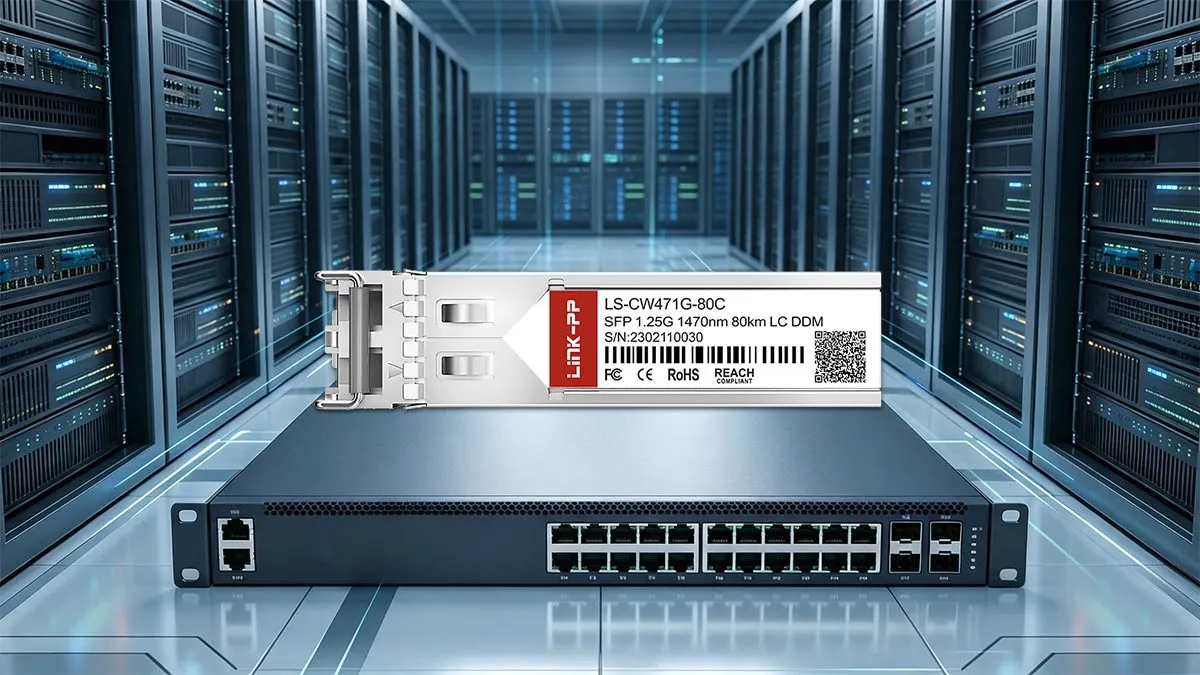

LINK-PP وحدة إرسال واستقبال ضوئية LS-CW471G-80C 1G SFP CWDM 1470nm 80km Duplex LC DOM SMF

Name: LINK-PP وحدة إرسال واستقبال ضوئية LS-CW471G-80C 1G SFP CWDM 1470nm 80km Duplex LC DOM SMF
Brand: LINK-PP
SKU: 203258
Price: 43 USD
Availability: InStock
Rating: 4.9 (26 reviews)

# 203258

المنتج: LINK-PP وحدة إرسال واستقبال ضوئية LS-CW471G-80C 1G SFP CWDM 1470nm 80km Duplex LC DOM SMF
رقم المنتج: 203258
P / N: LS-CW471G-80C
السعر: $ 50
الكمية المتوفرة: 110 متوفر
غير متاح: 890
عنوان URL الخاص بالمنتج: https://www.l-p.com/products/492724.htm

احصل على خصم بقيمة 15.00 دولارًا عند طلبك بقيمة تزيد عن 1000 دولار ، شفرة: Linkpp15

احصل على خصم بقيمة 50.00 دولارًا عند طلبك بقيمة تزيد عن 3000 دولار ، شفرة: Linkpp50

احصل على خصم بقيمة 100.00 دولارًا عند طلبك بقيمة تزيد عن 5000 دولار ، شفرة: Linkpp100

للمستخدمين الجدد: قسيمة خصم بقيمة 10 دولارات للطلبات ، شفرة: linkpp2610

: LINK-PP وحدة إرسال واستقبال ضوئية LS-CW471G-80C 1G SFP CWDM 1470nm 80km Duplex LC DOM SMF

26 المراجعات هل تحتاج إلى مساعدة؟

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
Quantity

26 مراجعات

5 أسئلة

طلب المخزون

890 غير متاح

$ 50

شحن مجاني يزيد عن 600 دولار، إذا كنت بحاجة إلى سعر أفضل، فيرجى الاتصال بنا مباشرة.

الكمية (قطعة):

سعر الوحدة :

$ 50

100

$ 47.5

1000

$ 46

3000

$ 44.5

6000

$ 43

صناعة: LINK-PP

P / N: LS-CW471G-80C

متوافق مع:: Cisco; LINK-PP; Allied Telesis; Arista; Brocade; Ciena; Dell; Extreme; Juniper; Netgear

الطول الموجي:: 1270nm; 1290nm; 1310nm; 1330nm; 1350nm; 1370nm; 1390nm; 1410nm; 1430nm; 1450nm; 1470nm; 1490nm; 1510nm; 1530nm; 1550nm; 1570nm; 1590nm; 1610nm

التوصيل:

يتم التفاوض

الشحن مجاني

لا يمكن التسليم

إلى الولايات المتحدة بواسطة {{now_chooseship?now_chooseship.name:''}}

يقدر وقت التسليم : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} يوما. انظر التفاصيل

ضمان لمدة سنه كامله 30-Day Returns إمكانية الاستبدال خلال 30 يومًا

المخزون:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

الكمية

(الحد الأدنى للطلب {{detail_data.prodInfo.minimum_ordered_quantity}} )

غير قابلة للتسليم

السعر:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

أضف إلى الرغبة

المواصفات

المواصفات الخاصه
مقاطع فيديو
مطابقة المنتجات
التحميل
سؤال وجواب
آراء العملاء

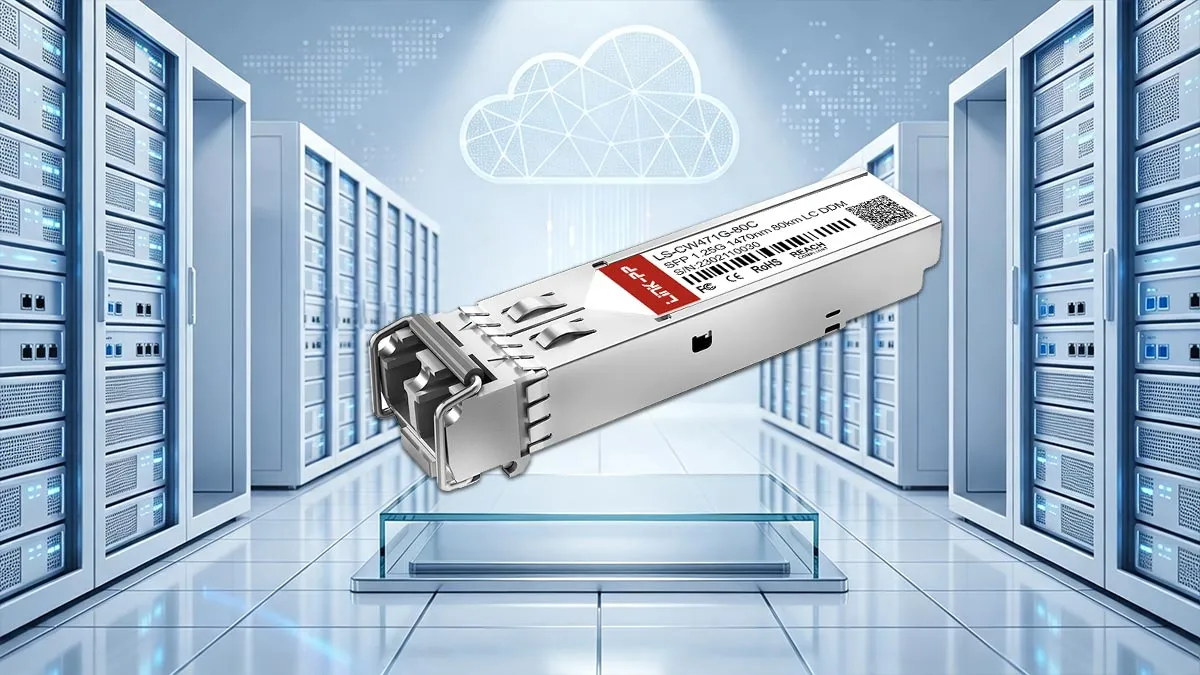

LINK-PP مواصفات وحدة SFP بسرعة 1 جيجابت LS-CW471G-80C

يعمل جهاز LS-CW471G-80C كوحدة SFP بتقنية CWDM بتردد 1470 نانومتر، حيث يجمع بين ليزر DFB وثنائي ضوئي PIN لتمكين الوصول عبر الألياف أحادية النمط لمسافة تصل إلى 80 كيلومترًا. ويقوم نظام المراقبة البصرية الرقمية في الوقت الفعلي بالإبلاغ باستمرار عن طاقة الإرسال، وطاقة الاستقبال، ودرجة الحرارة، والجهد، وتيار الانحياز بدقة عالية. كما يضمن ترشيح الوحدة الخاص بكل طول موجي وميزانية الفقد المعايرة هوامش ربط ثابتة عبر شبكة CWDM الكاملة دون الحاجة إلى معادلة خارجية.

LINK-PP رقم القطعة	LS-CW471G-80C	اسم البائع	LINK-PP
شكل عامل	SFP	الحد الأقصى لمعدل البيانات	1.25Gbps

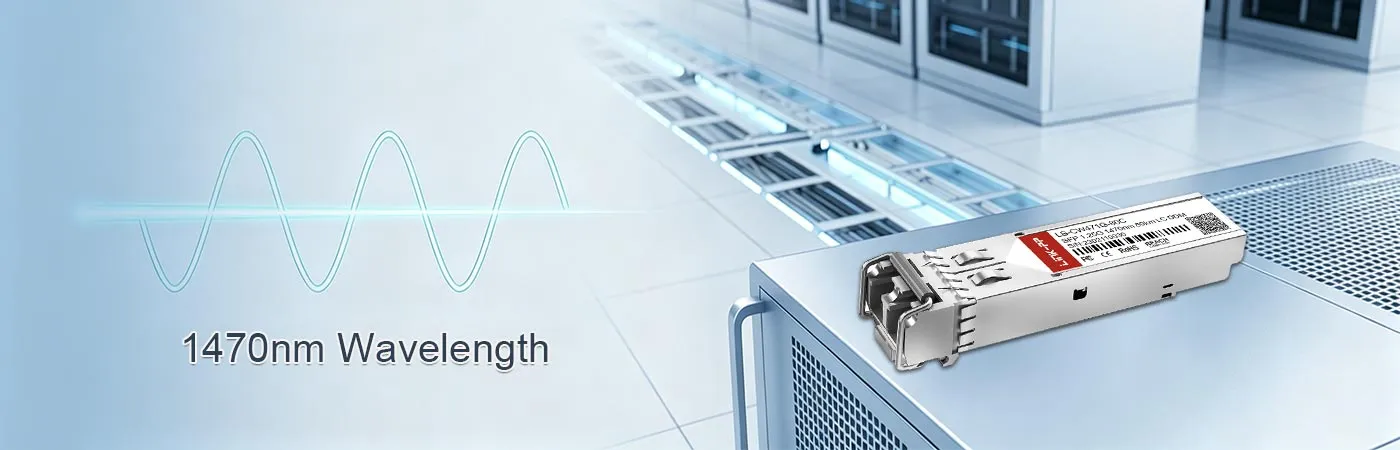

الطول الموجي	1470nm	أقصى مسافة للكابل	80km

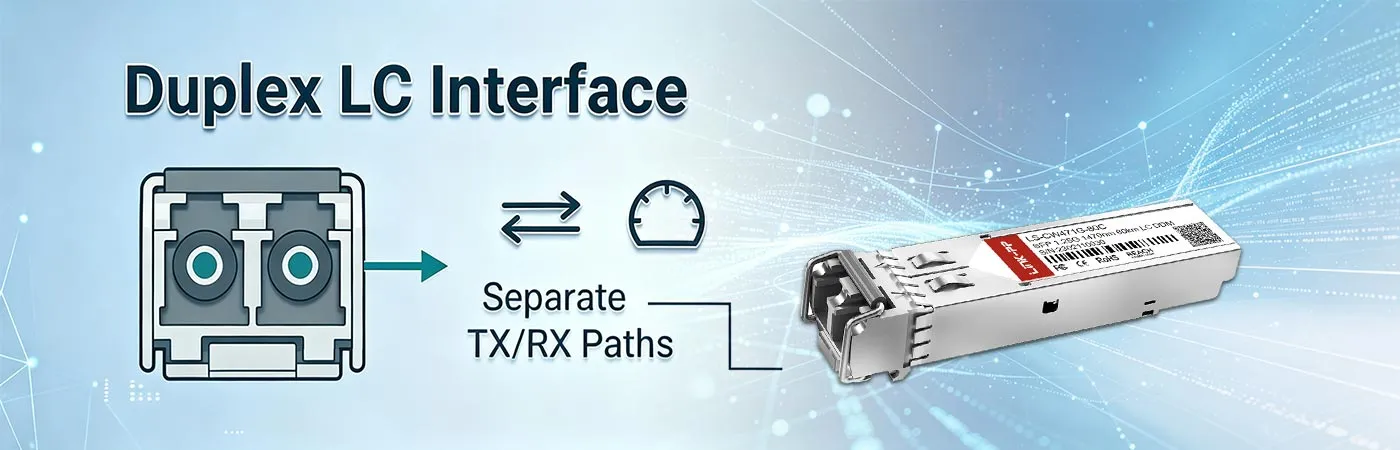

الموصل	دوبلكس LC	الإعلام	SMF
نوع الارسال	DFB	نوع المستقبل	PIN
تكساس السلطة	-1 إلى +4 ديسيبل	قوة RX	-26 إلى -1 ديسيبل
المتلقي حساسية	-26dBm	استقبال الزائد	-1dBm
EMC (Electro Magnetic Comnatihilitv)	عائلات	DOM	عائلات
نطاق الحرارة الشغالة	0 to 70 ° C	بروتوكولات	SFP MSA、SFF-8472

مقاطع فيديو

مطابقة المنتجات

لوحات حائط

هوية شخصية#

الوصف

السعر

الكمية المتوفرة

أضف إلى السلة

التحميل

رسم المنتج

PDF
LS-CWxx1G-80x.pdf

أسئلة و أجوبة
طرح سؤال

لا توجد بيانات

Q: Our operations team wants to monitor a long 1470nm CWDM link before it becomes unstable. What diagnostic information can this LS-CW471G-80C module provide? بواسطة ك***م on 2026-04-18

A: Its DOM function can report real-time module temperature, supply voltage, laser bias current, transmit optical power, and receive optical power. These values help identify fiber degradation, dirty connectors, weak received signal, and abnormal module temperature. بواسطة المدير on 2026-04-19
Q: We currently use duplex fiber for point-to-point links. Can this 1470nm CWDM SFP help us expand capacity over the same fiber route later? بواسطة م***ن on 2026-01-26

A: Yes. This module uses the 1470nm CWDM channel and can be deployed with other CWDM wavelengths through compatible CWDM multiplexers and demultiplexers. Each wavelength must be correctly paired at both ends and matched to the MUX/DEMUX channel plan. بواسطة المدير on 2026-01-27
Q: For a large CWDM project, can we order a small sample batch before placing the full order? By O***p on 2025-12-03

A: Yes. A small sample order is a practical way to confirm compatibility before bulk deployment. It is especially useful when testing the modules with a new switch, a new CWDM MUX/DEMUX, or a long fiber link. You can verify 1470nm channel matching, DOM readings, and overall link performance before confirming the full order. بواسطة المدير on 2025-12-04
Q: Our backbone is standard OS2 single-mode fiber with LC patch panels. Is this CWDM SFP module a direct fit, and what connector type should we use? بواسطة L***s on 2025-08-09

A: Yes. The LS-CW471G-80C is intended for single-mode fiber transmission and uses a duplex LC optical interface. Standard duplex LC-to-LC single-mode patch cords are normally used between the module and the fiber distribution panel. بواسطة المدير on 2025-08-10
Q: Our CWDM plan includes 1470nm, 1490nm, 1510nm, and 1530nm channels on the same fiber pair. Can this module operate alongside the other wavelengths without interference? بواسطة ن***ي on 2025-01-14

A: Yes. The LS-CW471G-80C 1470nm SFP module is designed to operate as one CWDM channel in a multi-wavelength system. When the MUX/DEMUX channel plan is correct, each wavelength is isolated and can carry an independent optical link over the same single-mode fiber pair. بواسطة المدير on 2025-01-15

المزيد

آراء العملاء
أكتب تعليقاً

{{stardata.star}}

{{comment.count}} تقييم
5 نجوم

{{comment.star5}}%

4 نجوم

{{comment.star4}}%

3 نجوم

{{comment.star3}}%

2 نجوم

{{comment.star2}}%

1 ستار

{{comment.star1}}%

كل المراجعات ({{comment.star_num?comment.star_num:comment.count}})

كل المراجعات

5 نجوم فقط

4 نجوم فقط

3 نجوم فقط

2 نجوم فقط

نجمة واحدة فقط
مراجعات بالصور ( {{comment.pic_comment}} )
ترى كل التعليقات

لا توجد بيانات

E *** ص

الإمارات العربية المتحدة

التحقق من الشراء

5.0

2026-06-21

Our colocation team used the LS-CW471G-80C in a 1G CWDM transport shelf connecting two metropolitan facilities. We chose the 1470nm wavelength specifically to fill an available channel rather than deploy another fiber pair. Installation was uncomplicated: insert the SFP, connect Duplex LC single-mode fiber through the CWDM MUX/DEMUX, verify wavelength mapping, and review DOM status. The DFB CWDM transmitter and PIN receiver performed as expected, with no unusual laser-temperature behavior during the acceptance test. It is not a substitute for an industrial -40 to 85°C module in exposed outdoor cabinets, but for climate-controlled data rooms it has delivered stable service at a sensible cost.

110 تصويت مفيد التعليقات

X *** ص

كمبوديا

التحقق من الشراء

5.0

2026-05-18

Used a pair for a long-distance point-to-point connection between a warehouse and a central office. The DFB laser output is strong enough for our loss budget, while the PIN receiver is sensitive enough to keep the connection dependable.

135 تصويت مفيد التعليقات

R *** ن

إسرائيل

التحقق من الشراء

5.0

2026-04-29

We used this LS-CW471G-80C SFP module to extend a 1G CWDM connection between two office campuses. The 1470nm channel matched our existing CWDM plan, and the Duplex LC single-mode patching was straightforward. The link has stayed stable since installation.

160 تصويت مفيد التعليقات

C *** ن

المغرب

التحقق من الشراء

5.0

2026-03-14

Our data room has limited fiber count, so CWDM is the practical answer. This 1470nm SFP works with our single-mode fiber and passive multiplexing hardware, keeping the old 1G transport system useful without a major rebuild.

154 تصويت مفيد التعليقات

L *** ز

بولندا

التحقق من الشراء

5.0

2026-03-04

Solid 80km 1G CWDM SFP for our metro fiber path.

80 تصويت مفيد التعليقات

O *** ليالي

أوكرانيا

التحقق من الشراء

5.0

2026-02-24

Installed in minutes and the 1.25G port came straight up.

70 تصويت مفيد التعليقات

F *** ن

النيبال

التحقق من الشراء

5.0

2026-02-10

Our operations team used this 1.25G CWDM 1470nm SFP for a long-distance Fiber Channel network where we still maintain Gigabit uplinks. We checked optical power at commissioning, then compared it with the module’s DDM data from the switch CLI. The readings were close enough to trust the diagnostics for routine remote checks. That has reduced truck rolls because we can see whether a declining optical level is likely a fiber issue, dirty connector, or equipment-side problem. For commercial indoor cabinets, the 0–70°C rating is appropriate, and the Duplex LC connection made replacement easy for field technicians.

92 تصويت مفيد التعليقات

U *** ض

بلغاريا

التحقق من الشراء

5.0

2026-01-18

Our purchasing team wanted a cost-conscious replacement for the legacy 1G CWDM optical transceiver. These arrived properly labeled by wavelength, which helped prevent channel mix-ups during rack deployment. The 1470nm CWDM channel has been stable so far.

141 تصويت مفيد التعليقات

P *** ن

تركيا

التحقق من الشراء

5.0

2025-12-30

Good optical budget for a long single-mode fiber run.

127 تصويت مفيد التعليقات

H *** ه

بنغلادش

التحقق من الشراء

5.0

2025-12-12

We purchased these CWDM 1G SFP modules for a multi-site enterprise rollout with several types of network equipment in the environment. Before deployment, we performed compatibility checks, port resets, DOM polling, and extended traffic tests on each OEM-coded batch. All tested modules established 1Gbps links cleanly and maintained stable monitoring data under normal operating temperature. The SFP MSA mechanical format and SFF-8472 diagnostics are especially useful for organizations keeping a mixed estate of older access, aggregation, and transport equipment. The 80km specification provides planning flexibility, although we still recommend validating the complete optical loss budget rather than treating distance alone as the decision point.

146 تصويت مفيد التعليقات

K *** ر

النمسا

التحقق من الشراء

5.0

2025-11-28

Linked at 1470nm right away and DOM readings look clean.

104 تصويت مفيد التعليقات

G *** ح

الجماهيرية العربية الليبية

التحقق من الشراء

5.0

2025-11-05

Good choice for extending legacy Gigabit Ethernet over an existing 1470nm CWDM channel. The 80km reach gives us useful headroom compared with shorter-reach optics. No link flaps after three weeks of continuous use.

102 تصويت مفيد التعليقات

T *** ليالي

الدنمارك

التحقق من الشراء

5.0

2025-10-15

This is a good fit when you need an 80km CWDM SFP optical transceiver without moving to a higher-speed platform. We are using it over single-mode fiber on a long rural site connection. Receive power remains comfortably within range.

75 تصويت مفيد التعليقات

F *** د

الأرجنتين

التحقق من الشراء

5.0

2025-10-01

We used these modules during a legacy network modernization where the customer wanted to preserve its 1Gbps CWDM infrastructure while expanding monitoring capability. The old optics had no diagnostics, making it difficult to distinguish attenuation events from port failures. With this 1470nm 80km CWDM SFP, we can watch temperature, voltage, bias, transmit power, and receive power from the network management system. The optical performance has been consistent over a 61km path, and the LC duplex format works directly with the customer’s existing single-mode patching. For phased upgrades of enterprise, municipal, or telecom access networks, that is a meaningful operational improvement.

130 تصويت مفيد التعليقات

Z *** ل

ماكاو

التحقق من الشراء

5.0

2025-09-26

We added this 1470nm SFP module to our 8-channel passive CWDM multiplexer. The duplex LC interface clicked firmly into our patch panel, and optical loss was well within our calculated margins. Smooth deployment all around.

57 تصويت مفيد التعليقات

لي

فنلندا

التحقق من الشراء

5.0

2025-09-17

Duplex LC fit was perfect — no surprises.

112 تصويت مفيد التعليقات

ضد

روسيا البيضاء

التحقق من الشراء

5.0

2025-08-21

Installed in an indoor aggregation switch for a campus fiber network. The module negotiated cleanly at 1Gbps, and the SFF-8472 DOM information appears correctly in the monitoring tool. No CRC errors after the burn-in period.

118 تصويت مفيد التعليقات

ق***ت

أيرلندا

التحقق من الشراء

5.0

2025-07-11

DOM data is available and useful for remote troubleshooting.

53 تصويت مفيد التعليقات

A *** ل

جزر المالديف

التحقق من الشراء

5.0

2025-07-02

We deployed LS-CW471G-80C CWDM SFP modules across a regional campus and utility-monitoring network where the longest route was just under 76km. The plant is single-mode fiber with patch panels, splice closures, and a passive CWDM MUX/DEMUX chain, so actual insertion loss matters more than a simple bench test. The 1470nm channel aligned correctly with our wavelength plan, and the modules consistently reported healthy DOM values. TX power stayed in the specified -1 to +4dBm range, while RX readings remained above the -26dBm sensitivity threshold with reasonable margin. After several weeks, interface counters show no packet loss or CRC accumulation.

123 تصويت مفيد التعليقات

W *** ن

بروناي دار السلام

التحقق من الشراء

5.0

2025-06-04

We needed a 1470nm 80km CWDM SFP with LC connectors for an existing passive CWDM MUX/DEMUX system. This unit matched the channel and fiber type exactly. Nice plug-and-play experience.

85 تصويت مفيد التعليقات

الدكتور

إيران، الجمهورية الإسلامية

التحقق من الشراء

5.0

2025-05-27

We installed a matched 1470nm CWDM optic pair on a 74km single-mode fiber route used for industrial telemetry and remote site management. The route includes multiple cross-connects and an existing CWDM passive filter system, so we cleaned every LC end face and documented baseline receive power during turn-up. The link came up immediately, and the receive levels held stable through normal day-to-night temperature changes. The DOM function lets us establish alarm thresholds before the signal approaches the receiver sensitivity limit. For network operations teams maintaining long-haul Gigabit fiber links, that visibility is more valuable than a basic non-DDM optic. ^_^

78 تصويت مفيد التعليقات

N *** ليالي

رومانيا

التحقق من الشراء

5.0

2025-05-03

Reliable 1470nm CWDM SFP transceiver, stable link, good value.

149 تصويت مفيد التعليقات

Y ن ***

ليتوانيا

التحقق من الشراء

5.0

2025-04-16

The form factor is standard SFP, the interface is duplex LC, and the module runs normally in a commercial server-room environment. For indoor 0 – 70°C deployments, it has been a dependable 1G CWDM transceiver option.

64 تصويت مفيد التعليقات

ح ح

اليابان

التحقق من الشراء

5.0

2025-03-19

Great 1G CWDM module for our indoor single-mode fiber deployment; the link is stable and compatibility testing went smoothly. Delivery took a little longer than our project schedule expected, so order early for a time-sensitive rollout. Product performance is absolutely fine once installed.

35 تصويت مفيد التعليقات

S *** د

المجر

التحقق من الشراء

5.0

2025-03-08

Bought several 1G 1470nm CWDM SFP modules for a small carrier backhaul upgrade. All units were recognized quickly, and the DDM values gave our NOC a simple way to verify TX power, RX power, temperature, and voltage. Very practical for fieldwork.

98 تصويت مفيد التعليقات

G *** ه

الولايات المتحدة

التحقق من الشراء

5.0

2025-01-22

The 1470nm 80km CWDM SFP itself performs well and the DOM readings are accurate enough for routine checks. One carton arrived with a slightly crushed outer corner, although the antistatic packaging protected every module and none were damaged. I would buy again, but stronger bulk carton padding would be welcome.

28 تصويت مفيد التعليقات
