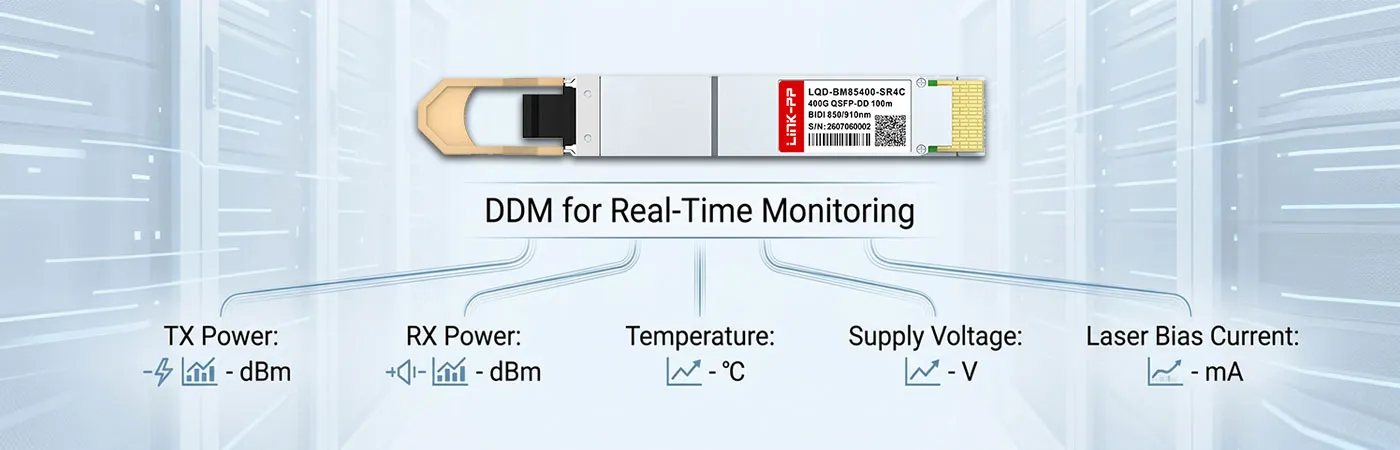

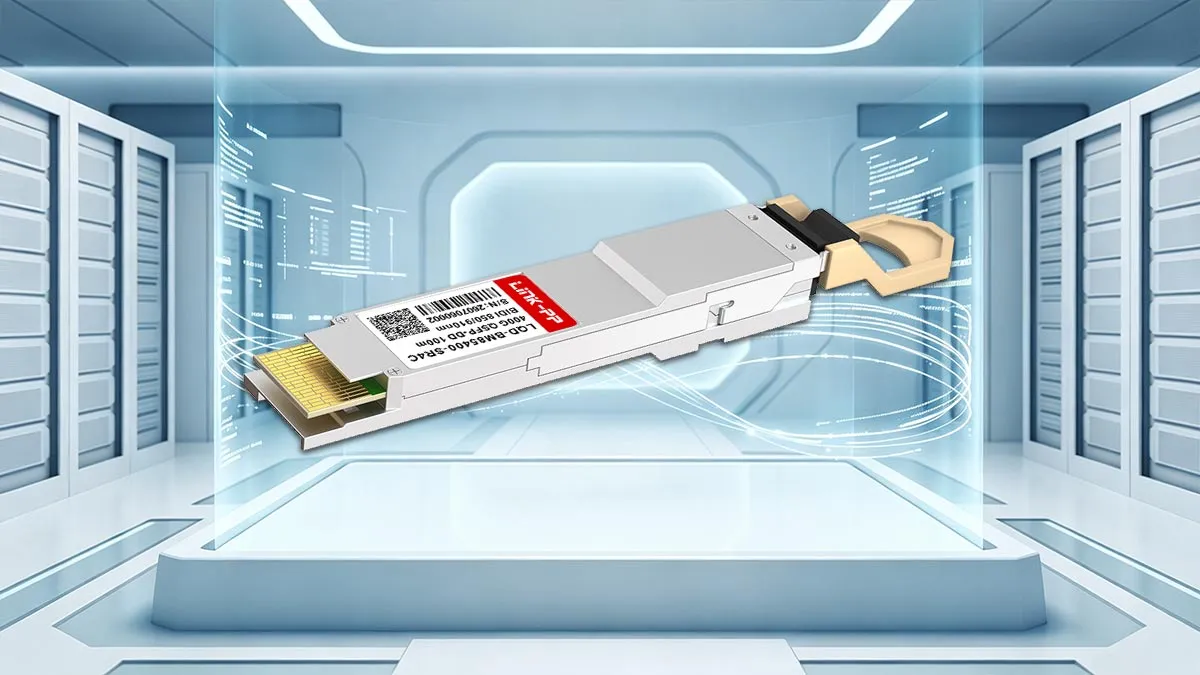

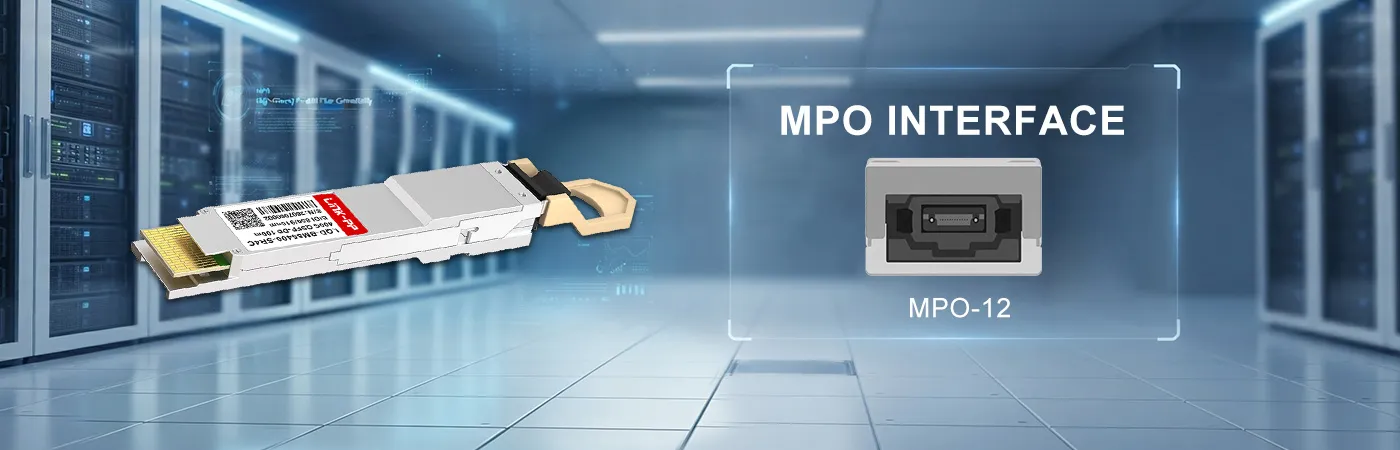

การขอ LINK-PP LQD-BM85400-SR4C is a QSFP-DD bidirectional (BiDi) transceiver module designed for high-density 400 Gigabit Ethernet interconnects. Operating over dual wavelengths of 850nm and 910nm using reliable VCSEL transmitters and PIN photodiode receivers, it utilizes an industry-standard MPO-12 interface over multimode fiber (MMF). The module supports link reaches of up to 70m over OM3 and 150m over OM5, and integrates built-in Digital Diagnostic Monitoring (DDM) for real-time transceiver health tracking.
LINK-PP LQD-BM85400-SR4C is a bidirectional QSFP-DD multimode transceiver compliant with 400GAUI-8 standards while consuming under 12W of power. Operating at 850nm and 910nm with an MPO-12 connector, it easily transmits data across 150m OM5 multimode links and features DDM diagnostics to keep your network running smoothly.

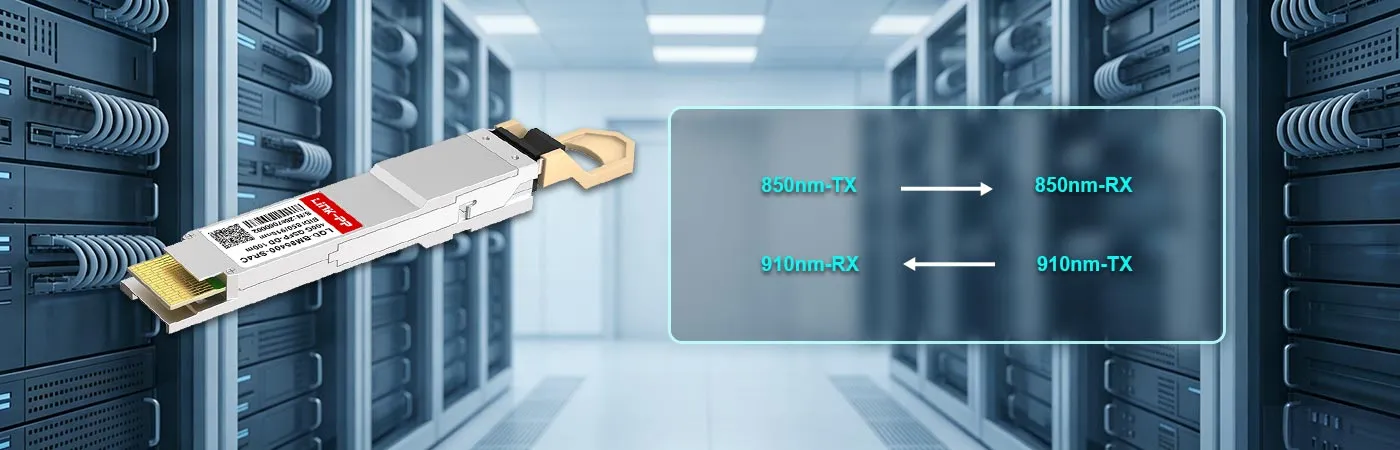

Designed for bidirectional transmission over 850nm and 910nm wavelengths, the module employs reliable VCSEL transmitters to deliver stable, high-fidelity optical signals over multimode fiber. This dual-wavelength architecture doubles fiber utilization while reducing signal attenuation, ensuring consistent and low-latency connectivity for enterprise and cloud computing environments.
LINK-PP LQD-BM85400-SR4C 400G QSFP-DD BiDi transceiver module complies with rigorous international regulatory and manufacturing standards, holding certifications including ISO 9001, CE, RoHS, and FCC.
Each 400G QSFP-DD bidirectional module completes strict quality checks to maintain clean signal delivery and seamless network operation under demanding workloads. Explore our full verification standards at the LINK-PP ศูนย์สนับสนุนการทดสอบ
Every LQD-BM85400-SR4C QSFP-DD BiDi transceiver module is carefully packaged and processed to guarantee safe transit to your facility. Our coordinated fulfillment procedures ensure prompt, dependable order dispatches for all enterprise deployments.

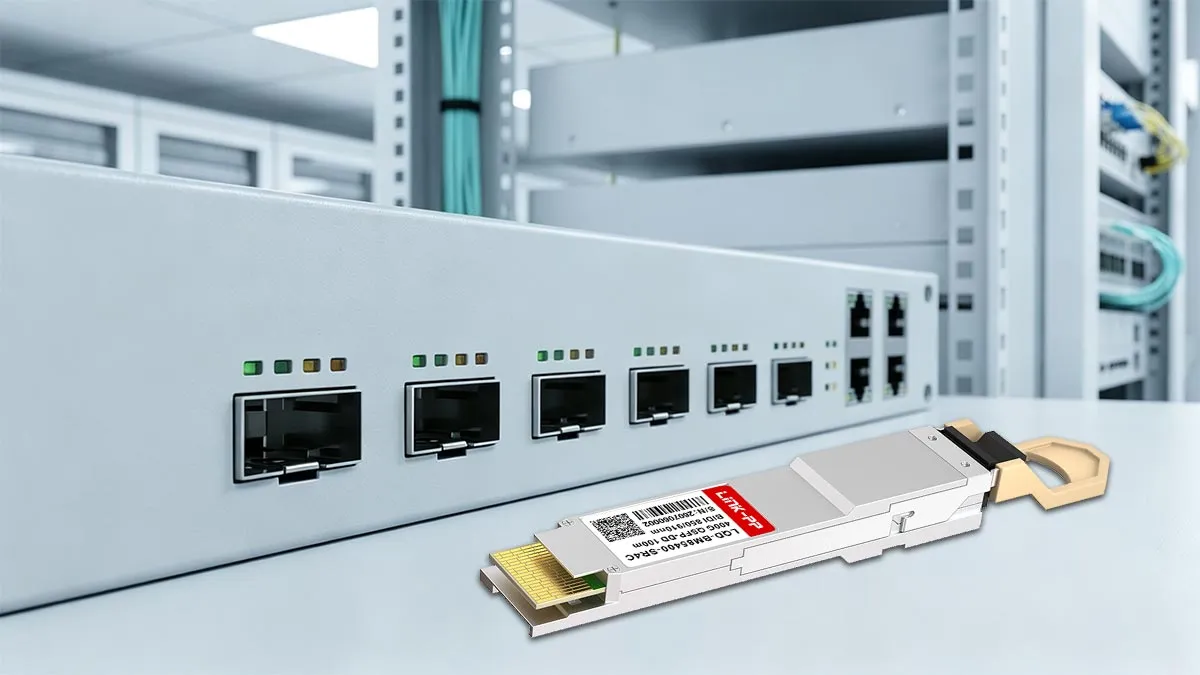

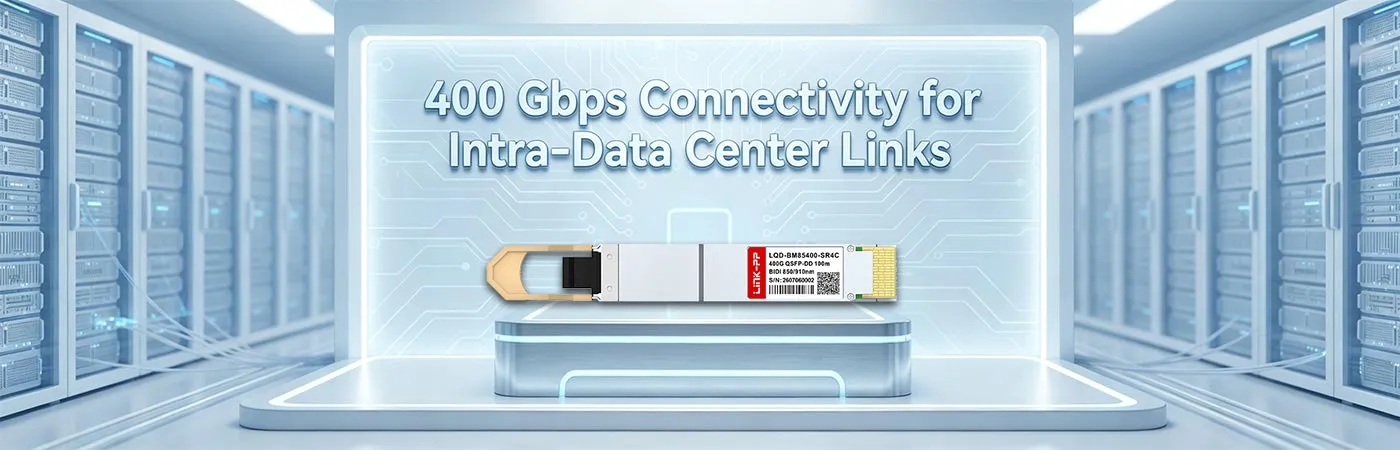

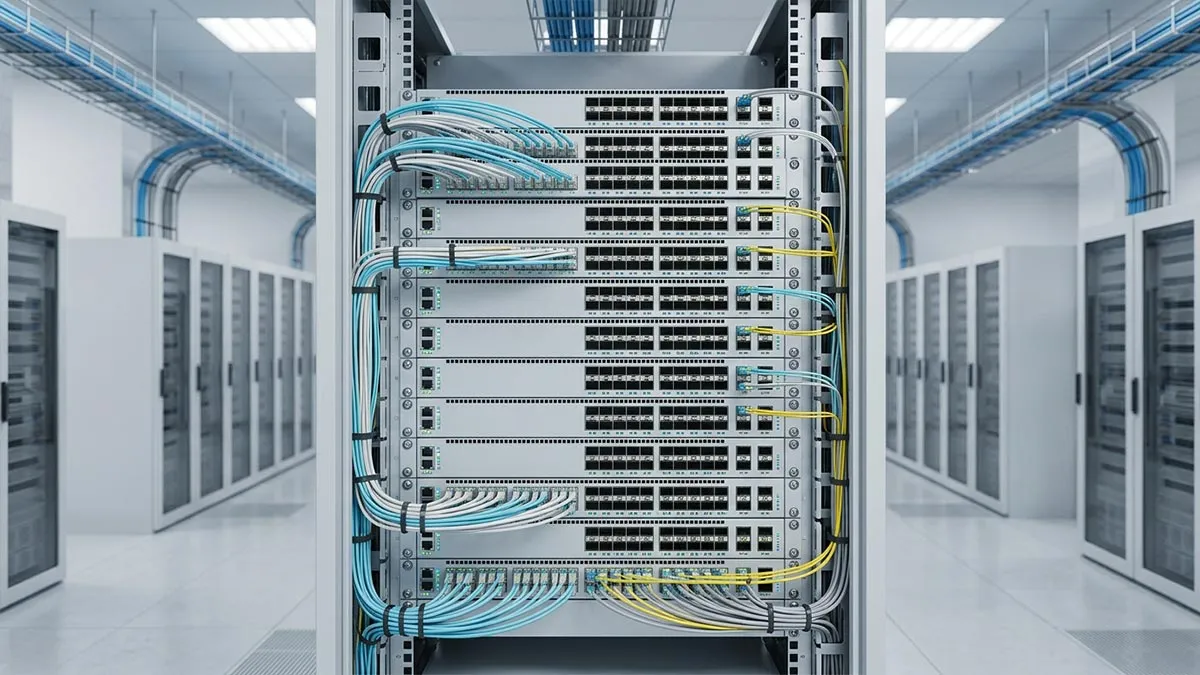

Gently slide the LQD-BM85400-SR4C BiDi transceiver module into the QSFP-DD switch port until it clicks firmly into place, then connect an MPO-12 multimode fiber patch cord to establish the dual-wavelength link. Utilizing bidirectional (BiDi) transmission over multimode fiber, this module provides cost-effective, high-density 400G connectivity for short-reach intra-data center architectures, including top-of-rack (ToR) switching, distribution tiers, and high-speed aggregation rows.
