การขอ LINK-PP LQ-SW100-SR4C is a high-performance, hot-pluggable 100G QSFP28 SWDM4 optical transceiver module delivering 103.1Gbps aggregate throughput over duplex multimode fiber. Operating across 850nm to 940nm wavelengths with VCSEL transmitters and PIN receivers, it features low power consumption under 3.5W, CAUI-4 electrical interface, and standard commercial operating case temperature from 0°C to 70°C.
ออกแบบมาเพื่อรองรับเครือข่ายความหนาแน่นสูง LINK-PP LQ-SW100-SR4C 100G QSFP28 transceiver combines short wavelength division multiplexing, duplex LC connectivity, and energy-efficient operation under 3.5W. It provides seamless 100G Ethernet upgrades over legacy OM3, OM4, and OM5 multimode fiber infrastructure while offering built-in digital diagnostic monitoring.

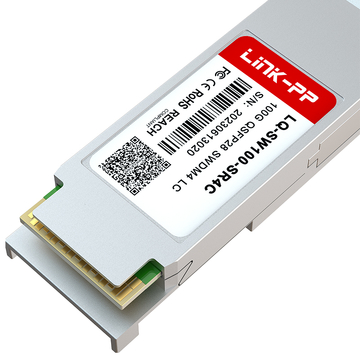

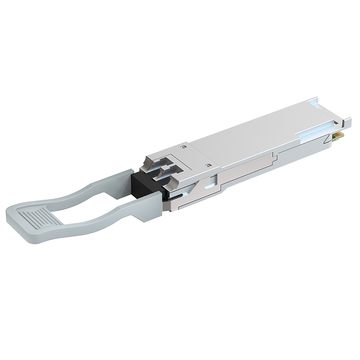

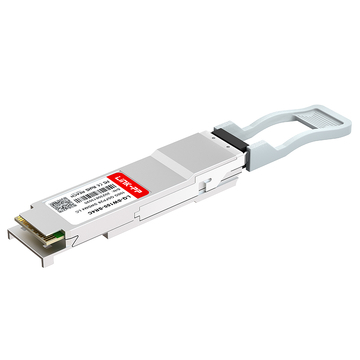

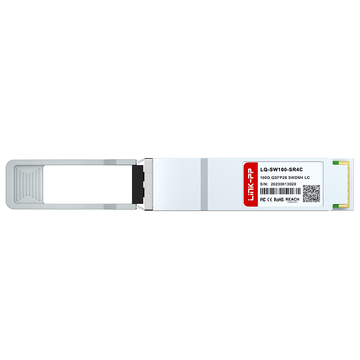

LINK-PP LQ-SW100-SR4C 100G QSFP28 Optical Module
การขอ LINK-PP LQ-SW100-SR4C 100G QSFP28 optical module integrates 4x25Gbps NRZ channels in a compact hot-pluggable footprint. Fully compliant with QSFP28 MSA and IEEE 802.3bm CAUI-4 standards, it ensures superior data integrity across modern high-speed enterprise networks.
LQ-SW100-SR4C: 100G Connectivity for Carrier Backbone
Designed for robust network scaling, the LQ-SW100-SR4C delivers reliable 100G Ethernet connectivity for telecom backbones, enterprise core switches, and cloud data centers, ensuring ultra-low latency, maximum data throughput, and mission-critical transmission stability.
Utilizing advanced Short Wavelength Division Multiplexing, the LQ-SW100-SR4C multiplexes four optical lanes onto a single duplex multimode fiber pair. This drastically reduces cabling complexity and eliminates costly MPO ribbon fiber migration when upgrading links.
Operating across four precise wavelength channels—850nm, 880nm, 910nm, and 940nm—the LQ-SW100-SR4C optical module utilizes high-speed VCSEL arrays to deliver 25.78Gbps per channel with minimal chromatic dispersion and optimal signal clarity over multimode fibers.
The LQ-SW100-SR4C supports transmission distances up to 75m on OM3, 100m on OM4, and reaches up to 150m on OM5 wideband multimode fiber, making it an ideal cost-effective reach solution for inter-rack and enterprise interconnects.
Equipped with a standard duplex LC optical interface, the LQ-SW100-SR4C enables direct connection to existing two-fiber LC patch cords, allowing seamless 10G/40G to 100G network migration without replacing current structured cabling infrastructure.
โมดูล LQ-SW100-SR4C พร้อม DOM สำหรับการตรวจสอบแบบเรียลไทม์
Featuring built-in Digital Optical Monitoring (DOM) via I2C compliant with SFF-8636, the LQ-SW100-SR4C provides real-time tracking of operating temperature, supply voltage, laser bias current, and transmitted/received optical power for proactive network maintenance.
LINK-PP LQ-SW100-SR4C 100G QSFP28 Certification
การขอ LINK-PP LQ-SW100-SR4C 100G QSFP28 transceiver satisfies strict international compliance standards, guaranteeing exceptional quality, electromagnetic safety, environmental protection, and dependable network operational reliability across global market deployments.
Every LQ-SW100-SR4C module undergoes automated optical, electrical, and functional testing to verify transmit signal integrity, receiver sensitivity thresholds, power consumption limits, and zero frame-loss packet transmission.
ใบรับรองคุณภาพ LQ-SW100-SR4C
Manufactured under strict quality management standards, the LQ-SW100-SR4C fully complies with CE, FCC, UKCA, UL safety guidelines, as well as RoHS and REACH environmental protection directives.
Certified for broad switch interoperability, the LQ-SW100-SR4C adheres to SFF-8636 and QSFP28 MSA specifications, ensuring plug-and-play compatibility with major OEM Ethernet switches, routers, and network interface cards.
LINK-PP ensures prompt, secure global delivery for the LQ-SW100-SR4C 100G QSFP28 transceiver with professional ESD-safe packaging and streamlined order fulfillment.
การขอ LINK-PP LQ-SW100-SR4C 100G QSFP28 module features effortless hot-pluggable installation into any standard QSFP28 switch port. Connect standard duplex LC multimode fiber patch cables to establish instant 100Gbps Ethernet transmission with automatic link negotiation and DDM telemetry.
