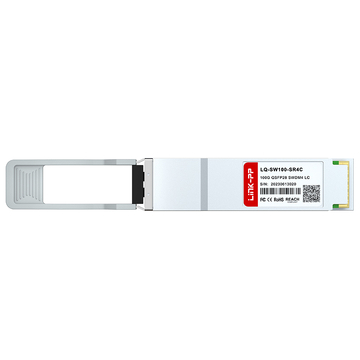

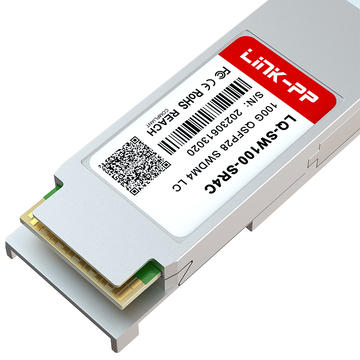

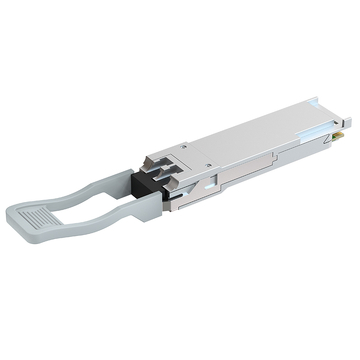

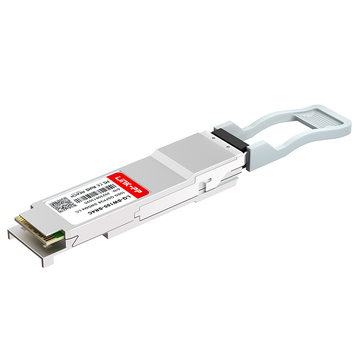

Broadcom QSFP-BIDI-100G ที่ใช้งานร่วมกันได้ LINK-PP module is a high-performance, hot-pluggable 100G QSFP28 SWDM4 optical transceiver module delivering 103.1Gbps aggregate throughput over duplex multimode fiber. Operating across 850nm to 940nm wavelengths with VCSEL transmitters and PIN receivers, it features low power consumption under 3.5W, CAUI-4 electrical interface, and standard commercial operating case temperature from 0°C to 70°C.
Engineered for high-density networking, the Broadcom QSFP-BIDI-100G Compatible LINK-PP 100G QSFP28 transceiver combines short wavelength division multiplexing, duplex LC connectivity, and energy-efficient operation under 3.5W. It provides seamless 100G Ethernet upgrades over legacy OM3, OM4, and OM5 multimode fiber infrastructure while offering built-in digital diagnostic monitoring.
Broadcom QSFP-BIDI-100G ที่ใช้งานร่วมกันได้ LINK-PP 100G QSFP28 optical module integrates 4x25Gbps NRZ channels in a compact hot-pluggable footprint. Fully compliant with QSFP28 MSA and IEEE 802.3bm CAUI-4 standards, it ensures superior data integrity across modern high-speed enterprise networks.
QSFP-BIDI-100G: 100G Connectivity for Carrier Backbone
Designed for robust network scaling, the QSFP-BIDI-100G delivers reliable 100G Ethernet connectivity for telecom backbones, enterprise core switches, and cloud data centers, ensuring ultra-low latency, maximum data throughput, and mission-critical transmission stability.
Utilizing advanced Short Wavelength Division Multiplexing, the QSFP-BIDI-100G multiplexes four optical lanes onto a single duplex multimode fiber pair. This drastically reduces cabling complexity and eliminates costly MPO ribbon fiber migration when upgrading links.
Operating across four precise wavelength channels-850nm, 880nm, 910nm, and 940nm-the QSFP-BIDI-100G optical module utilizes high-speed VCSEL arrays to deliver 25.78Gbps per channel with minimal chromatic dispersion and optimal signal clarity over multimode fibers.
The QSFP-BIDI-100G supports transmission distances up to 75m on OM3, 100m on OM4, and reaches up to 150m on OM5 wideband multimode fiber, making it an ideal cost-effective reach solution for inter-rack and enterprise interconnects.
Equipped with a standard duplex LC optical interface, the QSFP-BIDI-100G enables direct connection to existing two-fiber LC patch cords, allowing seamless 10G/40G to 100G network migration without replacing current structured cabling infrastructure.
โมดูล QSFP-BIDI-100G พร้อม DOM สำหรับการตรวจสอบแบบเรียลไทม์
Featuring built-in Digital Optical Monitoring (DOM) via I2C compliant with SFF-8636, the QSFP-BIDI-100G provides real-time tracking of operating temperature, supply voltage, laser bias current, and transmitted/received optical power for proactive network maintenance.
Every QSFP-BIDI-100G module undergoes automated optical, electrical, and functional testing to verify transmit signal integrity, receiver sensitivity thresholds, power consumption limits, and zero frame-loss packet transmission.
ใบรับรองคุณภาพ QSFP-BIDI-100G
Manufactured under strict quality management standards, the QSFP-BIDI-100G fully complies with CE, FCC, UKCA, UL safety guidelines, as well as RoHS and REACH environmental protection directives.
Certified for broad switch interoperability, the QSFP-BIDI-100G adheres to SFF-8636 and QSFP28 MSA specifications, ensuring plug-and-play compatibility with major OEM Ethernet switches, routers, and network interface cards.
LINK-PP subjects every QSFP28 transceiver to rigorous multi-stage laboratory validation, ensuring maximum signal stability, low jitter, and sustained 100G transmission reliability in demanding environments.
การทดสอบสเปกตรัมแสง
Spectrum analysis verifies central wavelengths (850-940nm) and maintains RMS spectral widths within strict 0.59nm limits.
การทดสอบรูปแบบตา
Transmitter eye mask validation guarantees clean 25.78Gbps waveforms with low dispersion and low jitter.
การทดสอบอัตราข้อผิดพลาดบิต
Pre-FEC and post-FEC bit error rate testing confirms zero packet loss across high-speed traffic.
ทดสอบอุณหภูมิ
Thermal chamber testing guarantees stable optical performance throughout the commercial 0°C to 70°C operating range.
LINK-PP ensures prompt, secure global delivery for the QSFP-BIDI-100G 100G QSFP28 transceiver with professional ESD-safe packaging and streamlined order fulfillment.
Broadcom QSFP-BIDI-100G ที่ใช้งานร่วมกันได้ LINK-PP 100G QSFP28 module features effortless hot-pluggable installation into any standard QSFP28 switch port. Connect standard duplex LC multimode fiber patch cables to establish instant 100Gbps Ethernet transmission with automatic link negotiation and DDM telemetry.
A:
To achieve the full 150m transmission distance, you should use OM5 Multi-Mode Fiber (MMF). It also supports 75m on OM3 and 100m on OM4 fiber cables. The module features a standard Duplex LC interface, making patching and cable management very straightforward. โดยผู้ดูแลระบบ
A:
Yes! The module fully complies with IEEE 802.3bm 100GBASE-SR4, SWDM MSA, and QSFP28 MSA standards. It is also RoHS compliant, ensuring it meets all global regulatory and environmental requirements for enterprise networking. โดยผู้ดูแลระบบ
A:
We definitely support enterprise procurement! For large-scale batch deployments like server room rollouts, please reach out to our sales team directly. We offer highly competitive wholesale pricing and flexible net terms for B2B customers. โดยผู้ดูแลระบบ
A:
Yes, absolutely! Our LQ-SW100-SR4C transceiver is 100% MSA compliant and strictly tested for OEM compatibility, ensuring seamless plug-and-play interoperability with Cisco, Arista, Juniper, and other major switch brands. โดยผู้ดูแลระบบ
A:
This standard version operates reliably in commercial temps (0°C to 70°C), which is perfect for most indoor racks. If you need it for harsh outdoor base station backhaul environments, we also provide an industrial-grade version (-40°C to 85°C). Just let our team know! โดยผู้ดูแลระบบ
ทดสอบแล้ว LINK-PP LQ-SW100-SR4C in a demanding data center environment. It easily sustained 103.1Gbps over a 150m OM5 run without any FEC errors. Incredible cost-effective alternative to overpriced OEM optics!
