Are these 1G BiDi transceivers fully compliant with international telecommunications and environmental standards?

Yes. The module complies strictly with IEEE 802.3ah 1000BASE-BX, SFF-8472 diagnostic standards, and SFP MSA specifications. It is fully certified under CE, FCC, and RoHS environmental directives, ensuring full compliance for commercial enterprise data center and carrier network deployments.

Will the LS-BL55311G-60C work seamlessly in our Cisco Catalyst and Juniper EX switches without throwing unsupported transceiver warnings?

Yes, absolutely. The transceiver is fully SFP MSA compliant and can be custom-coded for 100% interoperability with Cisco, Juniper, Arista, MikroTik, Ubiquiti, and other major OEM switch platforms. It enables full DDM/DOM telemetry readout with zero CLI vendor lock-in errors.

Our fiber links terminate in unheated outdoor roadside cabinets. Do you offer an industrial wide-temperature version of this 60km module?

Yes. While this model (LS-BL55311G-60C) is designed for commercial indoor environments (0℃ to 70℃), we produce an industrial wide-temperature variant (P/N: LS-BL55311G-60I) engineered to operate continuously from -40℃ to 85℃ in harsh outdoor NEMA enclosures.

What fiber type is required, and which complementary module do I need on the remote end to close the 60km link?

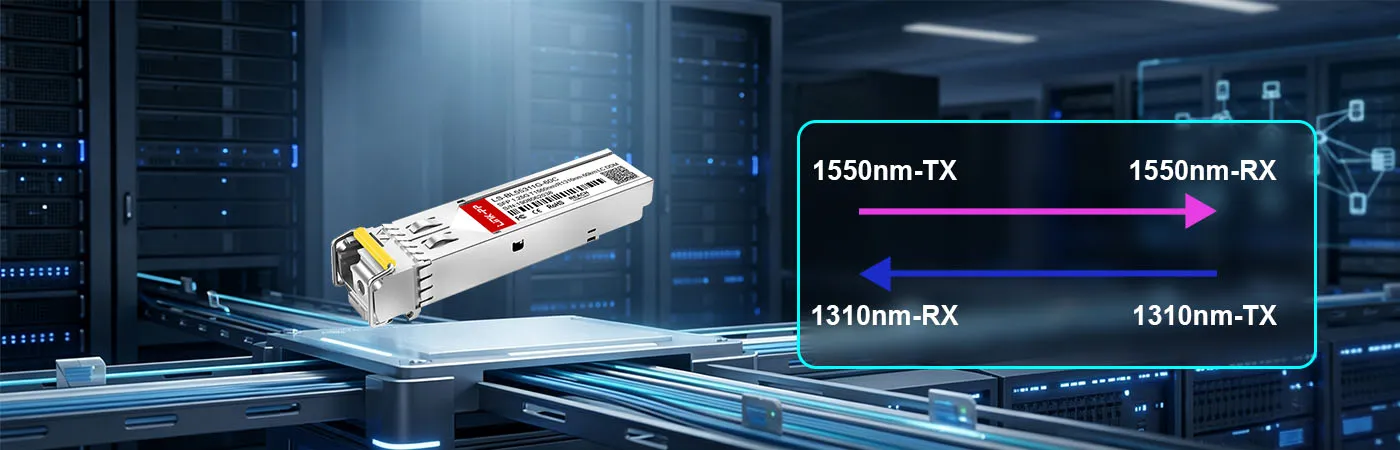

This module requires a single strand of 9/125μm Single-Mode Fiber (OS2 SMF) with a Simplex LC connector. Because this unit transmits at 1550nm and receives at 1310nm (1550TX/1310RX), the remote end must be paired with the complementary 1310nm-TX/1550nm-RX 60km transceiver (P/N: LS-BL31551G-60C) to establish the bidirectional optical circuit.

작은 표시: 홈; 제품; 광학 트랜시버 | SFP 모듈; 1/2/4G 트랜시버 모듈; 1G 양방향 SFP; 207060

확장 된보기를 열려면 클릭하십시오

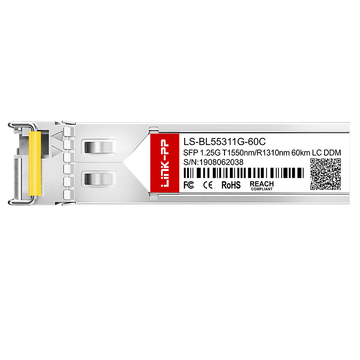

LINK-PP LS-BL55311G-60C 1G SFP BiDi 1550nm-TX/1310nm-RX 60km DDM 심플렉스 LC SMF 광 트랜시버 모듈

Name: LS-BL55311G-60C
Brand: LINK-PP
SKU: 207060
Price: 8.6 USD
Availability: InStock
Rating: 4.9 (25 reviews)

# 207060

프로덕트: LINK-PP LS-BL55311G-60C 1G SFP BiDi 1550nm-TX/1310nm-RX 60km DDM 심플렉스 LC SMF 광 트랜시버 모듈
SKU: 207060
P / N: LS-BL55311G-60C
가격: $ 10
재고: 190 재고
판매: 8.8K
제품 URL: https://www.l-p.com/products/494471.htm

주문 금액이 1000달러 이상이면 15.00달러 할인해 드립니다. 코드: Linkpp15

주문 금액이 3000달러 이상이면 50.00달러 할인해 드립니다. 코드: Linkpp50

주문 금액이 5000달러 이상이면 100.00달러 할인해 드립니다. 코드: Linkpp100

신규 고객: 주문 시 사용 가능한 10달러 쿠폰 제공 코드: linkpp2610

: LINK-PP LS-BL55311G-60C 1G SFP BiDi 1550nm-TX/1310nm-RX 60km DDM 심플렉스 LC SMF 광 트랜시버 모듈

25 후기 도움이 필요하신가요?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
Quantity

25개의 리뷰

4 질문

재고 요청

8.8K 판매

$ 10

$600 이상 무료 배송, 더 유리한 가격이 필요한 경우 직접 문의하시기 바랍니다.

수량(개):

단가 :

$ 10

100

$ 9.5

1000

$ 9.2

3000

$ 8.9

6000

$ 8.6

제조: LINK-PP

P / N : LS-BL55311G-60C

호환 가능 :: LINK-PP

호환 가능한 P/N:: LS-BL31551G-02C | 2km; LS-BL55311G-02C | 2km; LS-BL31551G-03C | 3km; LS-BL31551G-03I | 3km; LS-BL55311G-03C | 3km; LS-BL55311G-03I | 3km; LS-BL31491G-10C | 10km; LS-BL31491G-10I | 10km; LS-BL31551G-10C | 10km; LS-BL31551G-10I | 10km; LS-BL31551GE-10C | 10km; LS-BL49311G-10C | 10km; LS-BL49311G-10I | 10km; LS-BL49551G-10C | 10km; LS-BL49551G-10I | 10km; LS-BL55311G-10C | 10km; LS-BL55311G-10I | 10km; LS-BL55311GE-10C | 10km; LS-BL55491G-10C | 10km; LS-BL55491G-10I | 10km; LS-BL31551G-15C | 15km; LS-BL31491G-20C | 20km; LS-BL31491G-20I | 20km; LS-BL31551G-20C | 20km; LS-BL31551G-20I | 20km; LS-BL49311G-20C | 20km; LS-BL49311G-20I | 20km; LS-BL49551G-20C | 20km; LS-BL55311G-20C | 20km; LS-BL55311G-20I | 20km; LS-BL55491G-20C | 20km; LS-BL31491G-40C | 40km; LS-BL31491G-40I | 40km; LS-BL31551G-40C | 40km; LS-BL31551G-40I | 40km; LS-BL49311G-40C | 40km; LS-BL49311G-40I | 40km; LS-BL55311G-40C | 40km; LS-BL55311G-40I | 40km; LS-BL31551G-60C | 60km; LS-BL31551G-60I | 60km; LS-BL49551G-60C | 60km; LS-BL55311G-60C | 60km; LS-BL55311G-60I | 60km; LS-BL55491G-60C | 60km; LS-BL27331G-80C | 80km; LS-BL33271G-80C | 80km; LS-BL49551G-80C | 80km; LS-BL49551G-80I | 80km; LS-BL55491G-80C | 80km; LS-BL55491G-80I | 80km; LS-BL49551G-A0C | 100km; LS-BL49551G-A0I | 100km; LS-BL55491G-A0C | 100km; LS-BL55491G-A0I | 100km; LS-BL49551G-A2C | 120km; LS-BL49551G-A2I | 120km; LS-BL55491G-A2C | 120km; LS-BL55491G-A2I | 120km; LS-BL49551G-A5C | 150km; LS-BL49551G-A5I | 150km; LS-BL55491G-A5C | 150km; LS-BL55491G-A5I | 150km; LS-BL49551G-A6C | 160km; LS-BL49551G-A6I | 160km; LS-BL55491G-A6C | 160km; LS-BL55491G-A6I | 160km

배송:

협상 예정

무료 배송

배달 할 수 없습니다

에 United States 를 통해 {{now_chooseship?now_chooseship.name:''}}

예상 배달 시간 : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} 일. 자세히보기

5 - 년 보증 30- 일 반품 30일 교환

주식 :

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

수량:

(최소 주문 {{detail_data.prodInfo.minimum_ordered_quantity}} )

배송 불가

총 가격:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

소원에 추가

기술 사양

스펙
비디오
일치하는 제품
다운로드
질문 게시판
고객 리뷰

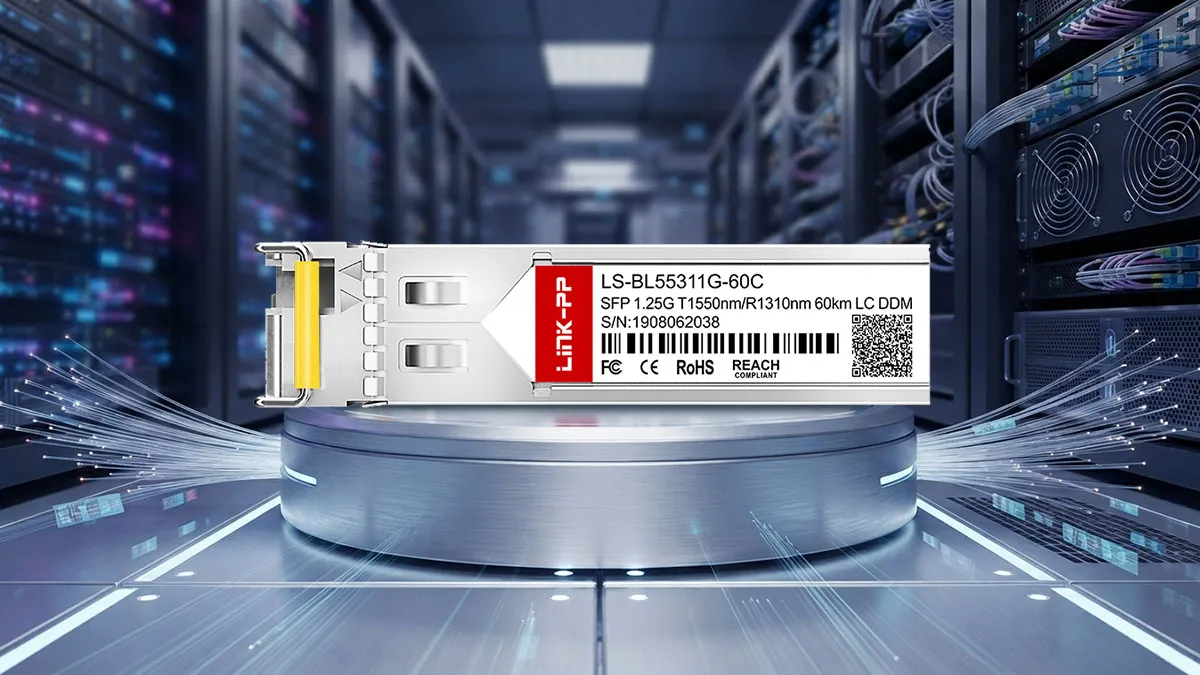

LINK-PP LS-BL55311G-60C 1G BiDi SFP 사양

The LINK-PP LS-BL55311G-60C는 기가비트 이더넷 및 1.063Gbps 파이버 채널 애플리케이션을 위해 설계된 고성능 1G BiDi SFP 광 트랜시버입니다. 1550nm DFB 레이저와 1310nm PIN 수신기를 특징으로 하는 이 핫플러그 가능 모듈은 표준 상용 온도 범위 내에서 효율적으로 작동하며 최대 60km까지 안정적인 단일 모드 광섬유 전송을 보장합니다.

LINK-PP 부품 번호	LS-BL55311G-60C	공급 업체 이름	LINK-PP
폼 팩터	SFP	최대 데이터 속도	1.25Gbps
파장	1550nm-TX/1310nm-RX	최대 케이블 거리	60km
커넥터	단순 LC	미디어	SMF
송신기 유형	DFB	수신기 유형	PIN
TX 전력	-5 ~ 0dBm	수신 전원	-23 ~ -1dBm
수신기 감도	<-24dBm	DDM 지원	가능
작동 온도 범위	0 ~ 70 ° C	프로토콜	고속 이더넷, 기가비트 파이버 채널, MSA 규격

비디오

일치하는 제품

영화

신분증#

기술설명

가격

재고

장바구니에 담기

다운로드

제품 도면

PDF
LS-BL55311G-60C.pdf

질문과 답변
질문하기

데이터가 없습니다

Q: Are these 1G BiDi transceivers fully compliant with international telecommunications and environmental standards? S***n에 의해 on 2026-05-23

A: Yes. The module complies strictly with IEEE 802.3ah 1000BASE-BX, SFF-8472 diagnostic standards, and SFP MSA specifications. It is fully certified under CE, FCC, and RoHS environmental directives, ensuring full compliance for commercial enterprise data center and carrier network deployments. 관리자 작성 on 2026-05-23
Q: Will the LS-BL55311G-60C work seamlessly in our Cisco Catalyst and Juniper EX switches without throwing unsupported transceiver warnings? J***s에 의해 on 2026-02-25

A: Yes, absolutely. The transceiver is fully SFP MSA compliant and can be custom-coded for 100% interoperability with Cisco, Juniper, Arista, MikroTik, Ubiquiti, and other major OEM switch platforms. It enables full DDM/DOM telemetry readout with zero CLI vendor lock-in errors. 관리자 작성 on 2026-02-25
Q: Our fiber links terminate in unheated outdoor roadside cabinets. Do you offer an industrial wide-temperature version of this 60km module? K***z 작성 on 2026-01-05

A: Yes. While this model (LS-BL55311G-60C) is designed for commercial indoor environments (0℃ to 70℃), we produce an industrial wide-temperature variant (P/N: LS-BL55311G-60I) engineered to operate continuously from -40℃ to 85℃ in harsh outdoor NEMA enclosures. 관리자 작성 on 2026-01-05
Q: What fiber type is required, and which complementary module do I need on the remote end to close the 60km link? J***e 작성 on 2025-06-14

A: This module requires a single strand of 9/125μm Single-Mode Fiber (OS2 SMF) with a Simplex LC connector. Because this unit transmits at 1550nm and receives at 1310nm (1550TX/1310RX), the remote end must be paired with the complementary 1310nm-TX/1550nm-RX 60km transceiver (P/N: LS-BL31551G-60C) to establish the bidirectional optical circuit. 관리자 작성 on 2025-06-14

고객 리뷰
리뷰 쓰기

{{stardata.star}}

{{comment.count}} 리뷰
5 별

{{comment.star5}}%

4 별

{{comment.star4}}%

3 별

{{comment.star3}}%

2 별

{{comment.star2}}%

1 스타

{{comment.star1}}%

모든 리뷰 ({{comment.star_num?comment.star_num:comment.count}})

모든 리뷰

별 5 개만

별 4 개만

별 3 개만

별 2 개만

별 1 개만
사진이있는 리뷰 ( {{comment.pic_comment}} )
모든 리뷰보기

데이터가 없습니다

E *** n

United States

구매 확인

5.0

2026-07-03

Rock-solid optics for enterprise backhaul.

172 유용한 투표 코멘트

M *** s

Israel

구매 확인

5.0

2026-06-21

Reliable 1G BiDi modules, great price.

54 유용한 투표 코멘트

L *** r

핀란드

구매 확인

5.0

2026-06-21

Tested thoroughly in Juniper EX switches; vendor EEPROM coding worked on first insertion.

120 유용한 투표 코멘트

S *** r

Sweden

구매 확인

5.0

2026-06-02

Deployed across multi-vendor distribution nodes including Ubiquiti and Arista gear. MSA compliance is top tier with no CLI warnings, temperature stayed steady at 38°C under continuous gigabit line-rate traffic.

60 유용한 투표 코멘트

J *** n

그리스

구매 확인

5.0

2026-05-29

Low power consumption and cool operation inside our high-density datacenter aggregation rack.

144 유용한 투표 코멘트

T *** n

폴란드

구매 확인

5.0

2026-05-19

Deployed twenty units in MikroTik routers for municipal CCTV backhaul without any signal drop.

196 유용한 투표 코멘트

N *** z

Malaysia

구매 확인

5.0

2026-05-11

Replaced expensive OEM optics with these 60km BiDi modules and saved tons of budget.

46 유용한 투표 코멘트

E *** z

볼리비아

구매 확인

5.0

2026-05-07

Pair matched with the 1310TX 60km variant, established 1.25G link immediately on Edgecore.

82 유용한 투표 코멘트

C *** n

에콰도르

구매 확인

5.0

2026-04-28

Accurate DDM power telemetry on Arista. :)

121 유용한 투표 코멘트

E *** z

스페인

구매 확인

5.0

2026-03-22

Perfect single-strand optical solution for our remote campus expansion. Paired this 1550nm-TX module with the 1310nm-TX counterpart on Cisco 3850s, bridging 45km cleanly with zero frame loss under 24-hour RFC2544 testing.

177 유용한 투표 코멘트

B *** n

Malaysia

구매 확인

5.0

2026-03-07

Spliced into our rural broadband backhaul ring running 56km simplex single-mode fiber. The 21dB link budget easily overcame patch panel attenuation, delivering flawless 1.25G throughput with rock-solid DDM laser metrics.

262 유용한 투표 코멘트

D *** e

체코

구매 확인

5.0

2026-01-30

Flawless 60km BiDi link across campus!

169 유용한 투표 코멘트

같이

볼리비아

구매 확인

5.0

2026-01-11

Excellent DFB laser stability and clear DOM diagnostics inside our indoor telecom closet.

89 유용한 투표 코멘트

N *** l

Danmark

구매 확인

5.0

2026-01-03

Paired with 1310TX perfectly, seamless sync.

189 유용한 투표 코멘트

같이

Norway

구매 확인

5.0

2025-12-07

Benchmarked this LS-BL55311G-60C over a 52km SMF spool before deployment; transmitter yielded -2dBm while RX sensitivity maintained -23.5dBm. Real-time DDM optical telemetry matched our EXFO power meter spot on.

280 유용한 투표 코멘트

L *** z

남아프리카 공화국

구매 확인

5.0

2025-11-28

Flawless simplex LC connection over single strand SMF, doubling our dark fiber utilization. :D

174 유용한 투표 코멘트

K *** r

코스타리카

구매 확인

5.0
