LPJK7036B98NL 1000 base-t low profile gigabit rj45 magjack tab up orange&green yellow led
Klik untuk membuka tampilan yang diperluas

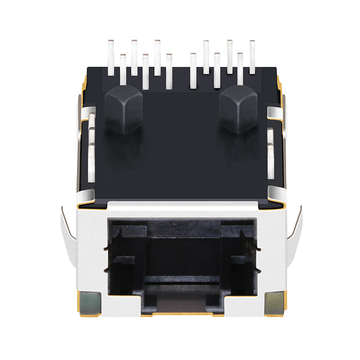

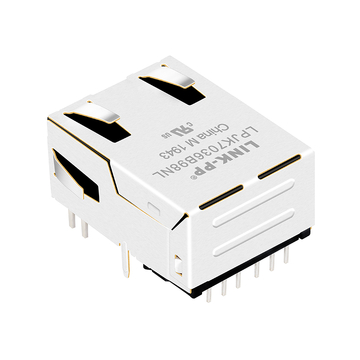

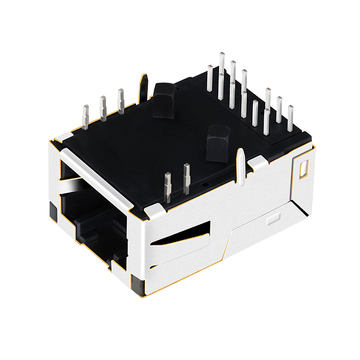

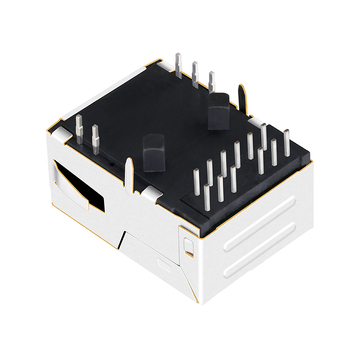

LPJK7036B98NL 1000 Base-T Low Profile Gigabit RJ45 Magjack Tab Up Orange&Green/Yellow LED

Ringkasan Produk

Produk
LPJK7036B98NL 1000 Base-T Low Profile Gigabit RJ45 Magjack Tab Up Orange&Green/Yellow LED
SKU
175251
P / N
LPJK7036B98NL
Harga
IDR 73,452
saham
5420 dalam Stok
Terjual
10.8K
Patokan harga IDR 73452
Pengguna baru: IDR 181,095 Kupon untuk Pesanan Pertama Anda
Kode linkpp2610
Untuk Pemesanan Lebih dari IDR 18,109,500 Dapatkan IDR 271,643 Off
Kode Linkpp15
Untuk Pemesanan Lebih dari IDR 54,328,500 Dapatkan IDR 905,475 Off
Kode Linkpp50
Untuk Pemesanan Lebih dari IDR 90,547,500 Dapatkan IDR 1,810,950 Off
Kode Linkpp100
Pembuatan: LINK-PPP / N: LPJK7036B98NLSKU: 175251

LINK-PP Garis Keturunan AsliDatasheetsemua download

P/N yang kompatibel:
LPJK7036B98NL
Harga volume Tingkat pemesanan online · jumlah lebih besar atau harga khusus berdasarkan permintaan
IDR 73525
1–99 buah
IDR 60232
100–599 buah
IDR 52880
600–1,199 buah
IDR 40402
1,200–5,999 buah
IDR 34517
6,000 buah

Butuh jumlah lebih dari yang tertera di sini, atau ingin menegosiasikan harga?

Stock:
5420 dalam Stok
Pengiriman:
IDR 605,038
untuk Indonesia melalui IP FedEx
Perkiraan waktu pengiriman: 3 - 6 hari.
5-Tahun Garansi Pengembalian 15-Hari Penukaran 15 Hari
Jaminan
  • Memberikan garansi 5 tahun yang terdepan di industri.
  • Bacalah tabel berikut ini: details garansi semua produk.
Pengembalian & Penukaran
  • Pengembalian dana akan diterima sekitar 5 hari kerja setelah barang yang dikembalikan diterima.
  • Barang yang tersedia untuk penggantian dapat dikirim dalam waktu 1 hari kerja.
  • Baca kebijakan pengembalian selengkapnya untuk details.
Gratis ongkos kirim di atas IDR 10,865,700.
Atau kirim menggunakan akun UPS / FedEx / DHL Anda sendiri saat pembayaran (IDR 0 pengiriman).
Jumlah:
SPQ 50
Total harga:
IDR 73452
Rincian kemasan
pcs 50
pcs 1200
Baki
40 × 32 × 33 cm
0.01 kg
11.5 kg

LINK-PP LPJK7036B98NL 1000 Base-T LowProfile RJ45 Gigabit Mag Jack Untuk Kamera Pintar (Tinggi 11.30mm, LED Oranye&Hijau/Kuning, Tab Atas)

LPJK7036B98NL mendukung kecepatan 10/100/1000 Base-T, mematuhi standar IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001. Dapat digunakan untuk mendukung aplikasi, seperti Energi Baru, Pengontrol Game, Router.

LINK-PP Nomor Bagian: LPJK7036B98NL Konektor Jenis Jack
Status Bagian Aktif Mounting Type melalui Lubang
Jumlah Posisi/Kontak 12p8c (RJ45, Ethernet) Aplikasi-Lan Ethernet (Tanpa PoE)
Jumlah Ports Pelabuhan 1x1 Kecepatan 10/100/1000 Basis-T
Memalangi Up Inti per Port 8
Orientasi Sudut 90° (Kanan) Sudut Pemasangan PCB

MASUK SAMPING

Tab EMI Perisai Dengan Opsi LED

Oranye & Hijau/Kuning

PCB FR4 Tiang Penahan PCB

POSTINGAN T

Tinggi Paket (Inci/mm) 0.445/11.30 Panjang Paket (Inci/mm)

0.957/24.30

Lebar Paket (Inci/mm) 0.701/17.80 Suhu 0℃ HINGGA 70℃
Sirkuit Bst Ya AutomDX

YES

Dioda Tidak Plating Area Perkawinan Kontak

EMAS 6u"/15u"/30u"

Rasio Putaran RX/TX 1KTA:1KTA Konfigurasi RX/TX

T, C

LINK-PP

Produk yang Cocok

Film ID # Deskripsi Harga saham Yuk, Beli !

Unduh

Gambar Produk LPJK7036B98NL.pdf

pertanyaan

Belum ada pertanyaan

Jadilah orang pertama yang bertanya tentang spesifikasi, kompatibilitas, atau waktu tunggu.

Ajukan Pertanyaan
  • A:
    Better to order the Tab Down variant from the same family. Flipping the outline moves the release but also reverses the indicator legs and puts the cable exit on the wrong side of the slot, so the panel would need a new drawing anyway. Electrically the parts are close - same 1CT:1CT ratio, same termination note - but the mechanics are not interchangeable. Compare the two mechanical drawings side by side before releasing tooling, and check the low profile clearance again against the heatsink on the new board. by LINK-PP Dukungan teknis
  • A:
    Not reliably. Paint and anodising are insulators, so a finger that looks seated against a coated panel can leave the shell floating. Mask the contact band or use a bare metal lip, then measure shell to frame on an assembled unit instead of trusting the drawing. A short capacitive path to the digital return is easier to control than a direct zero ohm link. by LINK-PP Dukungan teknis
  • A:
    One placement disappears and the pick and place programme gets shorter, which is where the saving sits rather than in the unit price. Rework is the trade: if a channel fails you replace the whole jack, not just a transformer. Place the Bob Smith resistors and the high voltage capacitor on the board yourself, because Circuit Yes describes a recommended termination, not parts hidden inside the housing. by LINK-PP Dukungan teknis
  • A:
    Measure against the mechanical drawing, not the product photo. On our board a standard Magjack fouled the heatsink beside the port and this one cleared it, but the margin depends on your own component heights. Check three things: the tallest part next to the opening, the slot height in the panel, and the bend radius of a seated plug boot. If the drawing is missing from the download pack, ask us for it. Keep solder mask off the finger contact band so the shield tabs still land on bare metal. by LINK-PP Dukungan teknis

Testimoni Pelanggan

  • 5

    42 Ulasan

  • 5 bintang
    98%
    4 bintang
    2%
    3 bintang
    0%
    2 bintang
    0%
    1 bintang
    0%
  • Semua Ulasan (42)
Tidak ada data
D***w
Mexico
Pembelian Terverifikasi
4.0
2026-02-28
Four stars because two of five trays arrived without a part number, so goods in opened each one. Every Magjack was correct, the Tab Up latch worked first time and Gigabit linked with no rework. Only the paperwork cost us time.
Saya *** i
Jerman
Pembelian Terverifikasi
5.0
2026-02-22
The second order was checked against a saved first article rather than the datasheet: part number on each tray, tab orientation, finger shape, LED window clarity and body height under a calliper. Fifty units matched with no measurable spread. One sample board went through our standard lead free profile; the fillets looked clean under a loupe and no paste had crept into the port mouth. Keeping that checklist identical between orders is what lets us reorder a low profile part without a fresh mechanical review.
S *** n
Belgia
Pembelian Terverifikasi
5.0
2026-02-02
A standard Magjack fouled the heatsink beside the port; this low body clears it with room to spare, and the 90 degree exit still lines up with the bezel slot. That clearance is the whole reason it is on the board :)
T *** s
Thailand
Pembelian Terverifikasi
5.0
2025-12-07
One early prototype would not link above 100 Base-T and the team assumed the integrated magnetics were at fault. The real cause was a pair swapped on our side of the transformer, visible only when we compared the symbol against the 1CT:1CT pinout in the drawing. After the rework the same jack held a Gigabit link through an eight hour soak with no errors counted. If you are coming from a discrete transformer layout, read the pin assignment rather than assuming the pairs land where they did before; the integrated part saves space but it does not forgive a swapped pair.
K *** n
Inggris Raya
Pembelian Terverifikasi
5.0
2025-08-19
Field units came back after a year in unconditioned cabinets and we pulled four jacks for inspection. The plating on the shield fingers still looked even under a loupe, the Tab Up tab had not loosened, and the Gigabit link came back up on the bench at the first attempt. Since there is no power rating on the centre taps, we had left the PSE section out of the design entirely; nothing in that area had drifted or discoloured. The low profile housing had also stayed clear of the adjacent heatsink through the thermal cycles, which was the whole point of choosing it.
