Engineered for high-performance optical communication, this hot-pluggable transceiver operates at data rates up to 622Mbps. Designed with an advanced FP laser and PIN photodetector, it ensures seamless multi-mode fiber transmission. Operating on a single 3.3V power supply, this industrial-grade optical module delivers exceptional reliability across demanding Fast Ethernet and SONET OC-12 network environments.
LINK-PP Part Number
LS-MM3106-02I
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
622Mbps
Wavelength
1310nm
Max Cable Distance
2km
Connector
Duplex LC
Media
MMF
Transmitter Type
FP
Receiver Type
PIN
TX Power
-12 to -3dBm
RX Power
-23 to -1dBm
Receiver Sensitivity
-23dBm
DOM Support
Yes
Operating Temperature Range
-40 to 85°C
Protocols
MSA Compliant
Key Features of LINK-PP LS-MM3106-02I 622M SFP
This robust fiber optic transceiver strictly complies with SFP MSA and SFF-8472 standards. Featuring low power consumption under 300mA and a wide industrial temperature range of -40°C to +85°C, the device guarantees stable operation in harsh environments without compromising network speed or signal integrity.

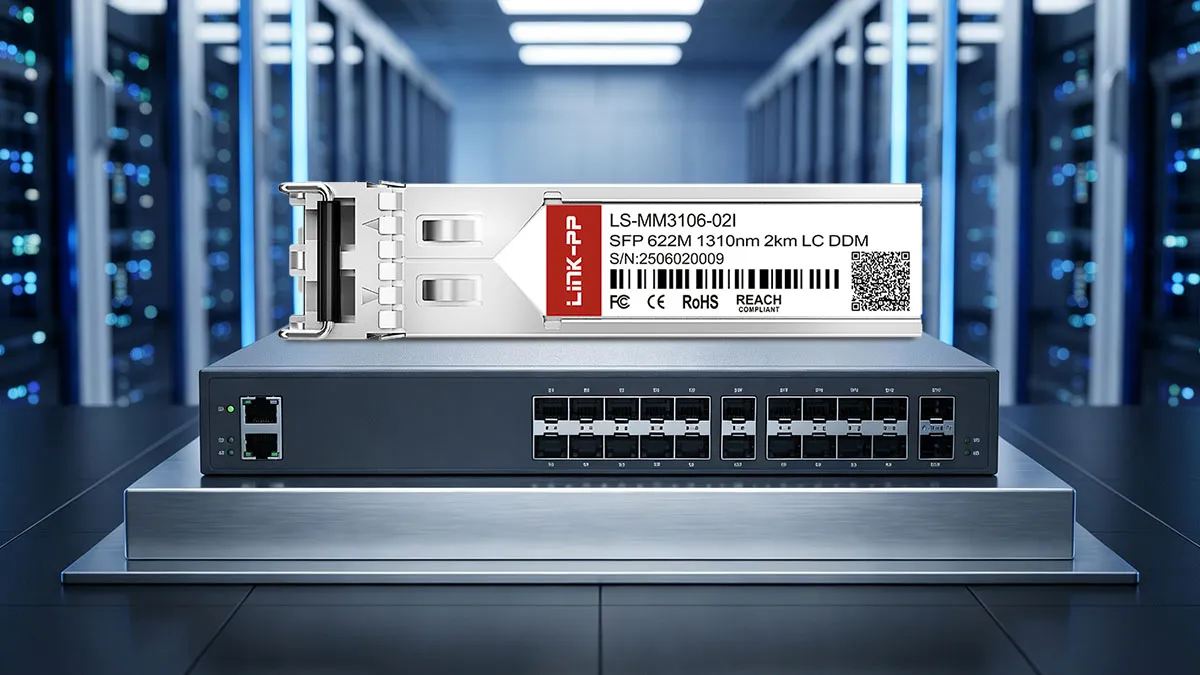

LINK-PP LS-MM3106-02I 622M SFP Optical Module
Built for cost-effective network upgrades, this compact multi-source agreement compliant pluggable module simplifies infrastructure deployments. It seamlessly integrates a trans-impedance preamplifier to maximize optical sensitivity, ensuring uninterrupted data flow for critical telecommunication architectures.
LS-MM3106-02I: 622M Connectivity for Industrial Automation
Tailored for rugged applications, this networking component thrives in extreme temperatures. By maintaining secure 622 megabits per second data transfer rates, it provides factory floors and automated control systems with highly resilient, continuous broadband connectivity.
LS-MM3106-02I Module with 1310nm Wavelength
Utilizing a precise 1310nm central wavelength, the embedded Fabry-Perot laser transmitter minimizes signal dispersion. This specific optical frequency optimizes multi-mode fiber performance, significantly reducing transmission errors while maintaining excellent spectral efficiency across your entire network.
LS-MM3106-02I Module Supporting 2km Transmission
Bridging medium-distance networking gaps, this high-quality transceiver successfully drives optical signals up to two kilometers over standard MMF links. It serves as an ideal solution for campus backbones, enterprise data centers, and extended local area networks.

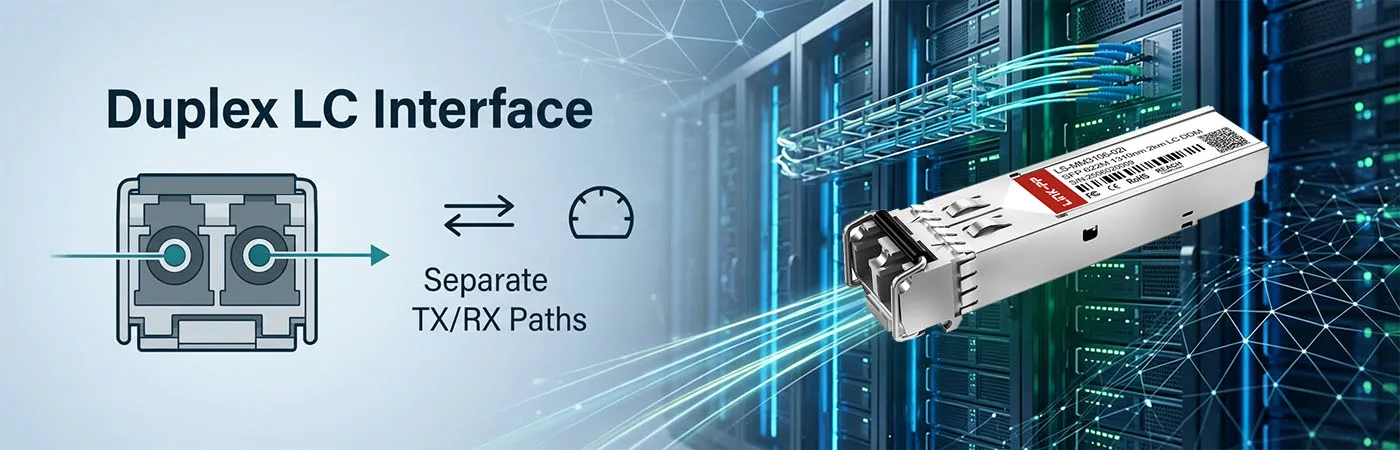

LS-MM3106-02I Module with Duplex LC Interface
Equipped with an industry-standard duplex LC receptacle, the device ensures quick, secure fiber connections. This widely adopted plug-and-play interface allows network administrators to effortlessly scale bandwidth while maintaining broad compatibility with existing fiber patch cables.

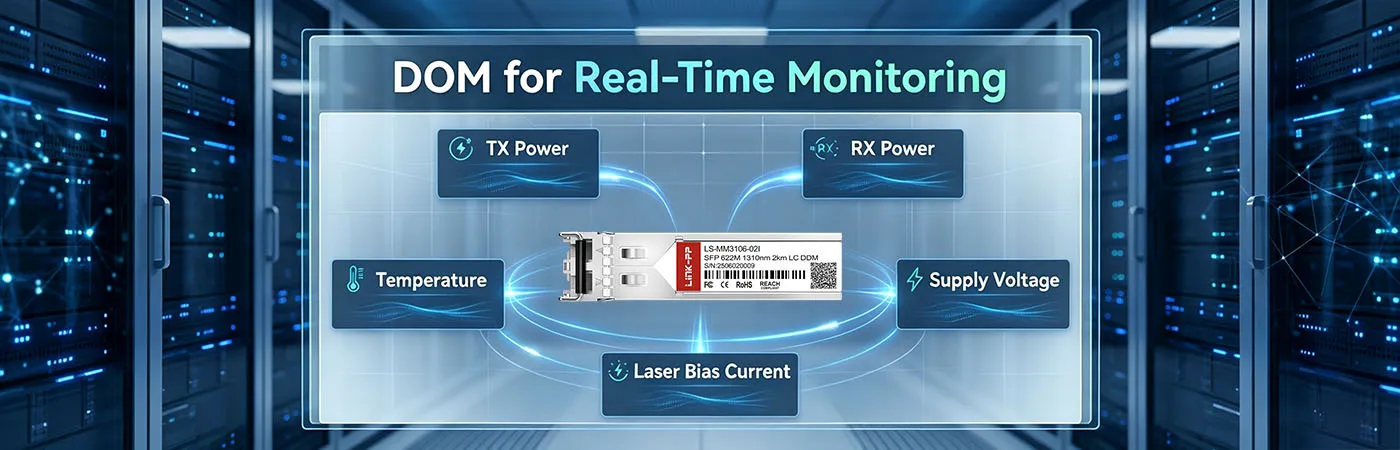

LS-MM3106-02I Module with DOM for Real-Time Monitoring
Featuring integrated digital diagnostic monitoring via a two-wire serial interface, users can easily track critical operating parameters. This includes real-time feedback on temperature, voltage, laser bias current, and transceiver power levels to proactively prevent network downtime.
LINK-PP LS-MM3106-02I 622M SFP Certification
Adhering to the strictest global regulatory standards, this networking hardware is fully compliant with CE, FCC, UKCA, UL, and REACH requirements, guaranteeing ultimate environmental and operational safety.
Every single optical module undergoes a comprehensive series of laboratory evaluations before leaving the factory, verifying exceptional electrical characteristics and strict compliance with Class I laser safety specifications.
LS-MM3106-02I Quality Certifications
Beyond basic operational approvals, this eco-friendly transceiver proudly carries full RoHS certification, ensuring all internal components and manufacturing processes remain completely free from hazardous heavy metals.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-MM3106-02I Certified for Reliable Host-Device Compatibility
Engineered for universal interoperability, the programmed EEPROM ensures immediate recognition across major enterprise switches, routers, and media converters, eliminating frustrating installation delays and vendor lock-in issues.
Rigorous Testing Ensures Reliable SFP Performance
We implement multi-stage quality assurance protocols designed to validate optimal signal integrity, thermal resilience, and absolute hardware dependability under heavy networking workloads.
Optical Spectrum Test
Precise spectrum analyzers verify the exact central wavelength and spectral width stability.
Eye Pattern Test
Advanced oscilloscopes confirm excellent extinction ratios and clean data input swing differentials.
Bit Error Rate Test
Continuous PRBS pattern transmissions guarantee superior receiver sensitivity and zero packet loss.
Temperature Test
Extreme thermal cycling chambers validate flawless operation from negative forty to eighty-five degrees.
Product Shipping for LINK-PP LS-MM3106-02I 622M SFP
We utilize professional-grade packaging materials and established logistics partnerships to ensure your high-speed networking components arrive in pristine, deployment-ready condition every time.

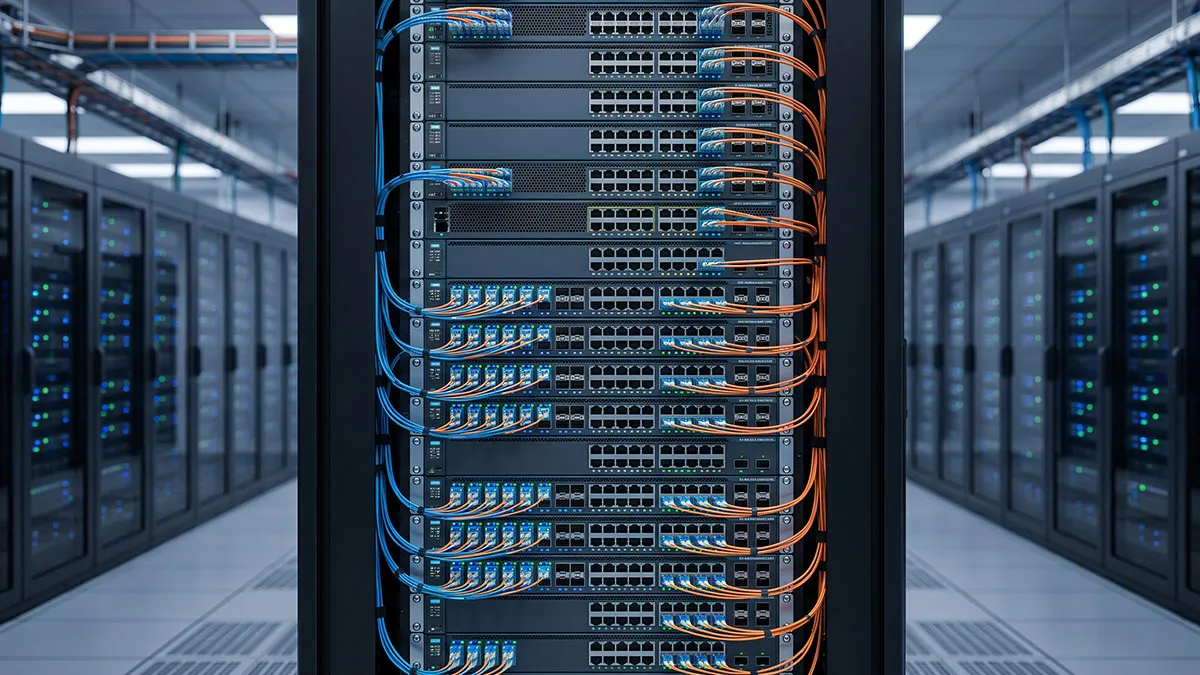

Simply insert the module into any compatible networking chassis until you hear a secure click. Remove the protective dust plugs, attach your dual multi-mode fibers, and immediately benefit from seamless, configuration-free optical communications across your industrial network.
LS-MM3106-02I Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable LS-MM3106-02I modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
Yes! Our LS-MM3106-02I modules are strictly SFP MSA and SFF-8472 compliant. They are widely tested for multi-brand compatibility, ensuring seamless plug-and-play operation on major OEM switches without throwing any unrecognized transceiver warnings. By
admin on
2026-06-27
A:
Absolutely. We offer tiered pricing for bulk enterprise deployments. For a batch order, you will receive a significant volume discount. Please contact our sales team directly, and your dedicated account manager will send a custom quote. By
admin on
2026-05-06
A:
Yes, this 1310nm transceiver is perfectly optimized for standard multi-mode fiber (MMF). It will effortlessly bridge connections up to 2km over your existing OM1 or OM2 fiber runs, making it an ideal choice for legacy campus backbones and Fast Ethernet setups. By
admin on
2026-03-11
Please write comments with more than three
character.
496052
459896
A***r
Ireland
Verified
Purchase
5 .0
2026-01-19
Perfect solution for our factory automation ring topology. The -40 to 85°C operating temperature is crucial here. Getting reliable 622Mbps throughput over legacy MMF without any packet loss or receiver saturation. Highly impressed!
Please write comments with more than three
character.
496052
459894
S***n
Spain
Verified
Purchase
5 .0
2026-01-16
Procured 50 units for cell tower base station backhaul. The DDM/DOM interface integrates smoothly with our NMS, allowing real-time monitoring of laser bias and temp. Outstanding supply chain stability and unbeatable ROI.
Please write comments with more than three
character.
496052
459893
K***s
Chile
Verified
Purchase
5 .0
2025-12-26
We bulk-deployed these MSA compliant SFP transceivers across multiple vendor switches for a campus fiber network upgrade. The Duplex LC connectors fit perfectly, and the 2km multi-mode performance is identical to expensive OEM optics.
Please write comments with more than three
character.
496052
459897
J***z
Singapore
Verified
Purchase
5 .0
2025-11-17
As a network admin, I heavily stress-tested these industrial 1310nm 622M modules in rugged outdoor cabinets. They easily survived extreme heat while maintaining stable TX power. Excellent SFF-8472 DOM support!
