The LINK-PP LS-SM3106-20C is a high-performance SFP transceiver with a wavelength of 1310nm and a throughput of 622Mbps. It is optimized for single-mode fiber deployments and extends network connectivity up to 20km while maintaining reliable signal integrity.
LINK-PP Part Number
LS-SM3106-20C
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
622Mbps
Wavelength
1310nm
Max Cable Distance
20km
Connector
Duplex LC
Media
SMF
Transmitter Type
FP
Receiver Type
PIN
TX Power
-15 to -8dBm
RX Power
-32 to -6dBm
Receiver Sensitivity
<-28dBm
Receiver Overload
-8dBm
Operating Temperature Range
0 to 70°C
Protocols
MSA Compliant
Key Features of LINK-PP LS-SM3106-20C 622M SFP
Supporting optical links up to 20km, the LINK-PP LS-SM3106-20C 622M SFP module features integrated DOM and a duplex LC interface for enhanced network monitoring, simplified maintenance, and dependable long-range fiber connectivity.

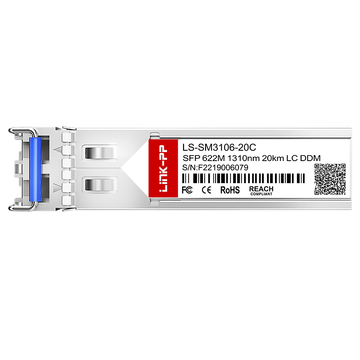

LINK-PP LS-SM3106-20C 622M SFP Optical Module
Built with a premium FP laser and a sensitive PIN receiver, this LINK-PP LS-SM3106-20C optical transceiver provides excellent signal integrity, reduced optical loss, and reliable data transmission over extended single-mode fiber links.
LS-SM3106-20C: Reliable 622Mbps Connectivity
The LINK-PP LS-SM3106-20C SFP transceiver supports dependable data rates of up to 622Mbps, making it suitable for SONET OC-12, Fast Ethernet, and other optical networking applications that demand stable mid-range bandwidth and reliable performance.
LS-SM3106-20C Module with 1310nm Wavelength
By leveraging a 1310nm wavelength, the LINK-PP LS-SM3106-20C module maintains excellent optical stability and reduces transmission degradation, delivering efficient and dependable long-distance data transport over single-mode fiber.
LS-SM3106-20C Module Supporting 20km Transmission
Featuring a transmission reach of up to 20km, the LS-SM3106-20C 622M SFP module enables dependable data connectivity across extended fiber links. It is ideal for carrier-grade applications requiring consistent optical performance.
LS-SM3106-20C Module with Duplex LC Interface
The duplex LC connector provides a reliable and widely adopted optical interface, ensuring seamless integration with existing network infrastructure and simplifying deployment in dense networking environments.
LS-SM3106-20C Module with DOM for Real-Time Monitoring
The built-in DOM support continuously monitors key transceiver metrics such as temperature, voltage, and optical power, allowing for faster diagnosis and better network performance management.
LINK-PP LS-SM3106-20C 622M SFP Certification
Assembled according to ISO 9001 quality management practices and confirmed by CE, RoHS, and FCC compliance, the LINK-PP module supports dependable use and international acceptance.
Each unit is subjected to strict performance testing to maintain reliable connectivity and consistent operation across multiple networking applications.
LS-SM3106-20C Quality Certifications
The LINK-PP module complies with industry-recognized quality standards to ensure dependable operation and consistent network efficiency.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-SM3106-20C Certified for Reliable Host-Device Compatibility
Broad-based validation testing provides guaranteed interoperability with every supported LINK-PP switch, router, and network device.
Rigorous Testing Ensures Reliable SFP Performance
LINK-PP applies extensive testing protocols to verify signal integrity, compatibility consistency, and reliable field operation. See the LINK-PP Test Support Center for more technical guidance.
Optical Spectrum Test
Verifies wavelength precision, stable optical output, and compliance with required transmission specifications.
Eye Pattern Test
Evaluates waveform clarity to minimize signal distortion and improve transmission integrity.
Bit Error Rate Test
Validates transmission accuracy and confirms dependable communication performance.
Temperature Test
Evaluates operational stability and optical consistency across varying environmental conditions.
Product Shipping for LINK-PP LS-SM3106-20C 622M SFP
Each LINK-PP transceiver is professionally prepared for shipment to maintain product integrity and support reliable worldwide logistics.
Anti-Static Protective Packaging
Carefully designed anti-static protection lowers the risk of electrostatic damage during transit and warehousing.
Shock-Resistant Transport Protection
Reinforced shipping protection helps reduce impact-related risks and keeps products in better condition during delivery.
Fast Order Processing and Dispatch
Fast order processing and dispatch shorten delivery times with streamlined fulfillment.
Global Logistics and International Delivery
Professional freight coordination supports consistent international shipping performance.
The LINK-PP LS-SM3106-20C module delivers reliable 622Mbps optical connectivity with a 20km reach and real-time DOM monitoring. It is widely used in Fast Ethernet, SONET OC-12, power utilities, transportation systems, and video surveillance.
LS-SM3106-20C Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable LS-SM3106-20C modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
The LS-SM3106-20C is fully compliant with the SFP Multi-Source Agreement (MSA) standard, ensuring plug-and-play compatibility with open-standard platforms like Mikrotik and Ubiquiti. For vendor-restricted systems such as Cisco, Juniper, Brocade, or Dell, LINK-PP provides pre-coded EEPROM configurations upon request. Simply specify your target switch hardware model during checkout or contact support for customized compatibility coding. By
admin on
2026-04-25
A:
Yes, you can use it over short fiber runs. The transmitter power output ranges between -15 dBm and -8 dBm, while the receiver overload threshold is -8 dBm. Since the maximum output power does not exceed the receiver overload limit, short-range connections will not saturate or damage the PIN photodiode receiver, and an optical attenuator is generally not required for short testing or patch links. By
admin on
2025-04-15
A:
The LS-SM3106-20C is a commercial-grade optical module with an operating case temperature range of 0°C to 70°C (32°F to 158°F), ideal for indoor data centers, enterprise wiring closets, and climate-controlled switch rooms. If your deployment involves harsh outdoor cabinets or unconditioned environments, we recommend choosing the industrial-grade variant (LS-SM3106-20I), which operates from -40°C to 85°C (-40°F to 185°F). By
admin on
2024-12-17
A:
Yes, the LS-SM3106-20C fully supports real-time Digital Diagnostics Monitoring (DDM/DOM) according to SFF-8472 specifications. Network engineers can remotely monitor key operating parameters through the host device's CLI or SNMP interface, including transceiver temperature, supply voltage, laser bias current, optical transmit power (TX), and optical receive power (RX). By
admin on
2024-05-03
Deployed these for municipal security camera backhaul over single-mode fiber lines. The 20km transmission reach gives us plenty of optical power budget reserve. No packet drops observed during 72-hour stress testing :-)
Please write comments with more than three
character.
481438
435050
L***s
Argentina
Verified
Purchase
4 .0
2026-02-18
One of the dust caps was missing inside the protective tray, so I had to clean the LC ferrule before insertion. Once cleaned, the duplex LC connector snapped in tightly and optical power levels were spot on over a 8km single-mode run.
Please write comments with more than three
character.
481438
435053
Z***g
Romania
Verified
Purchase
5 .0
2026-01-24
Upgraded our campus backbone links using these 1310nm 622M SFP transceivers. DDM diagnostic functions allow our NOC team to monitor optical RX/TX levels remotely via SNMP. Flawless operation over the past 3 months =D
Please write comments with more than three
character.
481438
435034
T***s
Austria
Verified
Purchase
5 .0
2026-01-02
Needed a bulk deployment of 622M SFP transceivers for our WISP base station backhaul links. We populated 16 ports on our Mikrotik cloud core routers. DOM monitoring works flawlessly displaying real-time temperature, voltage, and optical power. Excellent performance for price ;)
Please write comments with more than three
character.
481438
435037
L***s
Sweden
Verified
Purchase
5 .0
2025-12-28
We replaced several aging OEM optics with LINK-PP LS-SM3106-20C modules in our edge aggregation routers. MSA compliance made vendor interoperability completely seamless across our mixed Cisco and Dell environment. DDM optics diagnostics integrate perfectly into our Cacti/Zabbix monitoring.
Please write comments with more than three
character.
481438
435036
Z***z
United Kingdom
Verified
Purchase
5 .0
2025-06-20
Installed this 622Mbps SFP module into our Cisco Catalyst switch for a campus fiber link across two office buildings about 4km apart. Link registered immediately with zero CRC errors. DDM readings in CLI show solid optical power levels: TX at -11dBm and RX at -18dBm. Very pleased with the stability =D
Please write comments with more than three
character.
481438
435042
S***n
Finland
Verified
Purchase
4 .0
2025-04-12
Shipping took 5 days via DHL instead of the estimated 3, which slightly delayed our maintenance window. However, the optical transceiver module itself is top-tier. Tested the 1310nm FP laser transmitter over a 15km single-mode fiber span and optical power levels are well within spec.
Please write comments with more than three
character.
481438
435044
C***r
Australia
Verified
Purchase
5 .0
2025-03-15
We used these 20km SMF SFP modules to link outdoor cabinets across our industrial facility. Even in non-climate-controlled enclosures operating near 60°C, the temperature telemetry via DDM remains well within operating thresholds (0 to 70°C). Rock solid reliability =)
Please write comments with more than three
character.
481438
435040
E***g
Sweden
Verified
Purchase
5 .0
2024-12-07
Essential component for telecom transmission engineering. The FP laser and PIN photodiode combo delivers consistent transmit power (-15 to -8dBm) and high sensitivity (-28dBm). Will order again for upcoming network expansions.
Please write comments with more than three
character.
481438
435041
M***r
Singapore
Verified
Purchase
5 .0
2024-11-18
Bought a pair for a home lab high-speed storage setup connecting two enterprise servers via 1310nm duplex LC single-mode fiber patch cables. Recognized immediately by Intel NICs and TrueNAS. Full 622M throughput sustained over long file transfers ;)
Please write comments with more than three
character.
481438
435032
B***s
Singapore
Verified
Purchase
4 .0
2024-02-17
The outer cardboard box was slightly crushed during transit, but the individual anti-static ESD packaging protected the transceivers completely. Tested all 10 units on our fiber patch panel at 1310nm wavelength; receiver sensitivity is around -28dBm as advertised. Good quality overall.
