LS-BL554901-80I is an industrial-grade 155M SFP BiDi optical transceiver module operating at 1550nm-TX / 1490nm-RX, supporting up to 80km transmission over single-mode fiber with a DFB laser transmitter and PIN photodiode, and designed for reliable performance across an extended operating temperature range of -40 to +85 °C.
LINK-PP Part Number
LS-BL554901-80I
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
155Mbps
Wavelength
1550nm-TX/1490nm-RX
Max Cable Distance
80km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-5 to +2dBm
Receiver Sensitivity
-32dBm
RX Power
-32 to -6dBm
DOM Support
Yes
Operating Temperature Range
-40 to 85°C
Protocols
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Key Features of LINK-PP LS-BL554901-80I 155M SFP
LINK-PP LS-BL554901-80I delivers industrial-grade 155M BiDi optical transmission over single-mode fiber with dependable link stability. Featuring a 1550nm-TX/1490nm-RX wavelength scheme, 80km transmission distance, and simplex LC interface, it offers an efficient and compact connectivity solution. Its rugged design supports wide temperature operation and includes digital monitoring capabilities for enhanced system visibility.
LINK-PP LS-BL554901-80I 155M SFP Optical Module
Designed in compliance with the SFP Multi-Source Agreement, this optical module ensures broad compatibility with standard SFP ports. It also supports SFF-8472 digital diagnostics functions, enabling access to real-time operating parameters. These features help simplify system integration and maintenance.
LS-BL554901-80I: 155 Mbps Connectivity for Industrial IoT Edge
A data rate of 155Mbps makes it suitable for industrial IoT edge networks requiring stable and moderate bandwidth. It supports reliable communication between distributed field devices and control systems. This makes it a practical choice for edge-level data transmission in industrial environments.
LS-BL554901-80I Module with 1550nm-TX/1490nm-RX Wavelength
This module uses a BiDi design with 1550nm for transmission and 1490nm for reception over a single fiber. The wavelength pairing enables efficient use of fiber resources. It is well-suited for long-distance single-mode deployments.
With a transmission distance of up to 80km, the module supports long-haul communication over single-mode fiber. It utilizes a DFB laser transmitter and PIN photodiode to maintain signal integrity. This allows consistent performance across extended links.
LS-BL554901-80I Module with Simplex LC Interface
A simplex LC connector enables bidirectional communication over a single fiber strand. This design helps reduce cabling requirements and simplifies installation. It is especially useful in fiber-limited environments.
LS-BL554901-80I Module with DDM for Real-Time Monitoring
Digital Diagnostic Monitoring (DDM) provides access to key parameters such as temperature, voltage, and optical power. These real-time diagnostics support proactive maintenance and fault detection. System reliability can be improved through continuous monitoring.
LINK-PP LS-BL554901-80I 155M SFP Certification
LINK-PP LS-BL554901-80I is manufactured in accordance with ISO 9001 and complies with CE, RoHS, and FCC requirements for safety and environmental standards.
Comprehensive validation processes are applied to confirm optical accuracy, signal consistency, and long-term durability.
LS-BL554901-80I Quality Certifications
Production follows structured quality assurance practices to maintain stable operation under industrial conditions.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.

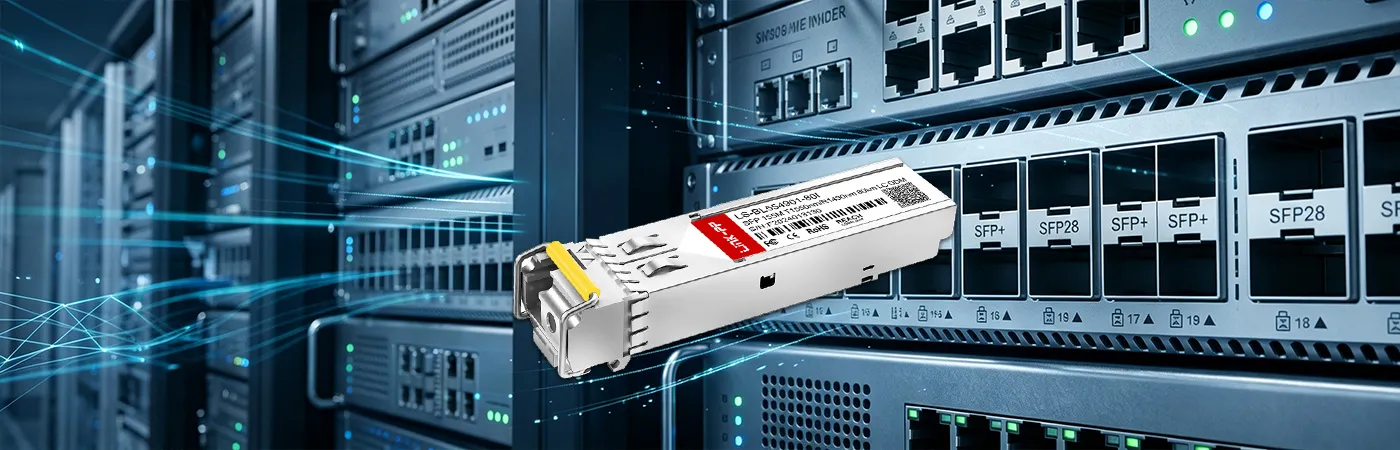

LS-BL554901-80I Certified for Reliable Host-Device Compatibility
Extensive compatibility checks are performed to ensure smooth integration with various switches and networking platforms.
Rigorous Testing Ensures Reliable SFP Performance
LINK-PP SFP optical module is subjected to multi-stage validation to maintain dependable link behavior. Explore details via the LINK-PP Test Support Center.
Optical Spectrum Test
Confirm stable wavelength output and signal consistency.
Eye Pattern Test
Assess waveform integrity for clear signal transmission.
Bit Error Rate Test
Check transmission accuracy during continuous data flow.
Temperature Test
Ensure stable function under changing thermal conditions.
Product Shipping for LINK-PP LS-BL554901-80I 155M SFP
LINK-PP LS-BL554901-80I is handled with structured shipping processes to maintain product condition. Logistics operations are arranged to support smooth and timely delivery.
Anti-Static Protective Packaging
Prevent electrostatic interference during storage and transport.
Shock-Resistant Transport Protection
Minimize physical stress throughout the shipping process.
Fast Order Processing and Dispatch
Accelerate order handling for quicker shipment release.
Global Logistics and International Delivery
Enable efficient delivery across international destinations.

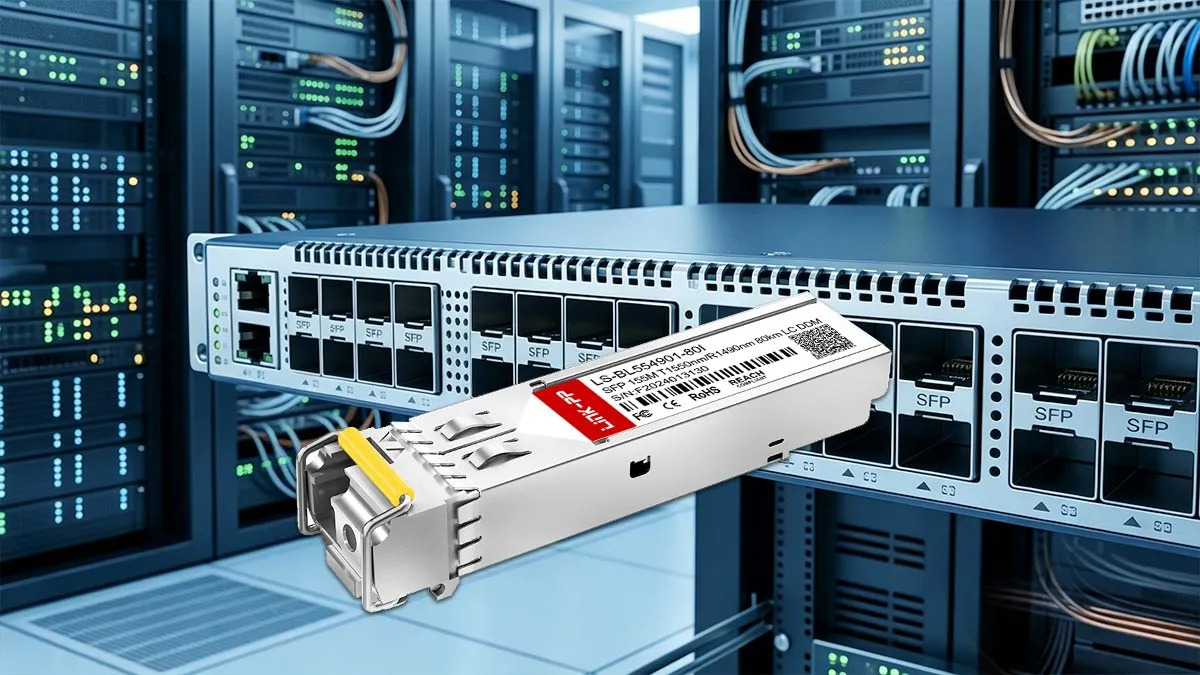

LINK-PP LS-BL554901-80I transceiver module demonstrates simple plug-and-play installation in SFP ports, enabling stable 155M BiDi transmission over single-mode fiber. It is commonly used in industrial networks, utility systems, and remote monitoring links requiring long-distance connectivity.
LS-BL554901-80I Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-BL554901-80I module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
It utilizes a premium 1550nm DFB (Distributed Feedback) laser to ensure minimal spectral width and stable performance over 80km. By
admin on
2026-01-06
A:
Yes, they carry full CE, RoHS, and FCC certifications, making them completely compliant with European enterprise and utility network regulations. By
admin on
2025-08-30
A:
Yes, it fully supports 155M multi-rate protocols, making it ideal for both legacy telecom STM-1/OC-3 lines and standard Fast Ethernet networking. By
admin on
2025-03-11
Please write comments with more than three
character.
494046
360513
P***h
France
Verified
Purchase
5 .0
2026-04-23
We compared this module against other 155M BiDi SFPs on the market. The DFB laser maintained a tighter wavelength stability over temperature, and the PIN receiver had a lower noise floor. At 80 km, the signal-to-noise ratio was superior, allowing reliable communication even with marginal fibre quality. The firmware is fully MSA compliant, so no proprietary handshake issues arose. For long‑haul 155M applications, this is a top-performing optical transceiver.
Please write comments with more than three
character.
494046
360523
J***y
United States
Verified
Purchase
5 .0
2026-03-14
Finally found a reliable SFP for our 80km link between data centers. The -40 to 85°C operating range is perfect for our Texas summers. DDM feature is a plus.
Please write comments with more than three
character.
494046
360510
S***r
Israel
Verified
Purchase
5 .0
2026-01-17
Works flawlessly with our existing single-mode fiber plant. The 155M data rate is a perfect match for our legacy automation systems. Love the simple LC connection.
Please write comments with more than three
character.
494046
360519
D***d
Japan
Verified
Purchase
5 .0
2025-12-28
We’ve deployed these in our regional offices for campus network interconnection. The 80km reach handles the distance between buildings effortlessly. The industrial temperature rating gives us peace of mind for our unconditioned spaces.
Please write comments with more than three
character.
494046
360514
M***y
United Arab Emirates
Verified
Purchase
4 .0
2025-10-27
Excellent transceiver for long-distance backhaul, but the shipping cost was a bit high for our order. The product quality is top-notch, though, and I'd recommend it to anyone.
Please write comments with more than three
character.
494046
360525
E***s
Hungary
Verified
Purchase
5 .0
2025-10-13
Field deployment involved connecting two industrial sites separated by 70km of underground fibre. The SFP operated without a single flap through seasonal temperature swings from -10°C to 55°C. DOM reported stable TX power (-3dBm) and RX power (-27dBm) throughout the test period. The integrated digital diagnostics helped us quickly identify a loose connector during installation. This module is a workhorse for critical infrastructure backbones.
Please write comments with more than three
character.
494046
360509
G***y
India
Verified
Purchase
5 .0
2025-09-25
Deployed 50 of these SFP modules in our new warehouse distribution centers for the conveyor control network. The industrial temperature spec was key as the network closets are not fully climate-controlled.
Please write comments with more than three
character.
494046
360518
A***d
Iran, Islamic Republic of
Verified
Purchase
5 .0
2025-07-09
Solid SFP, good DOM support for monitoring optical power. We use a lot of these transceiver modules for our remote tower links. The 1550nm-TX and 1490nm-RX wavelength pair is standard for us.
Please write comments with more than three
character.
494046
360517
D***s
Indonesia
Verified
Purchase
5 .0
2025-06-19
We deployed these SFP modules for a 155Mbps SCADA backhaul over a single-strand SMF. The BiDi design cut our fibre usage in half, and the Simplex LC connector simplified patching. With TX at -2dBm and RX sensitivity at -32dBm, the link budget supported our 76km run with multiple patch panels. The module performed consistently across humidity and vibration tests. It’s a no‑nonsense solution for legacy industrial networks.
Please write comments with more than three
character.
494046
360511
F***n
Italy
Verified
Purchase
5 .0
2025-04-14
Using these BiDi optical modules for 155Mbps connections to remote monitoring sites. The single-fiber BiDi technology cuts our fiber usage in half, which is a huge win for our older infrastructure.
Please write comments with more than three
character.
494046
360515
F***k
Finland
Verified
Purchase
4 .0
2025-03-02
These 155M SFP modules are awesome and work as expected. The only downside was the shipping; it took a day longer than the estimate. But for the price and reliability, I'll be ordering again.
