LS-BL553101-10I serves as an industrial-grade 155M SFP BiDi optical transceiver, engineered for 10km bidirectional link spans over a 1550nm-TX/1310nm-RX wavelength pair through a simplex LC interface, backed by real-time digital optical monitoring and built to endure extreme temperatures from -40 to +85°C.
LINK-PP Part Number
LS-BL553101-10I
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
155Mbps
Wavelength
1550nm-TX/1310nm-RX
Max Cable Distance
10km
Connector
Simplex LC
Media
SMF
Transmitter Type
FP
Receiver Type
PIN
TX Power
-14 to -8dBm
RX Power
-32 to -6dBm
Receiver Sensitivity
< -32dBm
DOM Support
Yes
Operating Temperature Range
-40 to 85°C
Protocols
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Key Features of LINK-PP LS-BL553101-10I 155M SFP
LINK-PP LS-BL553101-10I is a rugged, industrial-grade BiDi SFP transceiver engineered to provide reliable 155Mbps data links over single-mode fiber up to 10km. This single-fiber module integrates a dual-wavelength optical system, a simplex LC interface, and intelligent digital diagnostics to ensure stable operation in harsh environments. It combines space-saving hardware design with comprehensive real-time monitoring capabilities for critical infrastructure.
LINK-PP LS-BL553101-10I 155M SFP Optical Module
This module utilizes a highly stable 1550nm FP laser as the optical transmitter paired with a sensitive PIN photo detector for the receiver. This optimized component pairing guarantees consistent signal integrity and accurate light detection across wide temperature swings. The robust hardware architecture provides an efficient optical budget required for dependable long-term field operations.
LS-BL553101-10I: 155 Mbps Connectivity for Legacy Telecom
Operating at a stable fast data rate of 155Mbps, this transceiver is fully tailored for SONET OC-3 and Fast Ethernet architectures. It brings modern physical reliability to legacy telecommunications, metro access nodes, and utility networks that rely on these standard transport speeds. The module helps operators sustain older, critical communications equipment without sacrificing link stability.
LS-BL553101-10I Module with 1550nm-TX/1310nm-RX Wavelength
This single-fiber bidirectional (BiDi) transceiver operates on a 1550nm-TX and 1310nm-RX wavelength split to achieve full-duplex communication over a single strand of fiber. This design doubles cabling capacity by eliminating the need for separate transmit and receive fibers. To establish a functional link, it must be deployed alongside a complementary counter-part module that transmits at 1310nm and receives at 1550nm.
Designed for extended spans, the module easily covers paths up to 10km on single-mode fiber without suffering from severe signal degradation. It is built with an industrial temperature tolerance of -40°C to +85°C to protect transmission quality from outdoor weather variations. This makes it an ideal option for connecting distant roadside cabinets, substations, or remote industrial edge nodes.
LS-BL553101-10I Module with Simplex LC Interface
Featuring a compact simplex LC connector, the module minimizes physical space requirements on high-density line cards and switches. The single-port design simplifies cable routing, reduces patch cord clutter, and lowers installation errors during field deployment. This streamlined fiber connection mechanism ensures strong physical retention and low insertion loss.
LS-BL553101-10I Module with DOM for Real-Time Monitoring
The integrated Digital Optical Monitoring (DOM) gives network technicians real-time visibility into internal operational data. It tracks vital diagnostics such as transceiver temperature, laser bias current, supply voltage, and received optical power levels. These metrics allow operators to actively troubleshoot fiber issues and catch link degradation before an actual outage occurs.
LINK-PP LS-BL553101-10I 155M SFP Certification
LINK-PP LS-BL553101-10I undergoes strict global qualification processes, holding major industrial and international compliance standards like ISO 9001, CE, RoHS, and FCC.
Every module passes optical spectrum, eye pattern, and bit error rate testing to ensure absolute signal stability in harsh physical environments.
LS-BL553101-10I Quality Certifications
These industrial credentials validate that the transceiver meets strict regulatory standards for electromagnetic interference shielding and hazardous substance restrictions.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-BL553101-10I Certified for Reliable Host-Device Compatibility
The module's standard-compliant EEPROM firmware is thoroughly validated to ensure seamless plug-and-play interoperability across a wide variety of enterprise switch platforms.
Rigorous Testing Ensures Reliable SFP Performance
Every SFP module undergoes a strict screening process to guarantee consistent link stability, and you can explore our complete quality assurance framework at the LINK-PP Test Support Center.
Optical Spectrum Test
Verify precise laser wavelength output across all operating channels.
Eye Pattern Test
Analyze signal integrity to prevent transceiver waveform distortion.
Bit Error Rate Test
Measure data transmission accuracy under heavy network traffic loads.
Temperature Test
Validate stable optical communication under extreme environmental conditions.
Product Shipping for LINK-PP LS-BL553101-10I 155M SFP
We protect your hardware with secure transit packaging. Backed by our efficient shipping network, we guarantee dependable delivery straight to your doorstep, anywhere in the world.
Anti-Static Protective Packaging
Shield vulnerable electronic components from ESD hazards during handling.
Shock-Resistant Transport Protection
Safeguard optical modules against physical drops and vibration damage.
Fast Order Processing and Dispatch
Prepare and ship individual orders quickly to reduce wait times.
Global Logistics and International Delivery
Transport items securely to international locations through reliable carriers.

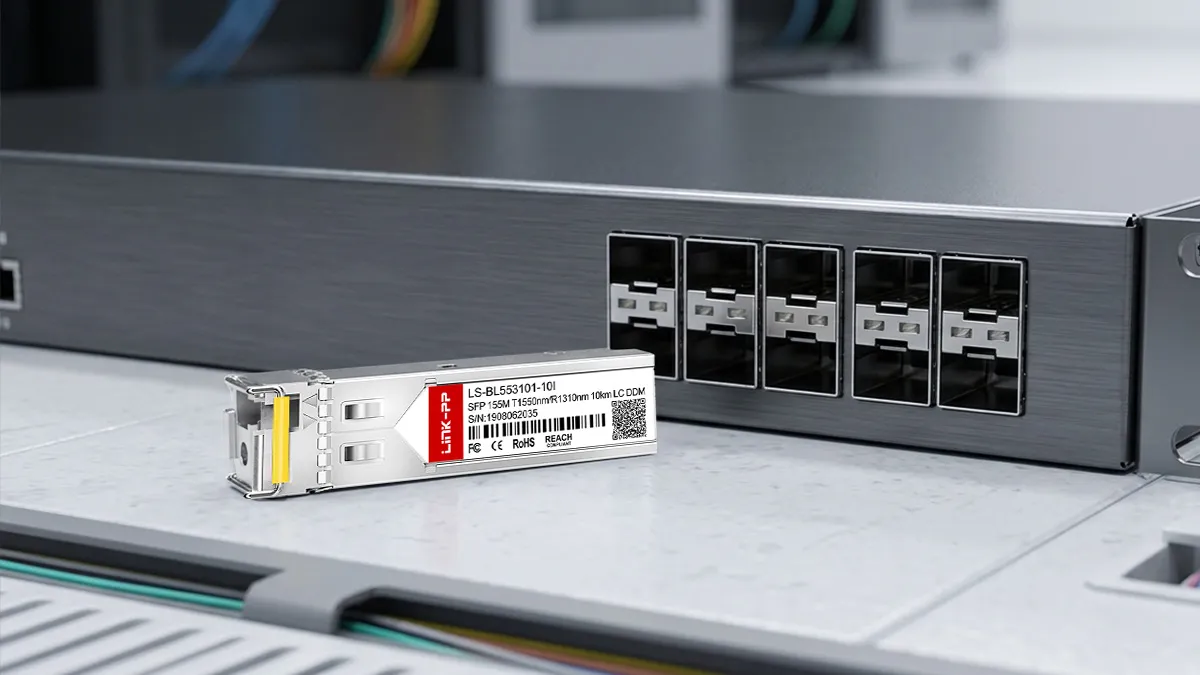

To deploy the LS-BL553101-10I 155M SFP, simply slide the transceiver into a compatible SFP slot and connect a single-mode fiber patch cord to its simplex LC port. It is widely used in industrial automation, smart grids, and legacy telecom networks requiring resilient 155Mbps links.
LS-BL553101-10I Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-BL553101-10I module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
While the LS-BL553101-10I BiDi optical transceiver features a robust optical power budget rated for up to 10km, physical micro-bends can introduce unpredictable signal attenuation. It is generally recommended to inspect and correct fiber bends to safeguard your optical link margins and maintain long-term stability. By
admin on
2026-05-11
A:
Not at all. This is an industrial-grade BiDi SFP transceiver module rated down to -40℃ to ensure reliable startups in sub-zero winters. By
admin on
2026-01-13
A:
Yes, it fully supports DDM/DOM, allowing you to monitor real-time diagnostic telemetry directly via your switch operating system. By
admin on
2025-10-22
Please write comments with more than three
character.
494464
348875
N***s
Republic of Korea
Verified
Purchase
5 .0
2026-04-18
We had a limited fiber budget for our new remote alarm system, and these single-mode BiDi SFP modules saved the day. Operating a bidirectional link over one glass core is incredibly elegant and cost-effective. Highly satisfied with the overall performance.
Please write comments with more than three
character.
494464
348877
J***n
United Kingdom
Verified
Purchase
5 .0
2026-03-03
Our rural infrastructure project was severely limited by physical fiber availability, making single-strand BiDi modules an absolute necessity. These simplex LC transceivers resolved our bottleneck immediately, establishing a robust 155M link over a single glass strand and saving us massive recabling costs. The digital diagnostics are fully compliant with standard multi-source agreements, allowing our operations team to track link health remotely with pinpoint accuracy. It has been running error-free for three months, maintaining completely flat RX/TX power levels despite daily temperature swings in the field.
Please write comments with more than three
character.
494464
348891
T***r
Libyan Arab Jamahiriya
Verified
Purchase
5 .0
2026-02-11
Perfect for stretching physical fiber runs on our remote links! We were completely out of spare dark fiber cores on our legacy campus network runs. Switching over to these simplex LC BiDi SFP modules allowed us to squeeze double the capacity out of our existing layout. The link came up instantly and has been dead quiet on errors ever since.
Please write comments with more than three
character.
494464
348880
A***d
United Kingdom
Verified
Purchase
5 .0
2025-12-22
Extremely robust against outdoor environmental swings. We deployed a batch of these inside our trackside signaling cabinets. We see extreme freezing temperatures here in the winter, and finding reliable industrial-grade 155M SFP modules at this price point is rare. They have run continuously for months without a hiccup.
Please write comments with more than three
character.
494464
348883
R***d
Lithuania
Verified
Purchase
5 .0
2025-11-19
Crystal clear signal for our outdoor camera backhaul! These SFP transceiver modules are currently backhauling 155Mbps data streams from a remote gate camera over a 6km single-mode span. The video feeds are smooth with zero packet loss, proving the optical power budget on these BiDi optical transceivers is top-notch.
Please write comments with more than three
character.
494464
348876
R***s
Cambodia
Verified
Purchase
5 .0
2025-09-07
We benchmarked a batch of these industrial-grade BiDi SFP transceivers in our staging lab before deploying them across an 8.5km single-mode span. Using our optical power meter, we verified a very clean transmit level and exceptional receiver sensitivity, leaving a healthy safety margin for a 155Mbps connection. The integrated DOM micro-controller reports highly accurate real-time metrics for voltage, temperature, and laser bias, which we pull seamlessly via SNMP to our central monitoring system. The physical installation has been running continuously through extreme seasonal shifts without a single frame drop, proving the hardware is built to last.
Please write comments with more than three
character.
494464
348879
P***d
Japan
Verified
Purchase
5 .0
2025-08-09
We integrate outdoor perimeter security networks, and roadside cabinets in our region regularly exceed 75°C during peak summer months. Standard commercial transceivers tend to drift and lose signal under these conditions, but these industrial-wide temperature SFP modules haven't dropped a packet. The 155Mbps throughput is incredibly consistent, ensuring our high-definition video backhaul streams smoothly over a 7km single-mode run with zero jitter. The rugged construction and thermal resilience of this hardware make it our primary go-to module for outdoor field layouts.
Please write comments with more than three
character.
494464
348890
D***e
Italy
Verified
Purchase
4 .0
2025-07-08
Flawless operation, but the delivery window slipped by two days. We purchased these for an urgent telemetry network fix, but the package arrived slightly past the estimated delivery date. The modules themselves synced up immediately and have been running error-free ever since, but make sure to order well in advance if you are on a tight schedule.
Please write comments with more than three
character.
494464
348892
E***x
Cambodia
Verified
Purchase
5 .0
2025-06-15
Great customer support and prompt response times! Our procurement team ordered 150 modules for an upcoming network upgrade, but we had some quick technical questions regarding the receiver sensitivity threshold. The engineering team got back to us within a few hours with clear, concise answers. Excellent service!
Please write comments with more than three
character.
494464
348884
C***n
Japan
Verified
Purchase
5 .0
2025-06-05
High-reliability modules for our roadside traffic control systems! We needed a steady 155M SFP optical transceiver for our localized traffic monitoring hubs. The unshielded enclosures get unbelievably hot during summer afternoons, but the industrial wide-temp design of these units handles the heat perfectly. Not a single link flap has been reported so far.
Please write comments with more than three
character.
494464
348881
A***s
Lithuania
Verified
Purchase
5 .0
2025-05-02
Our power substation ring topology requires highly reliable components with wide operating temperature tolerances to handle unconditioned outdoor enclosures. These industrial-grade 155M SFP optical modules met our technical requirements perfectly, sustaining reliable data transmission even when cabinet temperatures fluctuated wildly. The real-time DOM telemetry is incredibly precise, allowing our network operating center to perform predictive maintenance by monitoring for any subtle fiber degradation. A highly professional, industrial-grade solution that delivers excellent value without sacrificing link integrity.
Please write comments with more than three
character.
494464
348878
J***r
Republic of Korea
Verified
Purchase
5 .0
2025-01-09
Steady optical power levels under heavy loads! Installed these 155M SFP modules in our remote monitoring substations and we've been running continuous loop tests to stress the hardware. The transmit and receive power levels remain completely flat, proving the quality of the laser inside.
