LP22BC01303 sfp+ 2x2 cage&connector with emi spring finger light pipe press-fit
คลิกเพื่อเปิดมุมมองที่ขยาย

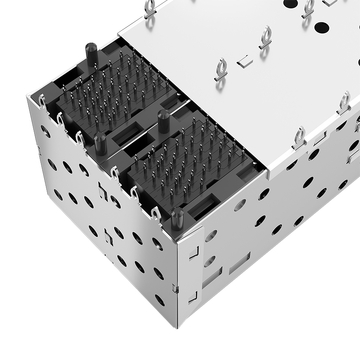

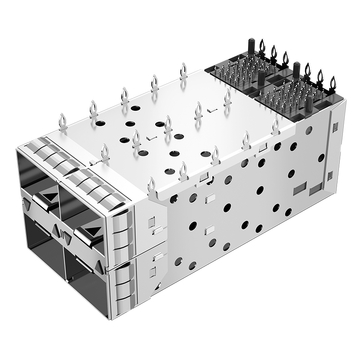

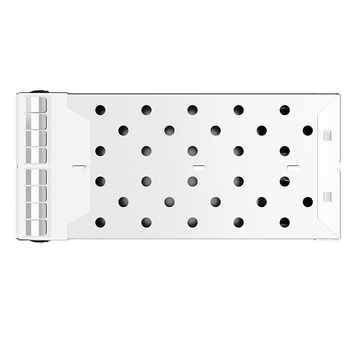

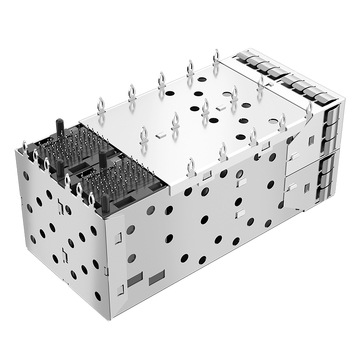

LP22BC01303 SFP+ 2x2 Cage&Connector พร้อมสปริงกัน EMI สำหรับท่อส่งแสงแบบกดพอดี

สรุปสินค้า

สินค้า
LP22BC01303 SFP+ 2x2 Cage&Connector พร้อมสปริงกัน EMI สำหรับท่อส่งแสงแบบกดพอดี
SKU
196625
P / N
LP22BC01303
ราคา
THB 221
หุ้น
899 ในสต็อก
ขาย
2.1K
URL ผลิตภัณฑ์
https://www.l-p.com/products/487836.htm
ราคาต่อหน่วย THB 221
ผู้ใช้ใหม่: THB 336 คูปองส่วนลดสำหรับการสั่งซื้อครั้งแรกของคุณ
รหัส linkpp2610
สำหรับการสั่งซื้อเกิน THB 33,560 เข้ามา THB 503 Off
รหัส Linkpp15
สำหรับการสั่งซื้อเกิน THB 100,680 เข้ามา THB 1,678 Off
รหัส Linkpp50
สำหรับการสั่งซื้อเกิน THB 167,800 เข้ามา THB 3,356 Off
รหัส Linkpp100
P / N: LP22BC01303SKU: 196625

LINK-PP เป็นต้นฉบับแผ่นข้อมูลดาวน์โหลดทั้งหมด

ร่วมกันได้:
LINK-PP
Molex
P/N ที่เข้ากันได้:
LP22BC01303
การกำหนดราคาตามปริมาณ ระดับการสั่งซื้อออนไลน์ · สั่งซื้อจำนวนมากหรือขอราคาพิเศษได้ตามต้องการ
THB 221
1–99 ชิ้น
THB 190
100–999 ชิ้น
THB 166
1,000–4,999 ชิ้น
THB 158
5,000–9,999 ชิ้น
THB 150
≥10,000 ชิ้น

หากต้องการปริมาณมากกว่านี้ หรือต้องการต่อรองราคา โปรดติดต่อเรา

สต็อก:
899 ในสต็อก
การส่งสินค้า:
THB 576
ไปยัง ประเทศไทย ผ่านทาง เฟดเอ็กซ์ ไอพี
เวลาจัดส่งโดยประมาณ : 3 - 6 วัน
5- รับประกันปี 15-Day Returns การแลกเปลี่ยนภายใน 15 วัน
การประกัน
  • รับประกันสินค้า 5 ปี ซึ่งถือเป็นระยะเวลารับประกันที่ยาวนานที่สุดในอุตสาหกรรม
  • อ่านตารางสำหรับ รายละเอียด ของการรับประกันสินค้าทั้งหมด
การคืนสินค้าและการแลกเปลี่ยน
  • จะได้รับเงินคืนประมาณ 5 วันทำการหลังจากได้รับสินค้าที่ส่งคืนแล้ว
  • สินค้าที่มีอยู่ในสต็อกสำหรับเปลี่ยนทดแทน สามารถจัดส่งได้ภายใน 1 วันทำการ
  • โปรดอ่านนโยบายการคืนสินค้าฉบับเต็ม รายละเอียด.
จัดส่งฟรีเมื่อซื้อครบ THB 3,322.
หรือเลือกใช้บริการจัดส่งผ่านบัญชี UPS / FedEx / DHL ของคุณเองในขั้นตอนการชำระเงิน (THB 0 การส่งสินค้า).
ปริมาณ:
ราคารวม:
THB 221

LINK-PP LP22BC01303 SFP+ 2x2 Cage&Connector พร้อม EMI Spring Finger LightPipe

LINK-PP ส่วนจำนวน LP22BC01303 สถานะส่วนหนึ่ง ใช้งาน
ประเภทสินค้า เต้ารับแบบมีกรง Ganged (2x2) ฟอร์มแฟกเตอร์ SFP +
การกำหนดค่าพอร์ตเมทริกซ์ พอร์ต 2x2 จำนวนพอร์ต 4
ช่วงอุณหภูมิ -40 - 85 °ซ รูปแบบการติดตั้ง PCB รูทะลุ - อัดเข้า
รวมหลอดไฟ มี (ใบกำกับภาษีเต็มรูปแบบ) ความสูง (นิ้ว/มม.) 1.005/25.53
ความยาว (นิ้ว/มม.) 2.490/63.25 ความกว้าง (นิ้ว/มม.)
1.142/29.00

ตารางเปรียบเทียบรุ่น

LINK-PP

จับคู่ผลิตภัณฑ์

ภาพ ID # รายละเอียด ราคา หุ้น เพิ่มไปที่รถเข็น

ดาวน์โหลด

การเขียนแบบผลิตภัณฑ์ LP22BC01303.pdf

คำถามและคำตอบ

ยังไม่มีคำถามใดๆ

เป็นคนแรกที่สอบถามเกี่ยวกับข้อมูลจำเพาะ ความเข้ากันได้ หรือระยะเวลาในการจัดส่ง

ส่งคำถาม
  • A:
    Because the materials have to survive the swing. The body is moulded plastic and the fingers are formed metal, and at the cold end ordinary grades go brittle at the slots while at the hot end the plating and the contact resistance drift. The rated part is built from grades chosen for that range, which is why it costs more than the plain version and why a cabinet outdoors is the case to buy it for. by LINK-PP Technical Support
  • A:
    They line up with the layout the cage was designed around, and the sheet does not print the LED pitch. Measure the distance from the cage face to the LED centres on your board and compare that with a sample before committing, because a few millimetres is enough to lose the light. If the layout is yours to change, moving the LEDs is easier than finding a cage with a different pipe length. by LINK-PP Technical Support
  • A:
    A flat press with a support block under the board, and the hole pattern from the vendor drawing, because there is no second chance once the tails are set. The tolerance is the usual press fit window for plated through holes, and the plating thickness matters as much as the diameter. Ask for the recommended hole size and the insertion force range, and press one sample before running a panel. by LINK-PP Technical Support
  • A:
    No. The opening and the connector are sized for the SFP and SFP+ package, and a QSFP body is wider and deeper, so it will not enter the cage at all. Putting a hundred gig module in a four port SFP+ matrix is a different cage, a different connector and a different thermal path. Check the port matrix and the package on the module before ordering, because the two families are not interchangeable even when the port count matches. by LINK-PP Technical Support

ความคิดเห็นของลูกค้า

  • 5

    43 รีวิว

  • 5 ดาว
    95%
    4 ดาว
    5%
    3 ดาว
    0%
    2 ดาว
    0%
    1 ดาว
    0%
  • รีวิวทั้งหมด (43)
ไม่มีข้อมูล
S *** แหล่ง
โคลอมเบีย
ตรวจสอบการสั่งซื้อ
5.0
2026-11-07
Sixty three and a quarter millimetres long, which on our card left eleven millimetres for the module tails and the cable bend. Measured before we committed. =D
*** d
บราซิล
ตรวจสอบการสั่งซื้อ
5.0
2026-10-09
One placement and one press operation instead of four cages and four connector placements. On a line card the front panel is the constraint, so that is the difference between two passes and four.
N *** เสื้อ
ฟิลิปปินส์
ตรวจสอบการสั่งซื้อ
5.0
2026-09-09
Sixty three point two five millimetres from the face to the tail ends. That is the number that decides whether the cage clears the components behind it on a shallow card, and it is also the lever arm the insertion force acts on when somebody shoves a module in.
C *** n
เม็กซิโก
ตรวจสอบการสั่งซื้อ
5.0
2026-08-10
A two by two matrix is the shape most line cards use, because it matches how the switch silicon groups its ports and how the front panel is cut. Four in a row is harder to route and harder to cool, so two by two fits a standard card height.
C *** เสื้อ
เนเธอร์แลนด์
ตรวจสอบการสั่งซื้อ
5.0
2026-07-11
The ganged body holds four ports in one plane, so none sits proud.
